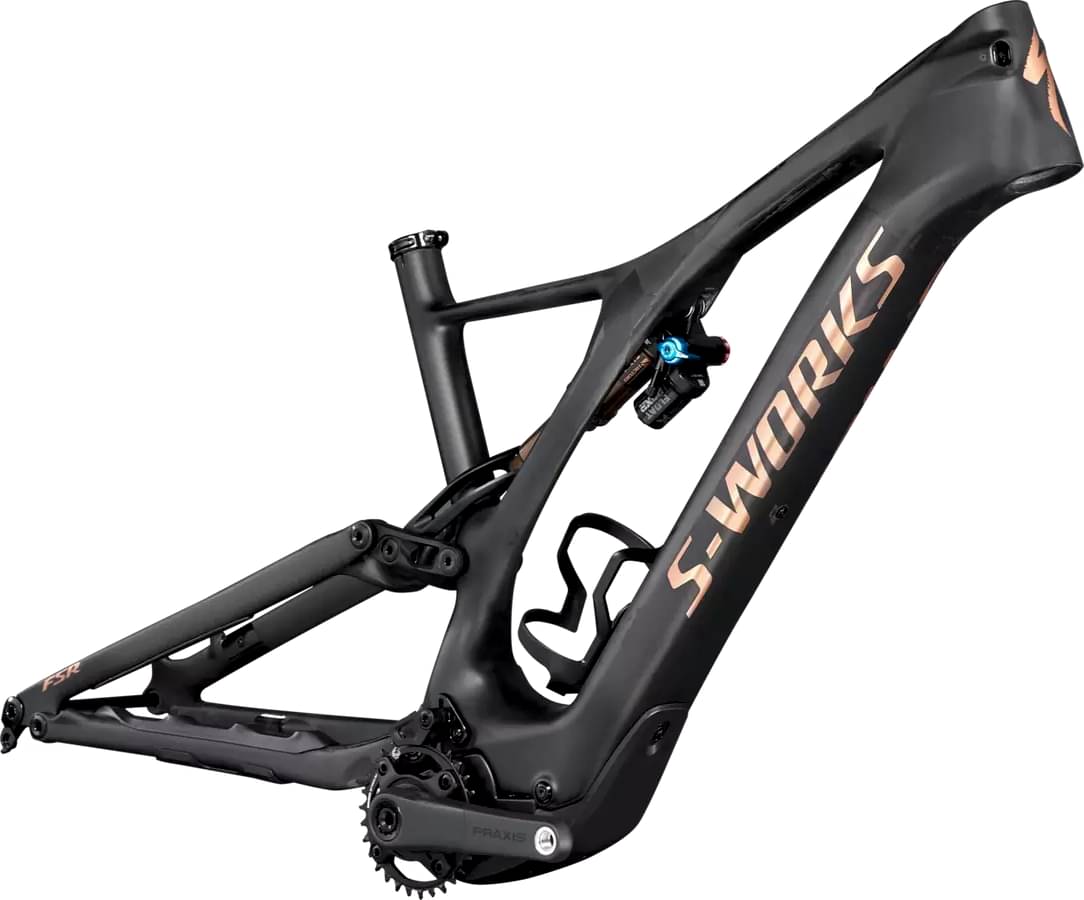

Specialized S-Works Turbo Levo SL Frameset 2022
2022 E-bike
Estimate price |
8,000$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Rear 150mm -
Groupset Praxis -
Suspension Full -
Motor Specialized 240W 35Nm mid-drive -
Battery Specialized SL1-320, fully integrated, 320Wh
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 11m full carbon, 29 Trail Geometry, Integrated down tube battery, enclosed internal cable, Command Post routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel
Rear Shock
Fox Float DPX2 Factory, 3- position adjustment, 52.5x210mm, Rx Trail Tune
Drivetrain
Crank
Praxis Carbon/M30 Spindle Interface, SRAM X-Sync Eagle, 94 BCD, 30T
Motor & Battery
Motor
Specialized SL 1.1, custom lightweight motor
Battery
Specialized SL1-320, fully integrated, 320Wh
Charger
Custom charger, 48V System w/ SL system charger plug
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.39 mm | 1.39 mm | 1.34 mm |
| Bottom Bracket Height | 348 mm | 348 mm | 348 mm | 348 mm |
| Front Center | 729 mm | 749 mm | 781 mm | 812 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 111 mm | 111 mm | 111 mm | 111 mm |
| Stack | 613 mm | 613 mm | 640 mm | 654 mm |
| Reach | 422 mm | 442 mm | 462 mm | 487 mm |
| Top Tube Length | 581 mm | 604 mm | 636 mm | 670 mm |
| Seat Tube Angle | 75.3 ° | 75 ° | 74.6 ° | 74.2 ° |
| Seat Tube Length | 390 mm | 410 mm | 455 mm | 505 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 95 mm | 95 mm | 125 mm | 140 mm |
| Chainstay Length | 444 mm | 444 mm | 444 mm | 444 mm |
| Wheelbase | 1172 mm | 1192 mm | 1224 mm | 1255 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm | 27 mm |
| Standover Height | 794 mm | 797 mm | 814 mm | 821 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
S-Works Turbo Levo SL Frameset is a Specialized E Turbo Levo Sl model. Specialized launched 21 e-bikes of this model so far. Take a sneak peek at all Specialized E Turbo Levo Sl e-bikes models from 2022, by clicking here.
Model range prices
Specialized S-Works Turbo Levo SL Frameset 2022 is the most economical model, with a starting price of 8000$. Specialized S-Works Turbo Levo SL 2022 on the other hand costs 14500$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Enduro e-bikes average price
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
This e-bike was released in 2022 and its price was 8000$. Comparing this to the average Enduro e-bike price, we see that the price is 67.19% higher.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
S-Works Turbo Levo SL Frameset components
Rear Shock
As for the rear shock, this e-bike has the Fox Float DPX2 Factory model, with a travel of 150mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
The S-Works Turbo Levo SL Frameset 2022 e-bike is equipped with 29″ wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
