Specialized S-Works Turbo Levo – SRAM XX T-Type 2024

2024 E-bike
Estimate price | 15,484$
Weight | 22.5 kg
E-bike
Open compare Use advisor

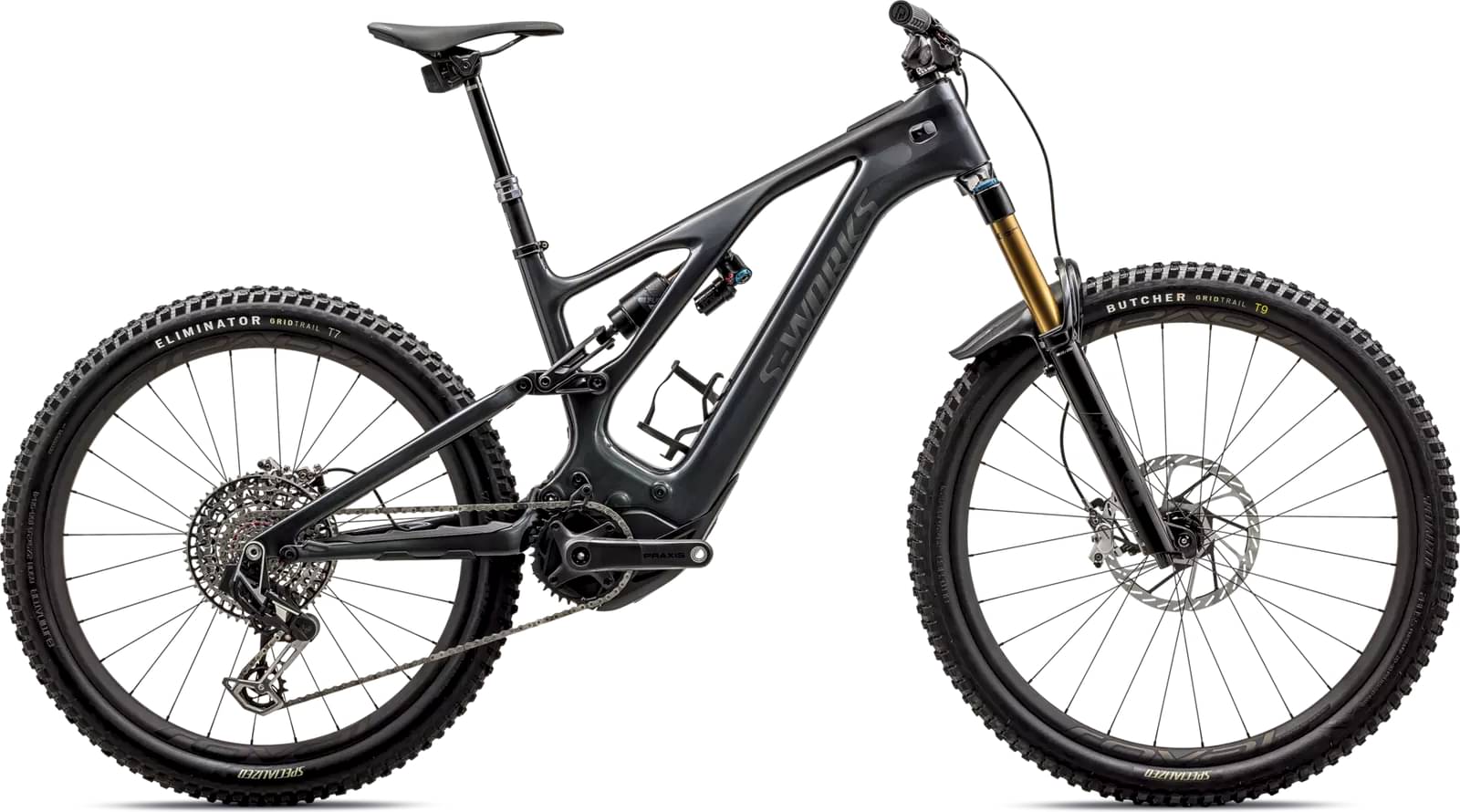

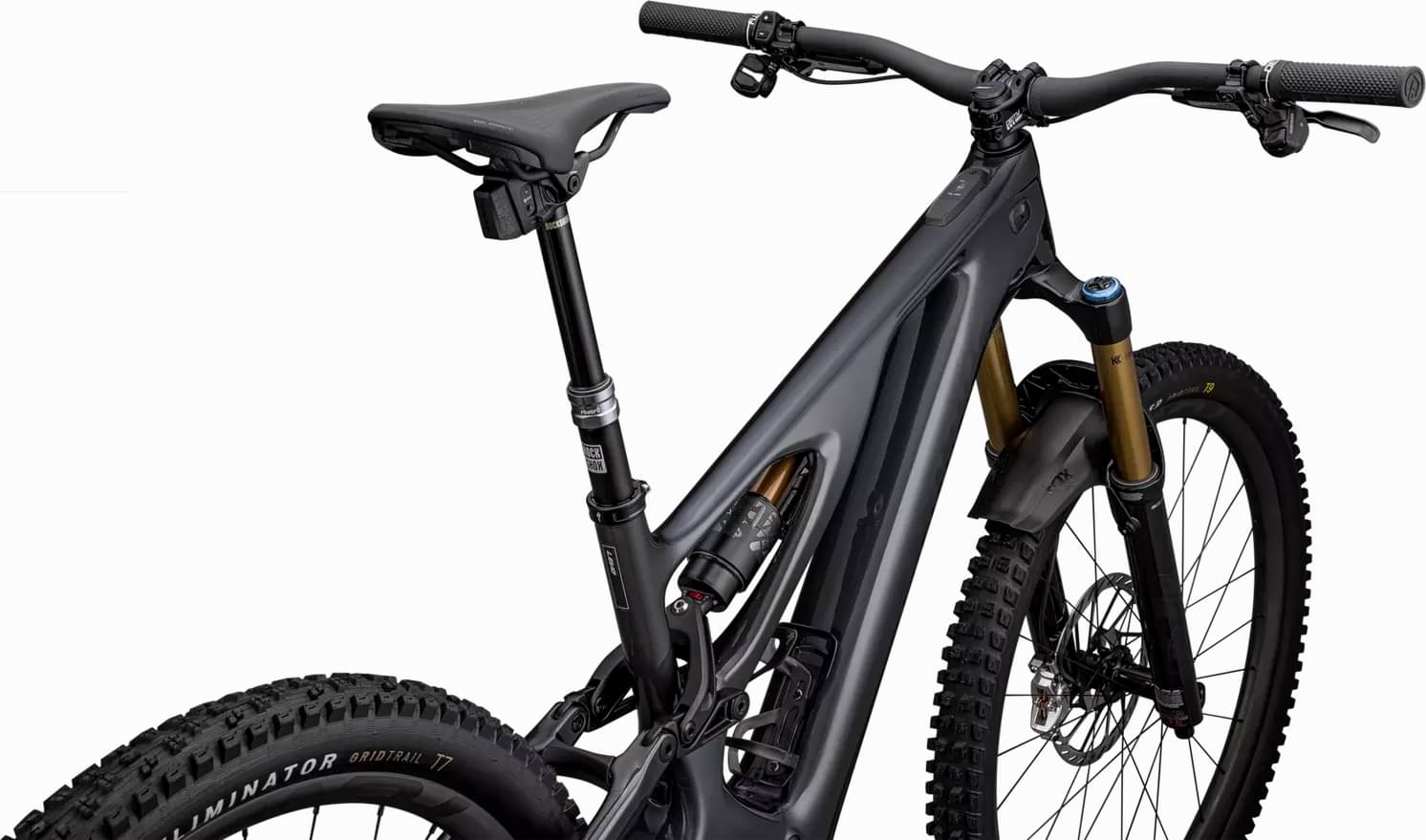

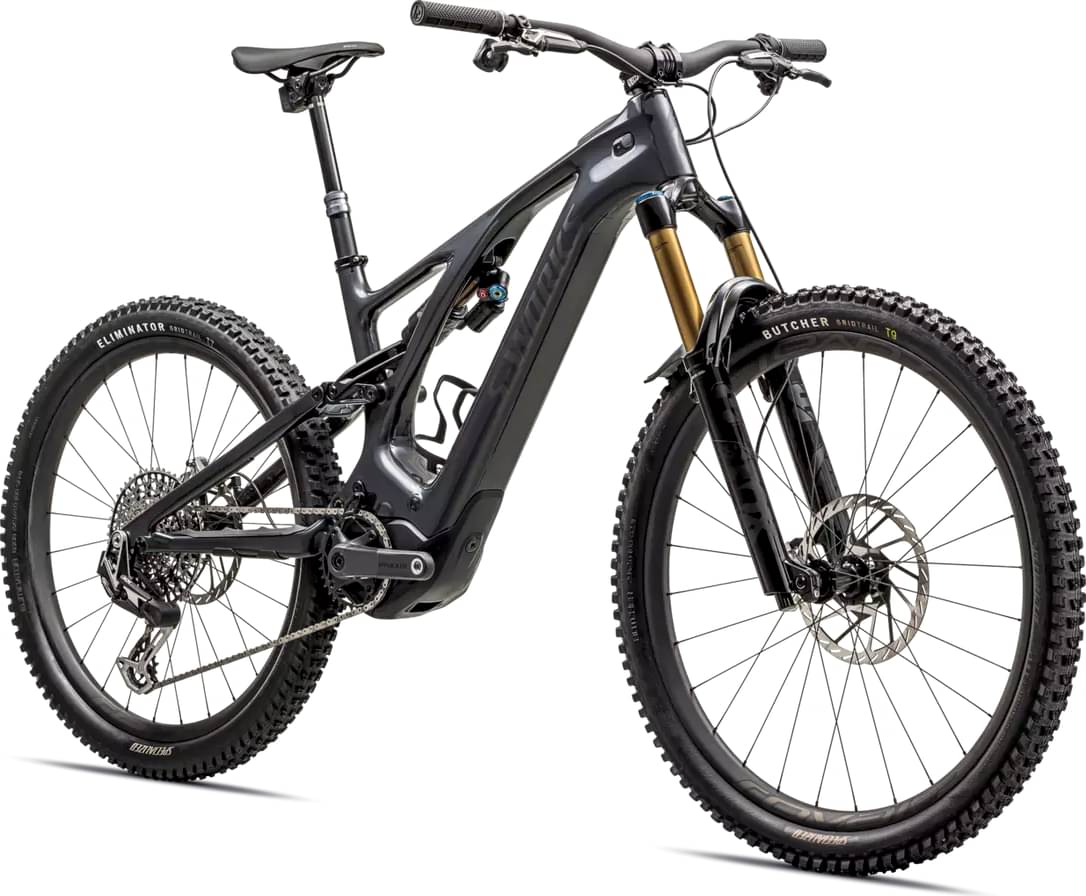

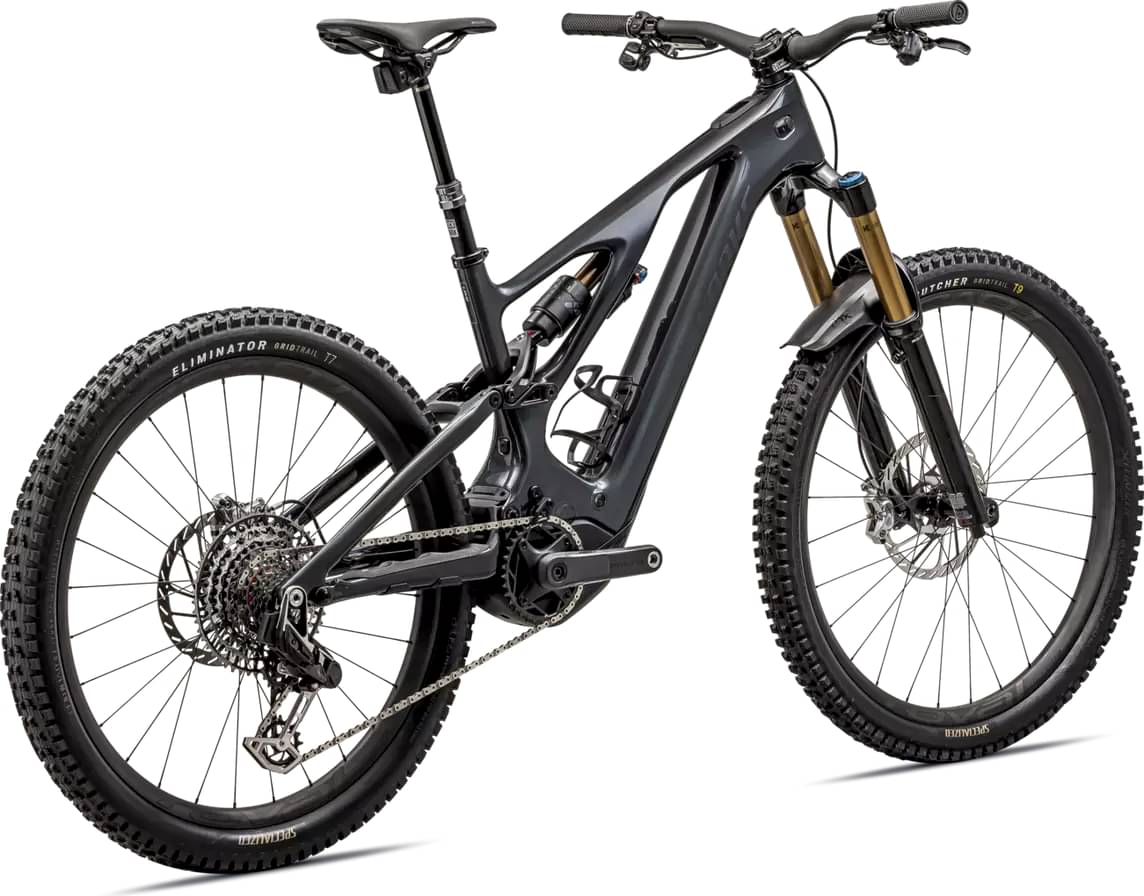

  • Specialized S-Works Turbo Levo – SRAM XX T-Type 2024 - Gloss Black Liquid Metal / Satin Black Chrome Foil

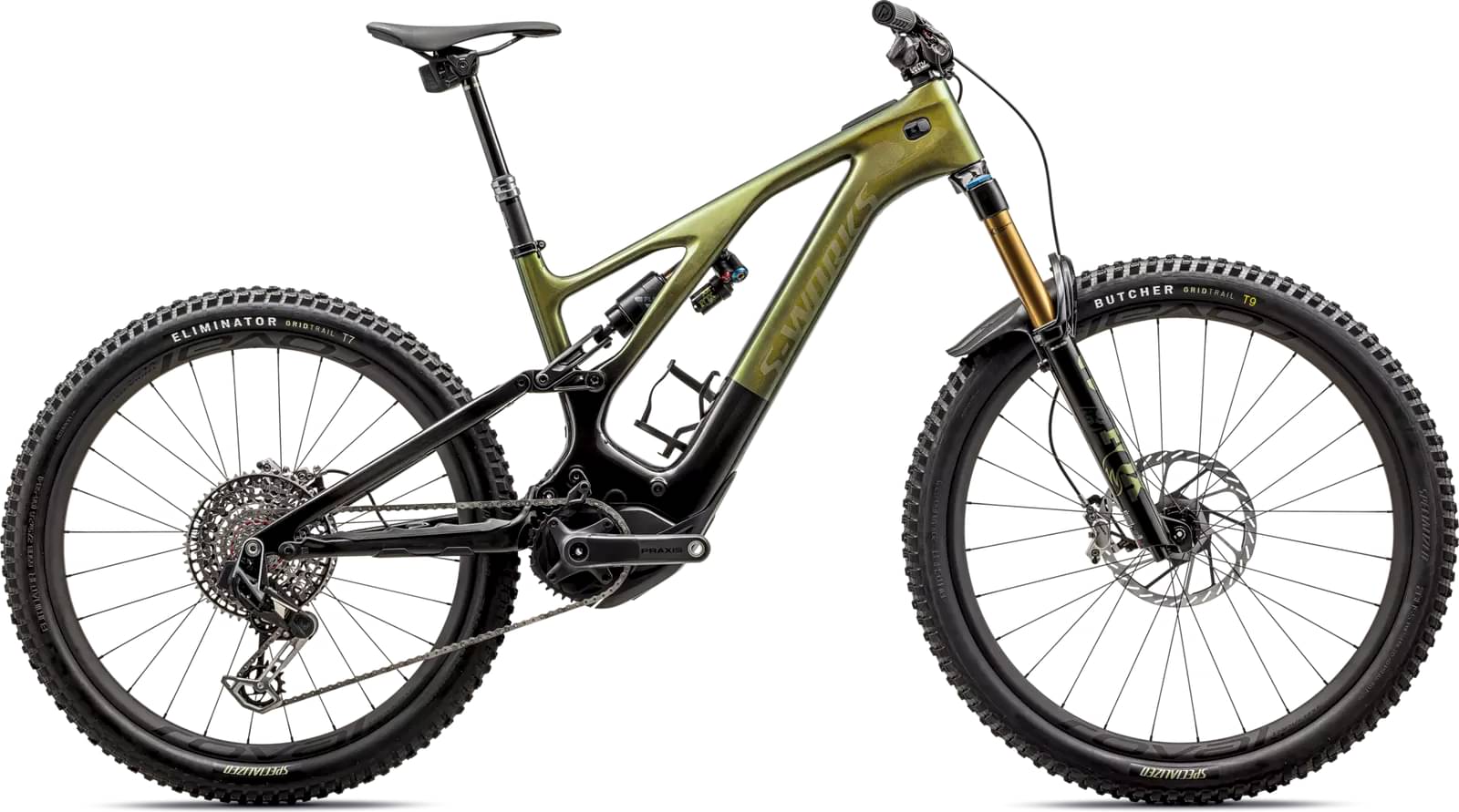

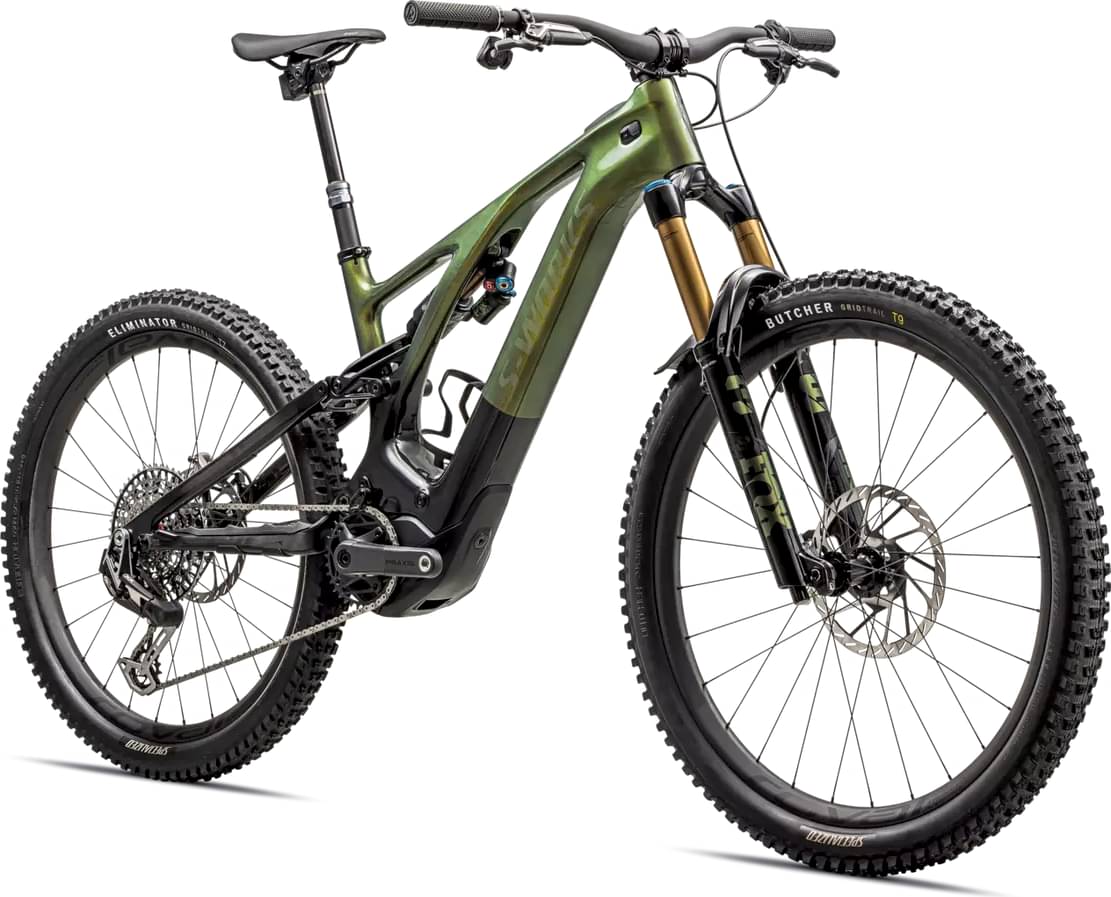

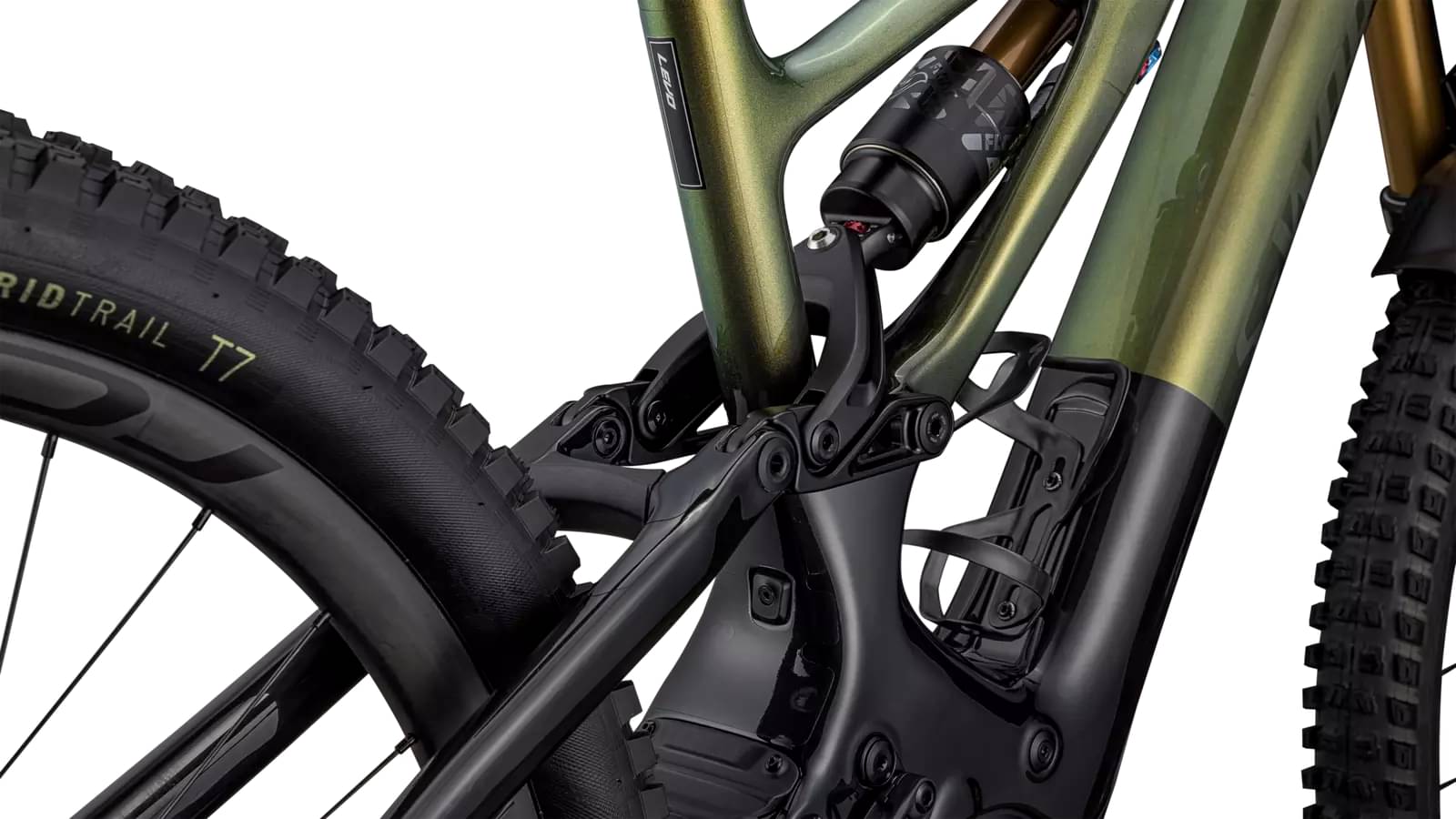

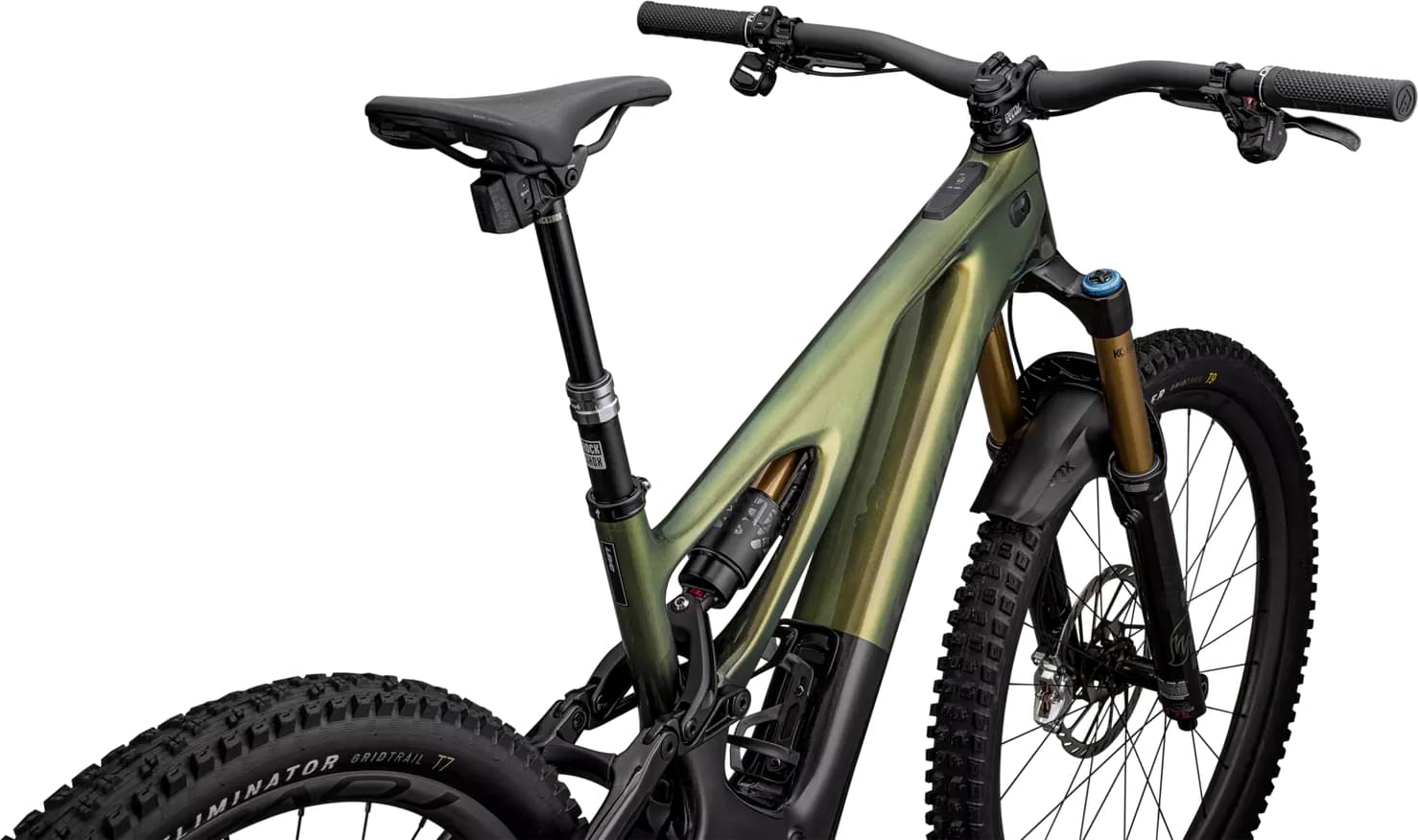

  • Specialized S-Works Turbo Levo – SRAM XX T-Type 2024 - Gloss Gold Pearl over Carbon / Carbon / Gold Pearl over Carbon
  • Specialized S-Works Turbo Levo – SRAM XX T-Type 2024 - Gloss Black Liquid Metal / Satin Black Chrome Foil
  • Specialized S-Works Turbo Levo – SRAM XX T-Type 2024 - Gloss Black Liquid Metal / Satin Black Chrome Foil
  • Specialized S-Works Turbo Levo – SRAM XX T-Type 2024 - Gloss Black Liquid Metal / Satin Black Chrome Foil
  • Specialized S-Works Turbo Levo – SRAM XX T-Type 2024 - Gloss Black Liquid Metal / Satin Black Chrome Foil
  • Specialized S-Works Turbo Levo – SRAM XX T-Type 2024 - Gloss Black Liquid Metal / Satin Black Chrome Foil
  • Specialized S-Works Turbo Levo – SRAM XX T-Type 2024 - Gloss Black Liquid Metal / Satin Black Chrome Foil
  • Specialized S-Works Turbo Levo – SRAM XX T-Type 2024 - Gloss Black Liquid Metal / Satin Black Chrome Foil
  • Specialized S-Works Turbo Levo – SRAM XX T-Type 2024 - Gloss Black Liquid Metal / Satin Black Chrome Foil

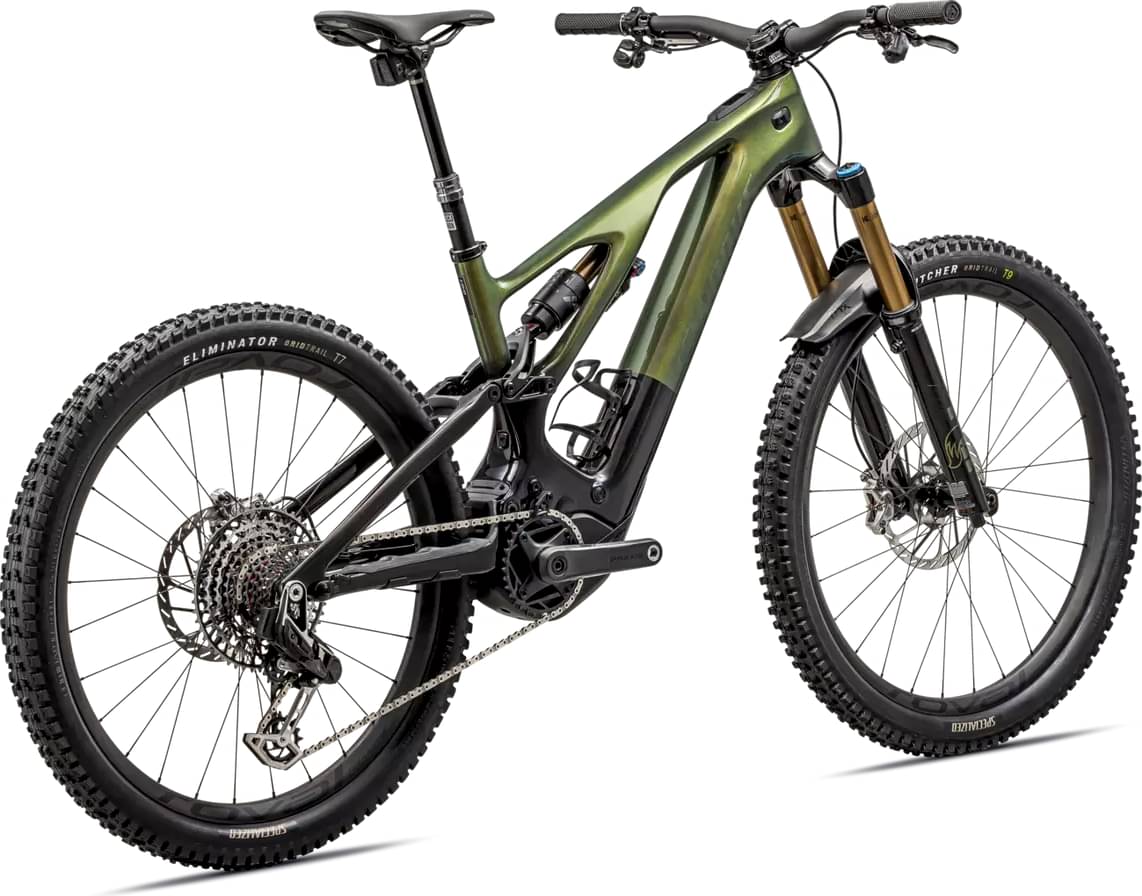

  • Specialized S-Works Turbo Levo – SRAM XX T-Type 2024 - Gloss Gold Pearl over Carbon / Carbon / Gold Pearl over Carbon
  • Specialized S-Works Turbo Levo – SRAM XX T-Type 2024 - Gloss Gold Pearl over Carbon / Carbon / Gold Pearl over Carbon
  • Specialized S-Works Turbo Levo – SRAM XX T-Type 2024 - Gloss Gold Pearl over Carbon / Carbon / Gold Pearl over Carbon
  • Specialized S-Works Turbo Levo – SRAM XX T-Type 2024 - Gloss Gold Pearl over Carbon / Carbon / Gold Pearl over Carbon
  • Specialized S-Works Turbo Levo – SRAM XX T-Type 2024 - Gloss Gold Pearl over Carbon / Carbon / Gold Pearl over Carbon
  • Specialized S-Works Turbo Levo – SRAM XX T-Type 2024 - Gloss Gold Pearl over Carbon / Carbon / Gold Pearl over Carbon
  • Specialized S-Works Turbo Levo – SRAM XX T-Type 2024 - Gloss Gold Pearl over Carbon / Carbon / Gold Pearl over Carbon
  • Specialized S-Works Turbo Levo – SRAM XX T-Type 2024 - Gloss Gold Pearl over Carbon / Carbon / Gold Pearl over Carbon

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Carbon
  • Wheels 29"
  • Travel Front 160mm
  • Travel Rear 150mm
  • Fork Fox Factory Float 38
  • Groupset XX Eagle Transmission, X01 Eagle AXS
  • Suspension Full
  • Motor Specialized mid-drive
  • Battery Specialized M3-700, Integrated battery, 700Wh
  • Drivetrain 1 × 12 Electronic
  • Brakes Hydraulic Disc
Sizing

Recommended size guide.

  • S2

    157cm - 172cm

  • S3

    165cm - 180cm

  • S4

    172cm - 188cm

  • S5

    177cm - 193cm

  • S6

    188cm - 203cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

FACT 11m full carbon, 29" front wheel, 27.5" rear wheel, full internal cable routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel, geo adjust head tube, geo adjust horst pivot

Suspension Fork

Fox 38 Factory, Grip 2 Damper, 29", 160mm Travel, Kashima, 44mm Offset

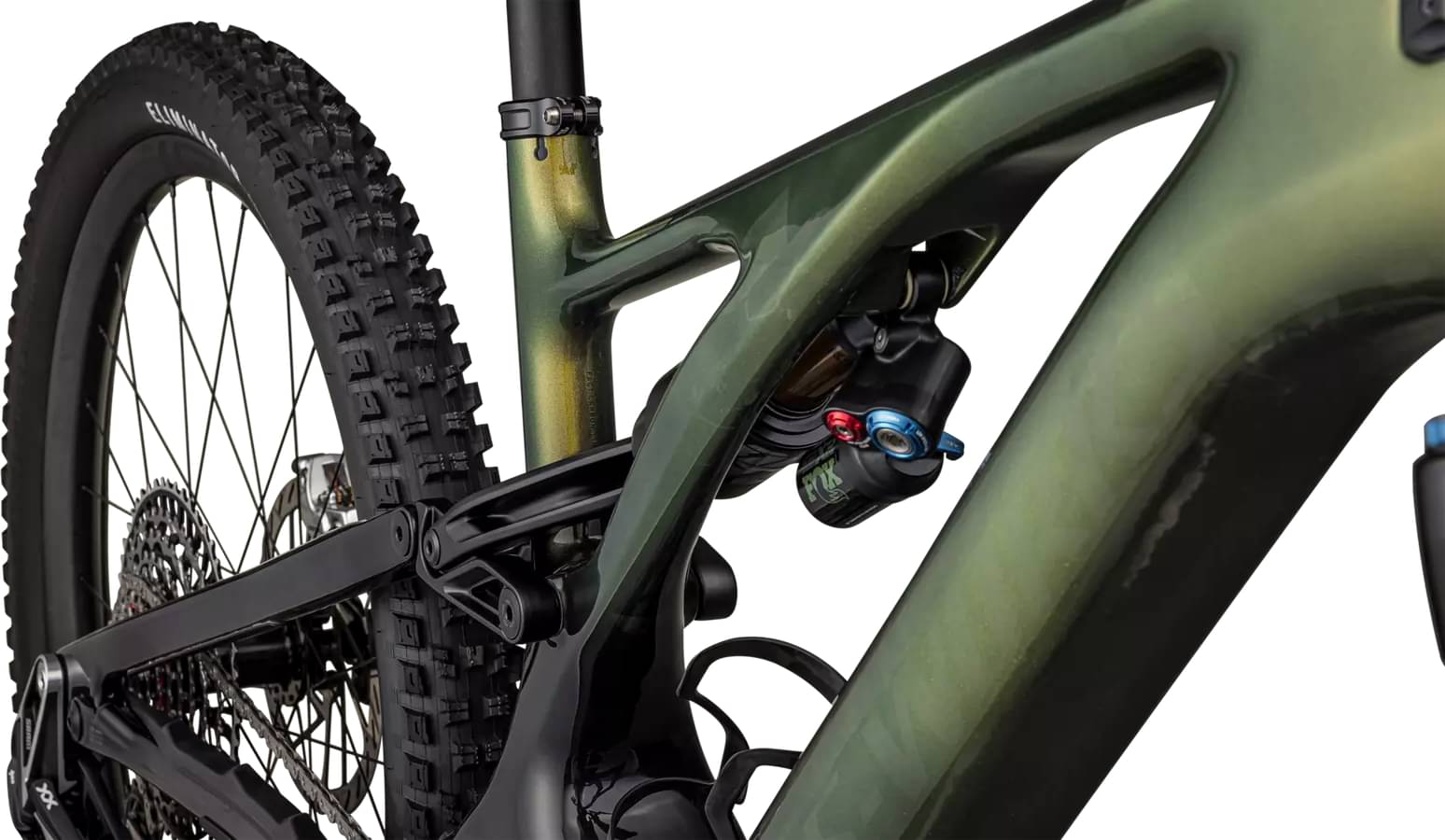

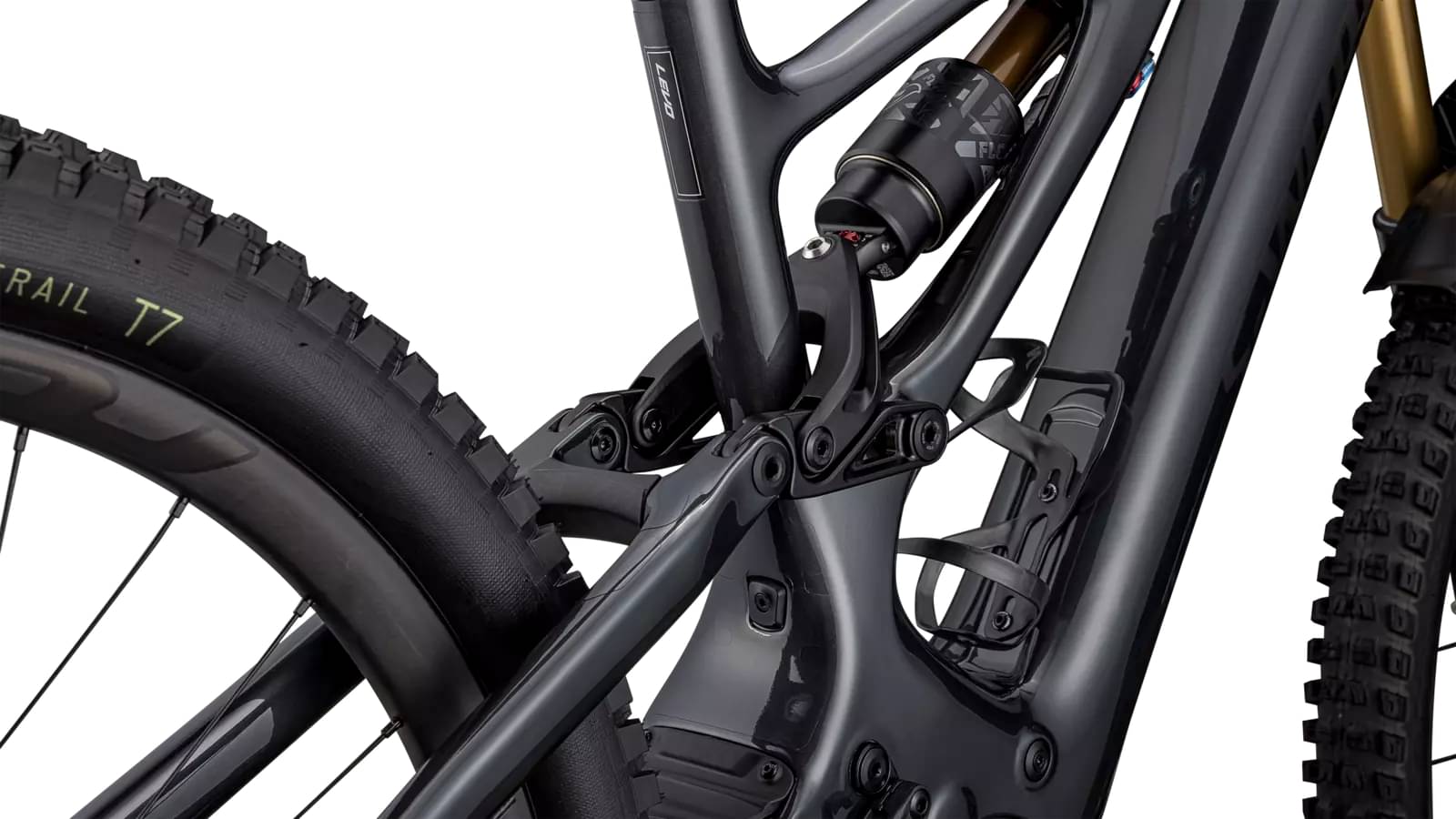

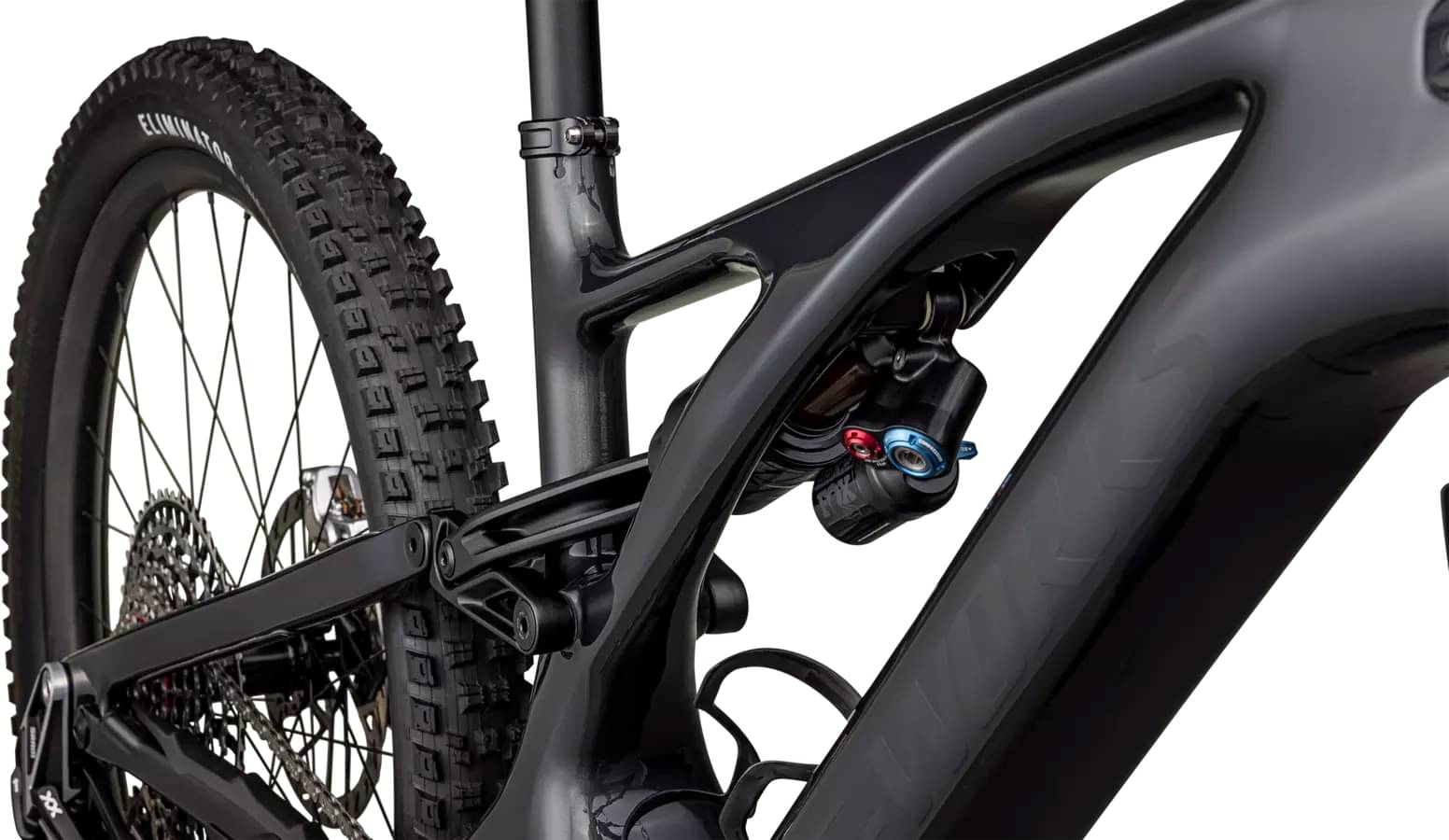

Rear Shock

Fox Float X2 Factory, Kashima, 210x55mm

Drivetrain

Rear Derailleur

SRAM XX Eagle Transmission Derailleur

Shift Levers

SRAM AXS POD Controller

Cassette

SRAM XX Eagle Transmission Cassette, 12spd, 10-52t

Crank

Praxis Carbon/Custom Offset/ISIS Spindle Interface, 160mm, New SL 1.2 spider, 104BCD w/SRAM 32t Transmission compatible alloy ring

Chain

SRAM XX Eagle Transmission Flattop Chain

Wheels

Rims

Front: Roval Traverse SL 29, Rear: Roval Traverse SL 27.5, 148mm spacing, XD freehub body

Tires

Front: Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6", Rear: Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6"

Brakes

Brakes

Front: SRAM Code Stealth Ultimate, 4-piston caliper, hydraulic disc, 220mm rotor, Rear: SRAM Code Stealth Ultimate, 4-piston caliper, hydraulic disc, 220mm rotor

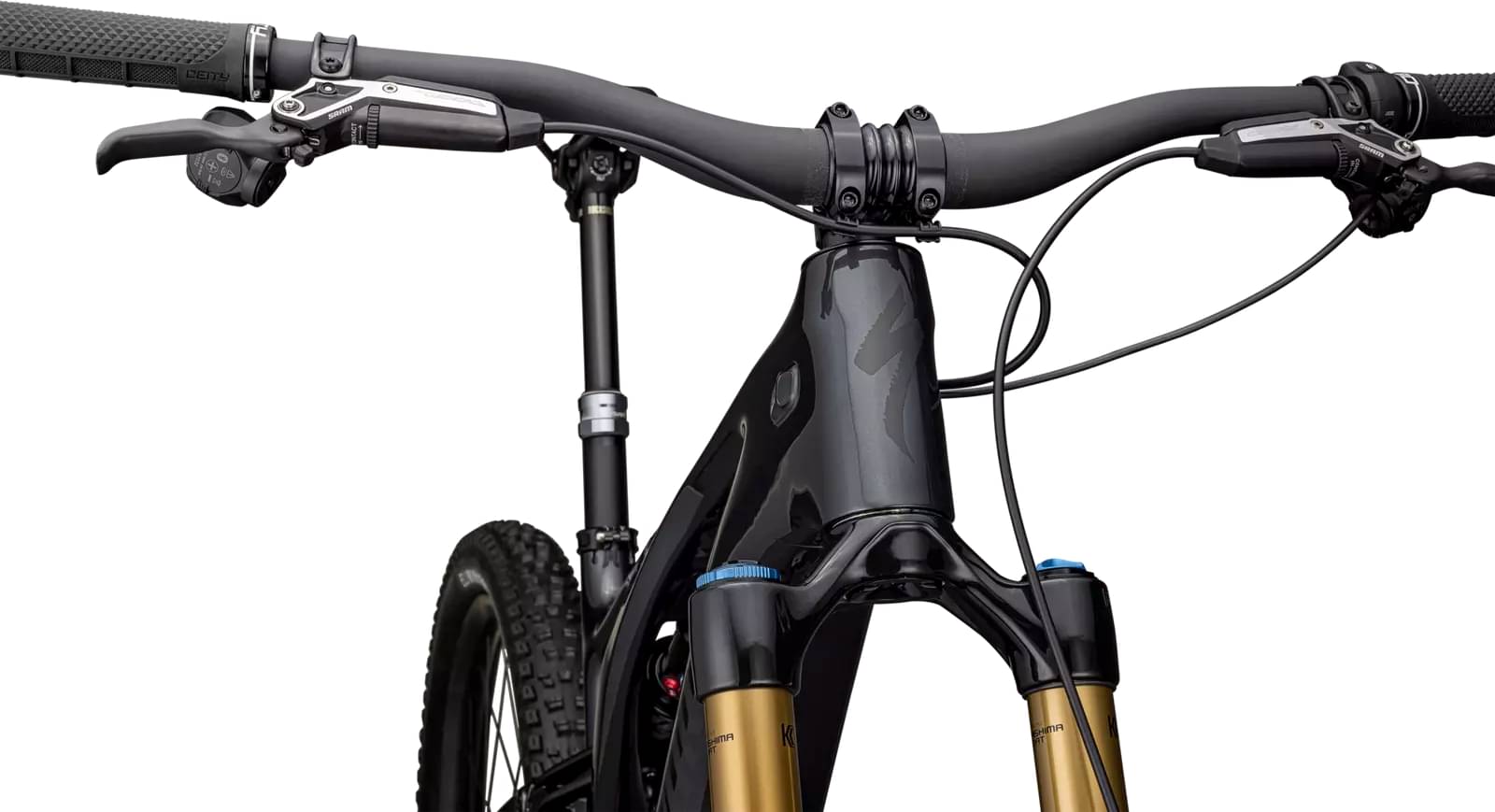

Cockpit

Stem

Deity, 35.0mm

Handlebar

Roval Traverse SL Carbon, riser bar, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm, 35.0mm

Grips

Deity Grips

Seat

Saddle

Bridge, 155/143mm, Hollow Ti-rails

Seatpost

RockShox Reverb AXS, 30.9, 1X remote, (S1:100mm, S2: 125mm, S3: 150mm, S4-S6: 170mm)

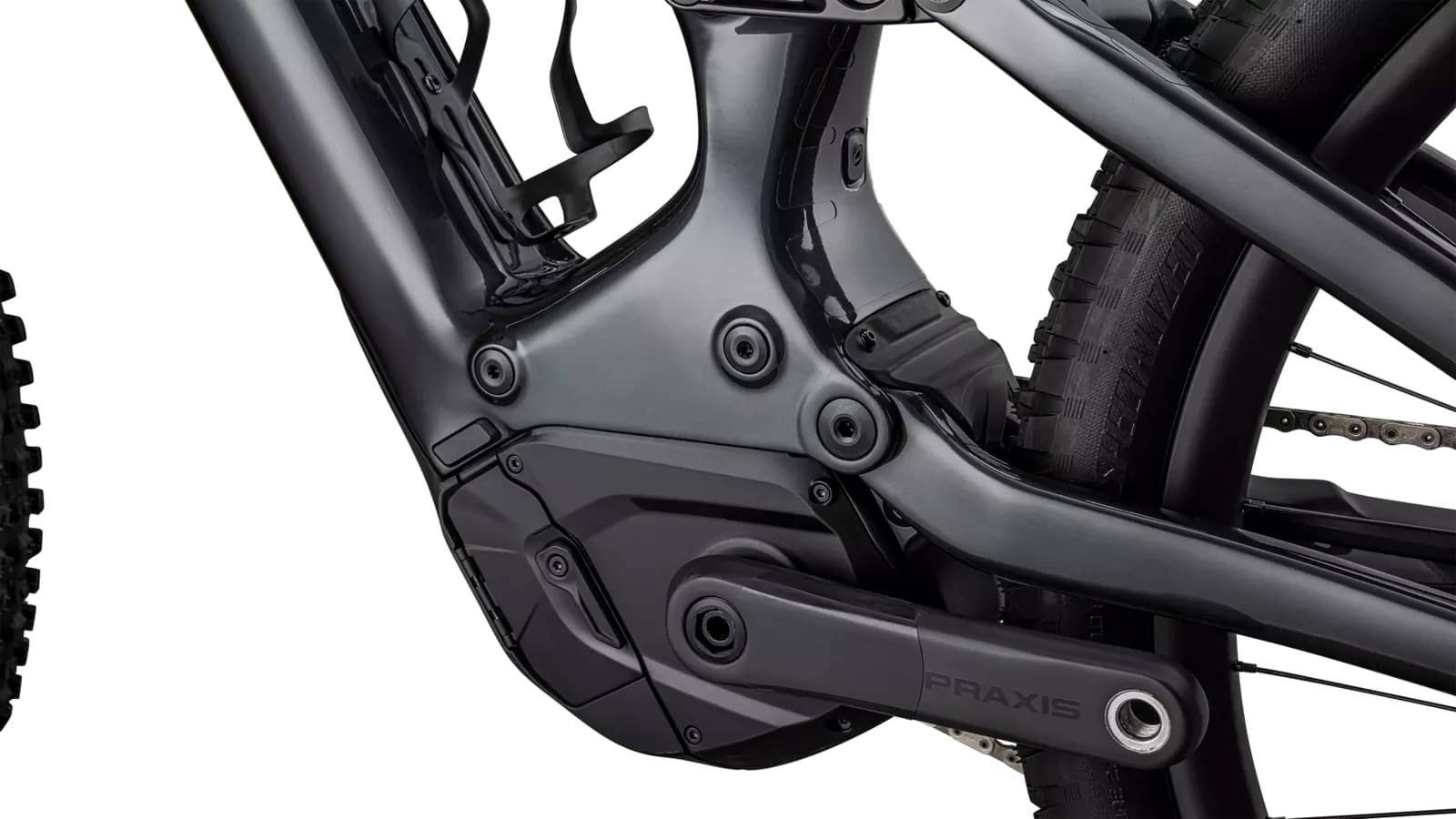

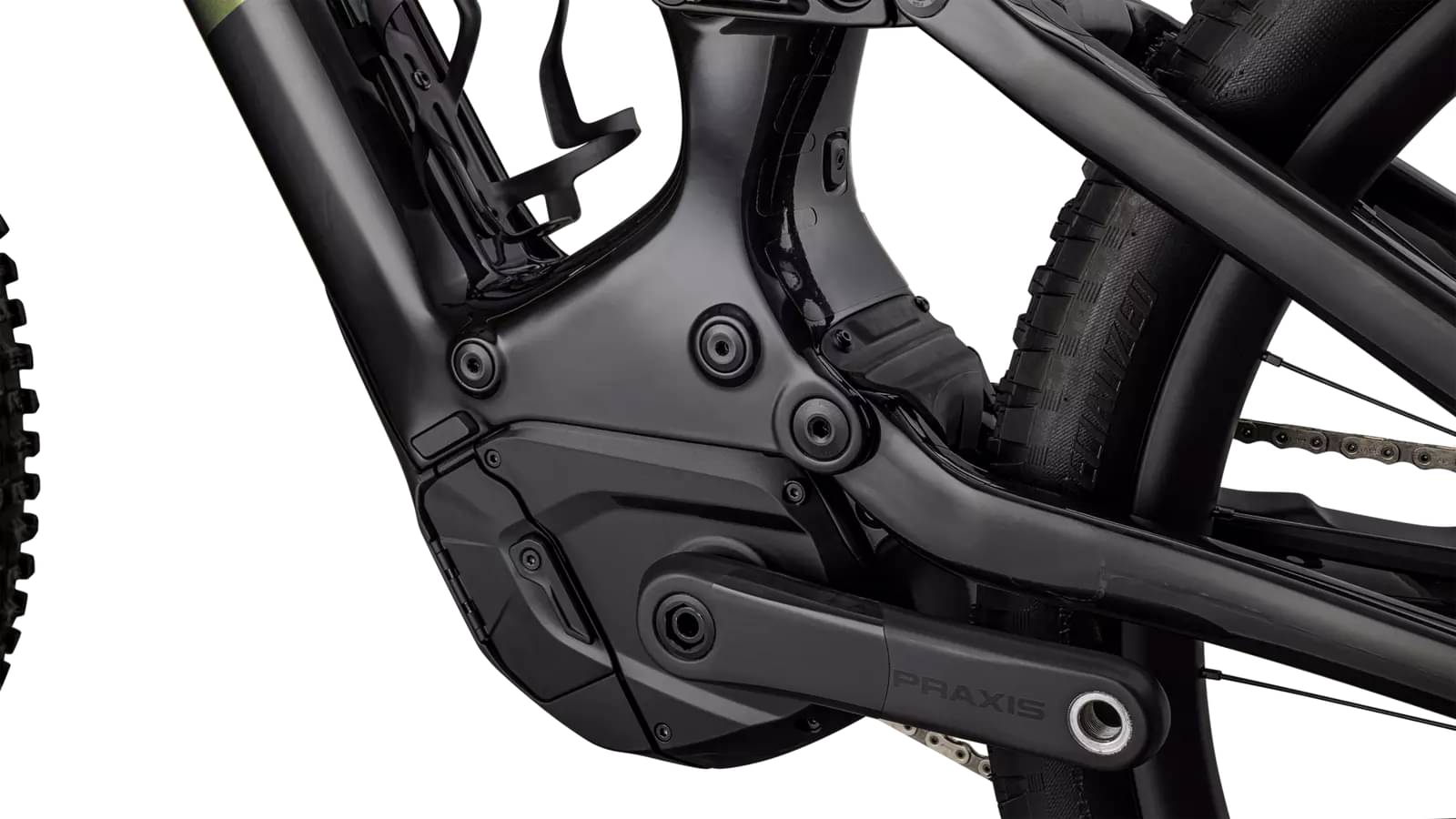

Motor & Battery

Motor

Specialized 2.2 Custom Rx Trail Tuned Motor

Battery

Specialized M3-700, Integrated battery, 700Wh

Charger

Custom charger, 42V4A w/ Rosenberger plug, 100-240V

Fit data

Geometry

Numbers for sizing and ride feel.

SizeS2S3S4S5S6
Stack Reach Ratio
1.42 mm1.38 mm1.33 mm1.28 mm1.22 mm
Bottom Bracket Height
350 mm350 mm350 mm350 mm350 mm
Front Center
760 mm784 mm814 mm843 mm878 mm
Rake
44 mm44 mm44 mm44 mm44 mm
Trail
130 mm130 mm130 mm130 mm130 mm
Stack
624 mm633 mm642 mm651 mm660 mm
Reach
439 mm459 mm484 mm509 mm539 mm
Seat Tube Angle
77.2 °76.7 °76.2 °76.2 °76.2 °
Seat Tube Length
390 mm405 mm425 mm445 mm465 mm
Head Tube Angle
64.5 °64.5 °64.5 °64.5 °64.5 °
Head Tube Length
105 mm115 mm125 mm135 mm145 mm
Chainstay Length
449 mm449 mm449 mm449 mm449 mm
Wheelbase
1207 mm1232 mm1262 mm1291 mm1325 mm
Bottom Bracket Drop
27 mm27 mm27 mm27 mm27 mm
Standover Height
783 mm790 mm794 mm795 mm797 mm
Wheels29"29"29"29"29"
Rider Min Height157 cm165 cm172 cm177 cm188 cm
Rider Max Height172 cm180 cm188 cm193 cm203 cm

Model Overview

S-Works Turbo Levo – SRAM XX T-Type is a Specialized E Turbo Levo model. 86 e-bikes variations carry this model name so far. Check out the entire range from 2024 of this model, by clicking this link.

Model range prices

Specialized Turbo Levo Alloy 2024 is the most economical model, with a starting price of 5500$. Specialized S-Works Turbo Levo – SRAM XX T-Type 2024 on the other hand costs 14334$, and is the most expensive model.

Safety

When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.

Enduro e-bikes average price

According to our calculations, the average cost of an Enduro e-bike that is reliable is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.

When Specialized released this model in 2024, its price was 14334$. Comparing the average cost of an Enduro e-bike to this one, you will see that S-Works Turbo Levo – SRAM XX T-Type price is 199.56% more expensive.

Average weight for Enduro e-bikes

If we make a quick analysis of the average weight of an Enduro e-bike, we get 23.3 kg (51.37 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.

S-Works Turbo Levo – SRAM XX T-Type weighs 22.5 kg (49.6 lbs) and is slightly lighter than the average. In short, the average Enduro e-bike weight is 3.56% higher than this one.

Internal Cable Routing

This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.

Overview of components

Fork

This e-bike has the Fox Factory Float 38 fork installed. The fork’s travel is 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.

Rear Shock

From the factory, it comes with the Fox Float X2 Factory rear shock model, which has a travel of 150mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.

Wheels

The wheels on S-Works Turbo Levo – SRAM XX T-Type are the 29″ carbon type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.

Brakes

Nothing is more important on a bike than its ability to brake properly. Specialized S-Works Turbo Levo – SRAM XX T-Type is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.

Sizes

Specialized S-Works Turbo Levo – SRAM XX T-Type e-bike has 5 sizes, in the range of 157 cm – 203 cm (5.15 ft – 6.66 ft). In short, it won’t be difficult to find the right one for you.

Dropper post

Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
