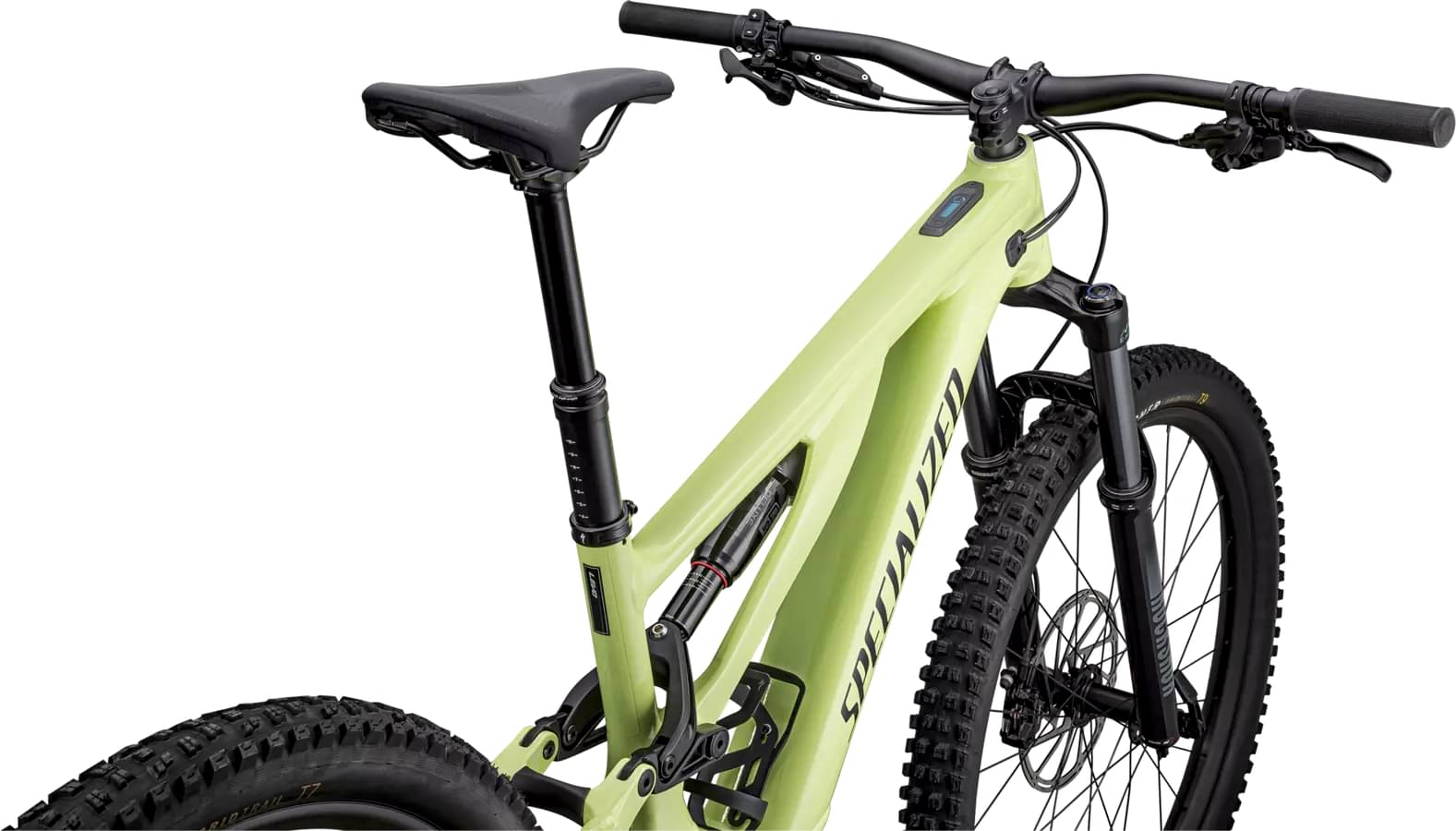

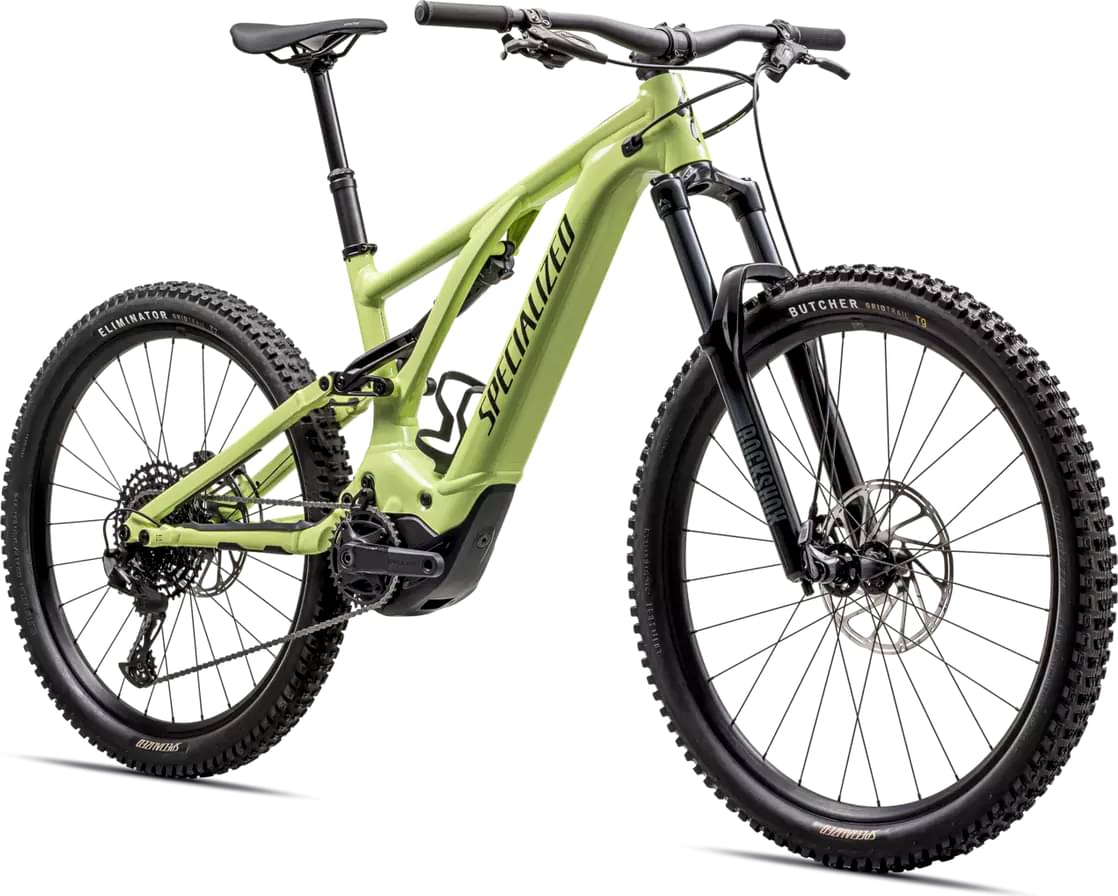

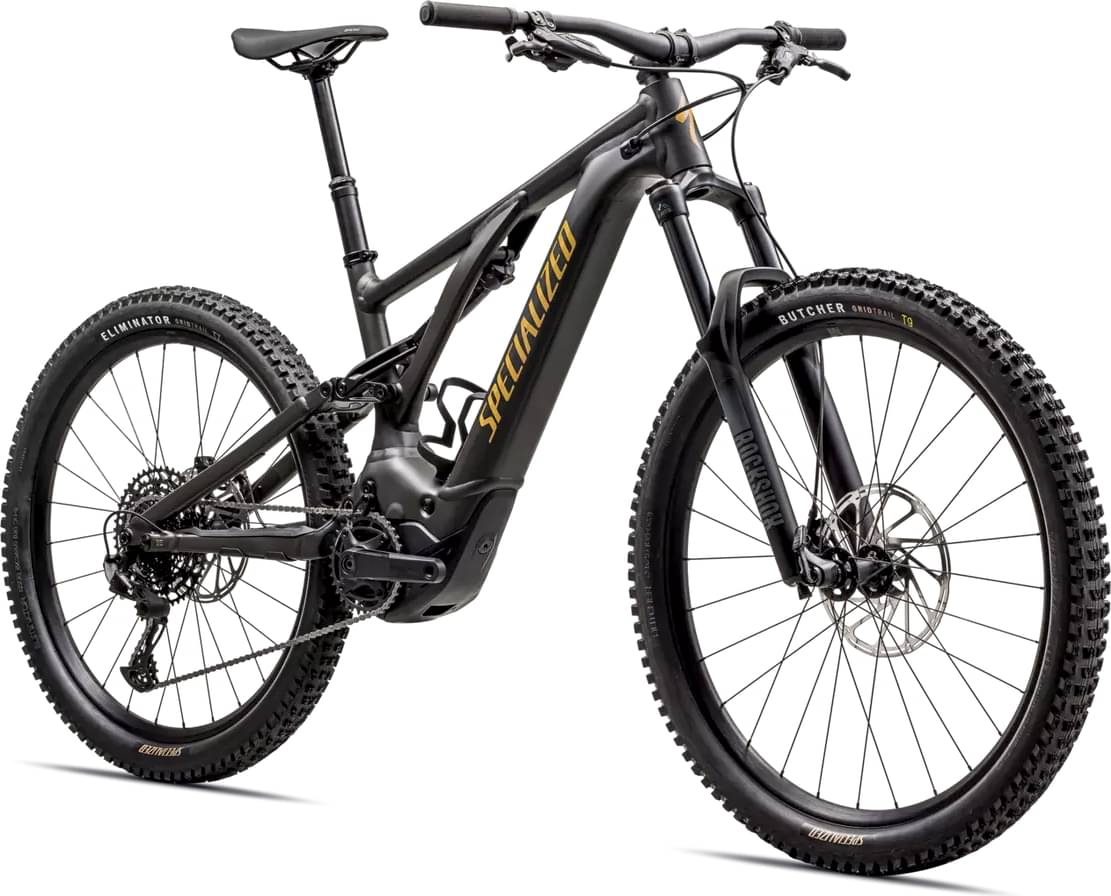

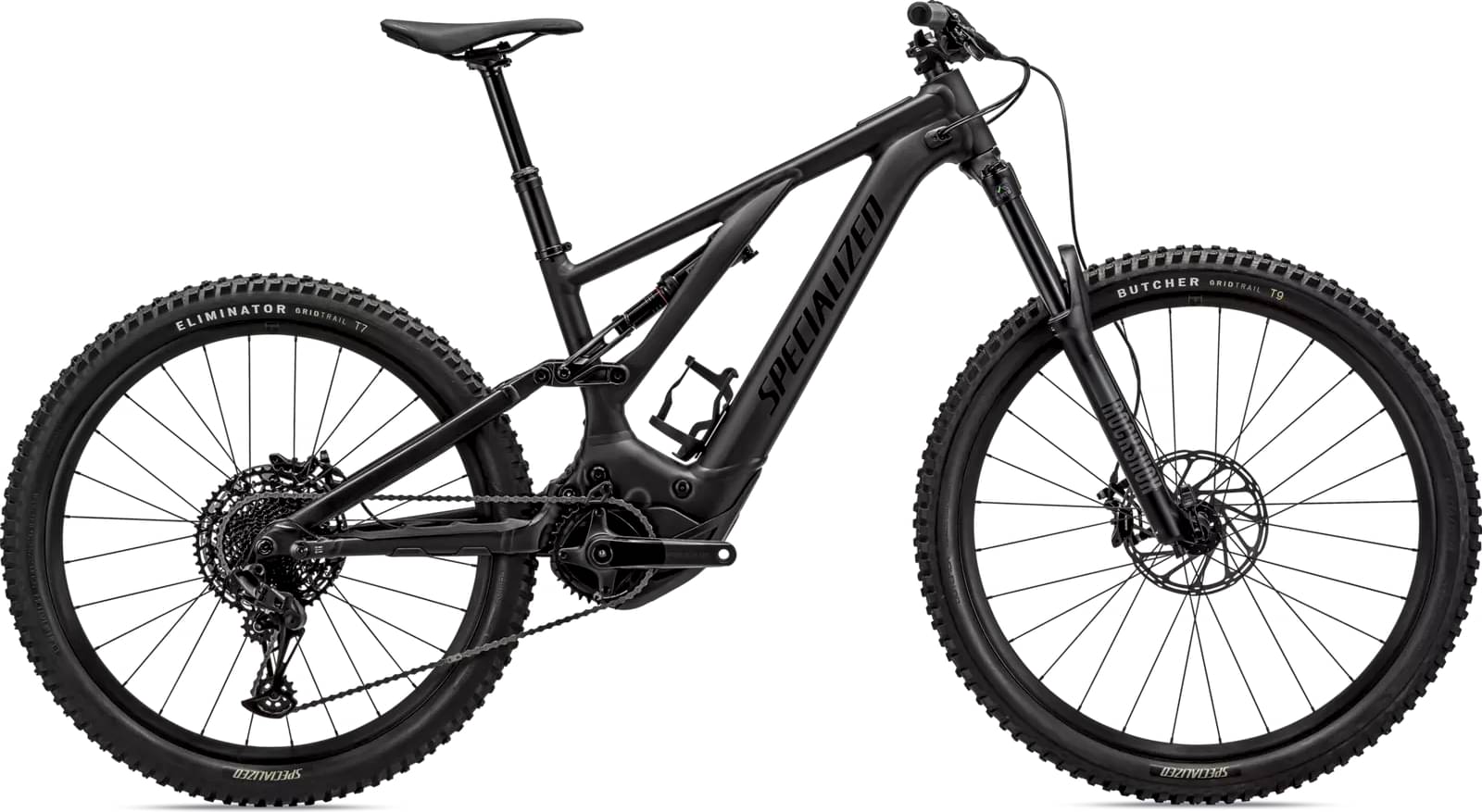

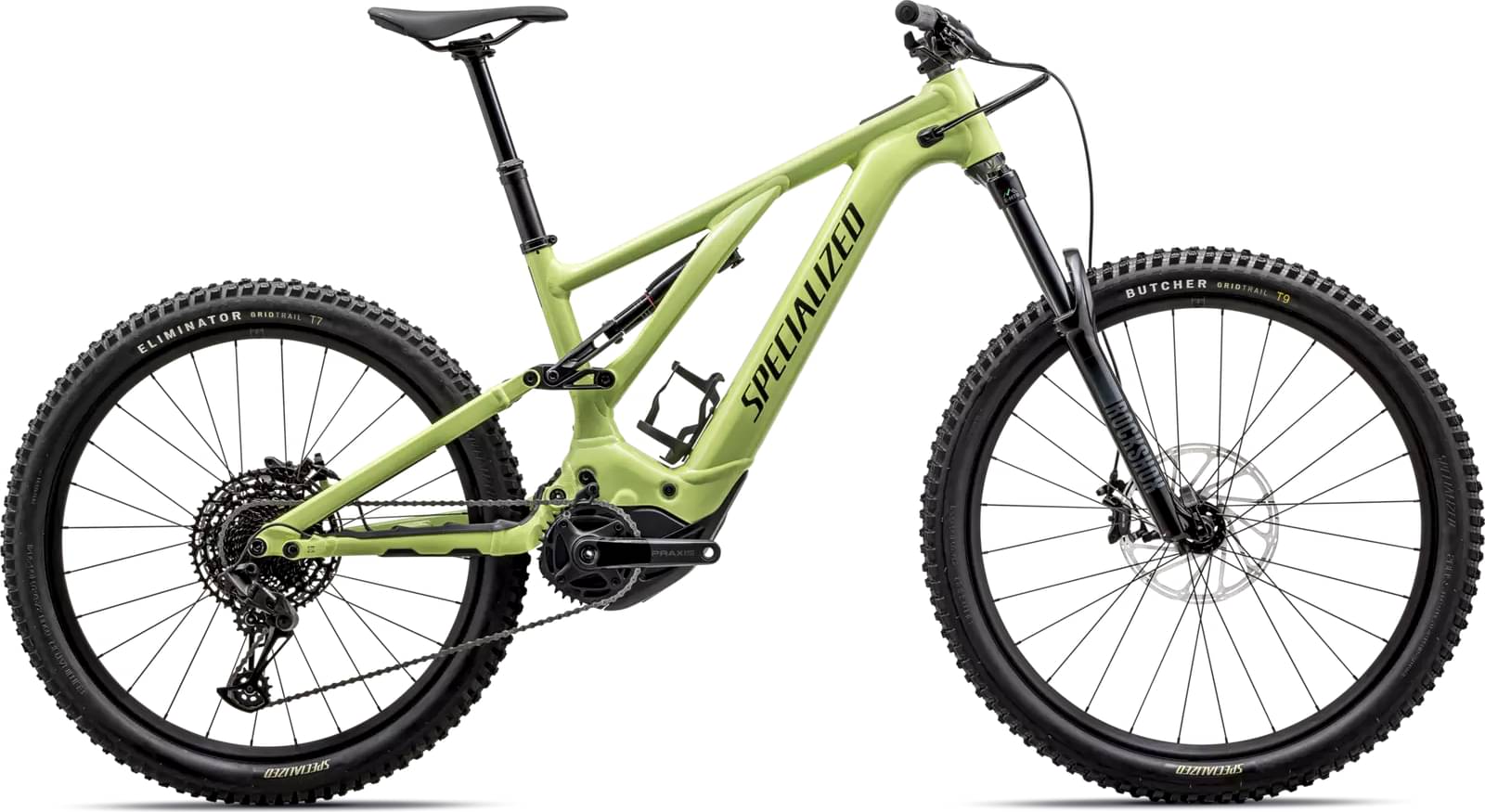

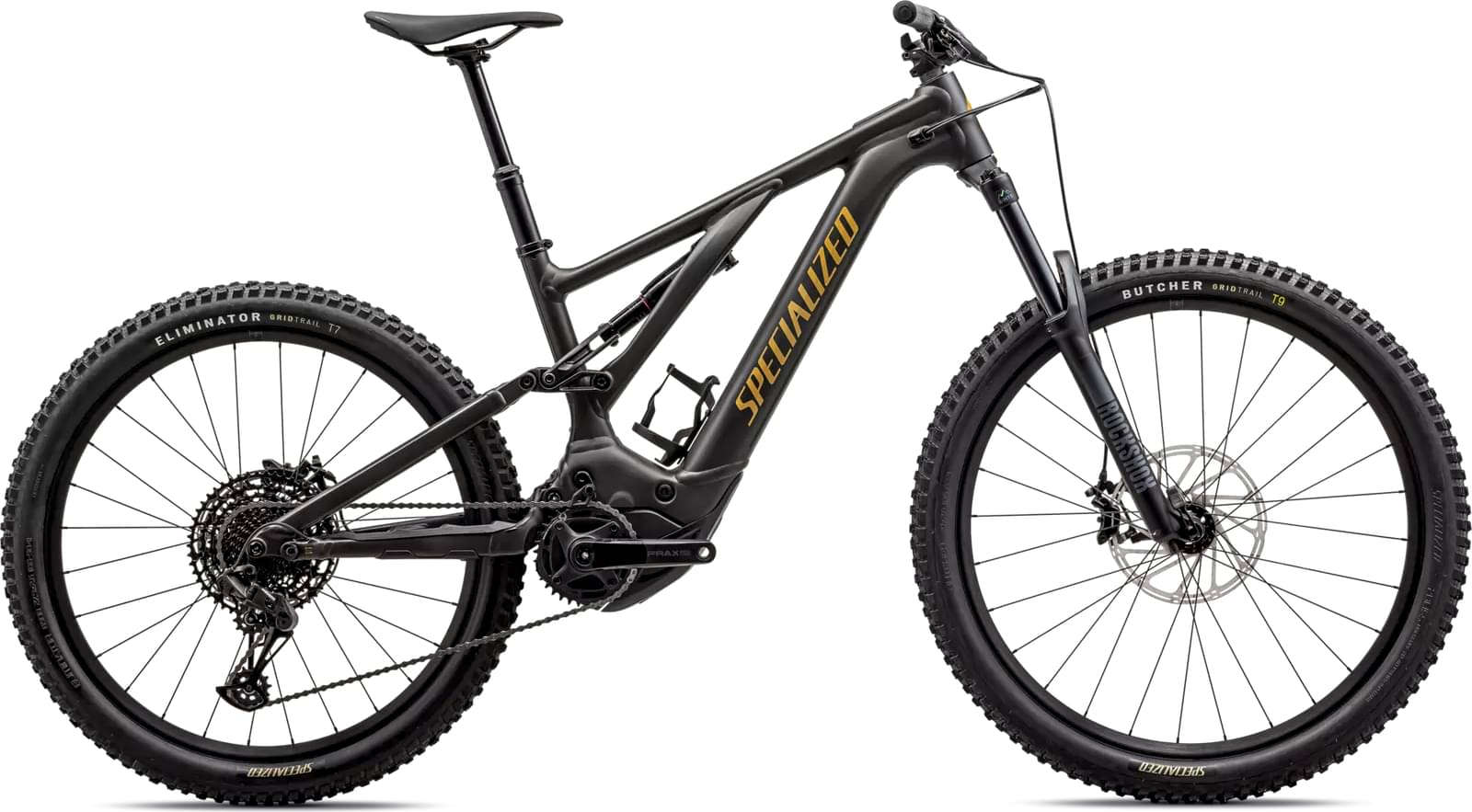

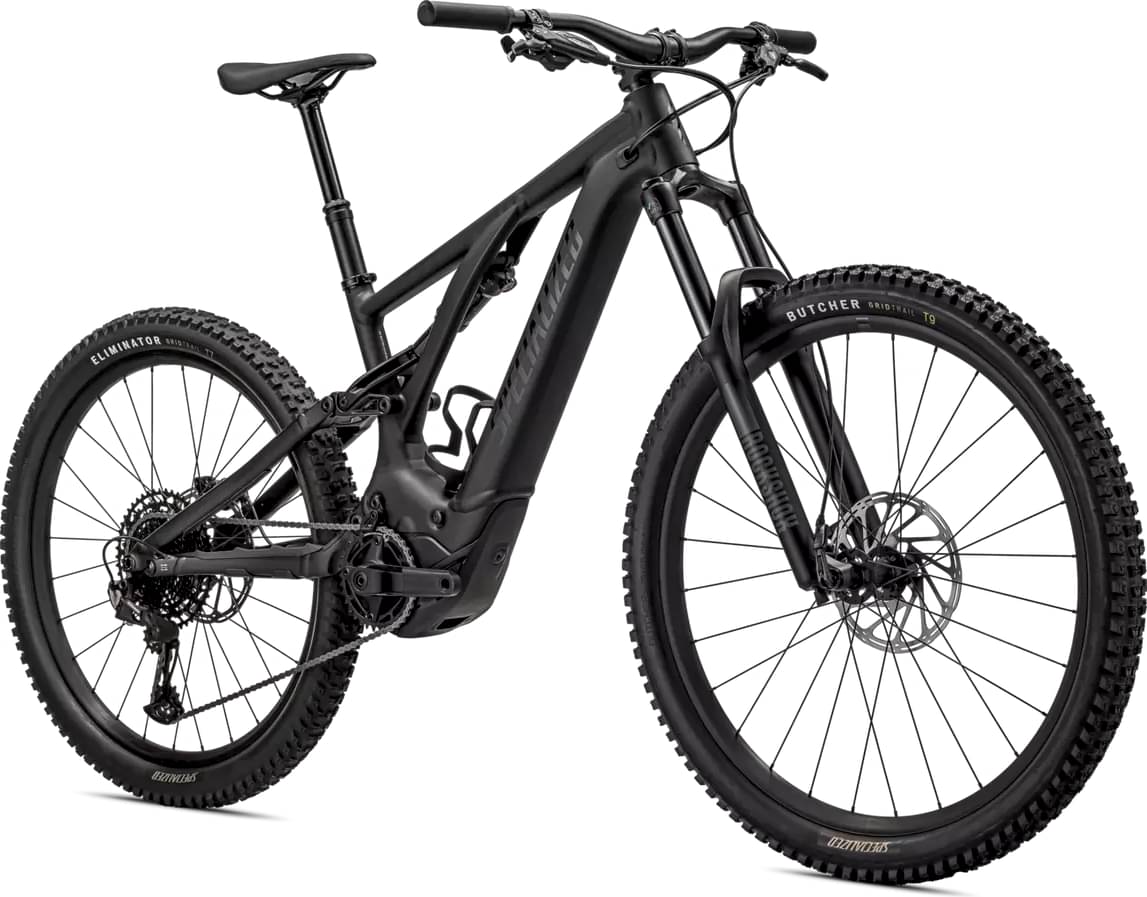

Specialized Turbo Levo Alloy 2024
2024 E-bike
Estimate price |
5,500$
Weight | 23.81 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork RockShox 35 Silver
-
Groupset SX Eagle, Praxis -
Suspension Full -

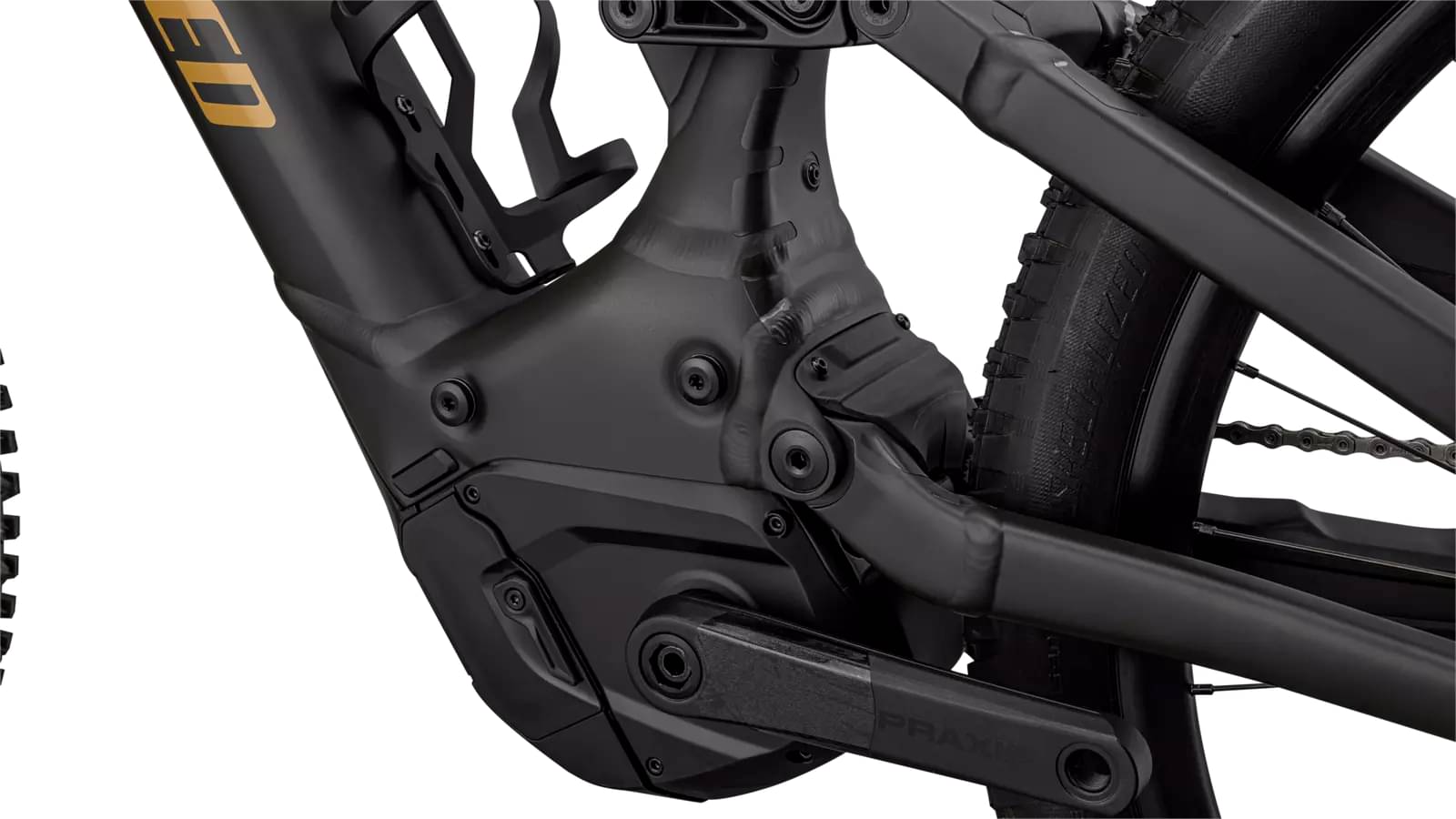

Motor Specialized mid-drive -
Battery Specialized M3-700, Integrated battery, 700Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
S1
149cm - 160cm
S2
157cm - 172cm
S3
165cm - 180cm
S4
172cm - 188cm
S5
177cm - 193cm
S6
188cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components

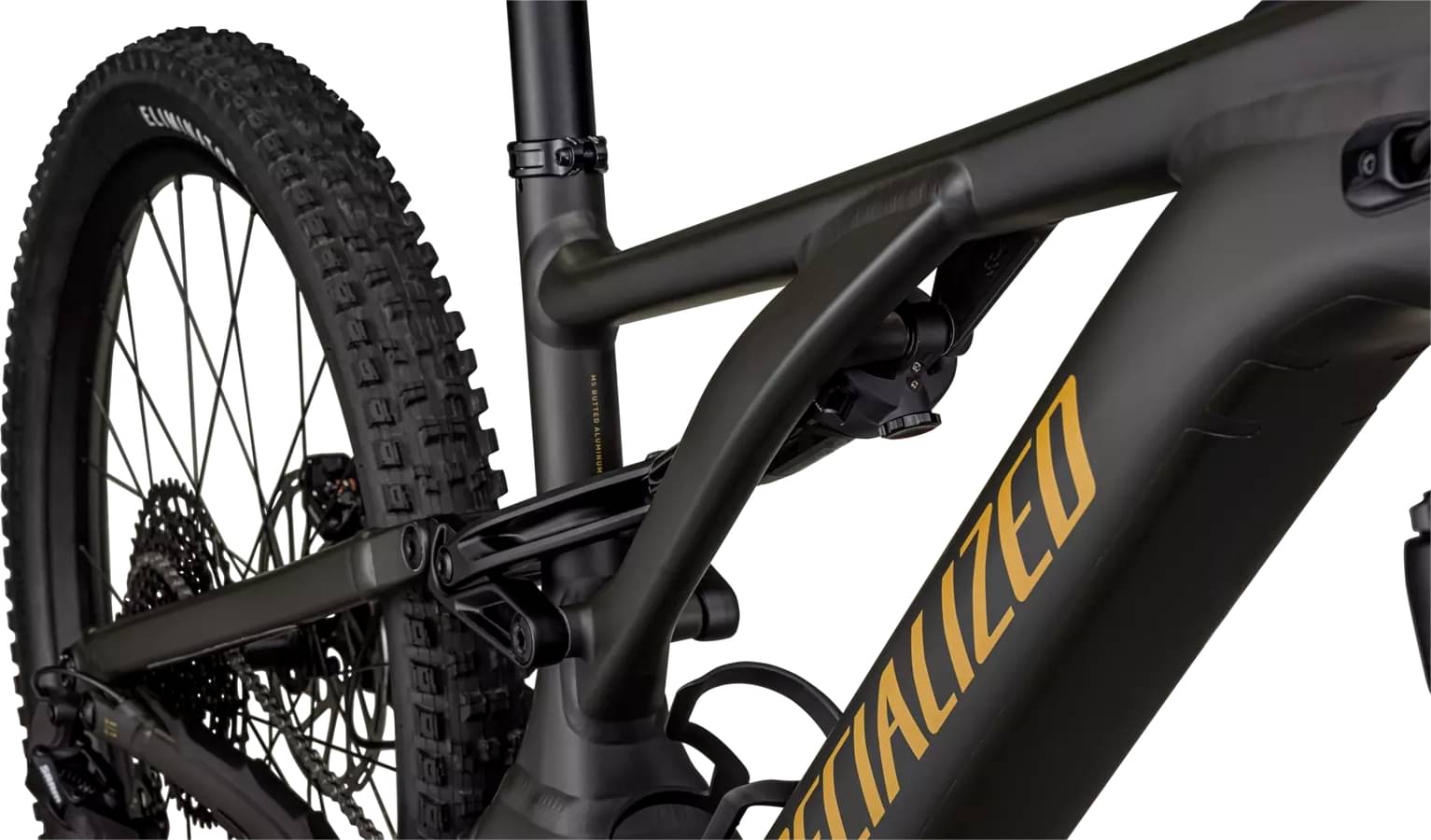

Frame
Frame
Specialized M5 premium alloy, BB height adjust, S-Sizing, internal cable routing, 150mm travel, 148mm spacing
Suspension Fork
RockShox 35 Silver, 35mm stanchion, Turnkey damper, S1: 150mm travel, S2-S6: 160mm travel

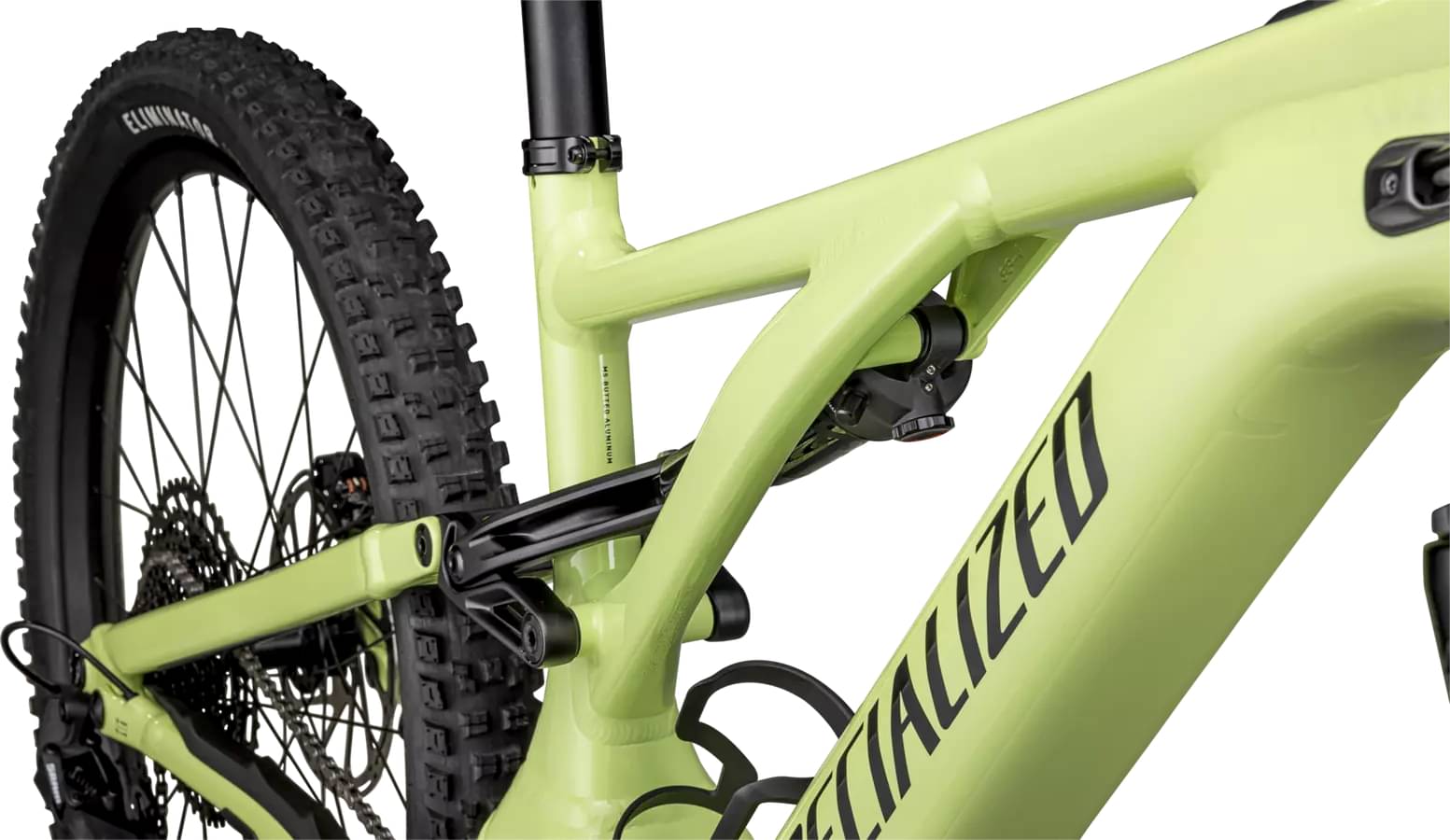

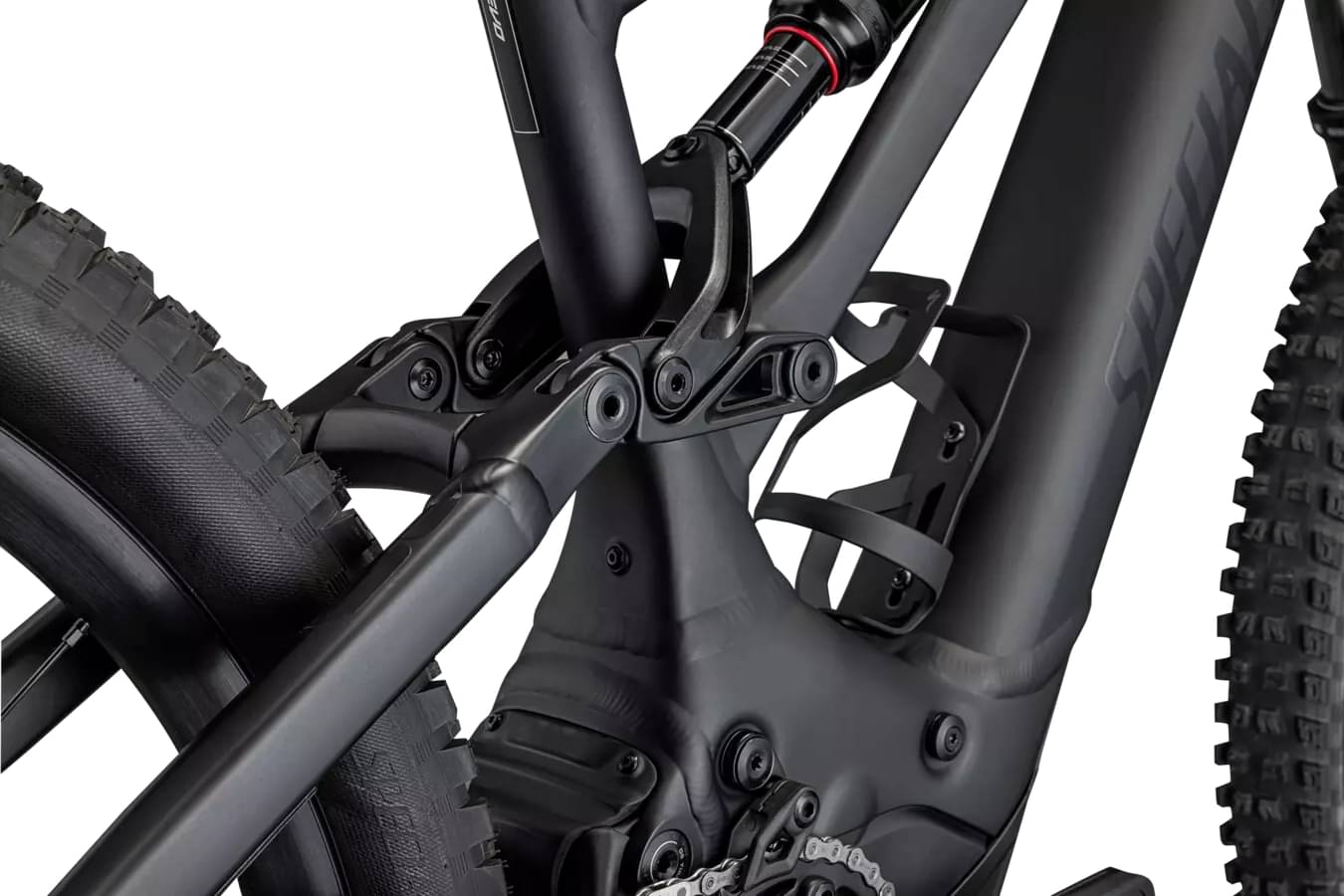

Rear Shock
RockShox Deluxe Select R, rebound adjust, S1: 52.5x210mm, S2-S6: 55x210mm
Drivetrain
Rear Derailleur
SRAM SX Eagle, 12-speed
Shift Levers
SRAM SX Eagle, 12-speed
Cassette
SRAM NX Eagle, 12-speed, 11-50t
Crank
Praxis Forged/Custom Offset/ISIS Spindle Interface, 160mm, SRAM X-Sync Eagle, 104 BCD, 34t, steel
Chain
SRAM NX Eagle, 12-speed
Wheels
Front Hub
Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x110mm thru-axle, 32h
Rear Hub
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
Rims
Specialized 29, hookless alloy, 30mm inner width, tubeless ready
Spokes
DT Swiss Industry
Tires
Front: Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6", Rear: Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"
Brakes
Brakes
Front: SRAM Guide RE, S1-S3: 200mm, S4-S6: 220mm, Rear: SRAM Guide RE, S1-S3: 200mm, S4-S6: 220mm

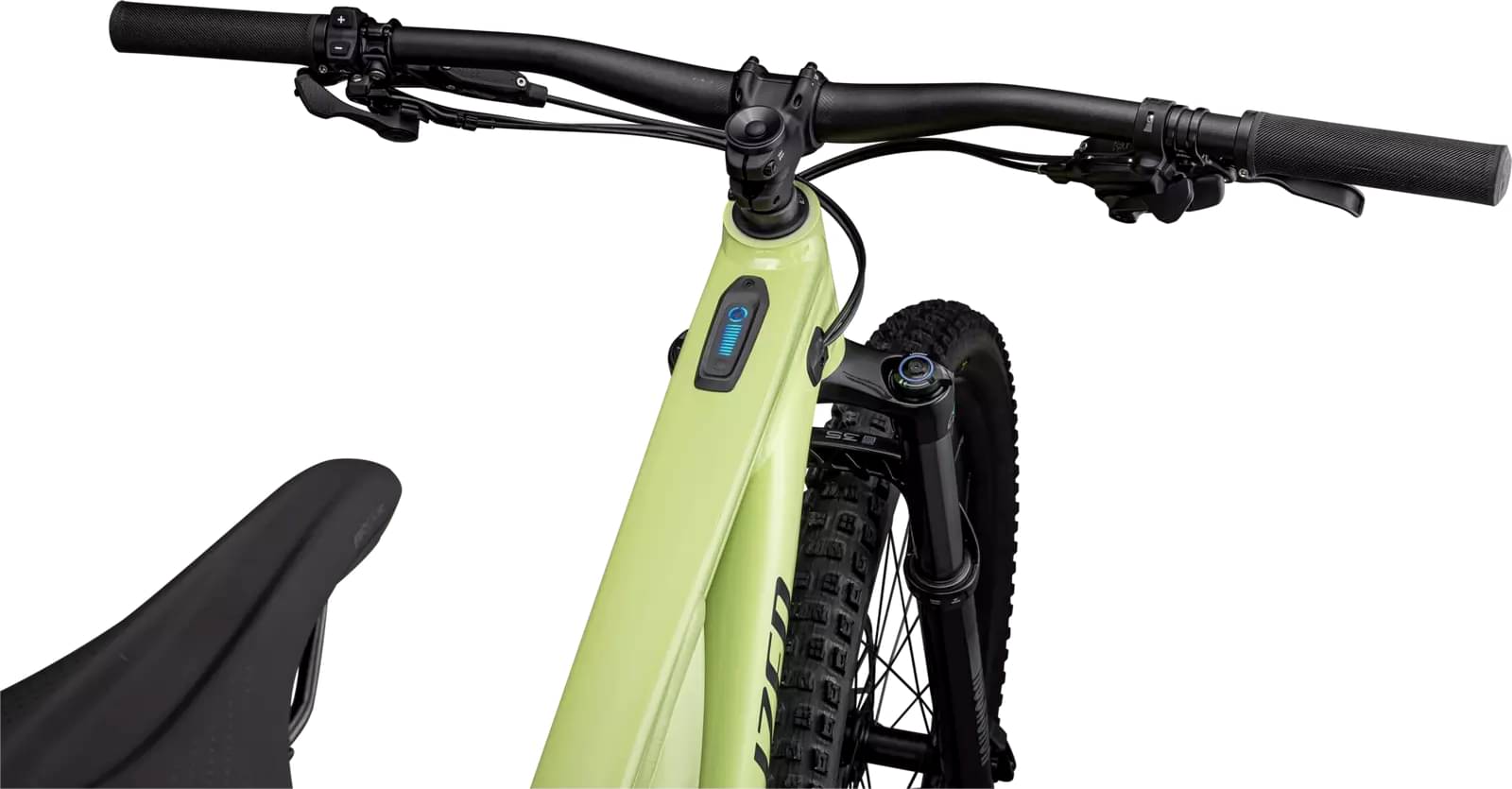

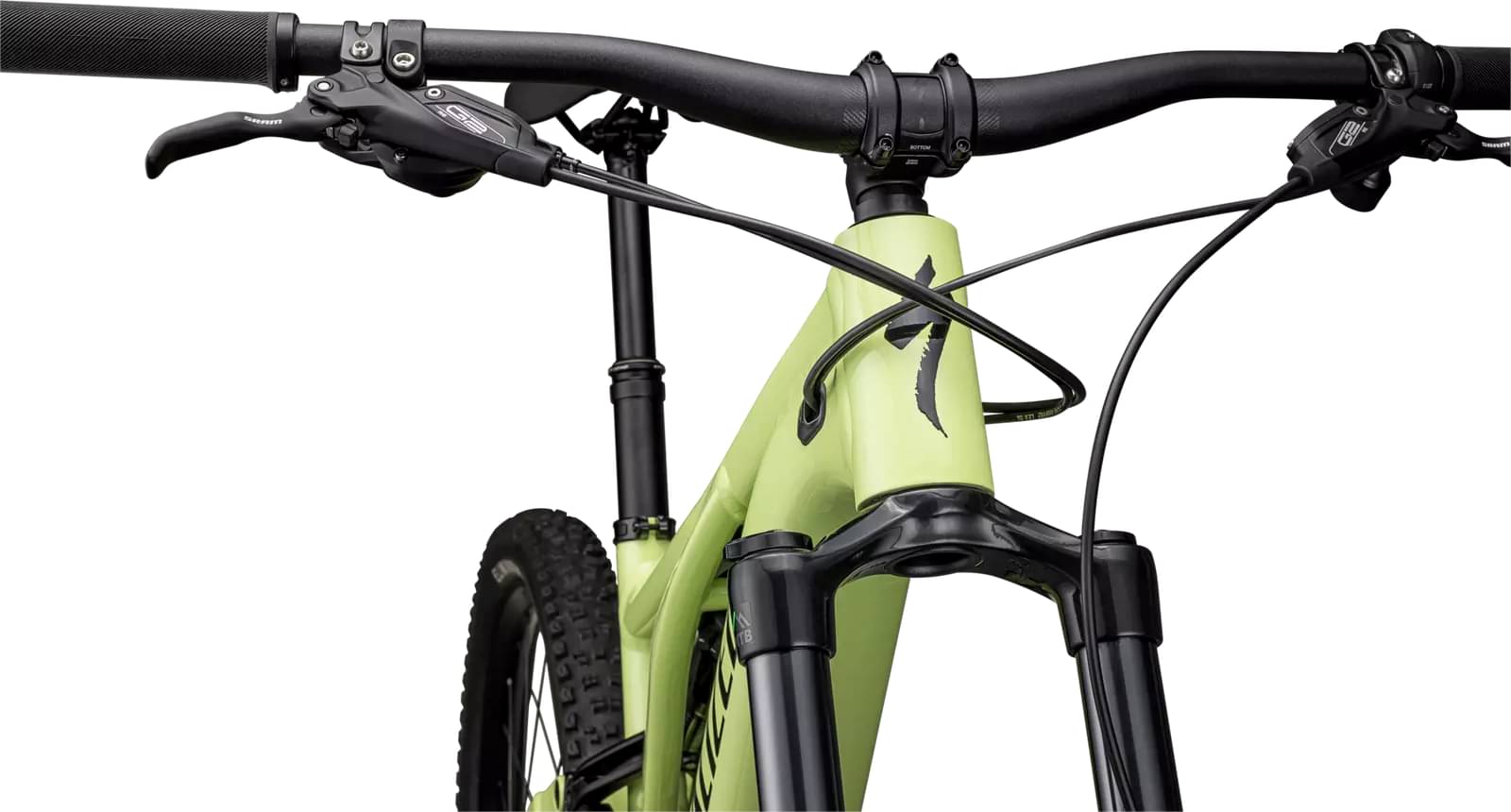

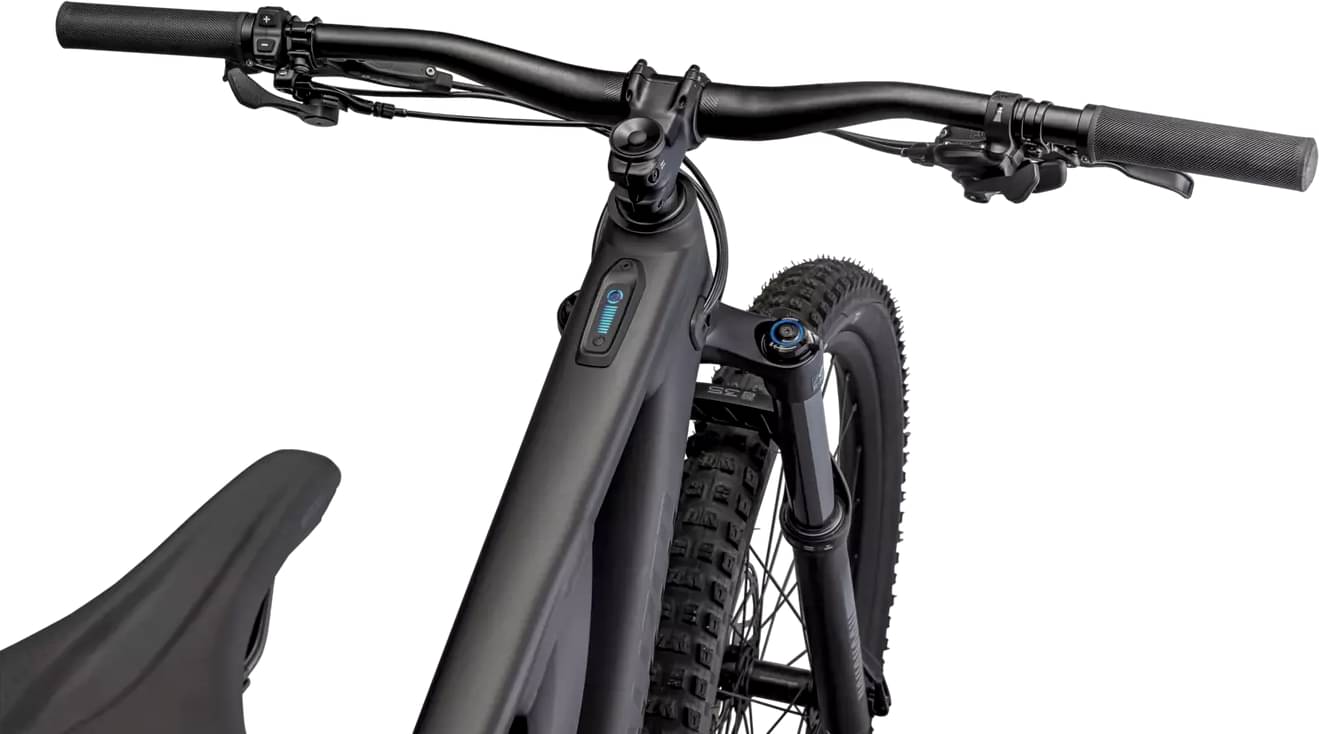

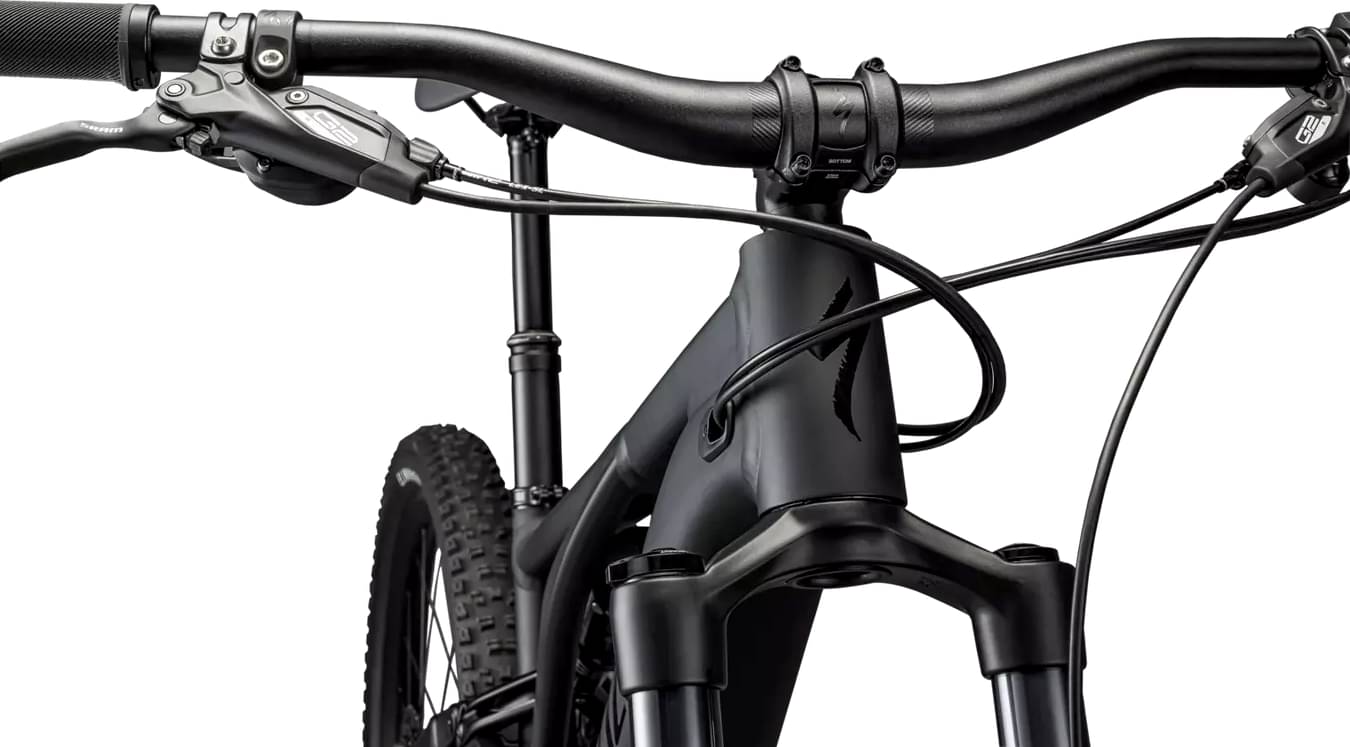

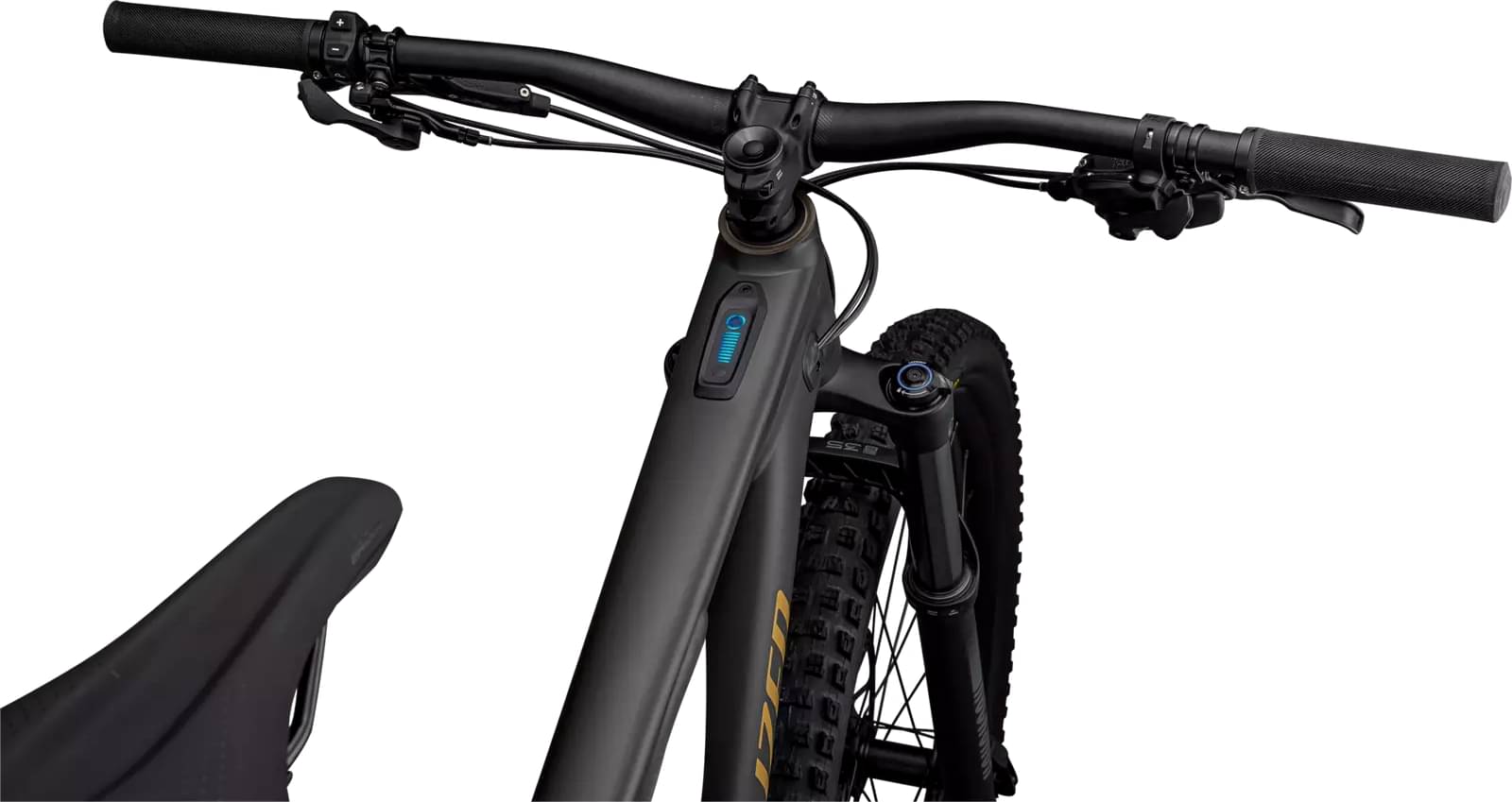

Cockpit
Stem
Alloy Trail Stem, 35mm bar bore
Handlebar
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width
Seat
Saddle
Body Geometry Bridge Saddle, steel rails
Seatpost
TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4-S5: 170mm, S6- 200mm

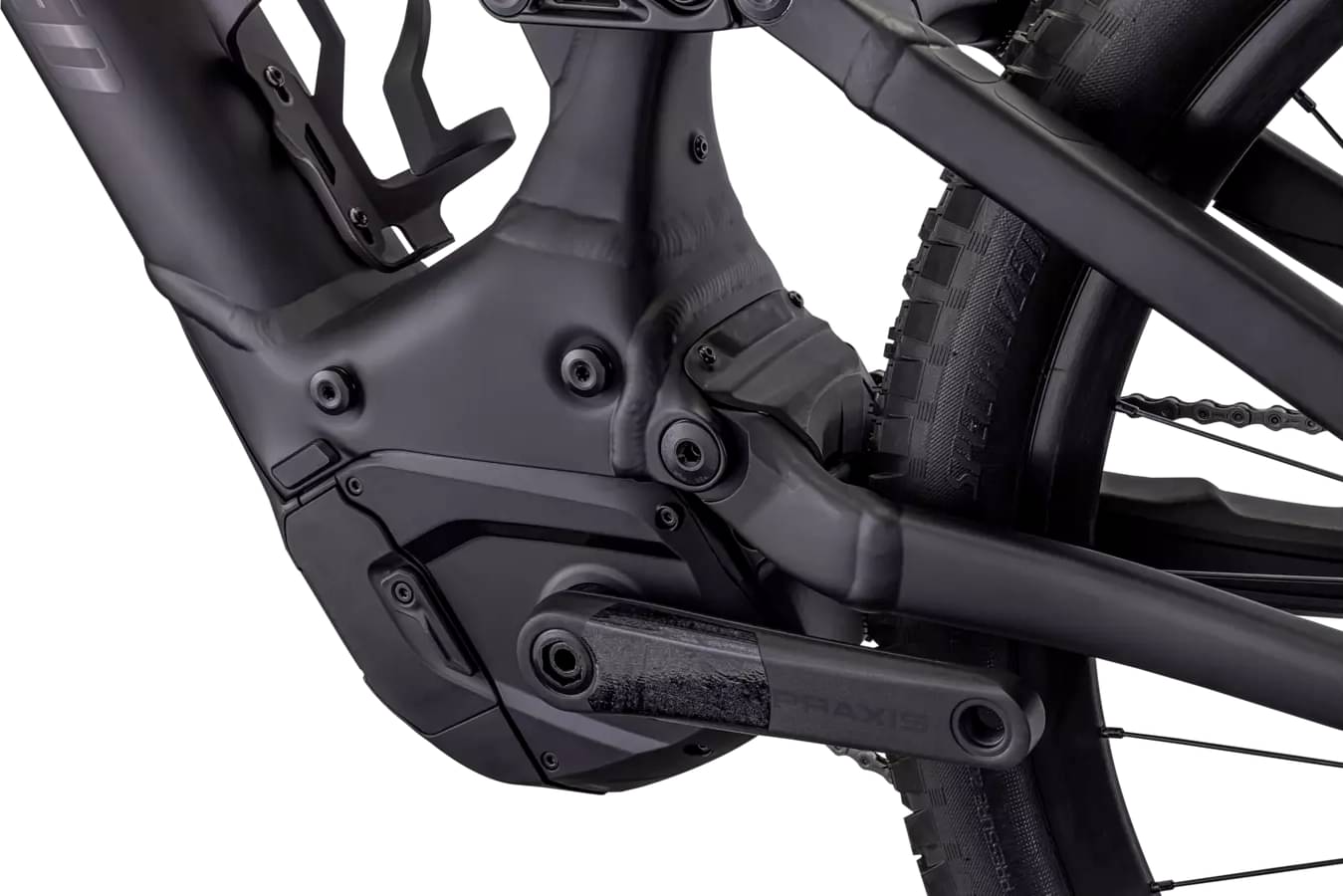

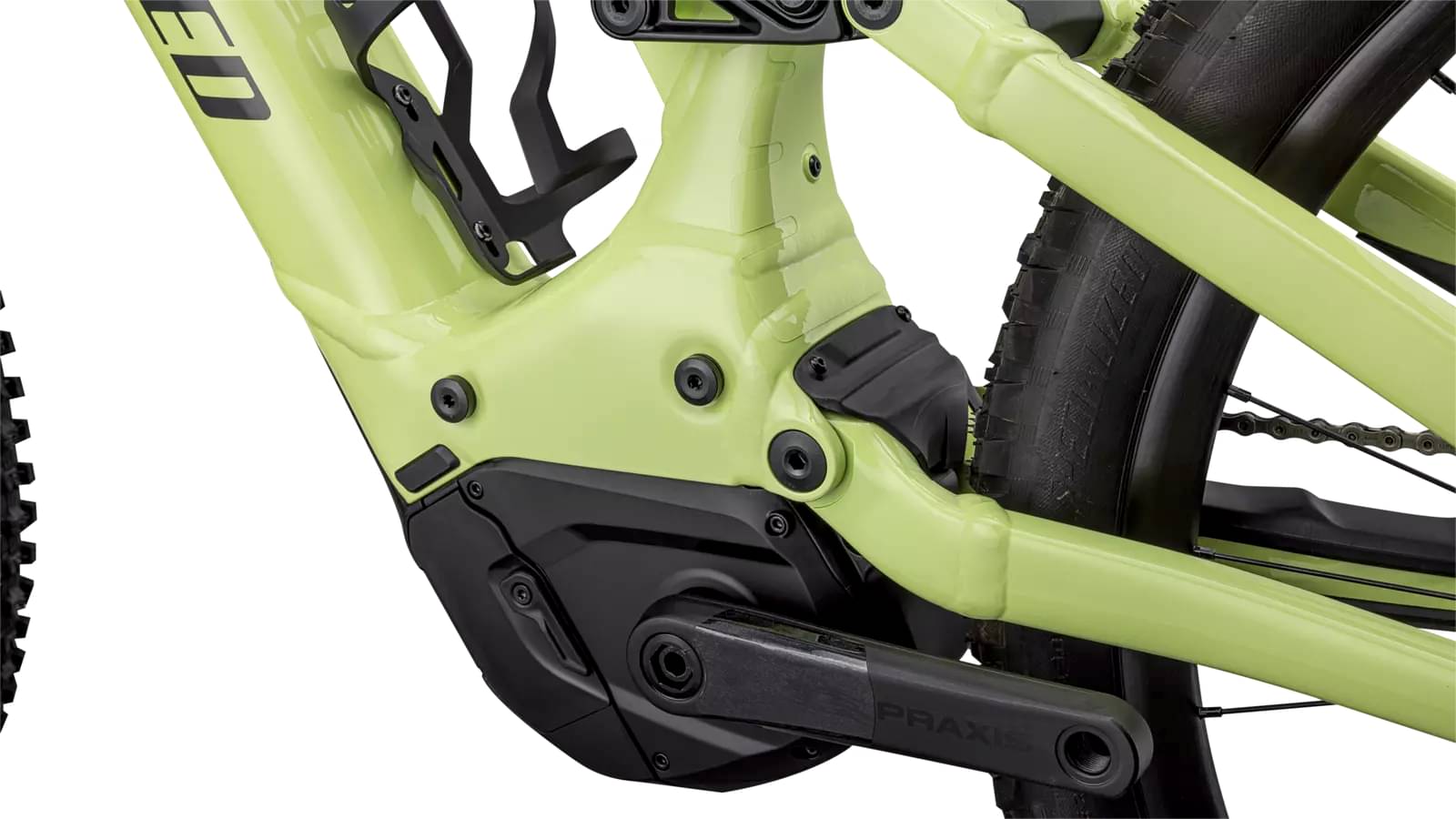

Motor & Battery
Motor
Specialized 2.2 Custom Rx Trail Tuned Motor

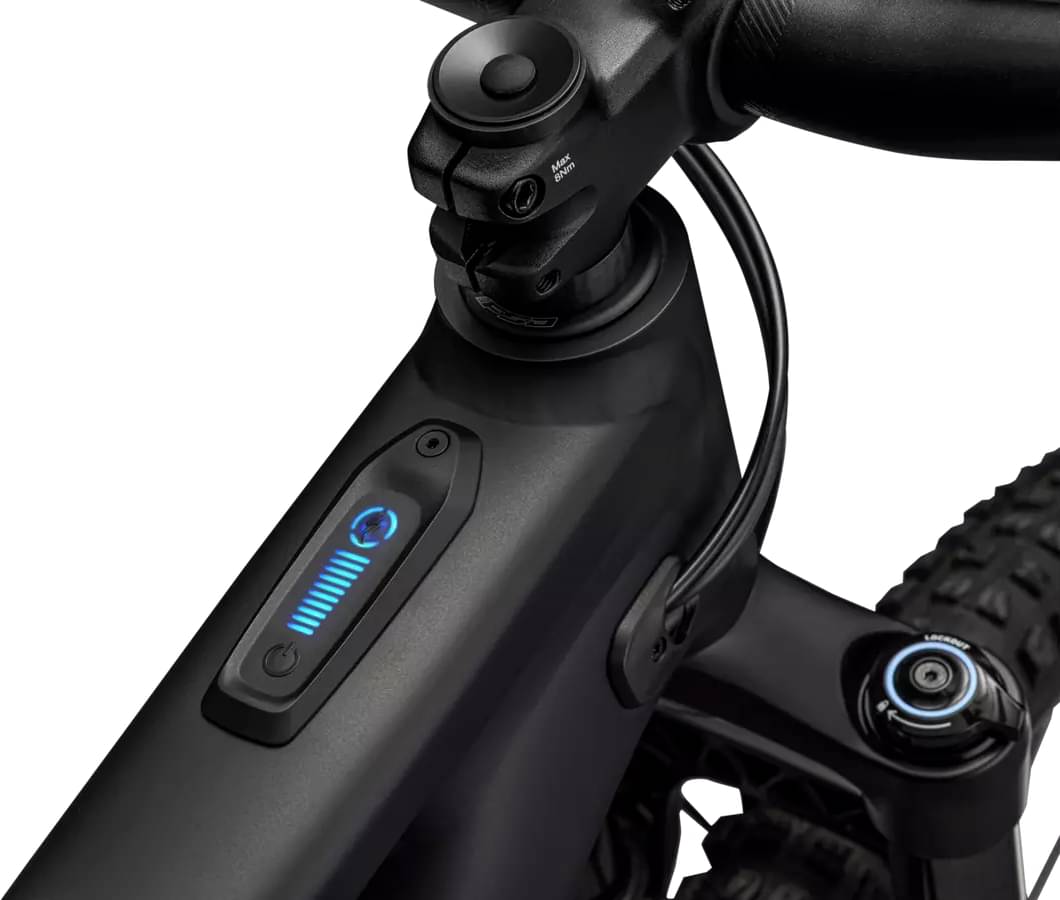

Battery
Specialized M3-700, Integrated battery, 700Wh
Charger
Custom charger, 42V4A w/ Rosenberger plug, 100-240V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | S1 | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.43 mm | 1.39 mm | 1.33 mm | 1.28 mm | 1.23 mm |
| Bottom Bracket Height | 352 mm | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 738 mm | 760 mm | 784 mm | 814 mm | 843 mm | 878 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 130 mm | 130 mm | 130 mm | 130 mm | 130 mm | 130 mm |
| Stack | 602 mm | 614 mm | 623 mm | 632 mm | 641 mm | 650 |
| Reach | 409 mm | 429 mm | 449 mm | 474 mm | 499 mm | 529 mm |
| Seat Tube Angle | 78 ° | 77.2 ° | 76.7 ° | 76.2 ° | 76.2 ° | 76.2 ° |
| Seat Tube Length | 380 mm | 390 mm | 405 mm | 425 mm | 445 mm | 465 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 105 mm | 105 mm | 115 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1176 mm | 1197 mm | 1222 mm | 1252 mm | 1281 mm | 1315 mm |
| Bottom Bracket Drop | 25 mm | 27 mm | 27 mm | 27 mm | 27 mm | 27 mm |
| Standover Height | 749 mm | 773 mm | 780 mm | 784 mm | 785 mm | 787 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 149 cm | 157 cm | 165 cm | 172 cm | 177 cm | 188 cm |
| Rider Max Height | 160 cm | 172 cm | 180 cm | 188 cm | 193 cm | 203 cm |
About this model
Turbo Levo Alloy is a Specialized E Turbo Levo model. Specialized released 86 e-bikes variations of this model so far. Take a sneak peek at all Specialized E Turbo Levo e-bikes models from 2024, by clicking here.
Model range prices
The most economical model, the Specialized Turbo Levo Alloy 2024 has a starting price of 5500$. Specialized S-Works Turbo Levo – SRAM XX T-Type 2024 on the other hand is the most expensive at 14334$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Enduro e-bikes average price
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5500$. In conclusion, this e-bike price is 14.94% more expensive than the price of the average Enduro e-bike.
Enduro e-bikes average weight
Enduro e-bikes weigh an average of 23.3 kg (51.37 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 23.81 kg (52.49 lbs), Specialized e-bike is slightly heavier than average. In short, the average Enduro e-bike weight is 2.19% lower than this one.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
Specialized Turbo Levo Alloy 2024 e-bike is equipped with the RockShox 35 Silver fork, and has 160mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.

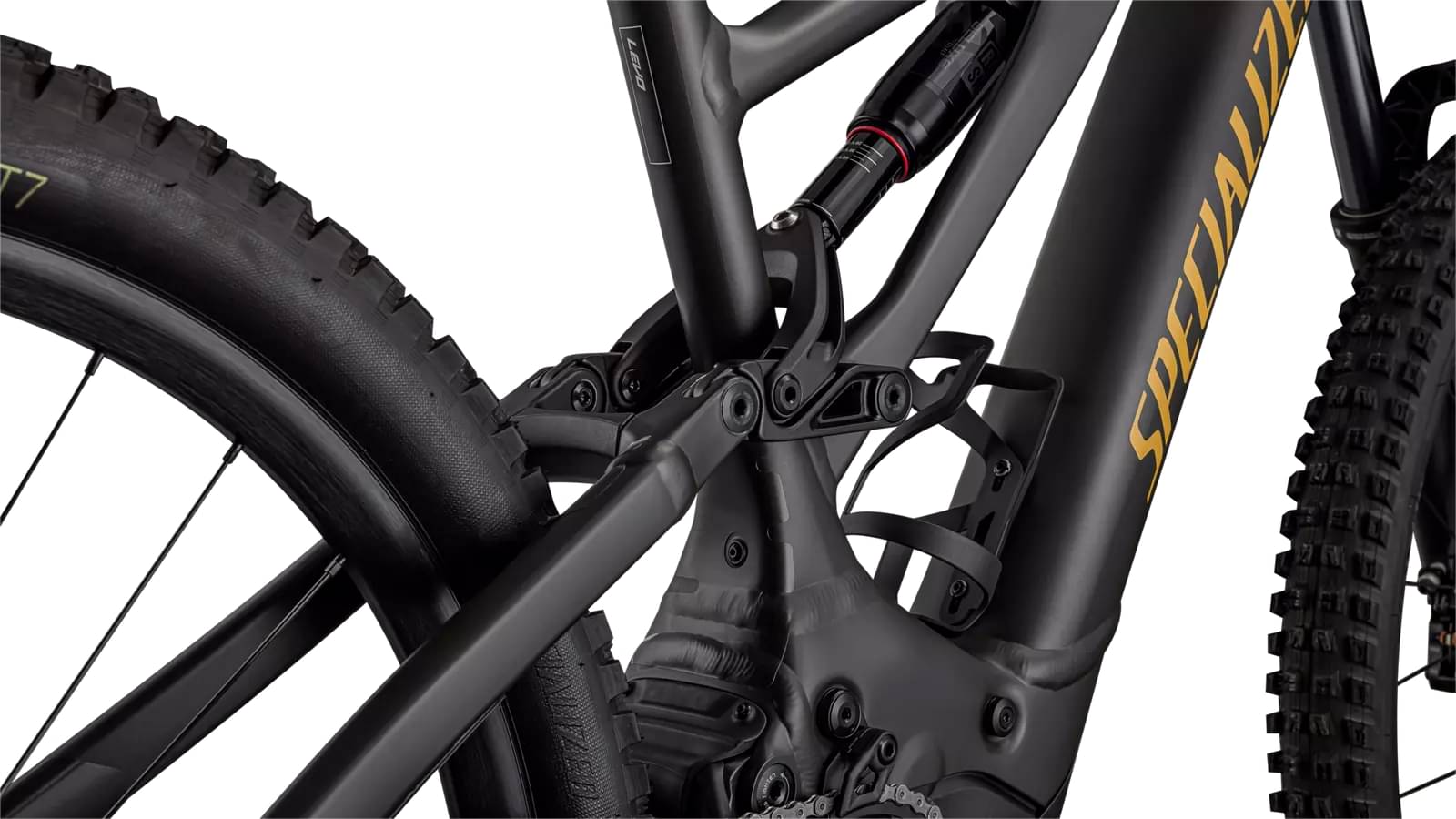

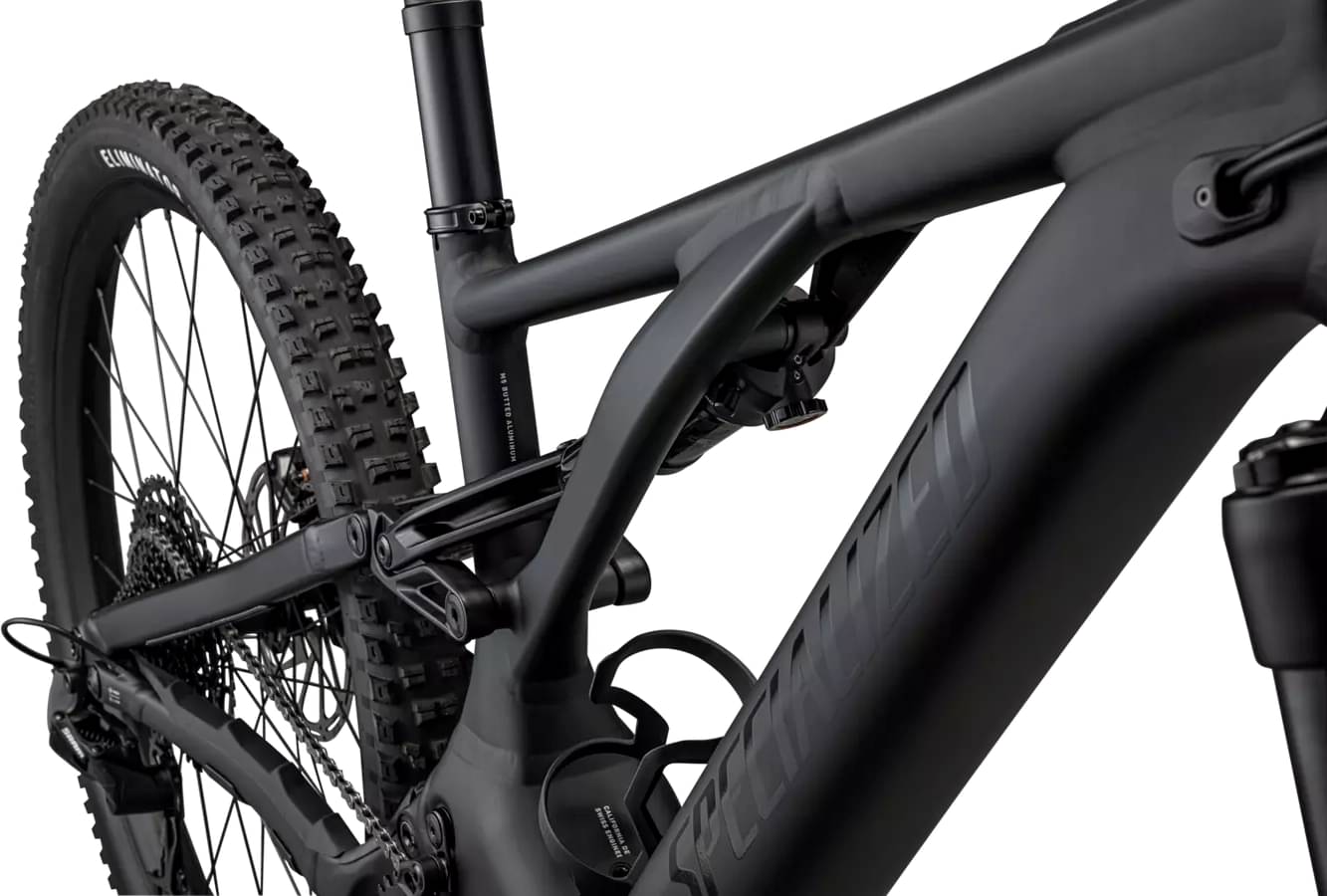

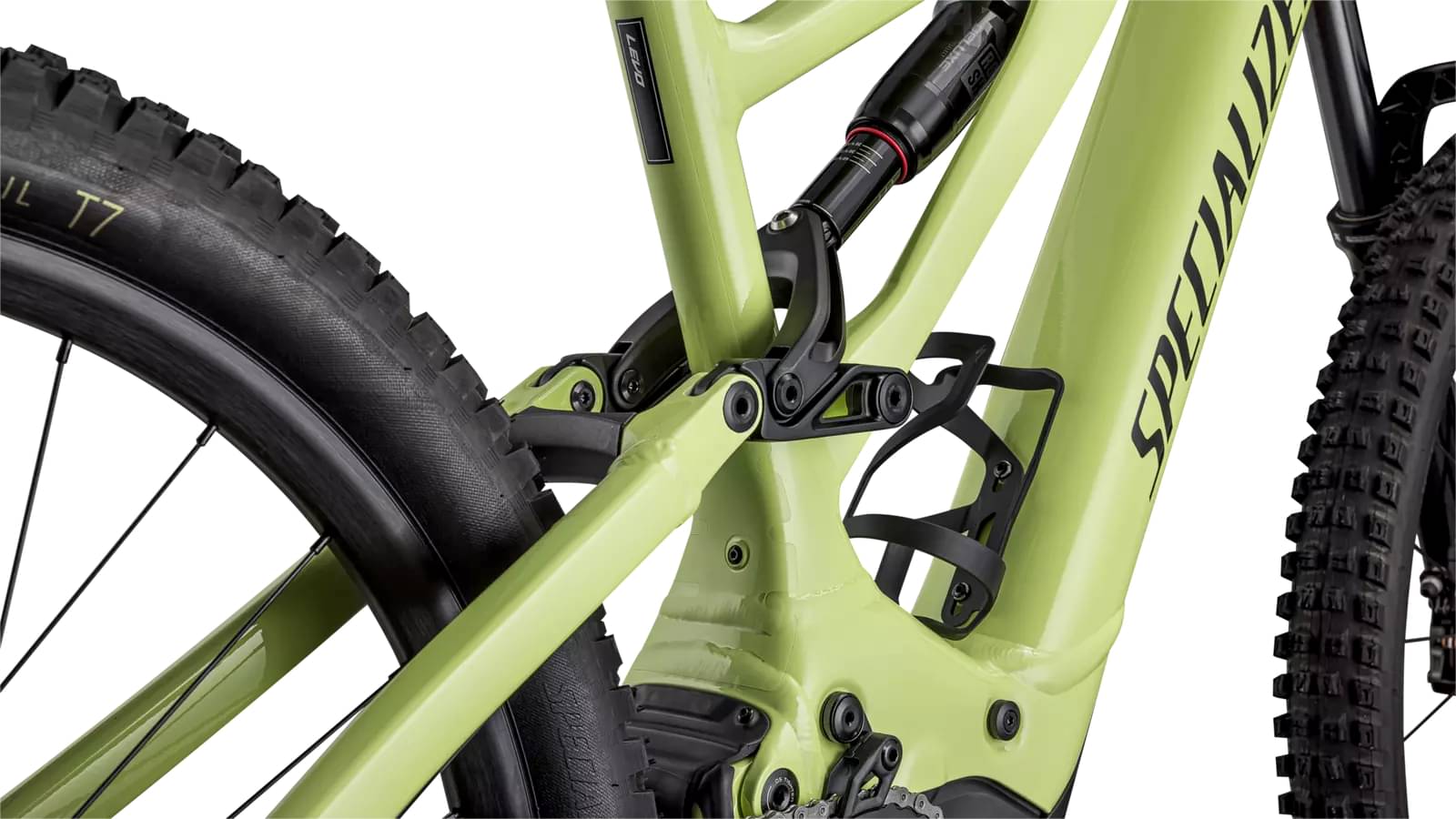

Rear Shock
From the factory, it comes with the RockShox Deluxe Select R rear shock model, which has a travel of 150mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When leaving the production line, the Turbo Levo Alloy model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Specialized Turbo Levo Alloy has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 6 sizes. They vary from 149 cm – 203 cm (4.89 ft – 6.66 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Specialized Turbo Levo Alloy includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
