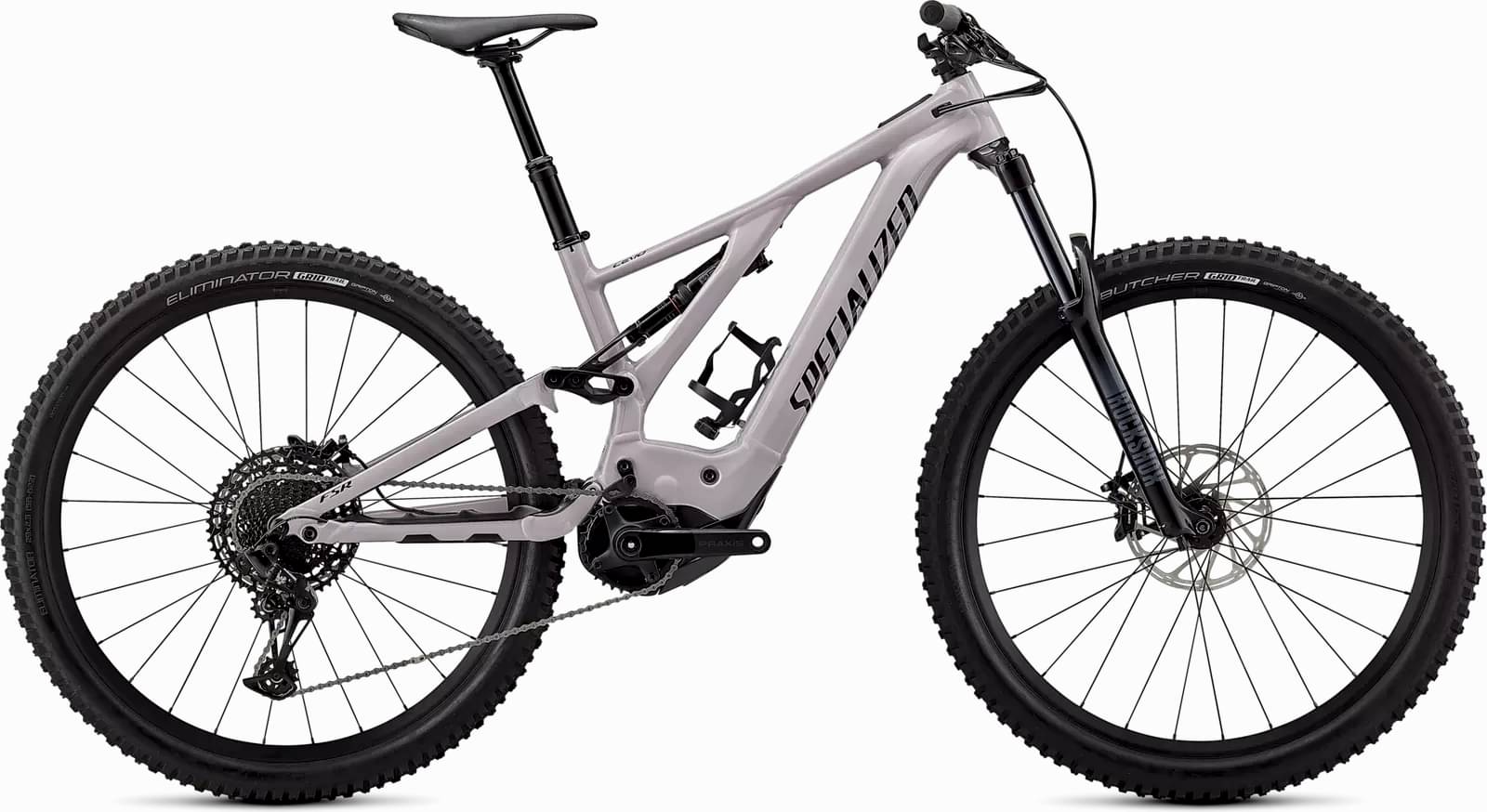

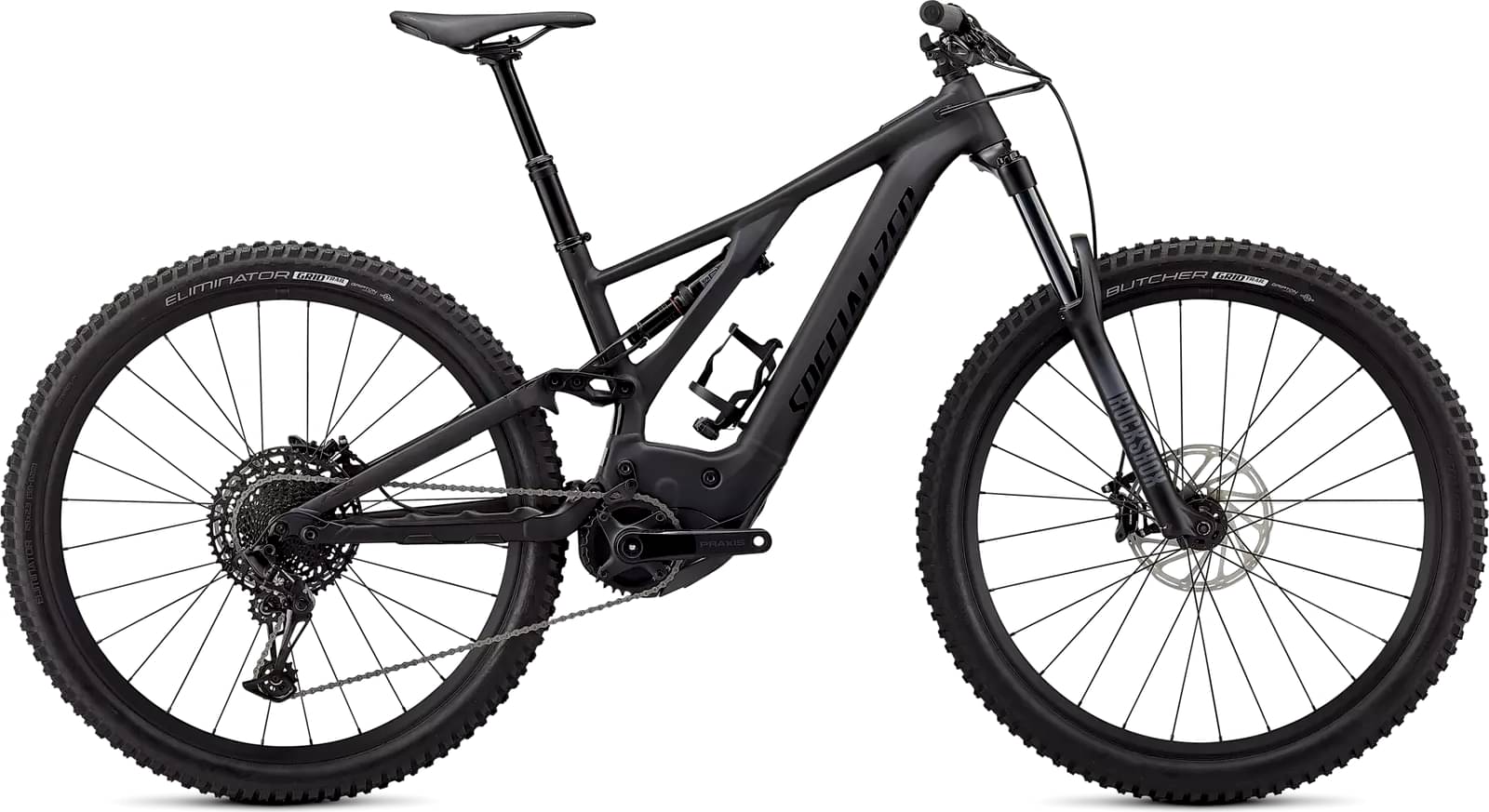

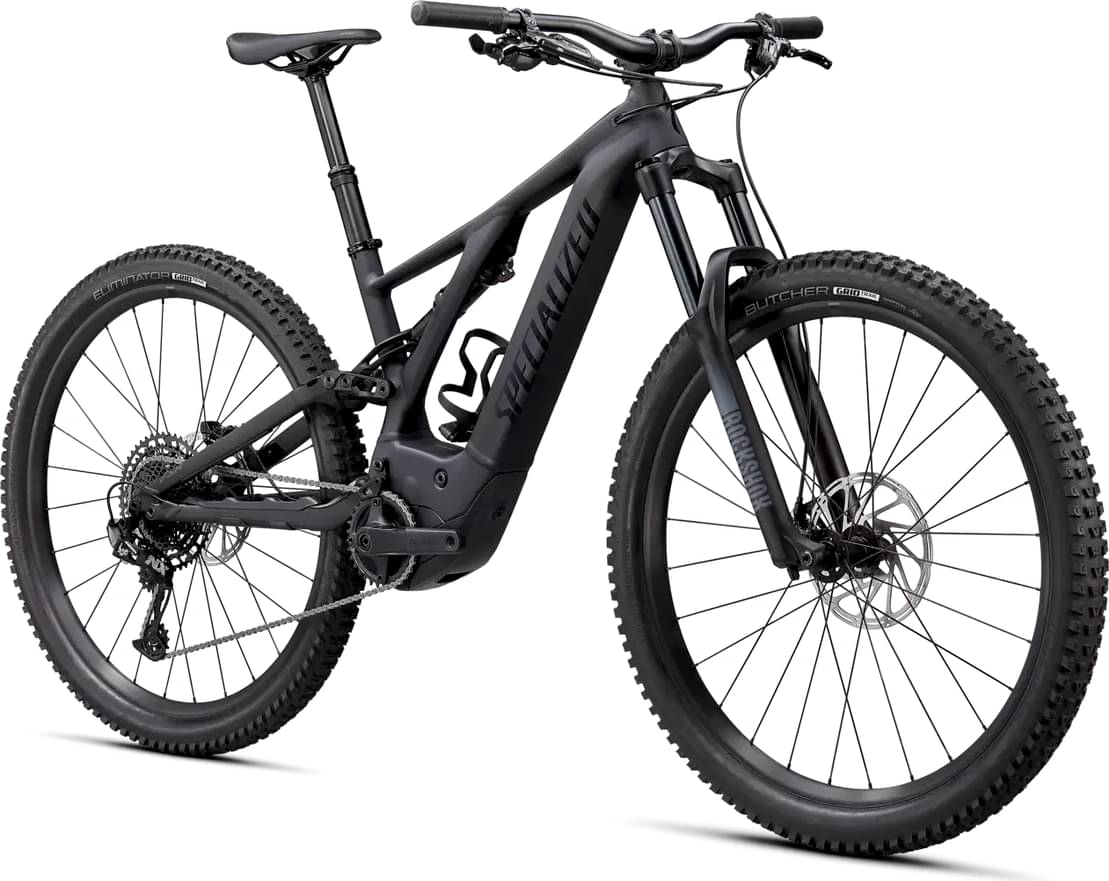

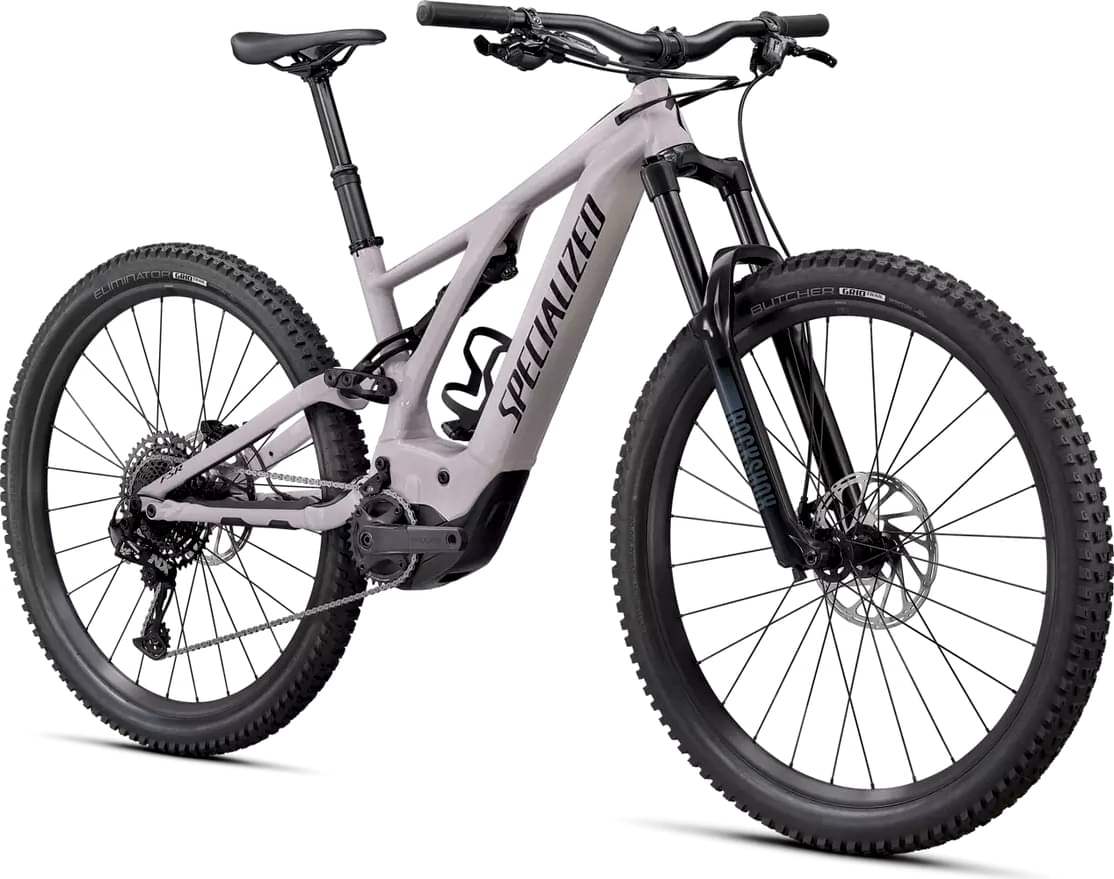

Specialized Turbo Levo 2022
2022 E-bike
Estimate price |
5,232$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork RockShox 35 Silver
-
Groupset NX Eagle, Praxis -
Suspension Full -
Motor Specialized 250W 90Nm mid-drive -
Battery Specialized M2-500, integrated battery w/rock guard, 500Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Specialized M5 Premium Aluminum, 29 Trail Geometry, integrated down tube battery, enclosed internal cable, dropper post routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel
Suspension Fork
Rockshox 35 Silver TK, 160mm travel TurnKey damper

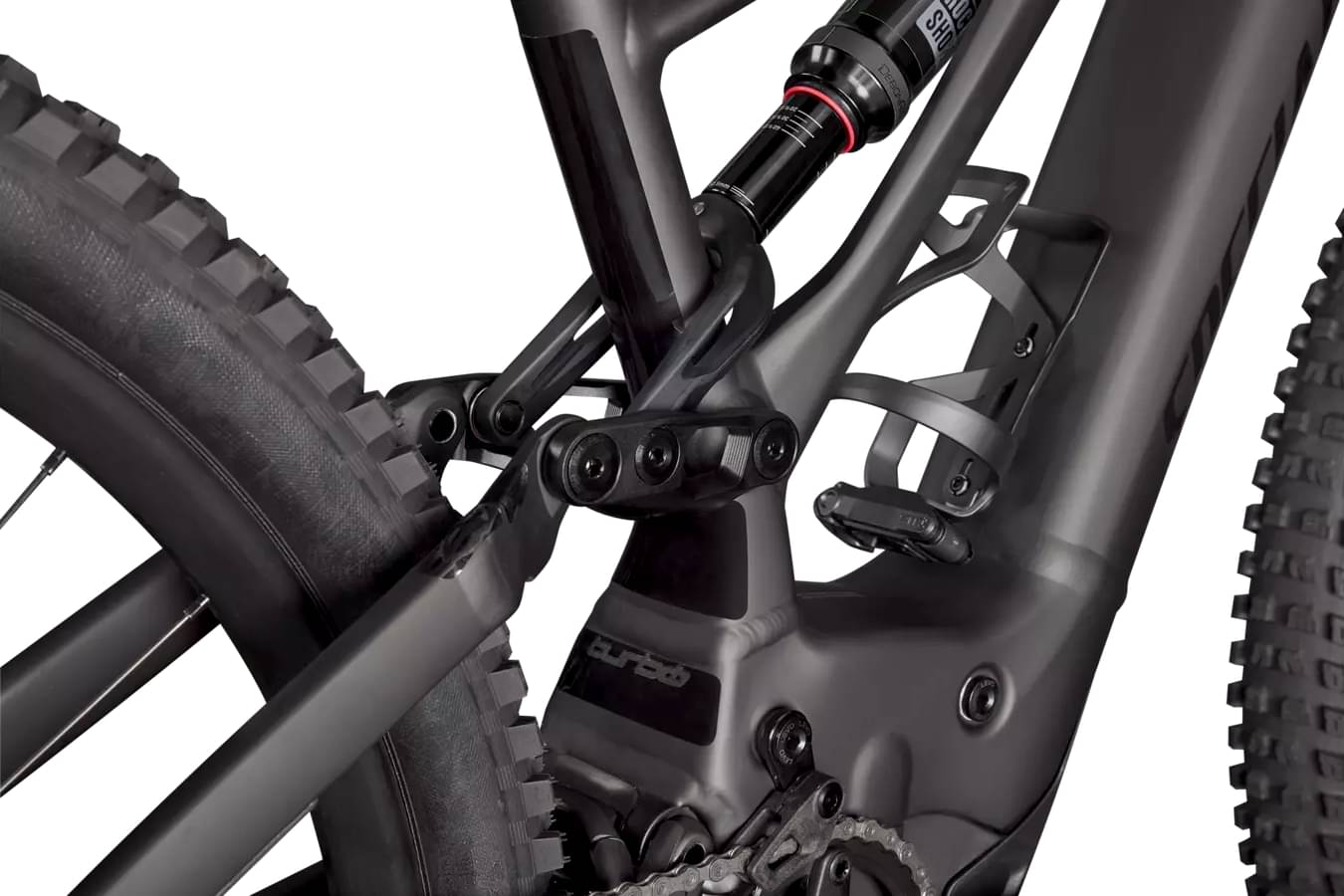

Rear Shock
RockShox Deluxe Select w/ custom air valve, 52.5x210mm

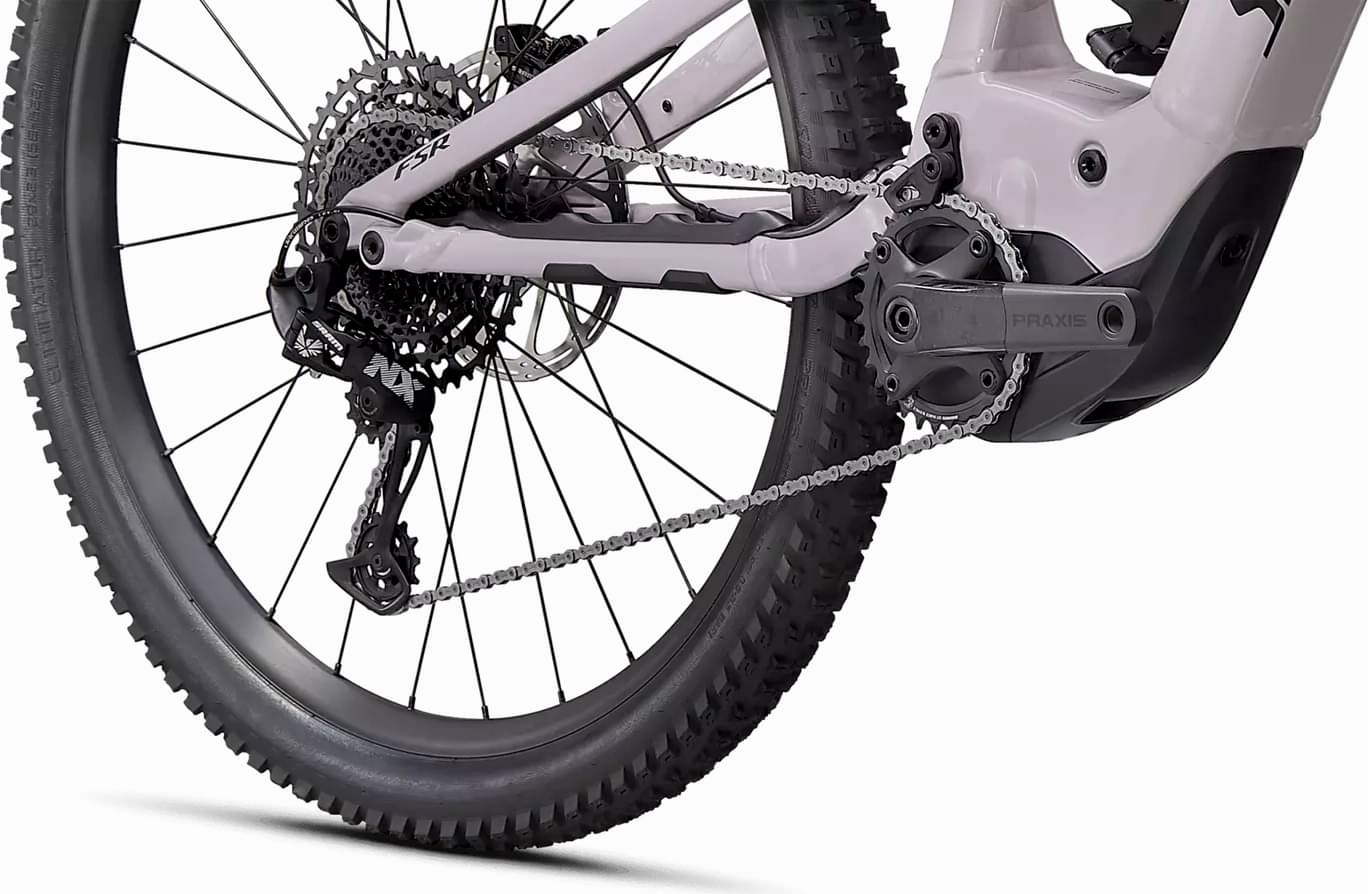

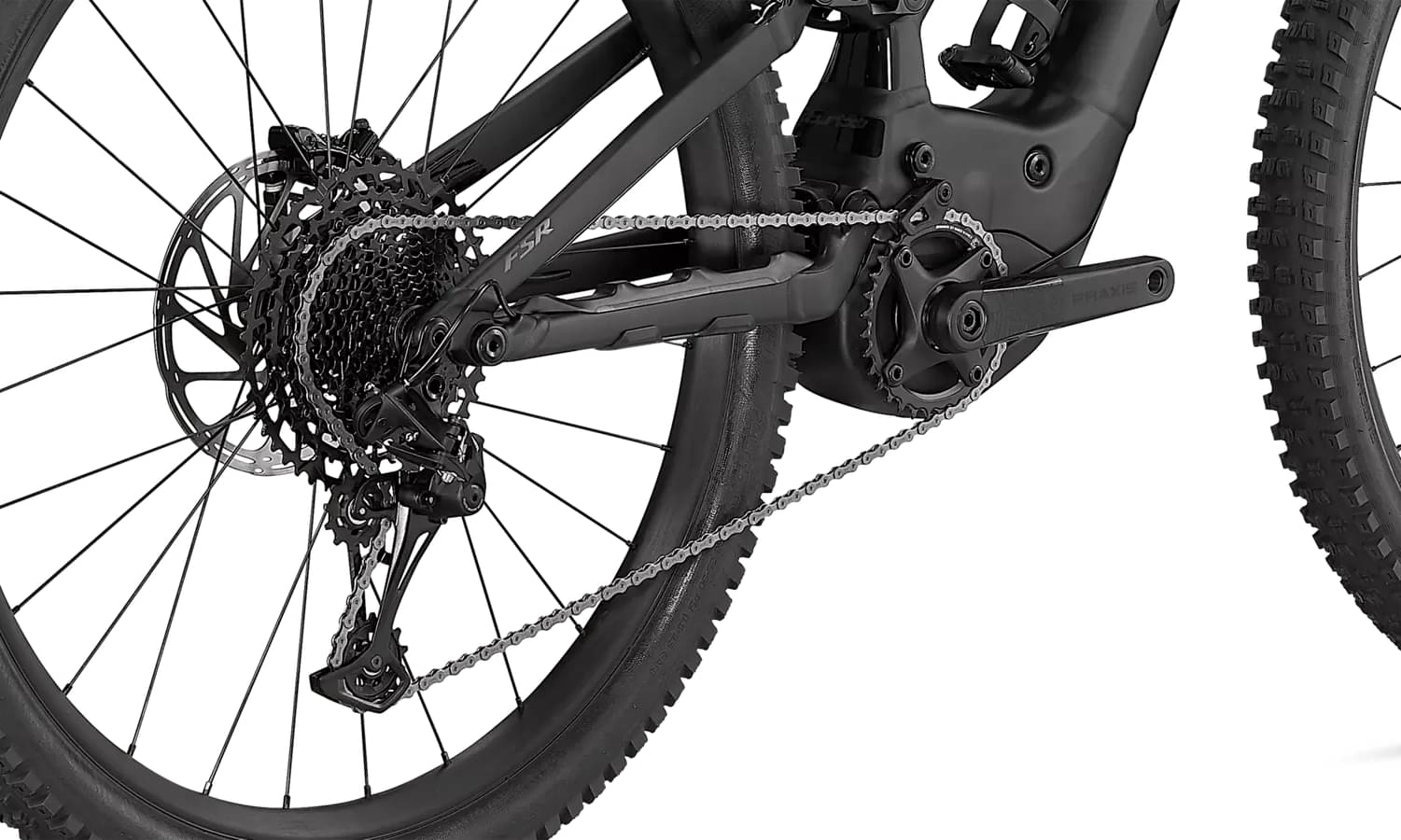

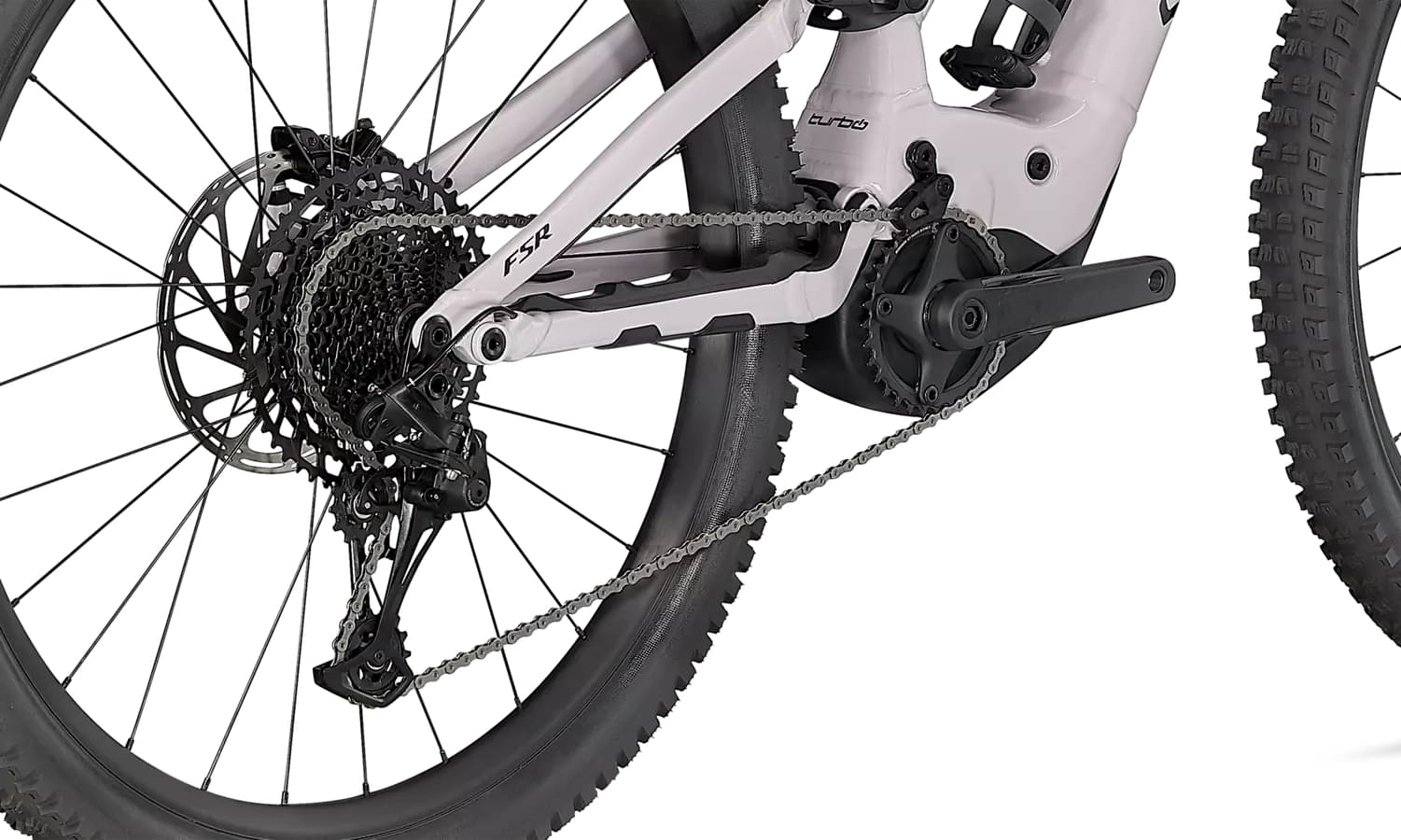

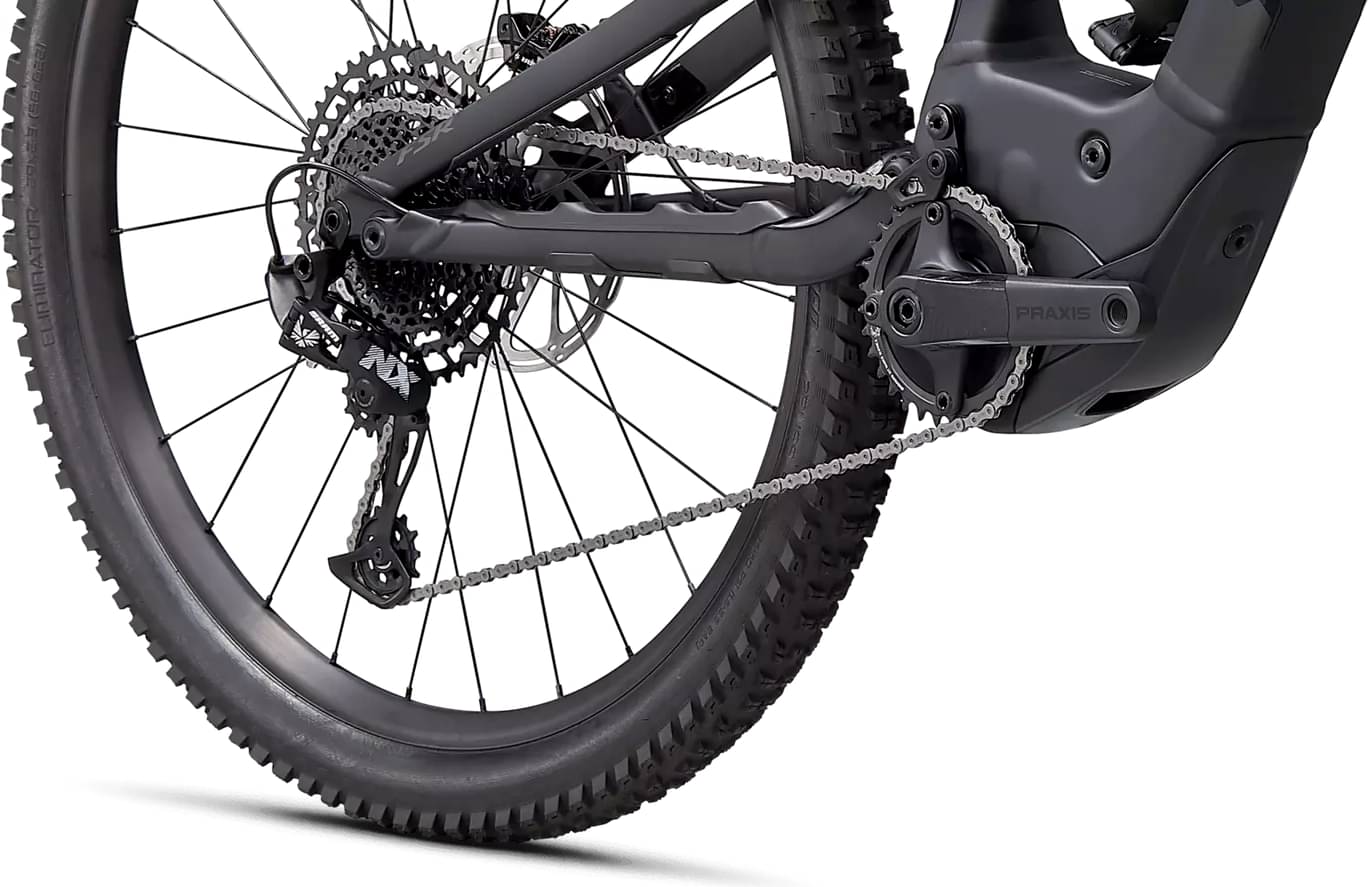

Drivetrain
Rear Derailleur
SRAM NX Eagle, 12-speed
Shift Levers
SRAM NX Eagle, single-click lever
Cassette
SRAM NX Eagle PG-1230, 12-speed, 11-50t
Crank
Praxis forged M30, custom offset, SRAM X-Sync Eagle, 104BCD, 32T, steel
Chain
SRAM NX Eagle, 12-speed
Wheels
Front Hub
Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x110mm thru-axle, 32h
Rear Hub
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
Rims
Specialized 29, hookless alloy, 30mm inner width, tubeless ready
Spokes
DT Swiss Industry
Tires
Front: Butcher, GRID TRAIL casing, GRIPTON® compound, 2Bliss Ready, 29x2.6", Rear: Eliminator, GRID TRAIL casing, GRIPTON® compound, 2Bliss Ready, 29x2.3"
Brakes
Brakes
Front: SRAM Guide RE, metallic pads, Rear: SRAM Guide RE, metallic pads

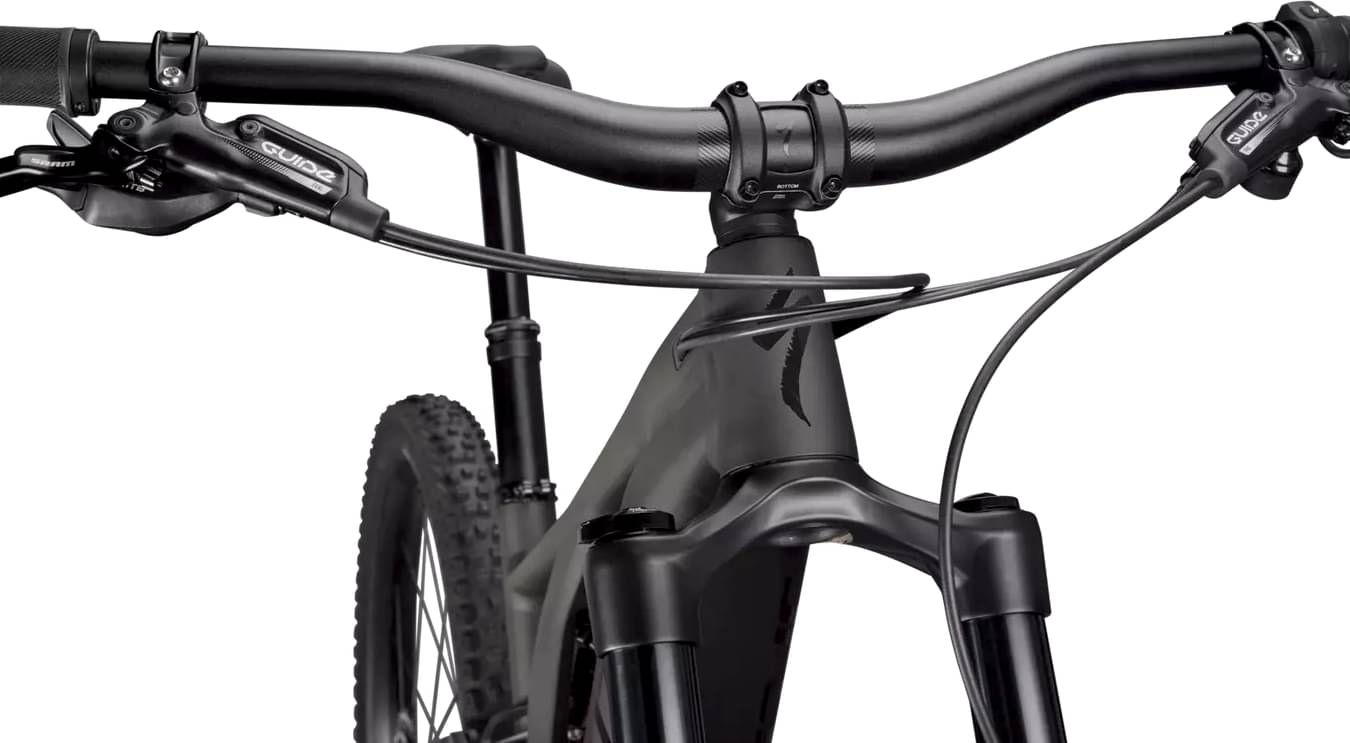

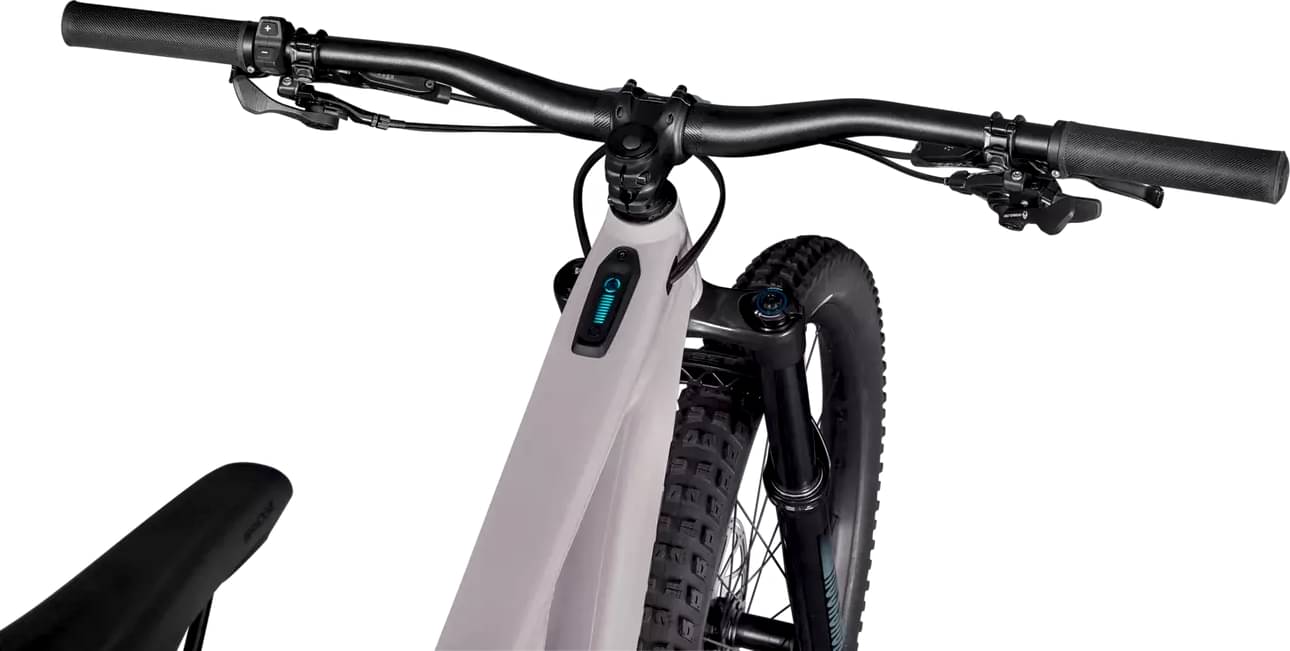

Cockpit
Stem
Alloy Trail Stem, 35mm bar bore

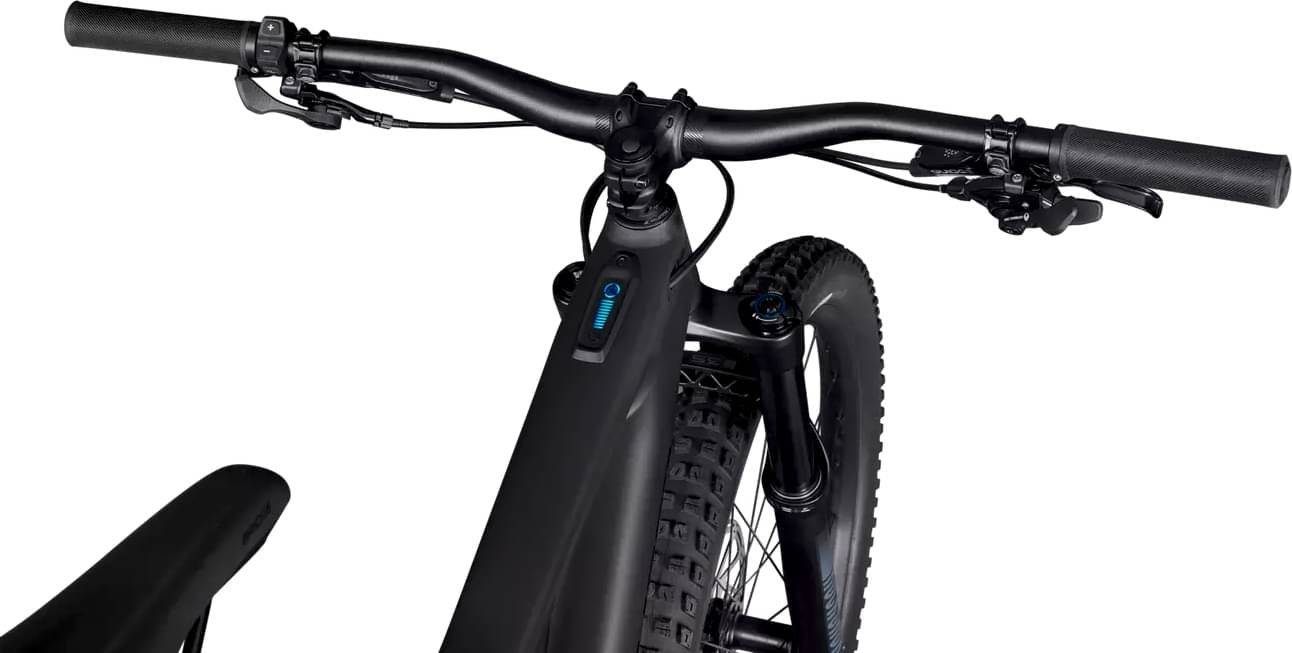

Handlebar
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width
Seat
Saddle
Body Geometry Bridge Saddle, steel rails
Seatpost
TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4-S5: 170mm, S6- 200mm

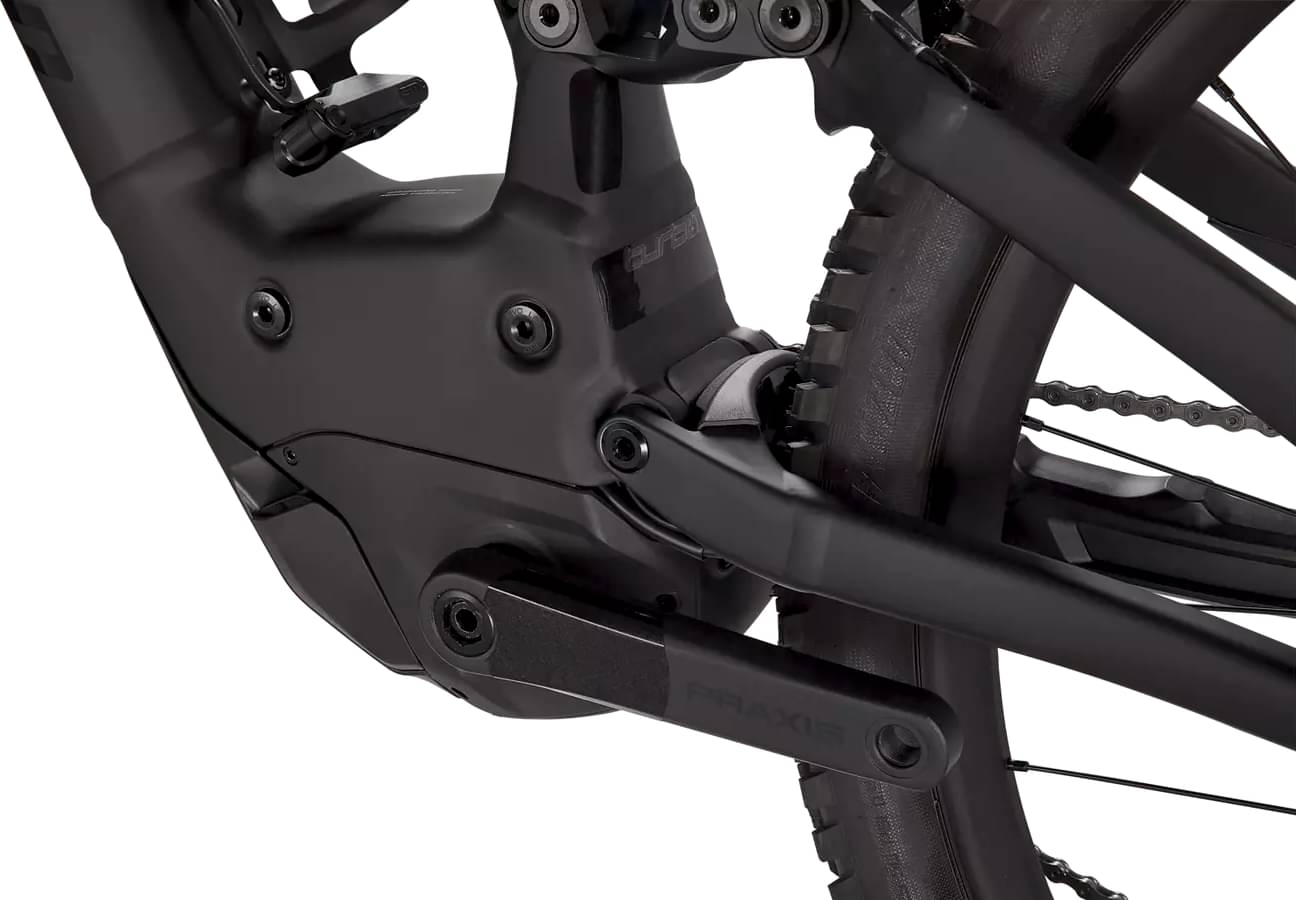

Motor & Battery

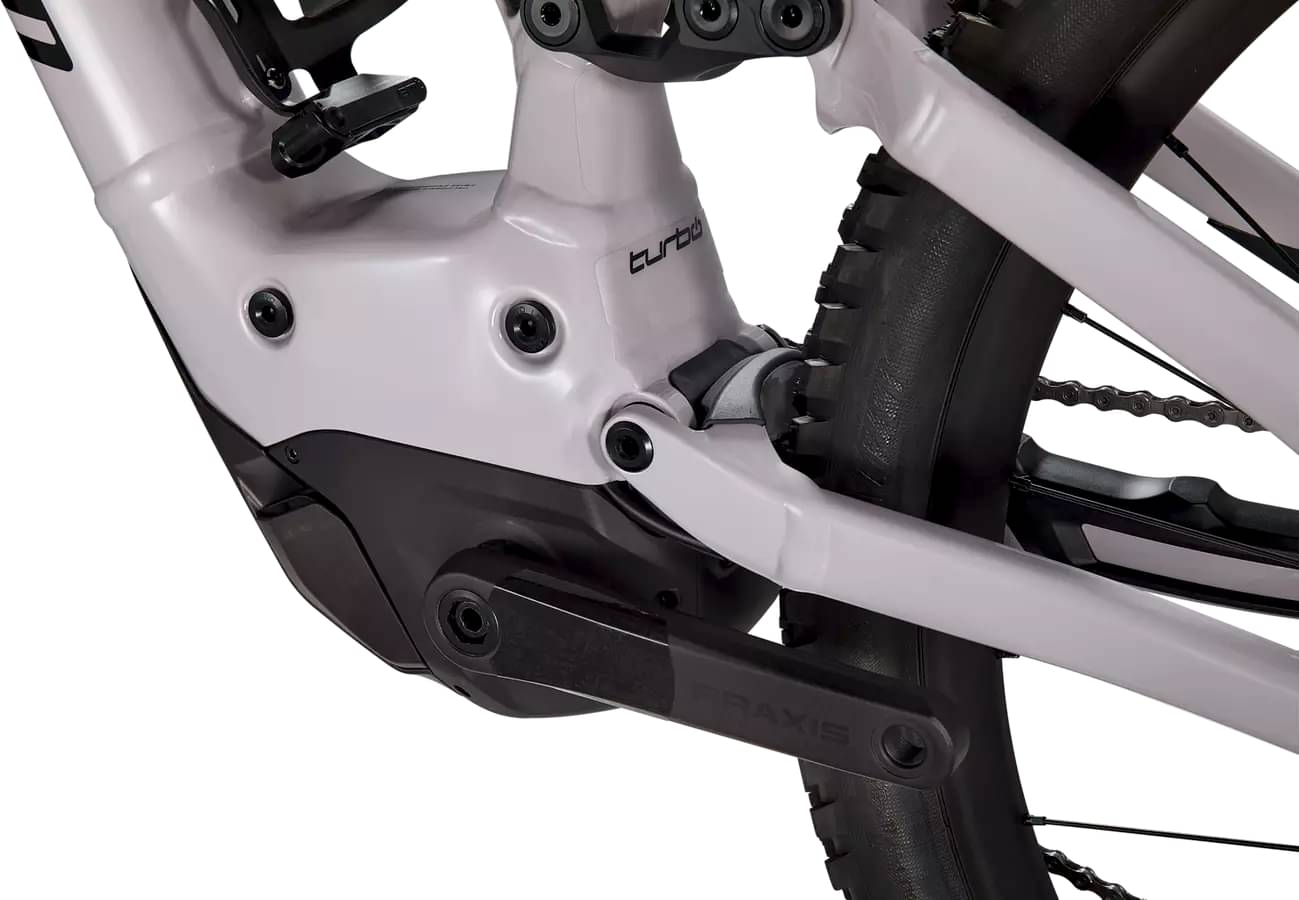

Motor
Specialized Turbo Full Power System 2.1 Motor

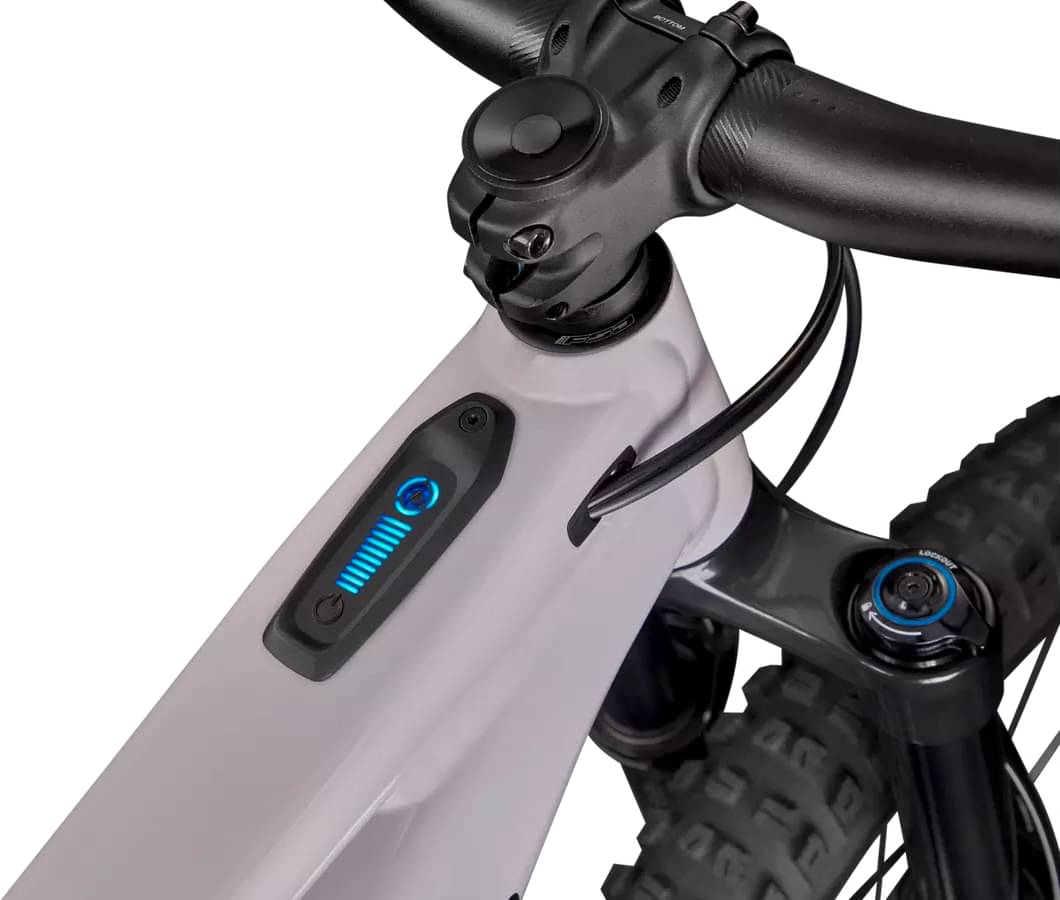

Battery
Specialized M2-500, integrated battery w/rock guard, 500Wh
Charger
Custom charger, 42V4A w/ Rosenberger plug, 100-240V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.4 mm | 1.4 mm | 1.35 mm |
| Bottom Bracket Height | 347.5 mm | 347.5 mm | 347.5 mm | 347.5 mm |
| Front Center | 729 mm | 749 mm | 781 mm | 812 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 111 mm | 111 mm | 111 mm | 111 mm |
| Stack | 603 mm | 603 mm | 631 mm | 644 mm |
| Reach | 412 mm | 432 mm | 452 mm | 477 mm |
| Top Tube Length | 574 mm | 597 mm | 628 mm | 661 mm |
| Seat Tube Angle | 75.04 ° | 74.79 ° | 74.48 ° | 74.14 ° |
| Seat Tube Length | 380 mm | 410 mm | 455 mm | 505 mm |
| Head Tube Angle | 66.04 ° | 66.04 ° | 66.04 ° | 66.04 ° |
| Head Tube Length | 95 mm | 95 mm | 125 mm | 140 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1179 mm | 1199 mm | 1232 mm | 1263 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm | 27 mm |
| Standover Height | 757 mm | 757 mm | 778 mm | 784 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Turbo Levo is part of the Specialized E Turbo Levo model. 86 e-bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Specialized Turbo Levo Hardtail 2022 is the most affordable e-bike of this model and has a price of 2841$. On the other hand, Specialized S-Works Turbo Levo 2022, is the most expensive and costs 13522$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Enduro e-bikes average price
If you want to purchase a solid Enduro e-bike, it is important to know that the average cost is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2022 for 5293$. Comparing the average cost of an Enduro e-bike to this one, you will see that Turbo Levo price is 10.62% higher.

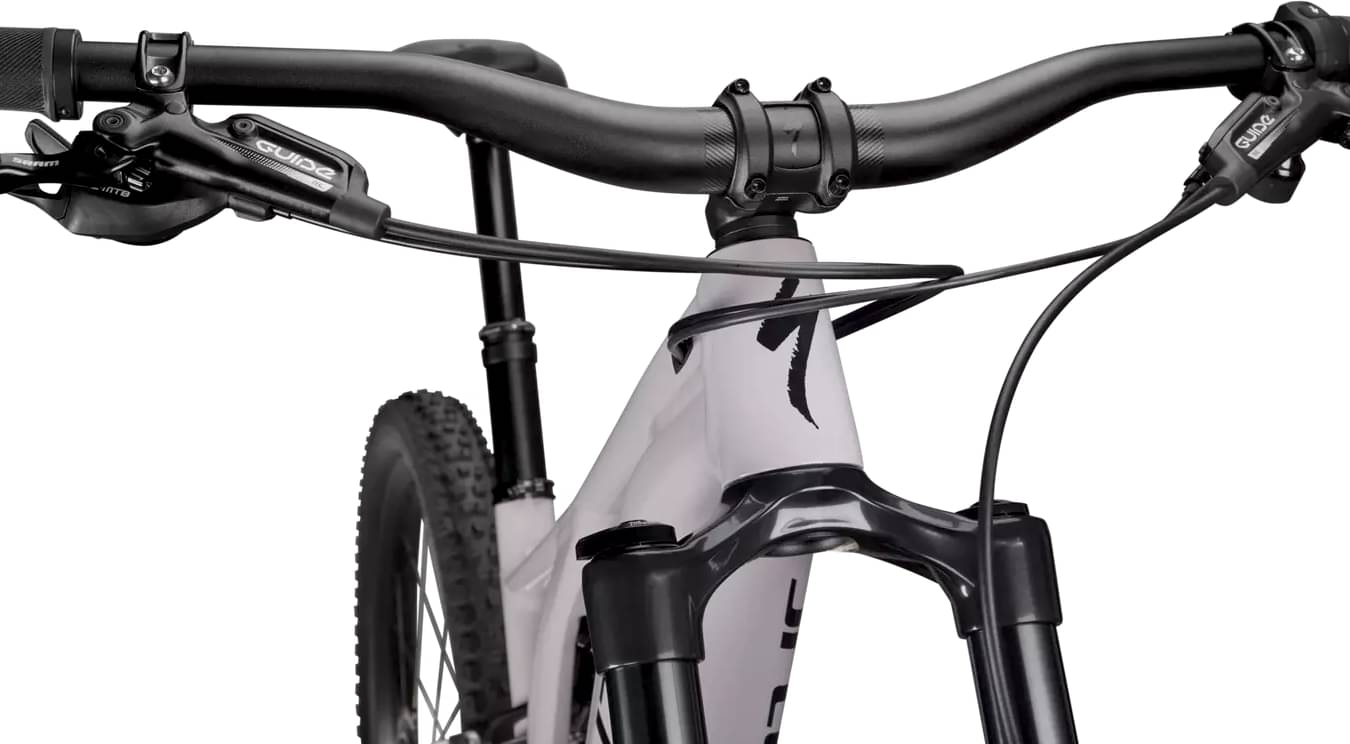

Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
The fork installed on this bike is the RockShox 35 Silver model. The travel on this model is 160mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.

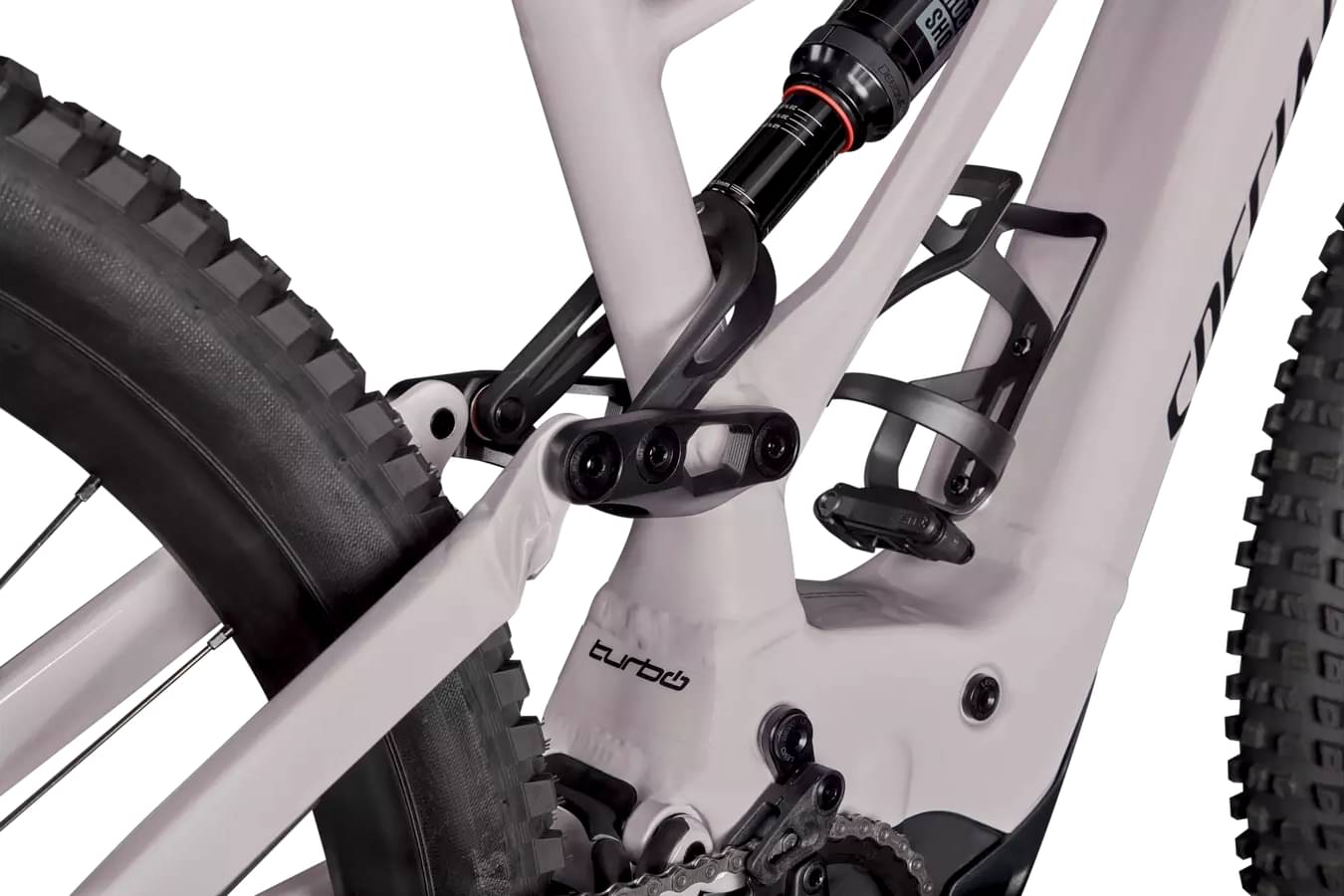

Rear Shock
As for the rear shock, this e-bike has the RockShox Deluxe Select w/ custom air valve model, with a travel of 150mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The wheels on Turbo Levo are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Specialized Turbo Levo is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Turbo Levo comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.

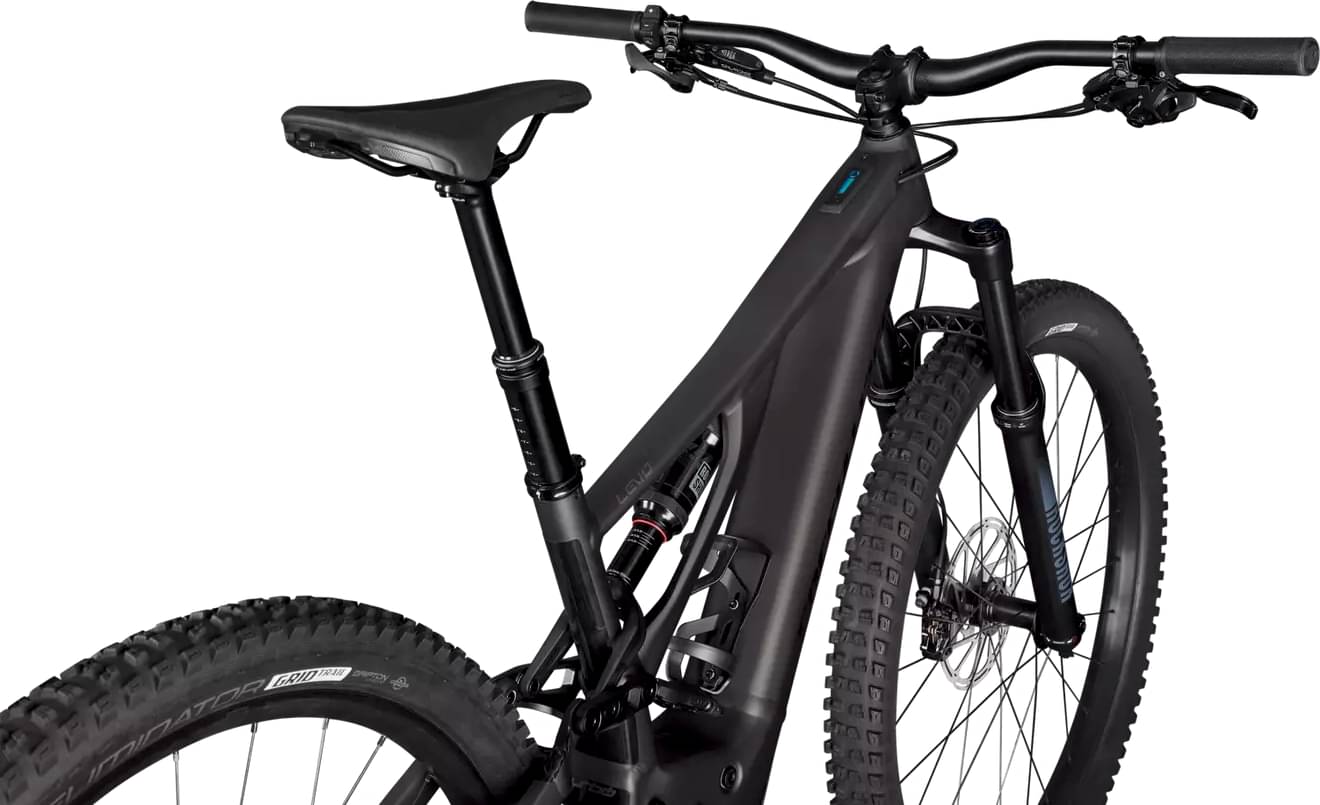

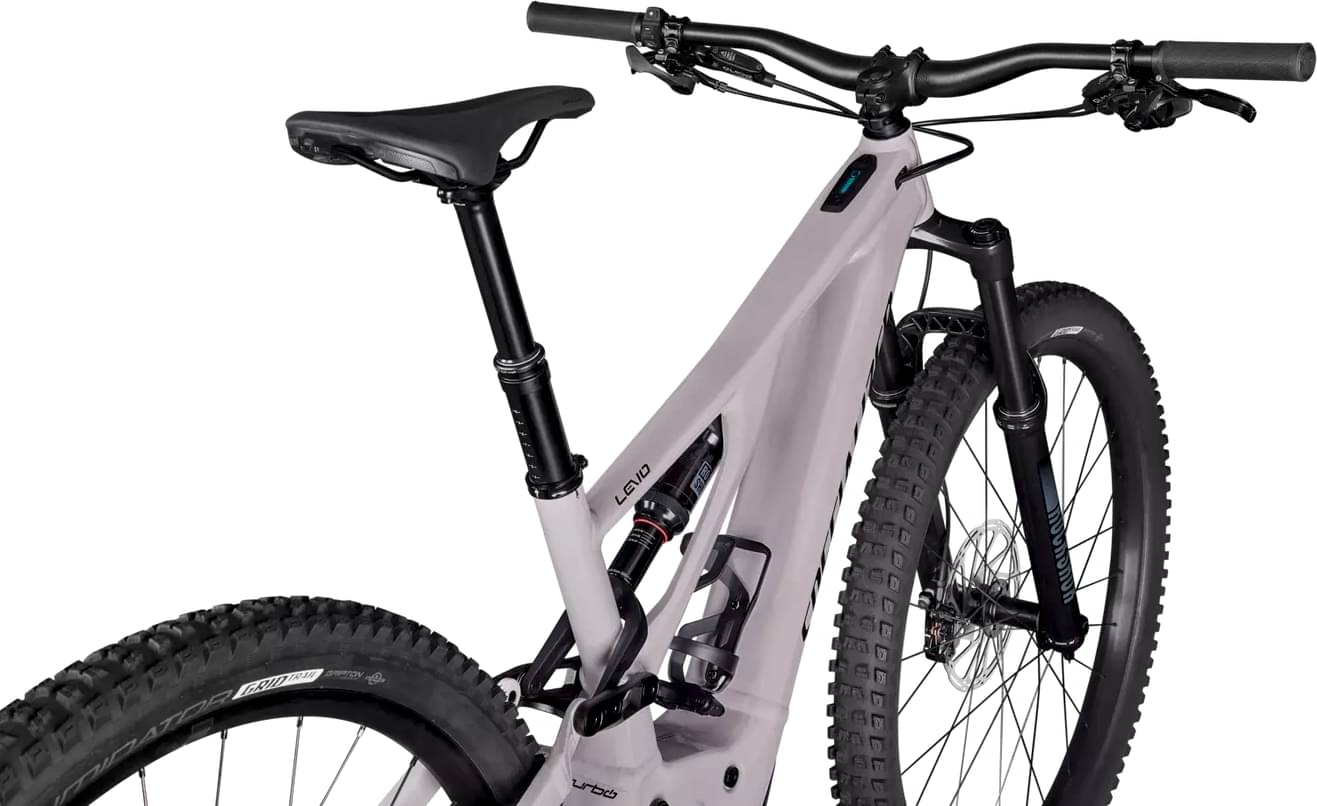

Dropper post
A dropper post is included with the Turbo Levo. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
