Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Performance Elite Float 36
-
Groupset X01 Eagle, Praxis -
Suspension Full -
Motor Specialized 250W 90Nm mid-drive -
Battery Specialized M2-700, integrated battery w/rock guard, 700Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 9m Carbon w/ M5 alloy rear triangle, 29 Trail Geometry, Integrated down tube battery, enclosed internal cable, dropper post routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel
Suspension Fork
Fox Float 36 Performance Elite, Grip2 damper, 160mm, 51mm rake, HSC, LSC, HSR, LSR, Kabolt axle
Rear Shock
Fox Float DPS Performance Elite, 3- position adjustment, 52.5x210mm, Rx Trail Tune
Drivetrain
Rear Derailleur
SRAM X01 Eagle, 12-speed
Shift Levers
SRAM XO1 Eagle trigger, 12-speed, single click
Cassette
SRAM XG-1275, 12-speed, 10-52t
Crank
Praxis forged M30, custom offset, SRAM X-Sync Eagle, 104BCD, 32T, steel
Chain
SRAM GX Eagle, 12-speed
Wheels
Front Hub
Roval, sealed cartridge bearings, 15x110mm spacing, 28h
Rear Hub
Roval DT Swiss 360, 3-pawl design, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h
Rims
Roval Traverse 29 Alloy, 30mm inner width, hand-built, 2Bliss Ready
Spokes
DT Swiss Competition Race
Tires
Front: Butcher, GRID TRAIL casing, GRIPTON® compound, 2Bliss Ready, 29x2.6", Rear: Eliminator, GRID TRAIL casing, GRIPTON® compound, 2Bliss Ready, 29x2.3"
Brakes
Brakes
SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm
Cockpit
Stem
Alloy Trail Stem, 35mm bar bore
Handlebar
Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 30mm rise, 800mm, 35mm clamp
Grips
Deity, Knuckleduster, Black
Seat
Saddle
Bridge Comp, Hollow Cr-mo rails, 155/143mm
Seatpost
X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SRL LE lever, 34.9mm, S: 125mm, M/L: 150mm, XL: 170mm
Motor & Battery
Motor
Specialized Turbo Full Power System 2.1 Motor
Battery
Specialized M2-700, integrated battery w/rock guard, 700Wh
Charger
Custom charger, 42V4A w/ Rosenberger plug
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.4 mm | 1.4 mm | 1.35 mm |
| Bottom Bracket Height | 347.5 mm | 347.5 mm | 347.5 mm | 347.5 mm |
| Front Center | 729 mm | 749 mm | 781 mm | 812 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 111 mm | 111 mm | 111 mm | 111 mm |
| Stack | 603 mm | 603 mm | 631 mm | 644 mm |
| Reach | 412 mm | 432 mm | 452 mm | 477 mm |
| Top Tube Length | 574 mm | 597 mm | 628 mm | 661 mm |
| Seat Tube Angle | 75.04 ° | 74.79 ° | 74.48 ° | 74.14 ° |
| Seat Tube Length | 380 mm | 410 mm | 455 mm | 505 mm |
| Head Tube Angle | 66.04 ° | 66.04 ° | 66.04 ° | 66.04 ° |
| Head Tube Length | 95 mm | 95 mm | 125 mm | 140 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1179 mm | 1199 mm | 1232 mm | 1263 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm | 27 mm |
| Standover Height | 757 mm | 757 mm | 778 mm | 784 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

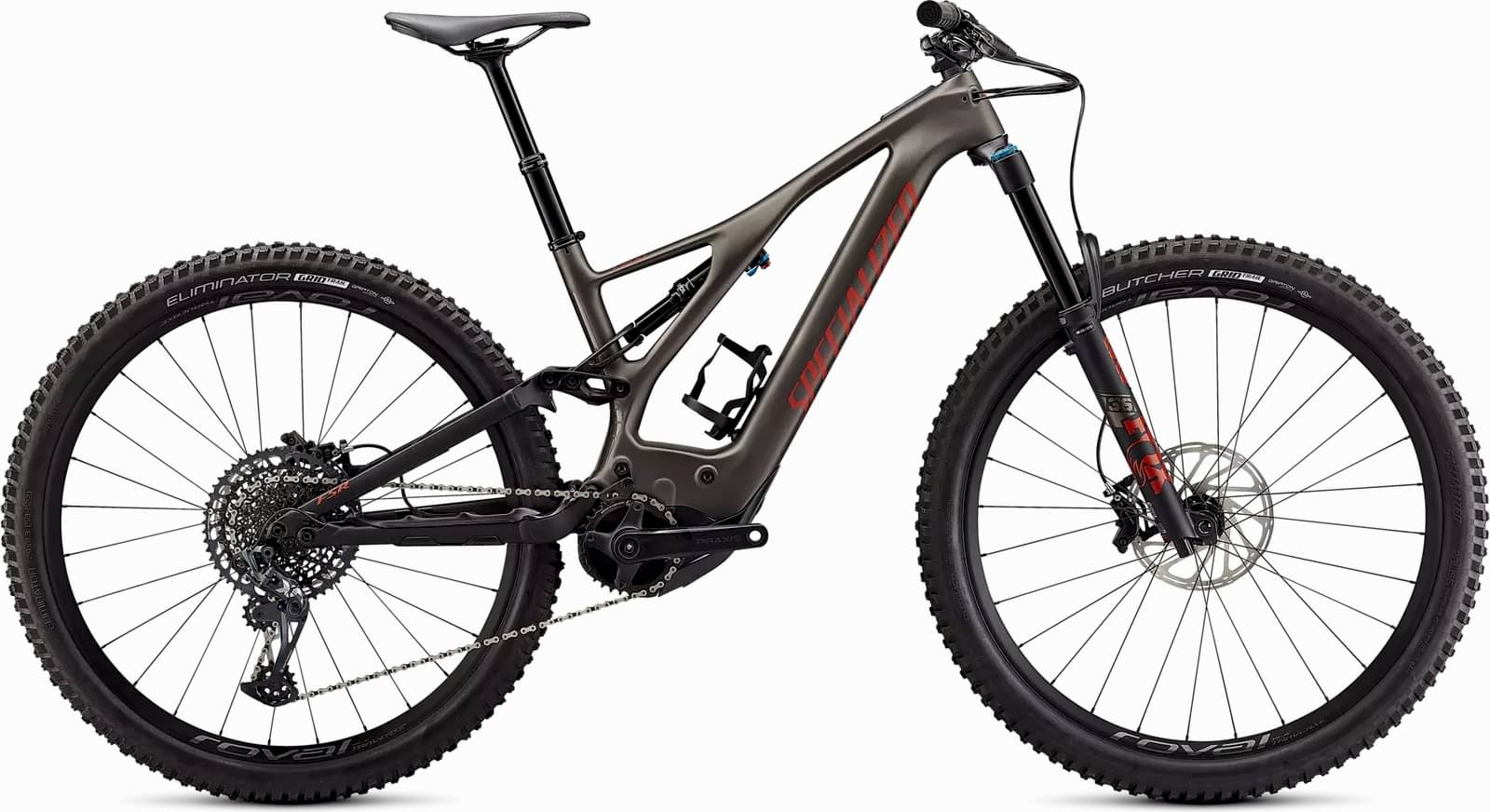

Turbo Levo Expert Carbon is a Specialized E Turbo Levo model. 86 e-bikes variations carry this model name so far. You can easily view all of the Specialized E Turbo Levo e-bikes models from 2022, here.
Model range prices
Specialized Turbo Levo Hardtail 2022 is the most economical model, with a starting price of 2841$. Specialized S-Works Turbo Levo 2022 on the other hand costs 13522$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Enduro e-bikes average price
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
The fork installed on this bike is the Fox Performance Elite Float 36 model. The travel on this model is 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this e-bike is Fox Float DPS Performance Elite, with a travel distance of 150mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When leaving the production line, the Turbo Levo Expert Carbon model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Turbo Levo Expert Carbon comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Every bike should have a dropper post, and this one does. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
