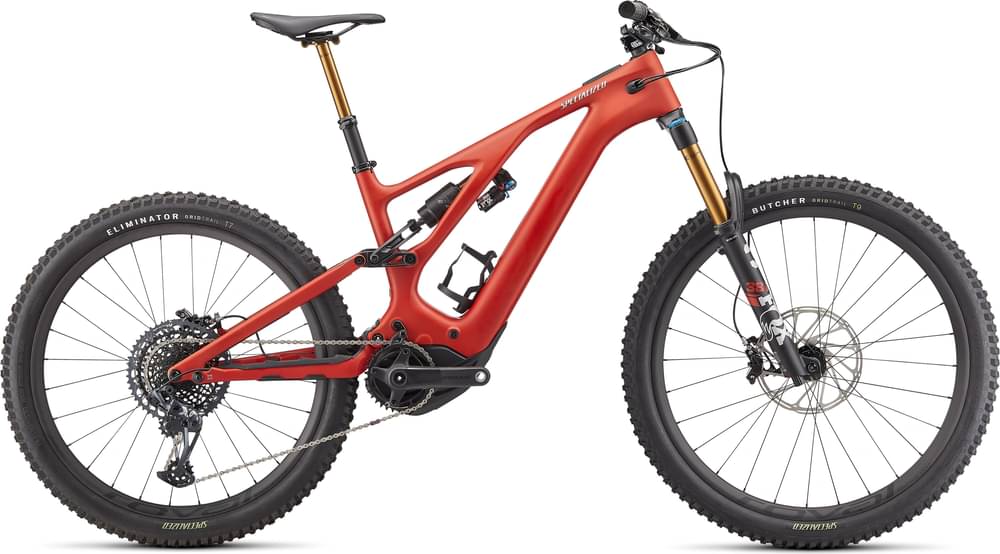

Specialized Turbo Levo Pro 2022
2022 E-bike
Estimate price |
10,722$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" / 27.5" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Factory Float 38
-
Groupset X01 Eagle, SRAM -
Suspension Full -
Motor Specialized mid-drive -
Battery Specialized M3-700, Integrated battery, 700Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
S2
157cm - 172cm
S3
165cm - 180cm
S4
172cm - 188cm
S5
177cm - 193cm
S6
188cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 11m full carbon, 29" front wheel, 27.5" rear wheel, full internal cable routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel, geo adjust head tube, geo adjust horst pivot
Suspension Fork
FOX FLOAT 38 Factory 29, Grip2 damper, 44mm offset, HSC, LSC, HSR, LSR, 110x15mm, 1.5" tapered steerer, 160mm travel, Kashima
Rear Shock
FOX FLOAT X2 Factory, LSC, LSR, 2-position lever, 55x210mm, Kashima
Drivetrain
Rear Derailleur
SRAM X01 Eagle, 12-speed
Shift Levers
SRAM XO1 Eagle trigger, 12-speed, single click
Cassette
SRAM XG-1295 Eagle, 10-52t
Crank
Praxis Carbon M30, custom offset, 160mm, SRAM X-Sync Eagle, 104 BCD, 34T, steel
Chain
SRAX X01 Eagle, 12-speed
Wheels
Rims
Front: Traverse Carbon 29, Rear: Traverse Carbon 27.5
Tires
Front: Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6", Rear: Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"
Brakes
Brakes
SRAM Code RSC, 4-piston caliper, hydraulic disc, 200mm
Cockpit
Stem
Deity, 35.0mm
Handlebar
Roval Traverse SL Carbon, riser bar, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm, 35.0mm
Grips
Deity, Knuckleduster, Black
Seat
Saddle
Bridge, 155/143mm, Hollow Ti-rails
Seatpost
FOX Transfer, 30.9, S1: 100mm, S2: 125mm, S3: 150mm, S4/S5: 175mm, S6: 200mm
Motor & Battery
Motor
Specialized Turbo Full Power System 2.2 Motor
Battery
Specialized M3-700, Integrated battery, 700Wh
Charger
Custom charger, 42V4A w/ Rosenberger plug
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.38 mm | 1.33 mm | 1.28 mm | 1.22 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 760 mm | 784 mm | 814 mm | 843 mm | 878 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 130 mm | 130 mm | 130 mm | 130 mm | 130 mm |
| Stack | 624 mm | 633 mm | 642 mm | 651 mm | 660 mm |
| Reach | 439 mm | 459 mm | 484 mm | 509 mm | 539 mm |
| Seat Tube Angle | 77.2 ° | 76.7 ° | 76.2 ° | 76.2 ° | 76.2 ° |
| Seat Tube Length | 390 mm | 405 mm | 425 mm | 445 mm | 465 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 449 mm | 449 mm | 449 mm | 449 mm | 449 mm |
| Wheelbase | 1207 mm | 1232 mm | 1262 mm | 1291 mm | 1325 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm | 27 mm | 27 mm |
| Standover Height | 783 mm | 790 mm | 794 mm | 795 mm | 797 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 157 cm | 165 cm | 172 cm | 177 cm | 188 cm |
| Rider Max Height | 172 cm | 180 cm | 188 cm | 193 cm | 203 cm |
About this model
Turbo Levo Pro belongs to the Specialized E Turbo Levo model. Specialized launched 86 e-bikes of this model so far. Take a sneak peek at all Specialized E Turbo Levo e-bikes models from 2022, by clicking here.
Model range prices
Specialized Turbo Levo Hardtail 2022 is the cheapest e-bike model and costs 2841$. Specialized S-Works Turbo Levo 2022 is the most expensive one and costs 13522$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Enduro e-bikes average price
According to our calculations, the average cost of an Enduro e-bike that is reliable is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
This e-bike was released in 2022 and its price was 10846$. In conclusion, this e-bike price is 126.67% more expensive than the price of the average Enduro e-bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Turbo Levo Pro components
Fork
The fork installed on this bike is the Fox Factory Float 38 model. The travel on this model is 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Specialized Turbo Levo Pro e-bike has the FOX FLOAT X2 Factory model installed, and has a travel of 150mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The Turbo Levo Pro 2022 e-bike is equipped with 29″ carbon wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 157 cm – 203 cm (5.15 ft – 6.66 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Specialized Turbo Levo Pro includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
