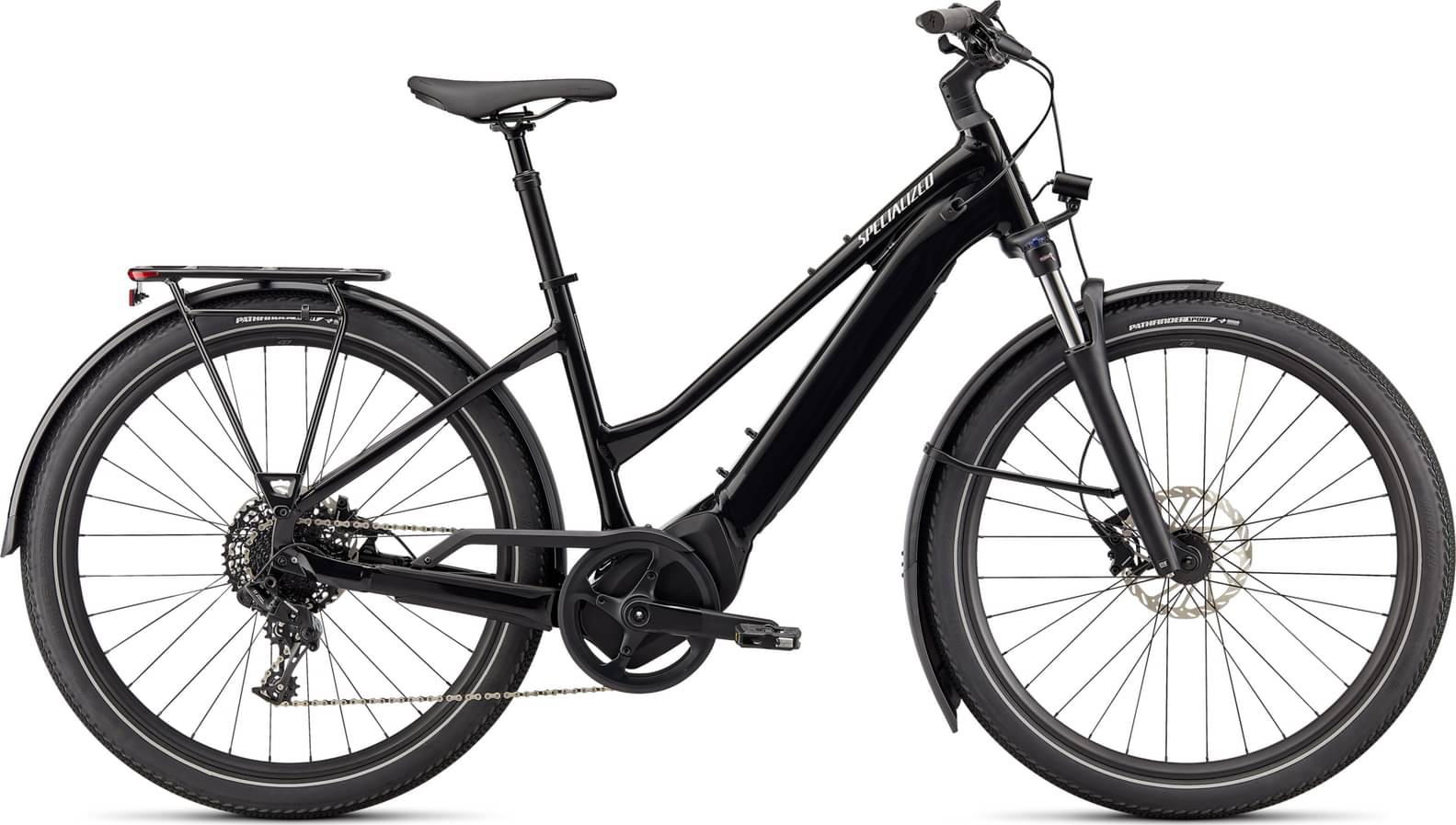

Specialized Turbo Vado 4.0 Step-Through 2022
2022 E-bike
Estimate price |
4,703$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Travel Front 80mm -
Fork Suntour MOBIE
-
Groupset NX -
Suspension Hardtail -
Motor Specialized 250W 70Nm mid-drive -
Battery Specialized U2-710, alloy casing, state of charge display, 710Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E5 Aluminum, bottom bracket motor mount, fully integrated & lockable downtube battery, internal cable routing, lock and front rack mount
Suspension Fork
SR Suntour MobieA32, 80mm travel, lockout, fender-mounts, integrated light mount
Drivetrain
Rear Derailleur
SRAM NX, 11-speed
Shift Levers
SRAM NX, 11-speed
Cassette
SRAM PG-1130, 11-speed, 11-42t
Crank
Custom alloy forged crankarms, 40T
Chain
KMC e11S, 11-speed w/ Missing Link™
Pedals
Specialized Commuter w/ grip tape & reflectors
Wheels
Front Hub
Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x100mm thru-axle, 32h
Rear Hub
Specialized alloy rear hub disc, sealed cardridge bearings, 6-bolt, 12x148mm thru-axle, 32h
Rims
650b disc, double-wall alloy, pinned, 32h
Spokes
DT Swiss Industry
Tires
Front: Pathfinder Sport Reflect, 650Bx2.3, Rear: Pathfinder Sport Reflect, 650Bx2.3
Brakes
Brakes
SRAM Level, 2-piston caliper, hydraulic disc, 180mm 6-bolt
Cockpit
Stem
Specialized Flowset, 3D-forged alloy, 20-degree rise, 31.8mm clamp
Handlebar
Specialized, alloy, 15-degree backsweep, 46mm rise, 31.8mm
Grips
Specialized Body Geometry Contour, lock-on
Seat
Saddle
Rivo Sport, steel rails, 155mm
Seatpost
Spring suspension, alloy, 40mm travel, 30.9mm, 2-bolt clamp, 34.9mm sleeve
Motor & Battery
Motor
Specialized 2.0, 70Nm torque, custom tuned motor, 250W nominal
Battery
Specialized U2-710, alloy casing, state of charge display, 710Wh
Charger
Custom charger, 42V4A w/ Rosenberger plug, 100-240V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.478 mm | 1.439 mm | 1.405 mm | 1.405 mm |
| Bottom Bracket Height | 285 mm | 285 mm | 285 mm | 285 mm |
| Front Center | 699 mm | 724 mm | 750 mm | 777 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 96 mm | 96 mm | 96 mm | 96 mm |
| Stack | 625 mm | 639 mm | 652 mm | 676 mm |
| Reach | 423 mm | 444 mm | 464 mm | 481 mm |
| Seat Tube Length | 400 mm | 450 mm | 460 mm | 500 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 135 mm | 150 mm | 165 mm | 190 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1160 mm | 1186 mm | 1212 mm | 1239 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 618 mm | 617 mm | 617 mm | 626 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Turbo Vado 4.0 Step-Through is a Specialized E Turbo Vado model. Specialized released 78 e-bikes variations of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Specialized Turbo Vado 3.0 2022 is the most affordable e-bike of this model and has a price of 3610$. On the other hand, Specialized Turbo Vado 5.0 IGH 2022, is the most expensive and costs 6689$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Hybrid e-bikes average price
If you want an acceptable Hybrid e-bike you should know that the average price is 2480$. However, you could also get a good Hybrid e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
This e-bike was released in 2022 and its price was 4353$. Comparing the average cost of a Hybrid e-bike to this one, you will see that Turbo Vado 4.0 Step-Through price is 75.52% higher.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Turbo Vado 4.0 Step-Through components
Fork
Specialized Turbo Vado 4.0 Step-Through 2022 e-bike is equipped with the Suntour MOBIE fork, and has 80mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
The wheels on Turbo Vado 4.0 Step-Through are the aluminum type. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Specialized Turbo Vado 4.0 Step-Through e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
