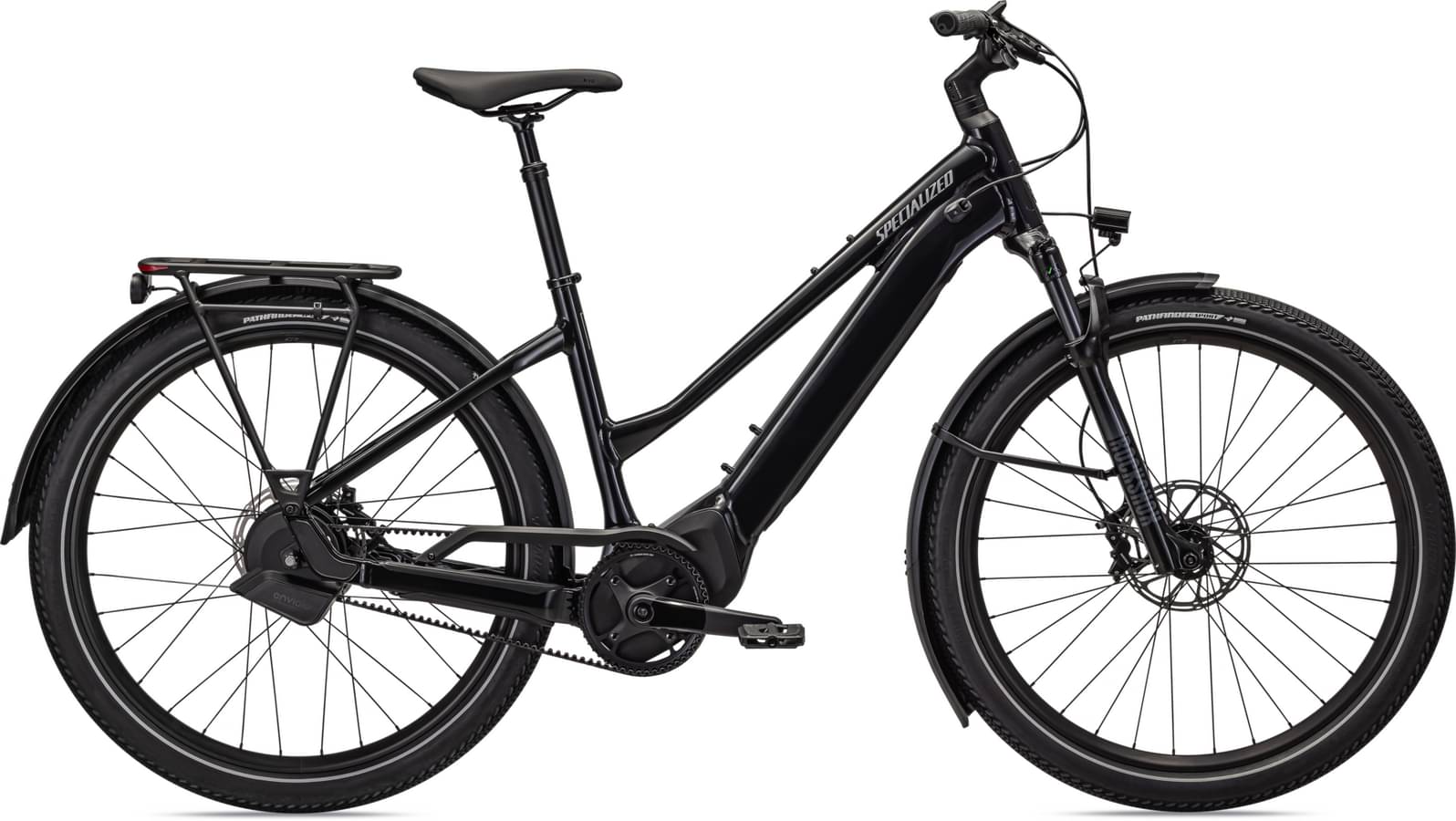

Specialized Turbo Vado 5.0 IGH Step-Through 2022
2022 E-bike
Estimate price |
7,226$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Travel Front 80mm -
Fork RockShox Recon Silver RL
-
Suspension Hardtail -
Motor Specialized 250W 90Nm mid-drive -
Battery Specialized U2-710, alloy casing, state of charge display, 710Wh -
Drivetrain Belt Drive -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E5 Aluminum, bottom bracket motor mount, fully integrated &lockable downtube battery, internal cable routing, lock and front rack mount, sliding dropout
Suspension Fork
Rockshox Recon Silver RL, 80mm travel, Motion-Control, fender-mounts
Drivetrain
Cassette
Gates Carbon Drive CDX 24t sprocket, silver
Crank
Custom alloy forged crankarms, Gates Carbon Drive CDX 50T chainring, black
Chain
Gates Carbon Drive CDX 122t belt, black
Pedals
Specialized Commuter w/ grip tape & reflectors
Wheels
Front Hub
Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x110mm thru-axle, 32h
Rear Hub
enviolo Heavy Duty, 380% range, 6-bolt, 10x135mm, 32h
Rims
650b disc, double-wall alloy, pinned, 32h
Spokes
DT Swiss Industry
Tires
Front: Pathfinder Sport Reflect, 650Bx2.3, Rear: Pathfinder Sport Reflect, 650Bx2.3
Brakes
Brakes
SRAM G2 RS, 4-piston caliper, hydraulic disc, 180mm 6-bolt
Cockpit
Stem
Specialized Flowset, 3D-forged alloy, 20-degree rise, 31.8mm clamp
Handlebar
Specialized, alloy, 15-degree backsweep, 46mm rise, 31.8mm
Grips
ERGON GA30
Seat
Saddle
Rivo Sport, steel rails, 155mm
Seatpost
Spring suspension, alloy, 40mm travel, 30.9mm, 2-bolt clamp, 34.9mm sleeve
Motor & Battery
Motor
Specialized 2.2, 90Nm torque, custom tuned motor, 250W nominal
Battery
Specialized U2-710, alloy casing, state of charge display, 710Wh
Charger
Custom charger, 42V4A w/ Rosenberger plug, 100-240V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.478 mm | 1.439 mm | 1.405 mm | 1.405 mm |
| Bottom Bracket Height | 285 mm | 285 mm | 285 mm | 285 mm |
| Front Center | 699 mm | 724 mm | 750 mm | 777 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 96 mm | 96 mm | 96 mm | 96 mm |
| Stack | 625 mm | 639 mm | 652 mm | 676 mm |
| Reach | 423 mm | 444 mm | 464 mm | 481 mm |
| Seat Tube Length | 400 mm | 450 mm | 460 mm | 500 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 135 mm | 150 mm | 165 mm | 190 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1160 mm | 1186 mm | 1212 mm | 1239 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 618 mm | 617 mm | 617 mm | 626 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Turbo Vado 5.0 IGH Step-Through is a Specialized E Turbo Vado model. There are 78 e-bikes that carry this model name. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
The most economical model, the Specialized Turbo Vado 3.0 2022 has a starting price of 3610$. Specialized Turbo Vado 5.0 IGH 2022 on the other hand is the most expensive at 6689$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Hybrid e-bikes
According to our calculations, the average cost of a Hybrid e-bike that is reliable is 2480$. However, even though the average price of a Hybrid e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
This e-bike was released in 2022 and its price was 6689$. If we compare this with the average Hybrid e-bike cost we notice that the price is 169.72% more expensive.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Turbo Vado 5.0 IGH Step-Through components
Fork
This e-bike has the RockShox Recon Silver RL fork installed. The fork’s travel is 80mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When leaving the production line, the Turbo Vado 5.0 IGH Step-Through model has aluminum wheels. After 700c wheels, 650b is the second most popular choice for road bikes. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Specialized Turbo Vado 5.0 IGH Step-Through has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
