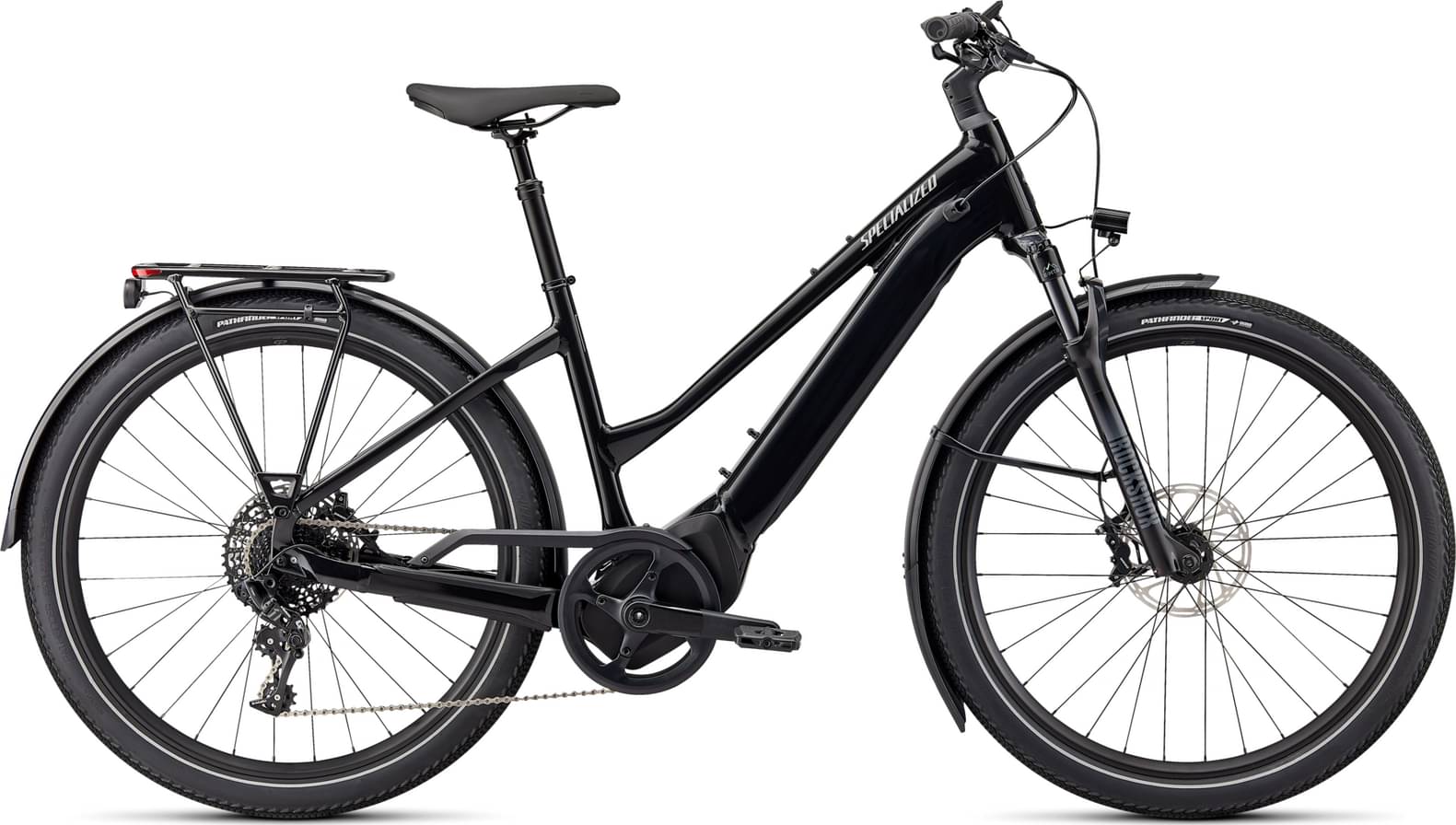

Specialized Turbo Vado 5.0 Step-Through 2022
2022 E-bike
Estimate price |
5,964$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Travel Front 80mm -
Fork RockShox Recon Silver RL
-
Groupset GX, SRAM -
Suspension Hardtail -
Motor Specialized 250W 90Nm mid-drive -
Battery Specialized U2-710, alloy casing, state of charge display, 710Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E5 Aluminum, bottom bracket motor mount, fully integrated & lockable downtube battery, internal cable routing, lock and front rack mount
Suspension Fork
Rockshox Recon Silver RL, 80mm travel, Motion-Control, fender-mounts
Drivetrain
Rear Derailleur
SRAM GX, long cage, 11-speed
Shift Levers
SRAM S700, single-click lever
Cassette
SRAM PG-1130, 11-speed, 11-42t
Crank
Custom alloy forged crankarms, Praxis, 48T, 104BCD
Chain
KMC e11T, 11-speed w/ Missing Link™
Pedals
Specialized Commuter w/ grip tape & reflectors
Wheels
Front Hub
Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x110mm thru-axle, 32h
Rear Hub
Specialized alloy rear hub disc, sealed cardridge bearings, 6-bolt, 12x148mm thru-axle, 32h
Rims
650b disc, double-wall alloy, pinned, 32h
Spokes
DT Swiss Industry
Tires
Front: Pathfinder Sport Reflect, 650Bx2.3, Rear: Pathfinder Sport Reflect, 650Bx2.3
Brakes
Brakes
SRAM G2 RS, 4-piston caliper, hydraulic disc, 180mm 6-bolt
Cockpit
Stem
Specialized Flowset, 3D-forged alloy, 20-degree rise, 31.8mm clamp
Handlebar
Specialized, alloy, 15-degree backsweep, 46mm rise, 31.8mm
Grips
ERGON GA30
Seat
Saddle
Rivo Sport, steel rails, 155mm
Seatpost
Spring suspension, alloy, 40mm travel, 30.9mm, 2-bolt clamp, 34.9mm sleeve
Motor & Battery
Motor
Specialized 2.2, 90Nm torque, custom tuned motor, 250W nominal
Battery
Specialized U2-710, alloy casing, state of charge display, 710Wh
Charger
Custom charger, 42V4A w/ Rosenberger plug, 100-240V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.478 mm | 1.439 mm | 1.405 mm | 1.405 mm |
| Bottom Bracket Height | 285 mm | 285 mm | 285 mm | 285 mm |
| Front Center | 699 mm | 724 mm | 750 mm | 777 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 96 mm | 96 mm | 96 mm | 96 mm |
| Stack | 625 mm | 639 mm | 652 mm | 676 mm |
| Reach | 423 mm | 444 mm | 464 mm | 481 mm |
| Seat Tube Length | 400 mm | 450 mm | 460 mm | 500 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 135 mm | 150 mm | 165 mm | 190 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1160 mm | 1186 mm | 1212 mm | 1239 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 618 mm | 617 mm | 617 mm | 626 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Turbo Vado 5.0 Step-Through is a Specialized E Turbo Vado model. Specialized launched 78 e-bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Specialized Turbo Vado 3.0 2022 is the most affordable e-bike of this model and has a price of 3610$. On the other hand, Specialized Turbo Vado 5.0 IGH 2022, is the most expensive and costs 6689$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Hybrid e-bikes
If you want to purchase a solid Hybrid e-bike, it is important to know that the average cost is 2480$. However, even though the average price of a Hybrid e-bike is lower, you might still be able to get a top-quality e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5521$. Doing a quick comparison, we notice that Turbo Vado 5.0 Step-Through price is 122.62% more expensive than the average cost of a Hybrid e-bike.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Turbo Vado 5.0 Step-Through components
Fork
This e-bike has the RockShox Recon Silver RL fork installed. The fork’s travel is 80mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The wheels on Turbo Vado 5.0 Step-Through are the aluminum type. After 700c wheels, 650b is the second most popular choice for road bikes. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Turbo Vado 5.0 Step-Through has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
