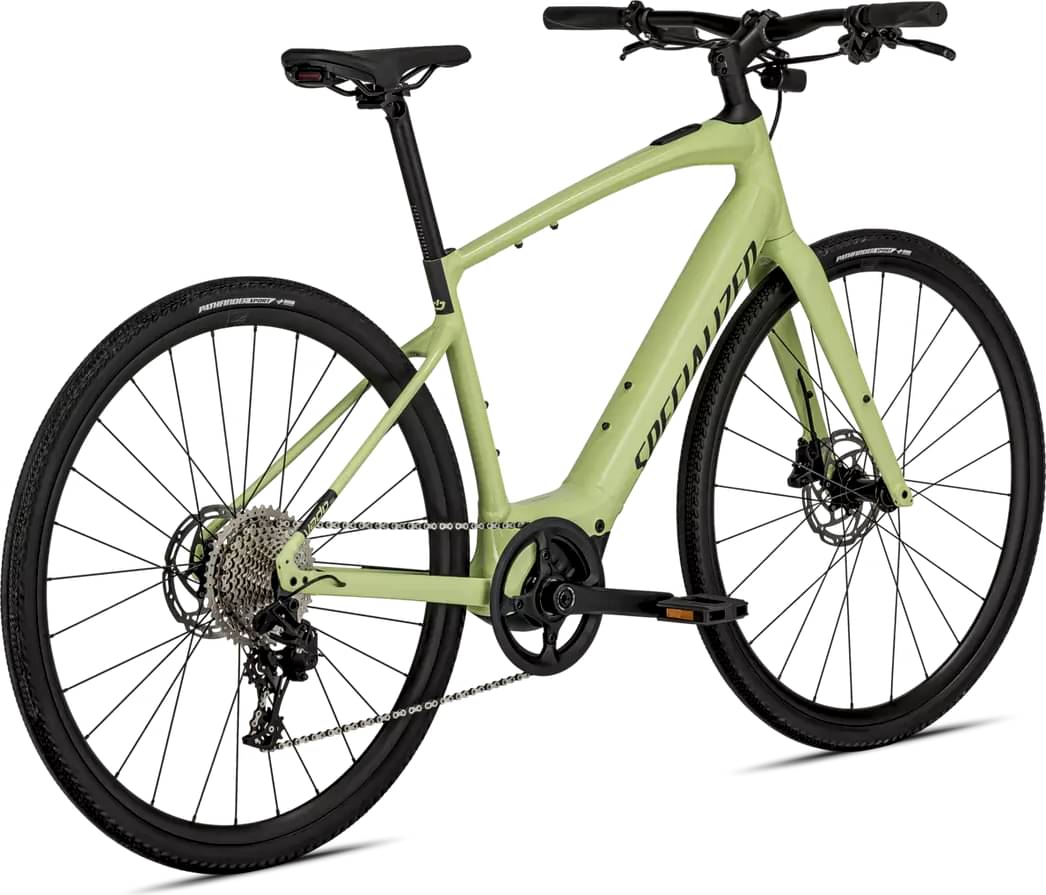

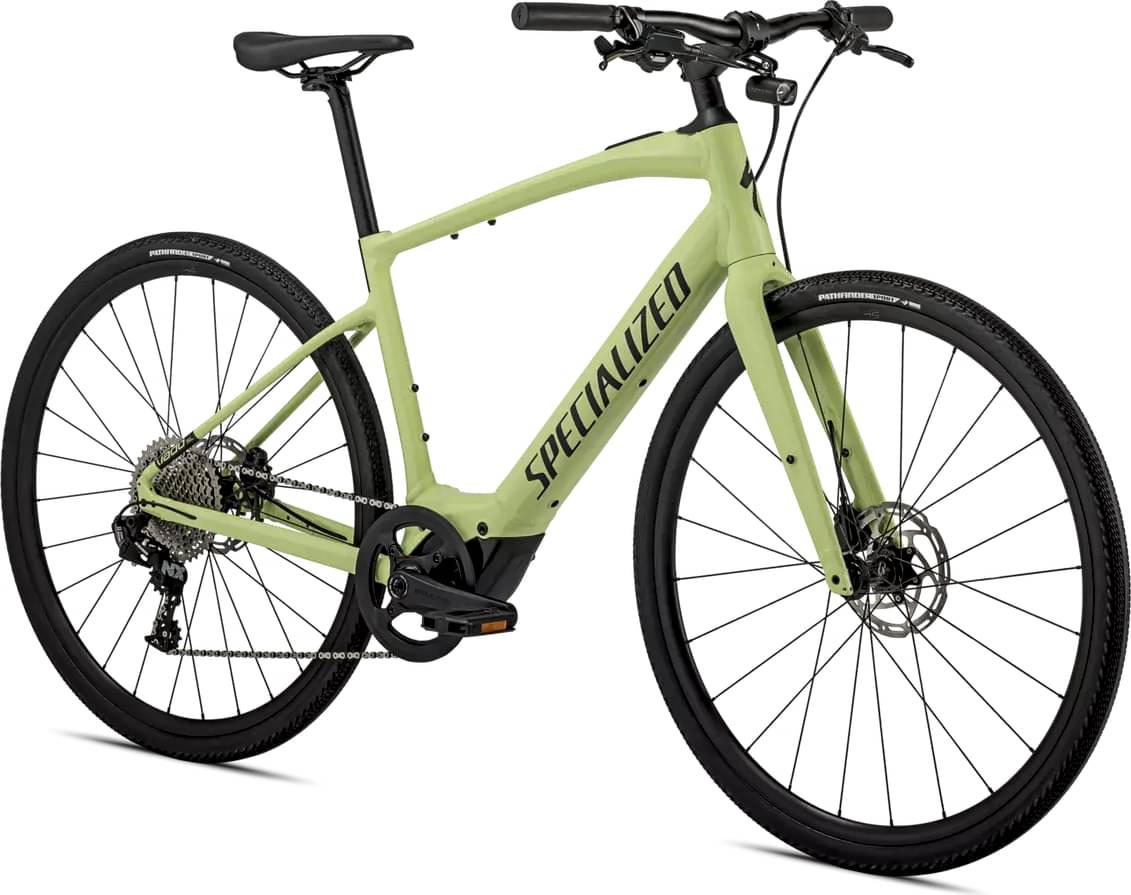

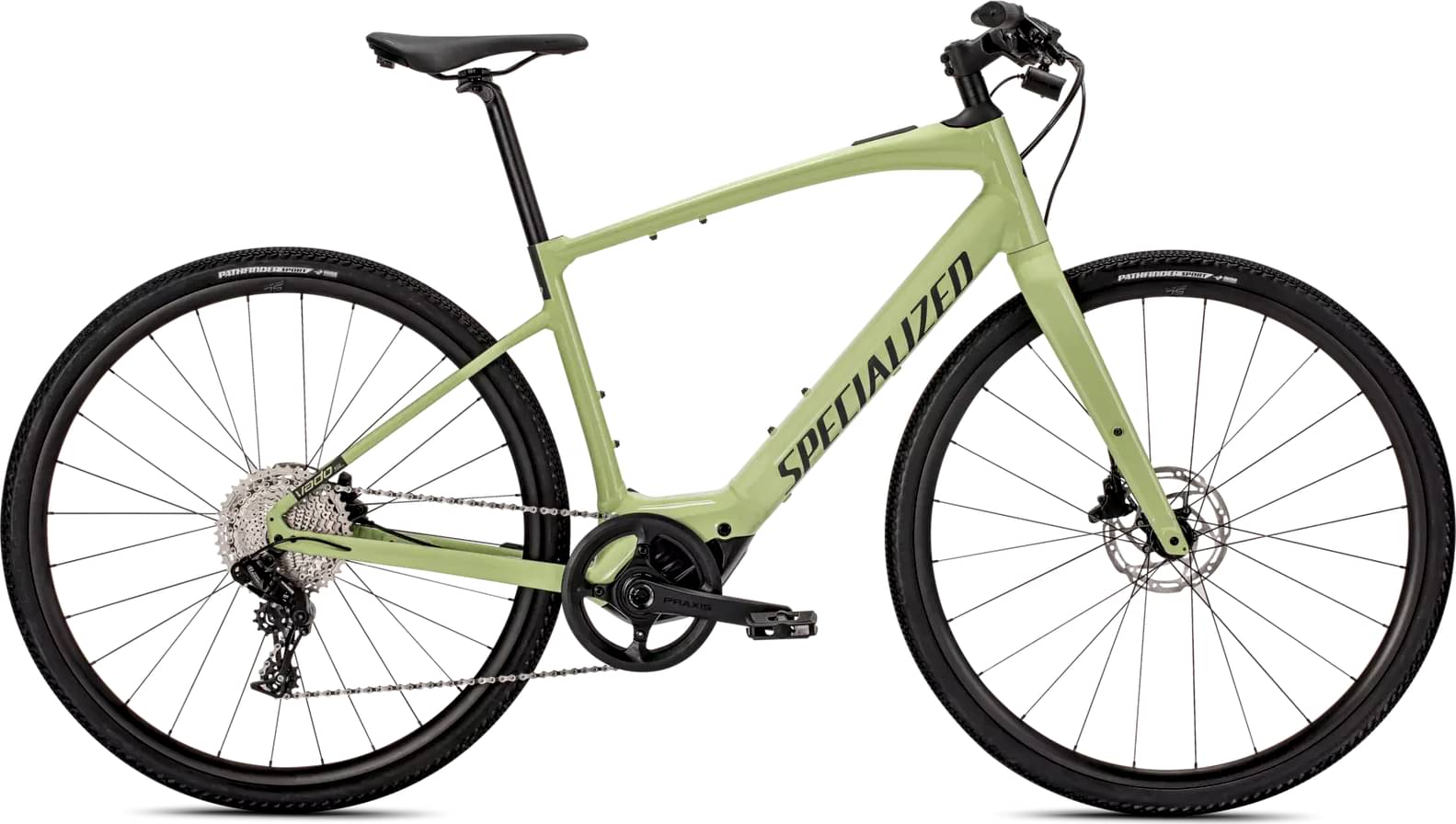

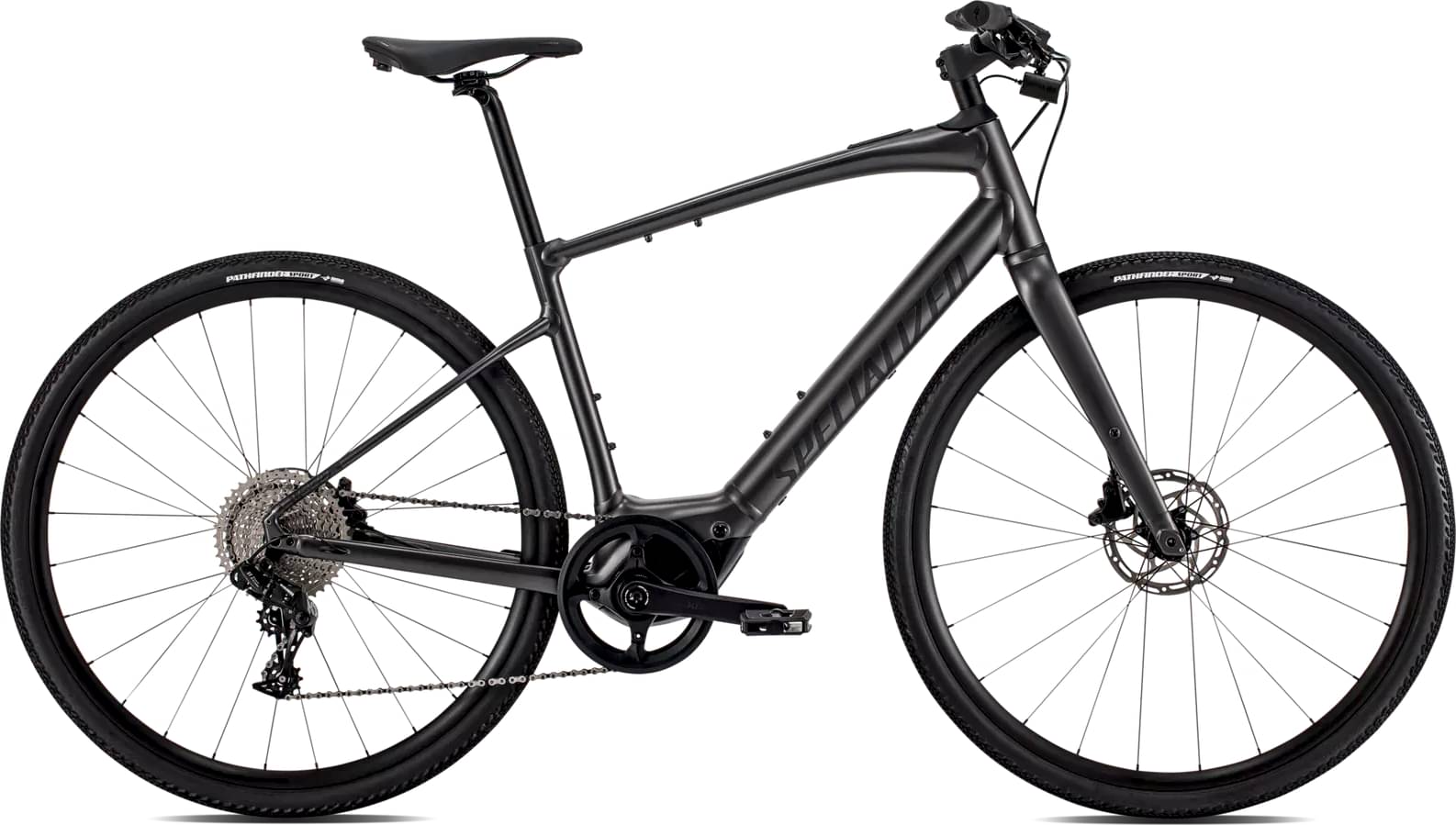

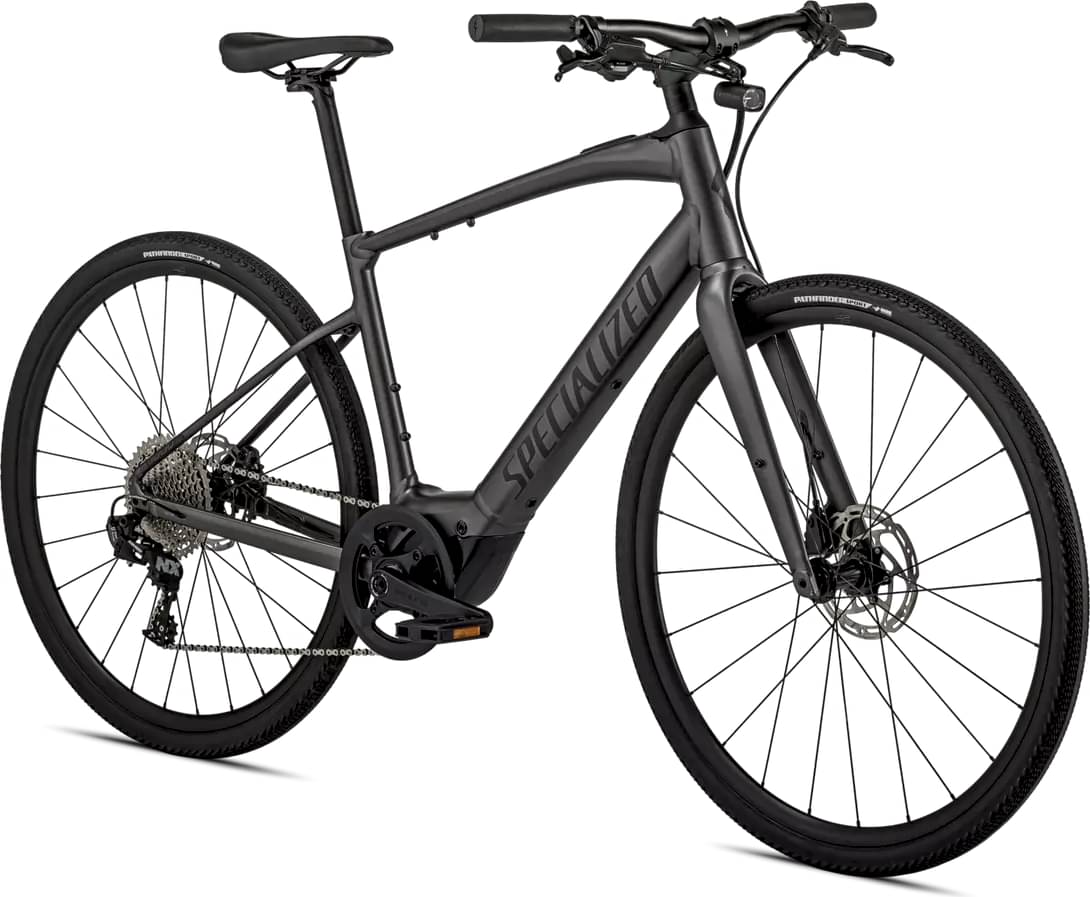

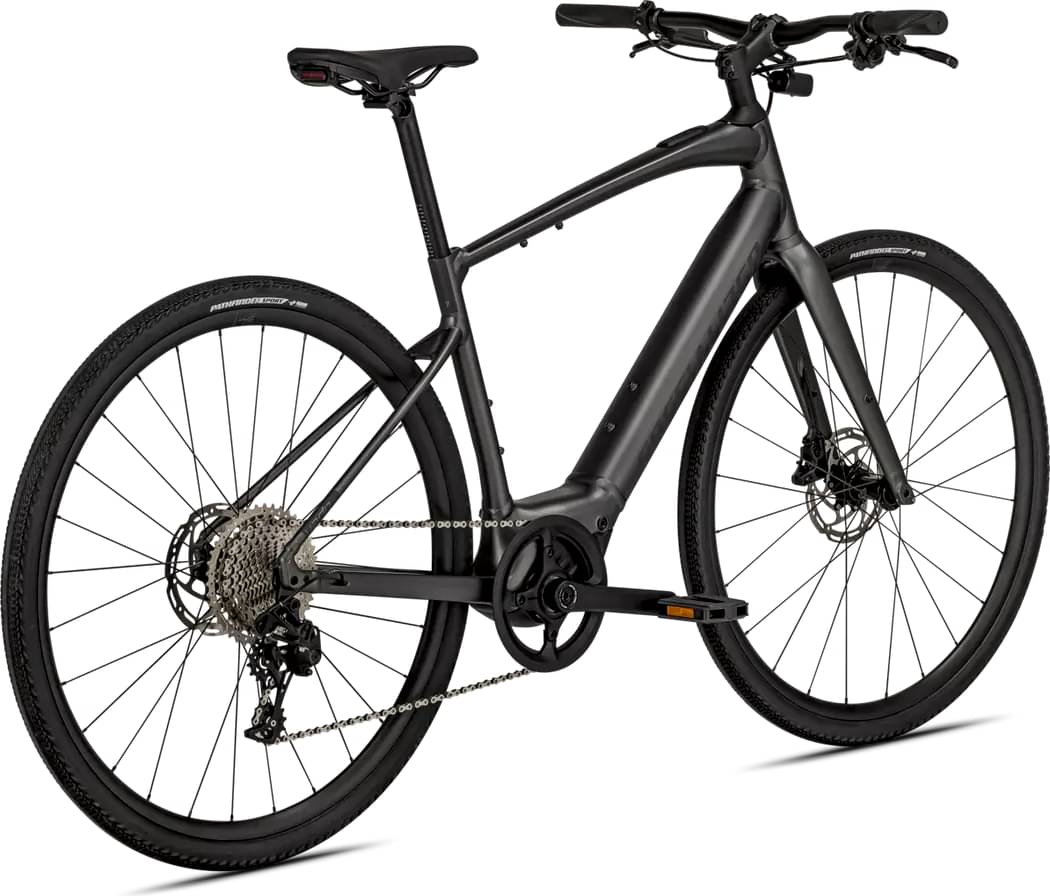

Specialized Turbo Vado SL 4.0 2023
2023 E-bike
Estimate price |
3,750$
Weight | 15.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset NX, Praxis -
Suspension Rigid -
Motor Specialized 240W 35Nm mid-drive -
Battery Specialized SL1-320, fully integrated, 320Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E5 Aluminum, bottom bracket motor mount, fully integrated downtube battery, internal cable routing, fender and front rack mounts, Smooth Welds
Suspension Fork
Rigid full aluminum disc, Boost™ 12x110mm, front- rack-compatible
Drivetrain
Rear Derailleur
SRAM NX, 11-speed
Shift Levers
SRAM NX, 11-speed
Cassette
SUNRACE, CSMS7, 11-42t, 11-speed
Crank
Praxis, Forged alloy M30, custom offset, Praxis, 44T, 104BCD
Chain
KMC e11S, 11-speed w/ Missing Link™
Pedals
Specialized Commuter w/ grip tape & reflectors
Wheels
Front Hub
Specialized alloy front hub disc, sealed cartridge bearings, 12x110mm, Center Lock™, 24h
Rear Hub
Specialized alloy rear hub disc, Center Lock™, sealed cartridge bearings, 12x148mm, 28h
Rims
700C disc, 22mm rim depth, 21mm internal width
Spokes
DT Swiss Industry
Tires
Front: Specialized Pathfinder Sport, 700x38c, Rear: Specialized Pathfinder Sport, 700x38c
Brakes
Brakes
Front: Tektro HD-R290, hydraulic disc, 160mm, Rear: Tektro HD-R290, hydraulic disc, 160mm

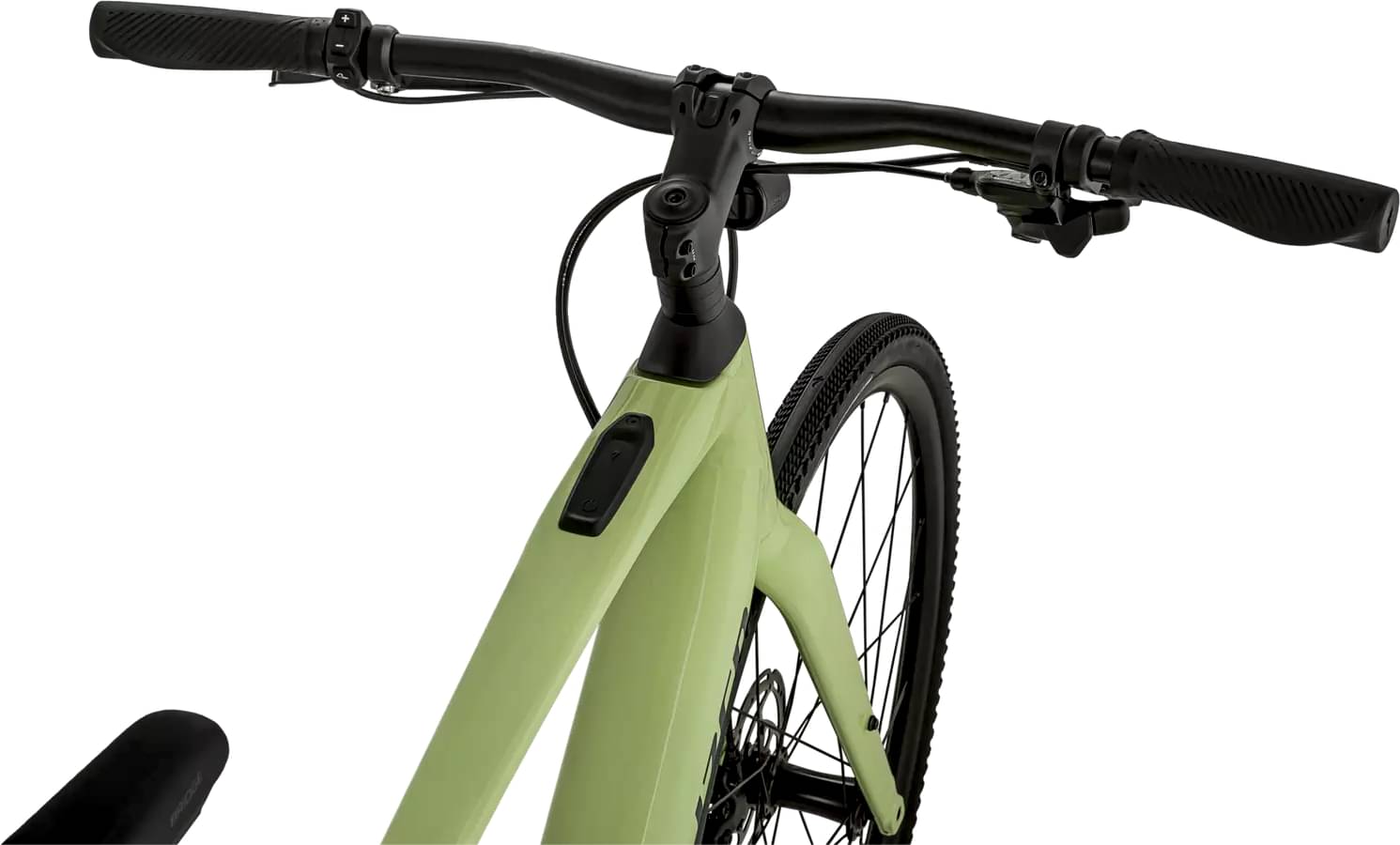

Cockpit
Stem
Specialized Stealth Stem, alloy, 14 deg, 31.8mm, integrated TCD mount
Handlebar
Specialized, alloy, 9-degree backsweep, 15mm rise, 31.8mm
Grips
Specialized Body Geometry Contour, lock-on
Seat
Saddle
Bridge Sport, Steel rails, 155mm
Seatpost
Specialized, alloy, dual-bolt, 25mm offset, 27.2mm

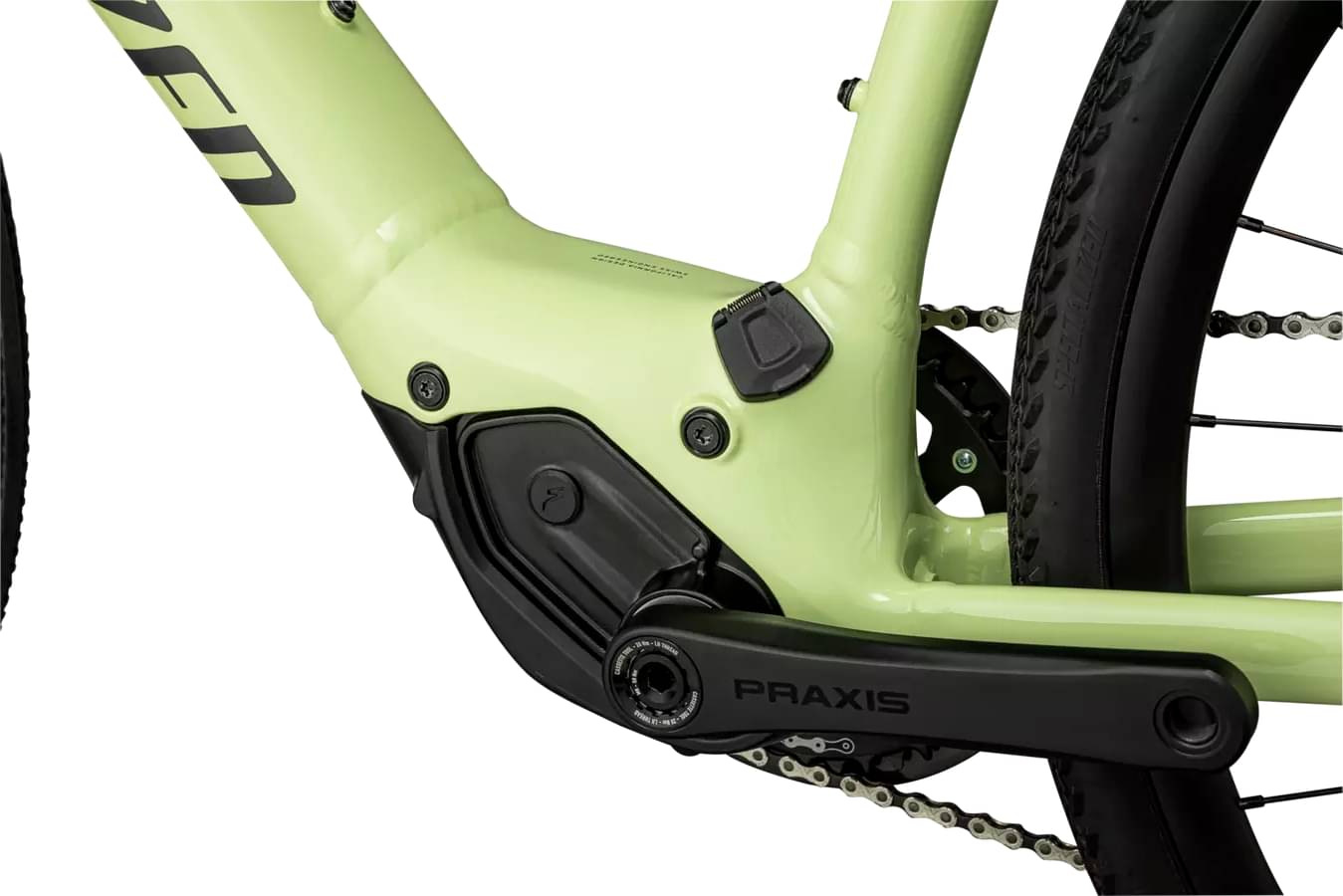

Motor & Battery
Motor
Specialized SL 1.1, custom lightweight motor
Battery
Specialized SL1-320, fully integrated, 320Wh
Charger
Custom charger, 48V System w/ SL system charger plug
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.37 mm | 1.4 mm | 1.46 mm |
| Bottom Bracket Height | 291 mm | 291 mm | 291 mm | 291 mm |
| Front Center | 626 mm | 655 mm | 675 mm | 690 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 78 mm | 75 mm | 71 mm | 68 mm |
| Stack | 540 mm | 572 mm | 605 mm | 641 mm |
| Reach | 395 mm | 417 mm | 431 mm | 440 mm |
| Top Tube Length | 556 mm | 587 mm | 611 mm | 630 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 415 mm | 446.5 mm | 494.5 mm | 535 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71.5 ° |
| Head Tube Length | 130 mm | 161.5 mm | 194.5 mm | 230 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1060 mm | 1089 mm | 1108 mm | 1124 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 789 mm | 809 mm | 834 mm | 859 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Turbo Vado SL 4.0 belongs to the Specialized E Turbo Vado model. Specialized released 78 e-bikes variations of this model so far. Take a sneak peek at all Specialized E Turbo Vado e-bikes models from 2023, by clicking here.
Model range prices
Specialized Turbo Vado 3.0 2023 is the most economical model, with a starting price of 3250$. Specialized Turbo Vado 6.0 Step-Through 2023 on the other hand costs 5840$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Hybrid e-bikes
Our math shows that the average cost of a dependable Hybrid e-bike is 2480$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
When Specialized released this model in 2023, its price was 3750$. Doing a quick comparison, we notice that Turbo Vado SL 4.0 price is 51.21% higher than the average cost of a Hybrid e-bike.
Average weight for Hybrid e-bikes
Hybrid e-bikes have an average weight of 23.79 kg (52.45 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 15.5 kg (34.17 lbs), Specialized e-bike is much lighter than average. In other words, this model is 53.48% lighter than the average Hybrid e-bike.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Turbo Vado SL 4.0 components
Fork material
Turbo Vado SL 4.0 has an aluminum fork, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
When it comes to wheels, the Turbo Vado SL 4.0 e-bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Specialized Turbo Vado SL 4.0 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
