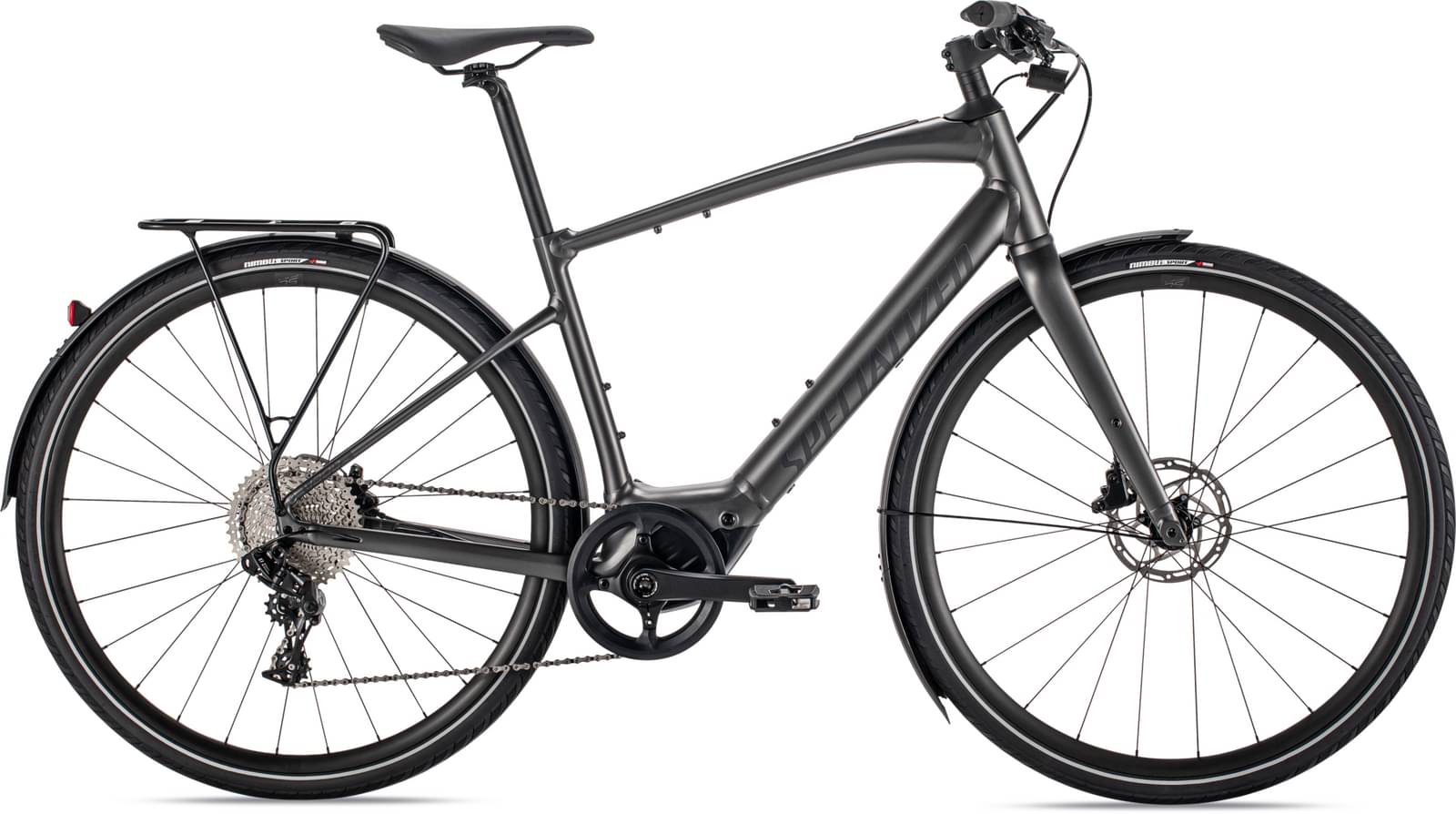

Specialized Turbo Vado SL 4.0 EQ 2022
2022 E-bike
Estimate price |
4,473$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Groupset NX, Praxis -
Suspension Rigid -
Motor Specialized 240W 35Nm mid-drive -
Battery Specialized SL1-320, fully integrated, 320Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E5 Aluminum, bottom bracket motor mount, fully integrated downtube battery, internal cable routing, fender and front rack mounts, Smooth Welds
Suspension Fork
Rigid full aluminum disc, Boost™ 12x110mm, front- rack-compatible
Drivetrain
Rear Derailleur
SRAM NX, 11-speed
Shift Levers
SRAM NX, 11-speed
Cassette
Sunrace, 11spd, 11-42t
Crank
Praxis, Forged alloy M30, custom offset, Praxis, 44T, 104BCD
Chain
KMC e11S, 11-speed w/ Missing Link™
Pedals
Specialized Commuter w/ grip tape & reflectors
Wheels
Front Hub
Specialized alloy front hub disc, sealed cartridge bearings, 12x110mm, Center Lock™, 24h
Rear Hub
Specialized alloy rear hub disc, Center Lock™, sealed cartridge bearings, 12x148mm, 28h
Rims
700C disc, 22mm rim depth, 21mm internal width
Spokes
DT Swiss Industry
Tires
Front: Nimbus II Sport Reflect, 700x38mm, Rear: Nimbus II Sport Reflect, 700x38mm
Brakes
Brakes
Tektro HD-R290, hydraulic disc, 160mm
Cockpit
Stem
Specialized Stealth Stem, alloy, 14 deg, 31.8mm, integrated TCD mount
Handlebar
Specialized, alloy, 9-degree backsweep, 15mm rise, 31.8mm
Grips
Specialized Body Geometry Contour, lock-on
Seat
Saddle
Bridge Sport, hollow cr-mo rails, 155mm
Seatpost
Specialized, alloy, dual-bolt, 25mm offset, 27.2mm
Motor & Battery
Motor
Specialized SL 1.1, custom lightweight motor
Battery
Specialized SL1-320, fully integrated, 320Wh
Charger
Custom charger, 48V System w/ SL system charger plug
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.37 mm | 1.4 mm | 1.46 mm |
| Bottom Bracket Height | 291 mm | 291 mm | 291 mm | 291 mm |
| Front Center | 626 mm | 655 mm | 675 mm | 690 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 78 mm | 75 mm | 71 mm | 68 mm |
| Stack | 540 mm | 572 mm | 605 mm | 641 mm |
| Reach | 395 mm | 417 mm | 431 mm | 440 mm |
| Top Tube Length | 556 mm | 587 mm | 611 mm | 630 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 415 mm | 446.5 mm | 494.5 mm | 535 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71.5 ° |
| Head Tube Length | 130 mm | 161.5 mm | 194.5 mm | 230 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1060 mm | 1089 mm | 1108 mm | 1124 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 789 mm | 809 mm | 834 mm | 859 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Turbo Vado SL 4.0 EQ completes the Specialized E Turbo Vado model. There are 78 e-bikes that carry this model name. Take a sneak peek at all Specialized E Turbo Vado e-bikes models from 2022, by clicking here.
Model range prices
The most economical model, the Specialized Turbo Vado 3.0 2022 has a starting price of 3610$. Specialized Turbo Vado 5.0 IGH 2022 on the other hand is the most expensive at 6689$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Hybrid e-bikes
According to our calculations, the average cost of a Hybrid e-bike that is reliable is 2480$. However, this doesn’t mean that if you spend less money on a Hybrid e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
This e-bike was released in 2022 and its price was 4141$. Doing a quick comparison, we notice that Turbo Vado SL 4.0 EQ price is 66.98% higher than the average cost of a Hybrid e-bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Turbo Vado SL 4.0 EQ components
Fork material
Turbo Vado SL 4.0 EQ has an aluminum fork, which doesn’t add too much extra weight to the e-bike. However, it is not so stiff as steel or carbon forks are.
Wheels
As for the wheels, Specialized Turbo Vado SL 4.0 EQ 2022, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Turbo Vado SL 4.0 EQ comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Specialized Turbo Vado SL 4.0 EQ e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
