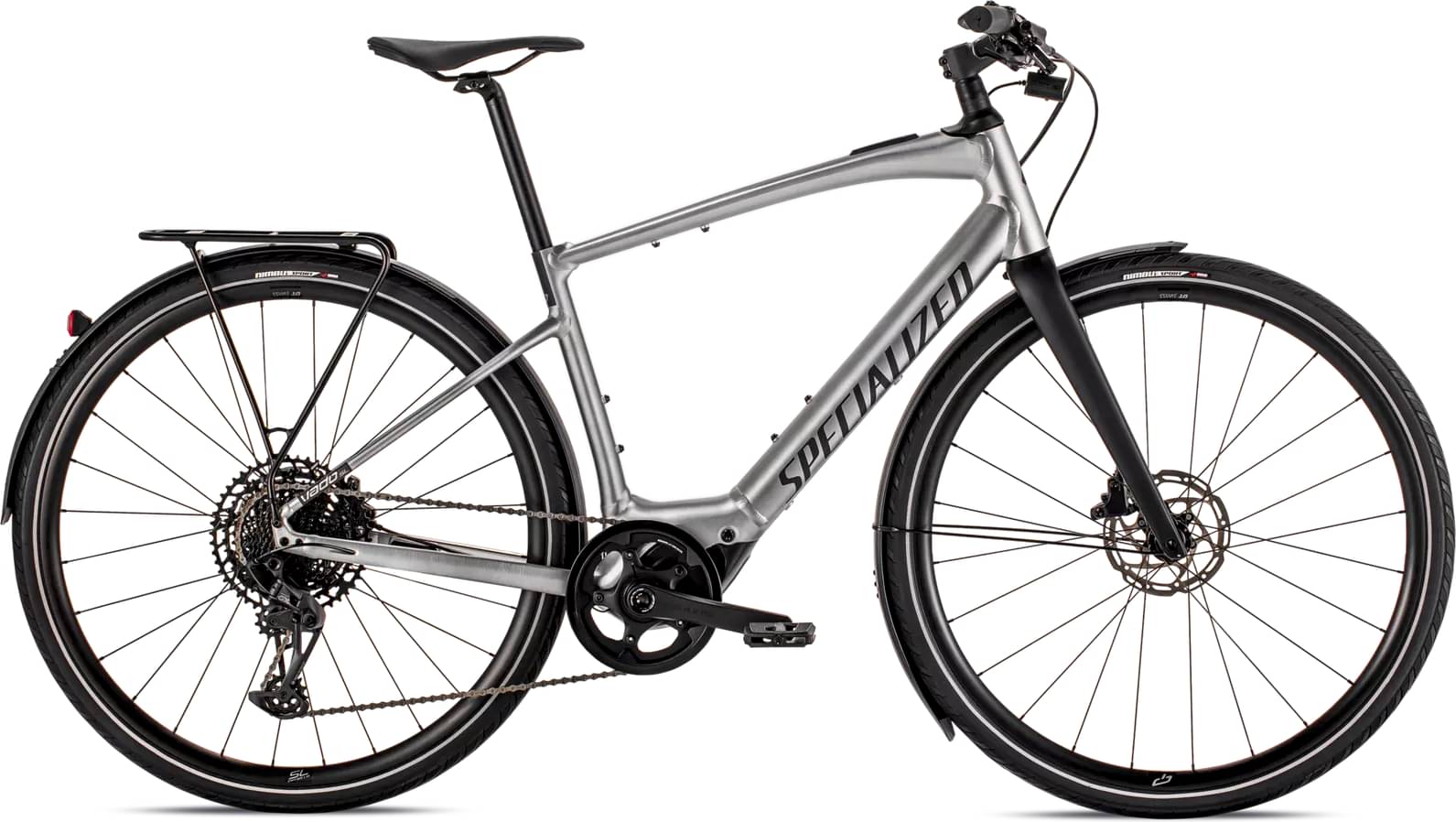

Specialized Turbo Vado SL 5.0 EQ 2023
2023 E-bike
Estimate price |
5,250$
Weight | 16.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset GX Eagle, Praxis -
Suspension Rigid -
Motor Specialized 240W 35Nm mid-drive -
Battery Specialized SL1-320, fully integrated, 320Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E5 Aluminum, bottom bracket motor mount, fully integrated downtube battery, internal cable routing, fender and front rack mounts, Smooth Welds
Suspension Fork
Rigid carbon fork, Boost™ 12x110mm thru-axle, flat mount disc
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-speed
Shift Levers
SRAM GX, trigger, 12-speed
Cassette
SRAM NX Eagle, 12-speed, 11-50t
Crank
Praxis, Forged alloy M30, custom offset, SRAM X-SYNC 44t, 110BCD
Chain
SRAM NX Eagle, 12-speed
Pedals
Specialized Commuter w/ grip tape & reflectors
Wheels
Front Hub
Specialized alloy front hub disc, sealed cartridge bearings, 12x110mm, Center Lock™, 24h
Rear Hub
Specialized alloy rear hub disc, Center Lock™, sealed cartridge bearings, 12x148mm, 28h
Rims
DT Swiss R500 disc, 22mm internal width, 23mm internal depth
Spokes
DT Swiss Industry
Tires
Front: Nimbus II Sport Reflect, 700x38mm, Rear: Nimbus II Sport Reflect, 700x38mm
Brakes
Brakes
Front: Tektro HD-R510, hydraulic disc, 160mm, Rear: Tektro HD-R510, hydraulic disc, 160mm
Cockpit
Stem

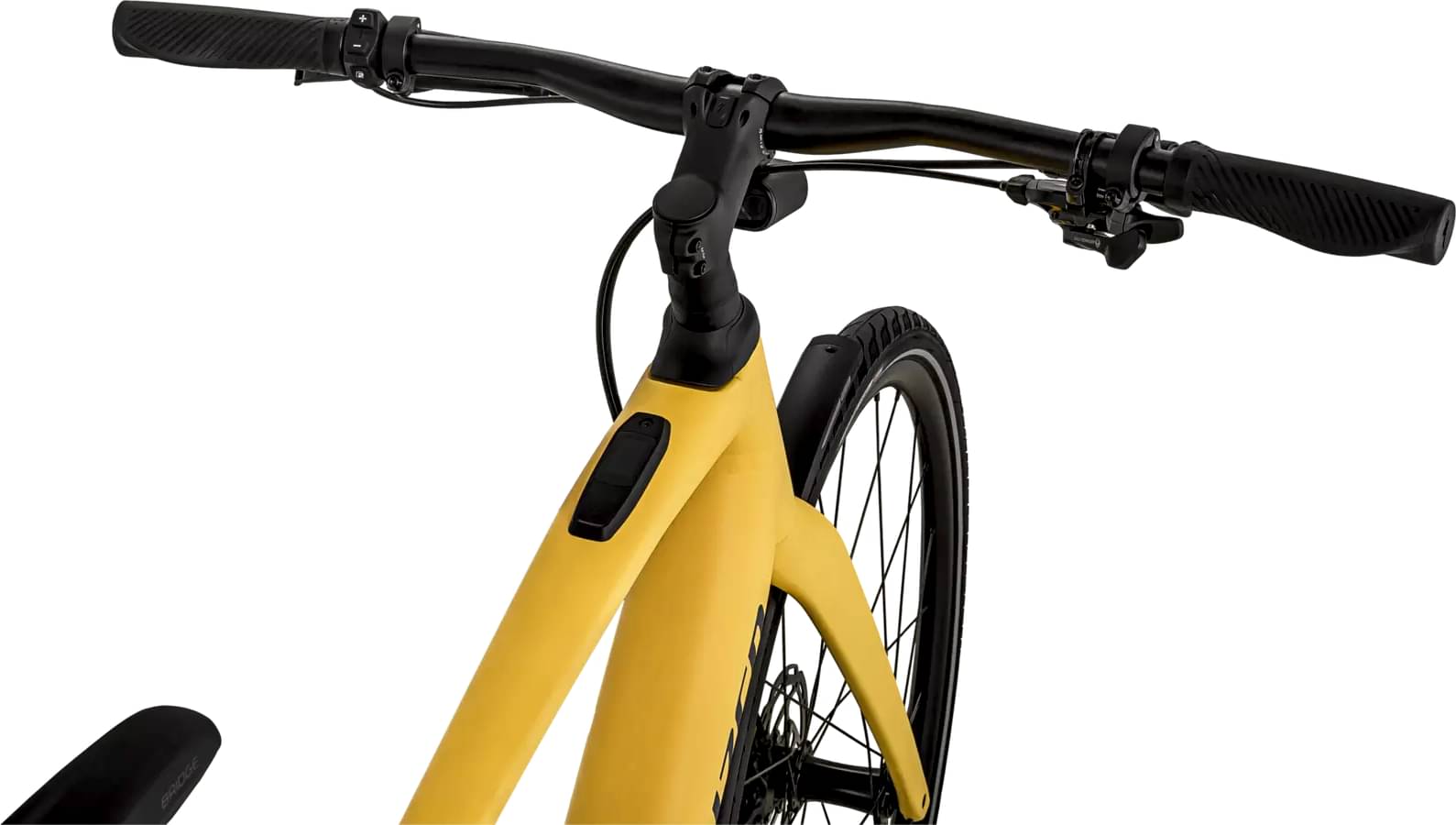

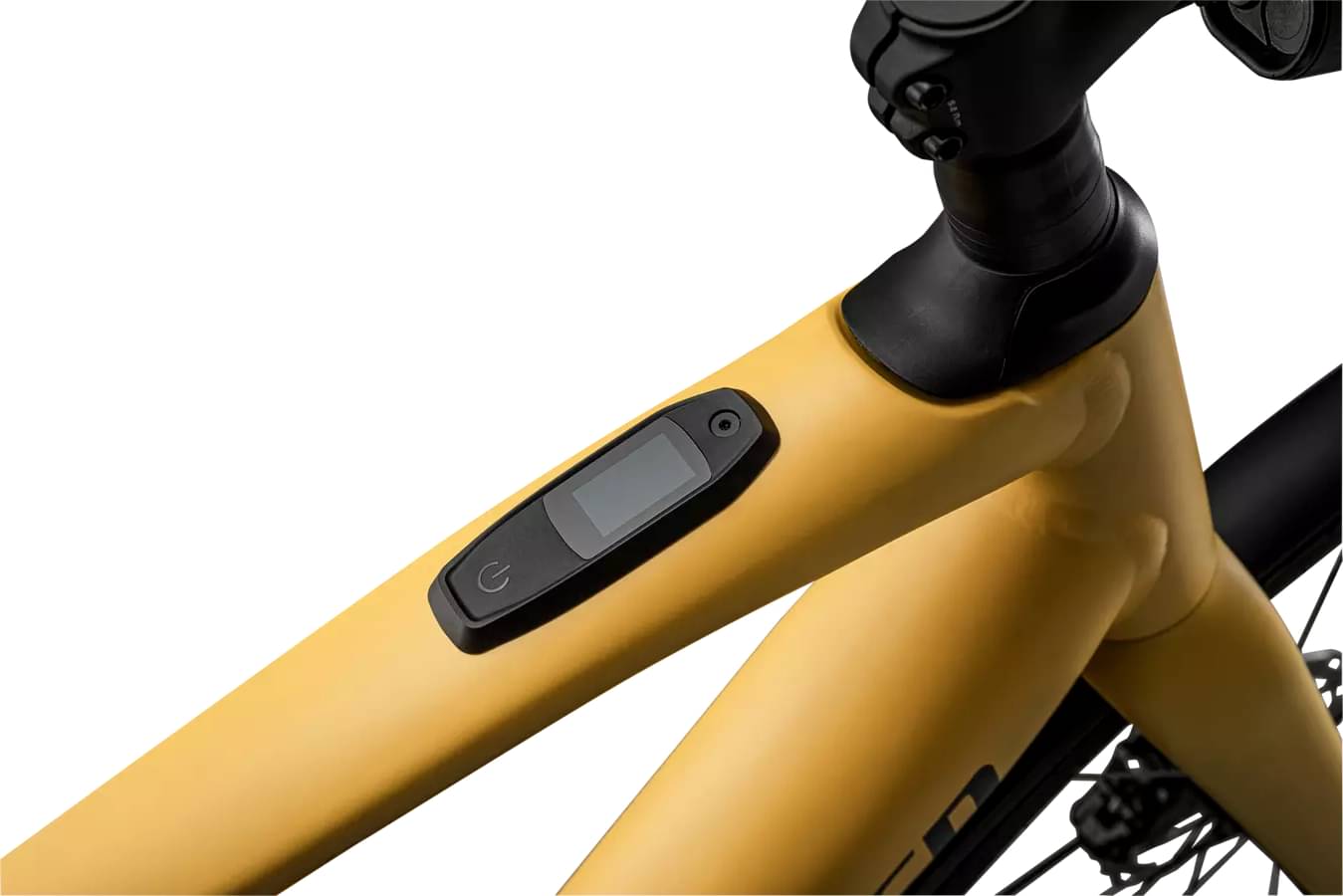

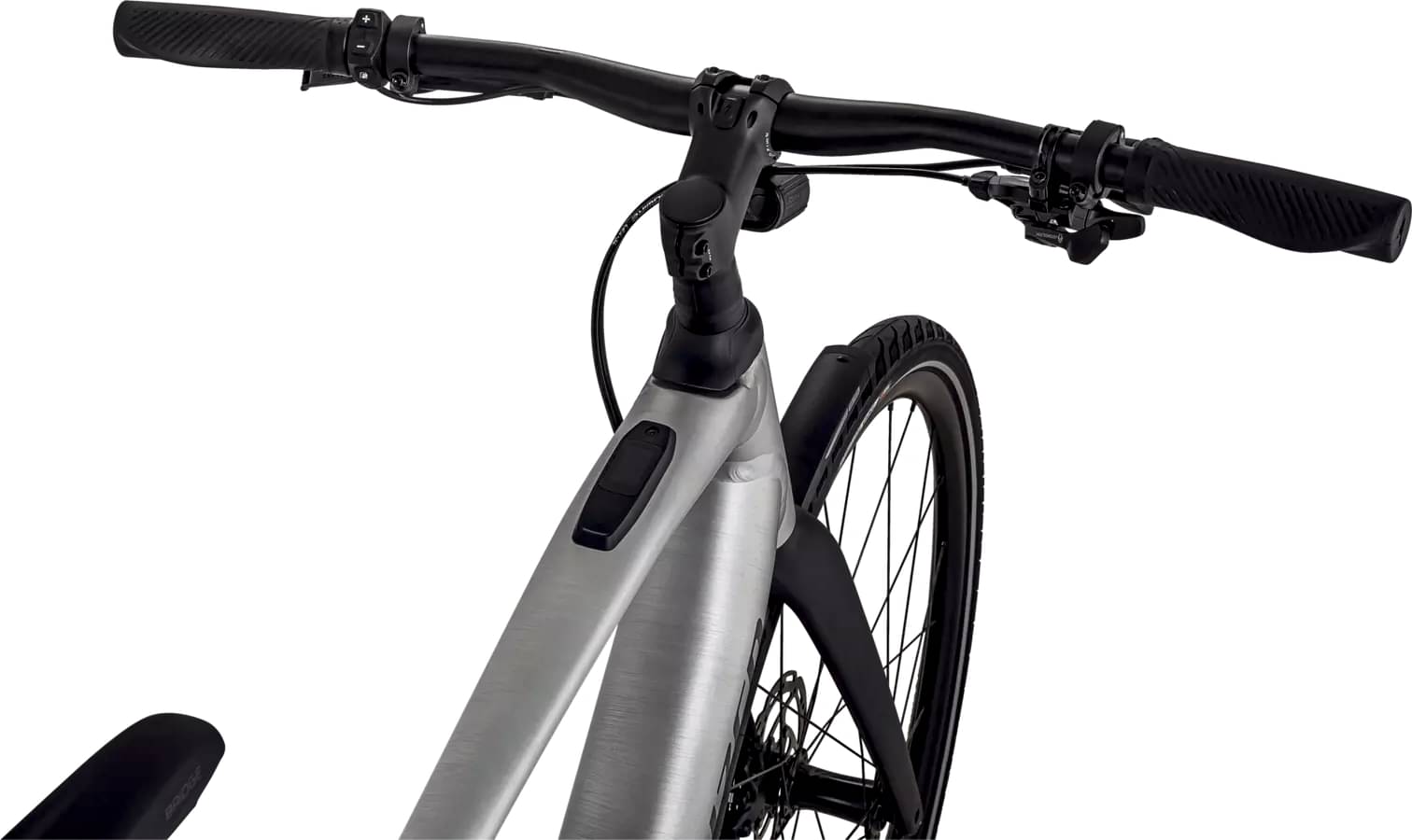

Specialized Stealth Stem, alloy, 14 deg, 31.8mm, integrated TCD mount
Handlebar
Specialized, alloy, 9-degree backsweep, 15mm rise, 31.8mm
Grips
Specialized Body Geometry Contour, lock-on
Seat
Saddle
Bridge Sport, hollow cr-mo rails, 155mm
Seatpost
Specialized, alloy, single bolt, 21mm offset, 27.2mm

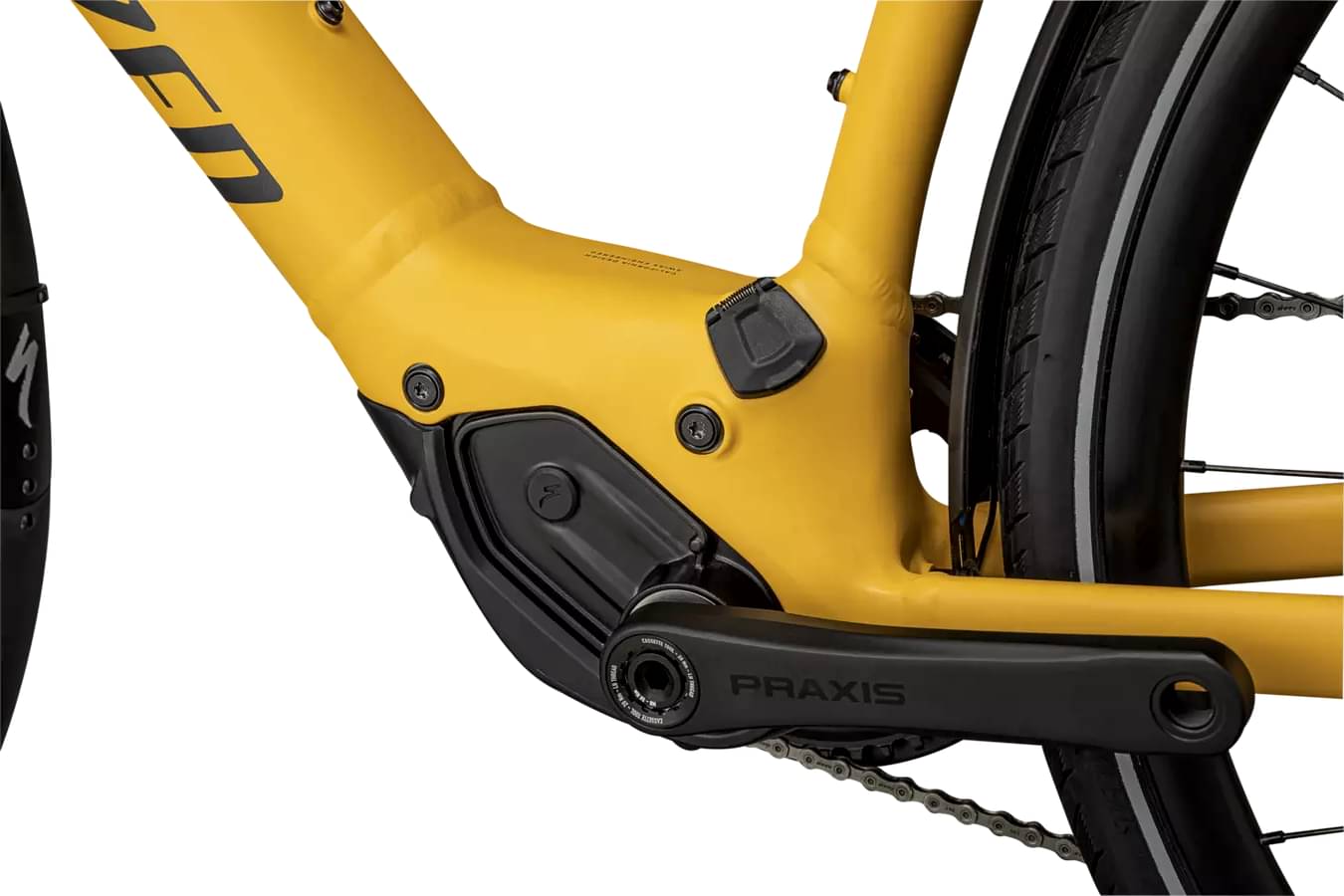

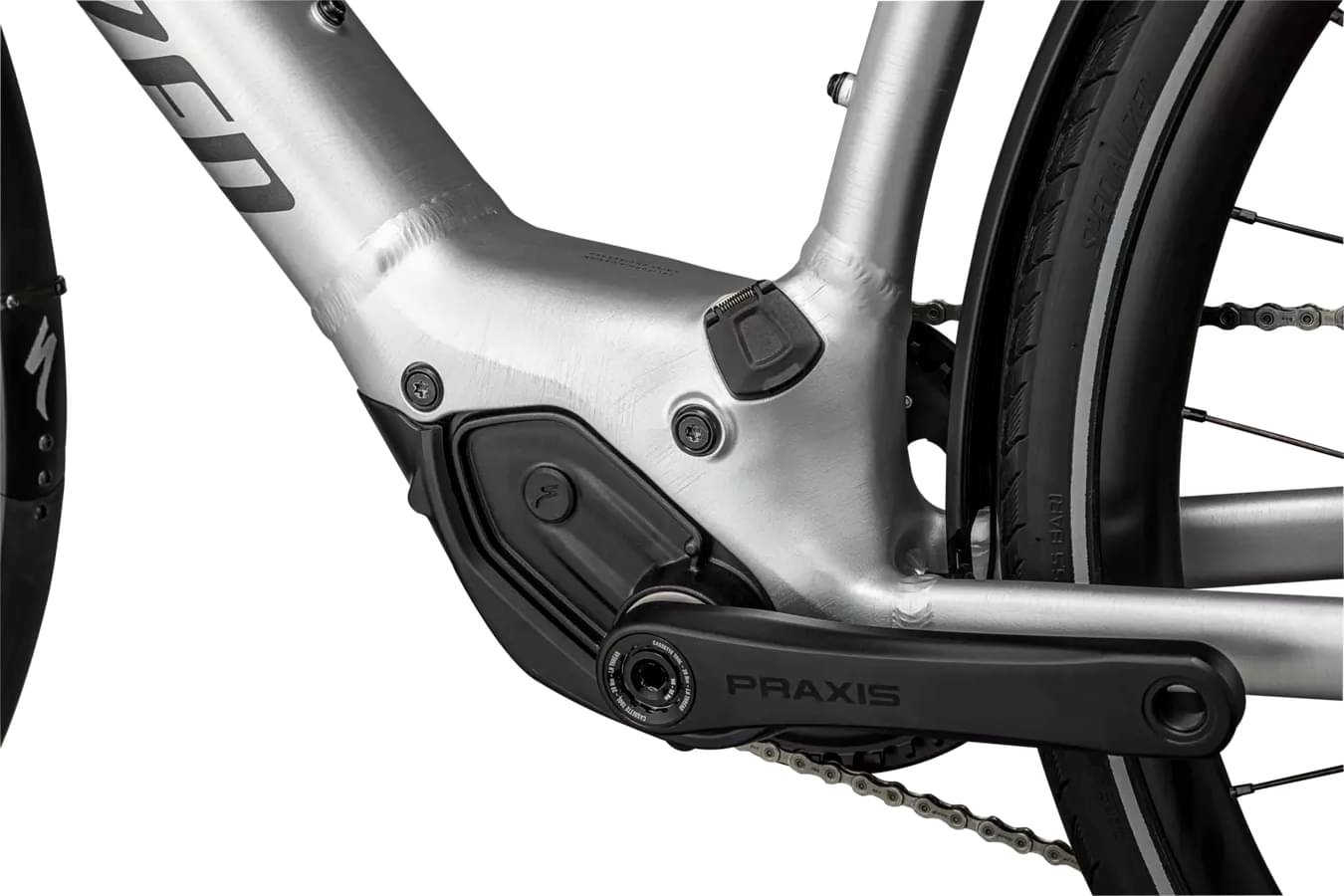

Motor & Battery
Motor
Specialized SL 1.1, custom lightweight motor
Battery
Specialized SL1-320, fully integrated, 320Wh
Charger
Custom charger, 48V System w/ SL system charger plug
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.37 mm | 1.4 mm | 1.46 mm |
| Bottom Bracket Height | 291 mm | 291 mm | 291 mm | 291 mm |
| Front Center | 626 mm | 655 mm | 675 mm | 690 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 78 mm | 75 mm | 71 mm | 68 mm |
| Stack | 540 mm | 572 mm | 605 mm | 641 mm |
| Reach | 395 mm | 417 mm | 431 mm | 440 mm |
| Top Tube Length | 556 mm | 587 mm | 611 mm | 630 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 415 mm | 446.5 mm | 494.5 mm | 535 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71.5 ° |
| Head Tube Length | 130 mm | 161.5 mm | 194.5 mm | 230 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1060 mm | 1089 mm | 1108 mm | 1124 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 789 mm | 809 mm | 834 mm | 859 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Turbo Vado SL 5.0 EQ completes the Specialized E Turbo Vado model. Specialized launched 78 e-bikes of this model so far. You can easily view all of the Specialized E Turbo Vado e-bikes models from 2023, here.
Model range prices
Specialized Turbo Vado 3.0 2023 is the cheapest e-bike model and costs 3250$. Specialized Turbo Vado 6.0 Step-Through 2023 is the most expensive one and costs 5840$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Hybrid e-bikes average price
Our math shows that the average cost of a dependable Hybrid e-bike is 2480$. However, you could also get a good Hybrid e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2023 for 5250$. Comparing this to the average Hybrid e-bike price, we see that the price is 111.69% more expensive.
Average weight for Hybrid e-bikes
Hybrid e-bikes have an average weight of 23.79 kg (52.45 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Specialized Turbo Vado SL 5.0 EQ it’s weighing 16.5 kg (36.38 lbs). At this weight, is much lighter than average. In short, the average Hybrid e-bike weight is 44.18% higher than this one.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Turbo Vado SL 5.0 EQ components
Fork material
Turbo Vado SL 5.0 EQ has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The wheels on Turbo Vado SL 5.0 EQ are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Turbo Vado SL 5.0 EQ comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
