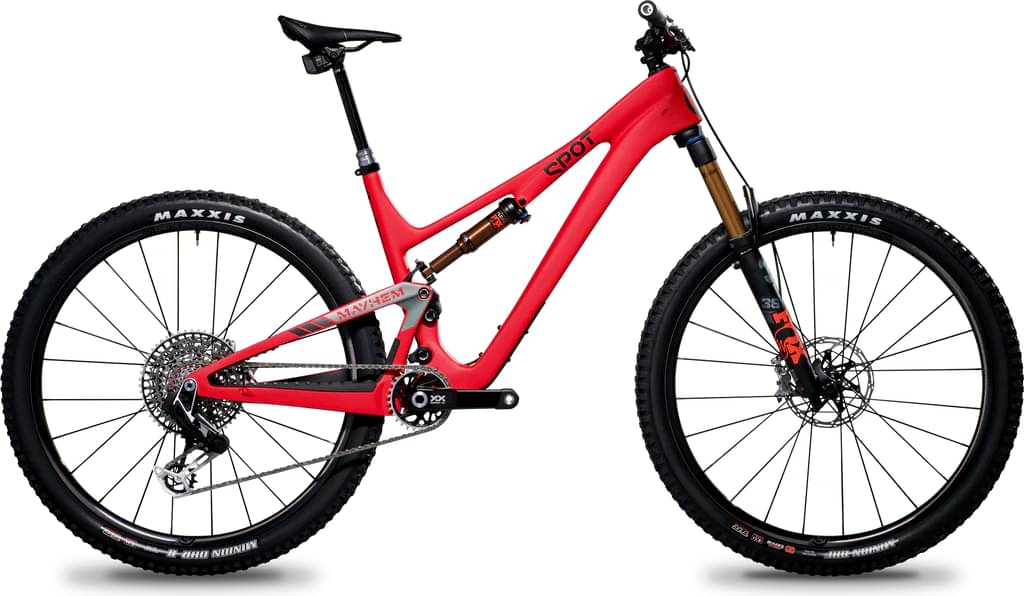

Spot Brand Spot Mayhem 130 — 5-Star 2022
2022 Mountain
Estimate price |
6,699$
Weight | 12.79 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 130mm -
Fork Fox Factory Float 36
-
Groupset X01 Eagle, GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Fox Factory 36 Float, 29, Grip 2, HSC, LSC, HSR, LSR, 140mm, 44mm rake, Boost
Rear Shock
Fox Factory Float DPS EVOL LV, 3 Pos. Adj. 230x57.5
Drivetrain
Rear Derailleur
SRAM XO1 Eagle BLK, 12-speed
Shift Levers
SRAM GX Eagle Lunar, 12-speed, Trigger
Cassette
SRAM XG1275, 12-speed, 10-52t
Crank
SRAM X1 Carbon Eagle, B148 DUB, 170mm, 30t
Bottom Bracket
SRAM DUB BSA 73mm threaded
Chain
SRAM GX Eagle
Wheels
Rims
Front: 29: Stan's Arch MK4 Team 29, Tubeless, Boost 15x110, 6-bolt. 27.5+: Stan's Flow MK4 27.5+, Tubeless, Boost 15x110, 6-bolt., Rear: 29: Stan's Arch MK4 Team 29, E-Sync, Tubeless, Boost 12x148, XD, 6-bolt. 27.5+: Stan's Flow MK4 27.5+, E-Sync, Tubeless, Boost 12x148, XD, 6-bolt.
Tires
Front: Maxxis Minion DHF 29x2.3, 60tpi, 3C Maxx Terra, 27.5+: Maxxis Rekon Plus 27.5x2.8 60tpi Dual EXO/TR, Rear: Maxxis Minion DHF 29x2.3, 60tpi, 3C Maxx Terra, 27.5+: Maxxis Rekon Plus 27.5x2.8 60tpi Dual EXO/TR
Brakes
Brakes
Front: SRAM G2 RSC, 4-piston, 180mm, Centerline, 6-bolt rotor, Rear: SRAM G2 RSC, 4-piston, 180mm, Centerline, 6-bolt rotor
Cockpit
Stem
Race Face Turbine R, 35 x 50mm
Handlebar
OneUp, 35mm, XL 800mm, LG 780mm, MD 760mm, SM 750mm, 20mm rise, Carbon
Grips
Ergon GXR, Black
Headset
Cane Creek 40, ZS44/ZS56 ZS44 upper, ZS56 lower
Seat
Saddle
Spot MTB
Seatpost
BikeYoke Revive 185mm for XL and Large, 160mm for Medium, 125mm for Small, Internal, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.38 mm | 1.34 mm | 1.29 mm |
| Bottom Bracket Height | 344 mm | 344 mm | 344 mm | 344 mm |
| Front Center | 719 mm | 750 mm | 782 mm | 811 mm |
| Rake | 45 mm | 44 mm | 45 mm | 45 mm |
| Trail | 111 mm | 112 mm | 111 mm | 111 mm |
| Stack | 604 mm | 619 mm | 633 mm | 642 mm |
| Reach | 422 mm | 447 mm | 472 mm | 497 mm |
| Top Tube Length | 576 mm | 600 mm | 622 mm | 644 mm |
| Seat Tube Angle | 75.5 ° | 76 ° | 76.5 ° | 77 ° |
| Seat Tube Length | 356 mm | 407 mm | 457 mm | 495 mm |
| Head Tube Angle | 65.7 ° | 65.7 ° | 65.7 ° | 65.7 ° |
| Head Tube Length | 90 mm | 105 mm | 120 mm | 130 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1161 mm | 1192 mm | 1224 mm | 1253 mm |
| Bottom Bracket Drop | 31 mm | 31 mm | 31 mm | 31 mm |
| Standover Height | 714 mm | 714 mm | 714 mm | 714 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Mayhem 130 — 5-Star is a Spotbrand Mayhem model. Spot released 25 bikes variations of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Spot Mayhem 130 — 4-Star 2022 is the most affordable bike of this model and has a price of 5499$. On the other hand, Spot Mayhem 150 — 6-Star AXS 2022, is the most expensive and costs 9199$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2022 and its price was 6699$. Comparing the average cost of a Trail bike to this one, you will see that Mayhem 130 — 5-Star price is 142.54% more expensive.
Trail bikes average weight
Trail bikes weigh an average of 12.98 kg (28.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 12.79 kg (28.2 lbs), the Mayhem 130 — 5-Star model is slightly lighter than average. In conclusion, the average Trail bike weighs 1.49% more than Mayhem 130 — 5-Star.
Overview of components
Fork
This bike has the Fox Factory Float 36 fork installed. The fork’s travel is 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
As for the rear shock, this bike has the Fox Factory Float DPS EVOL LV model, with a travel of 130mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When it comes to wheels, the Mayhem 130 — 5-Star bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Mayhem 130 — 5-Star has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Spot Mayhem 130 — 5-Star includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
