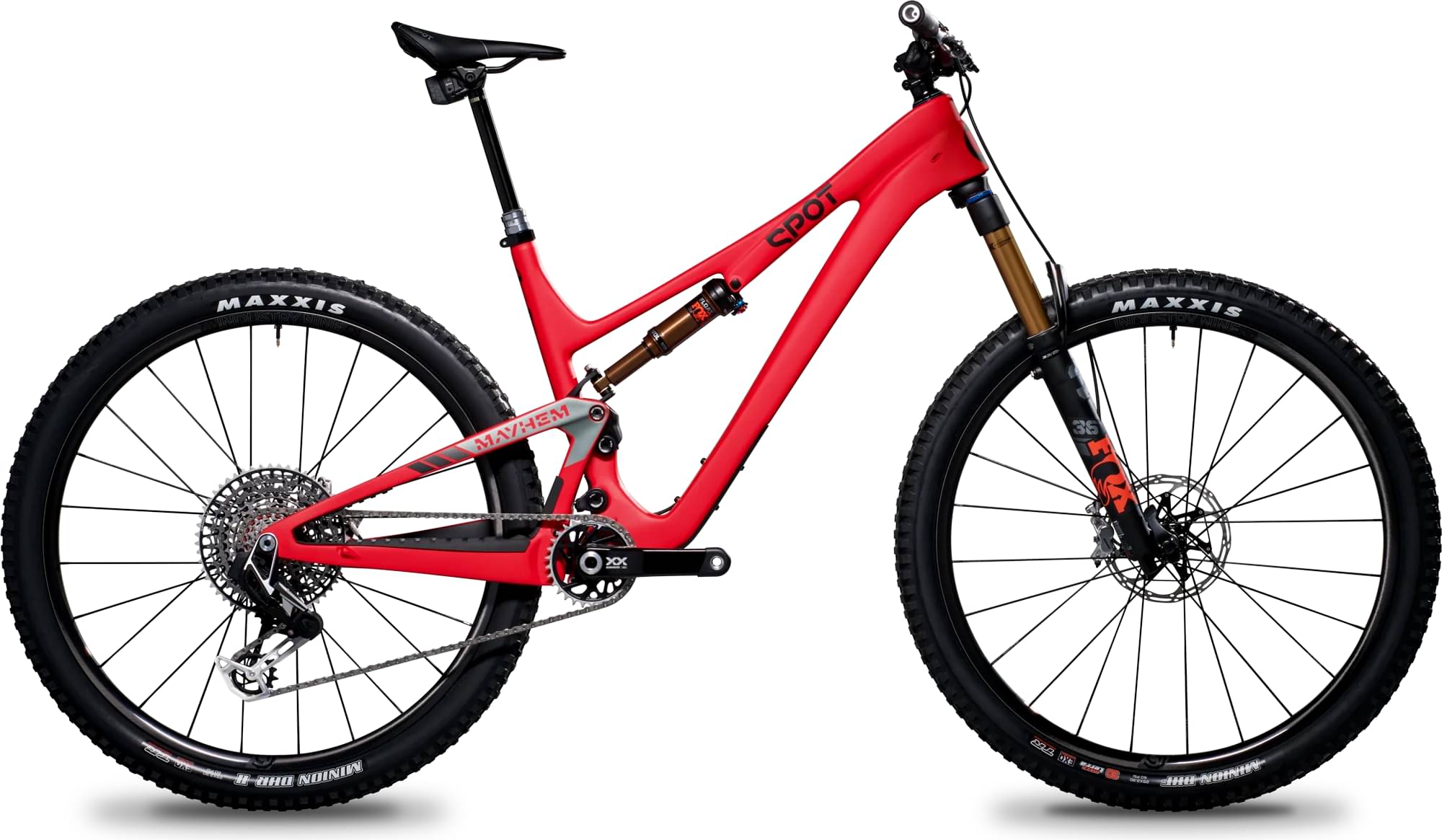

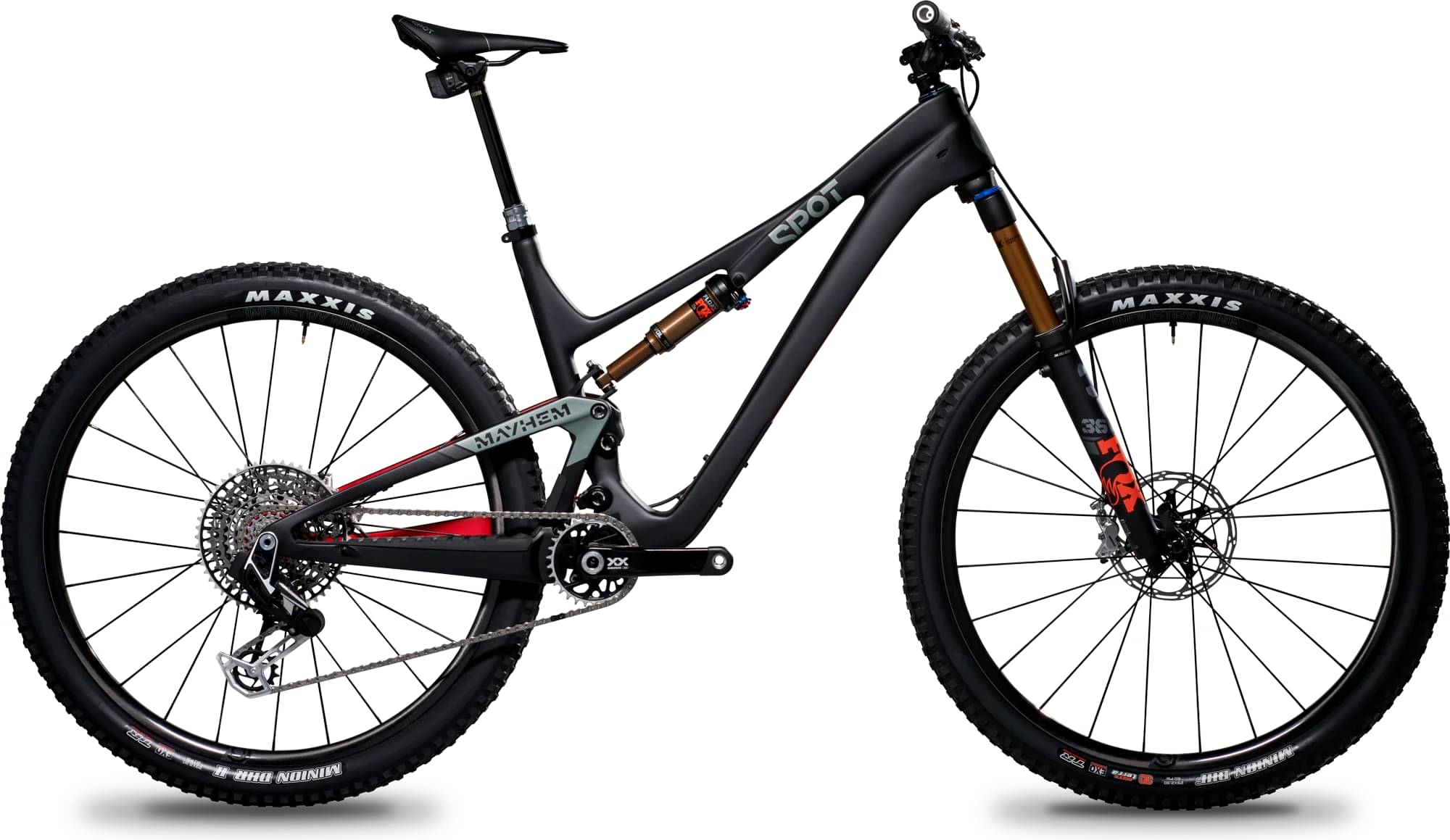

Spot Brand Spot Mayhem 130 6-Star AXS 2023
2023 Mountain
Estimate price |
8,999$
Weight | 12.75 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 130mm -
Fork Fox Factory Float 36
-
Groupset XX1 Eagle AXS, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
SM
158cm - 171cm
MD
168cm - 180cm
MD
168cm - 180cm
LG
178cm - 189cm
LG
178cm - 189cm
XL
186cm - 199cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Fox Factory 36 Float, 29, Grip 2, HSC, LSC, HSR, LSR, 140mm, 44mm rake, Boost
Rear Shock
Fox Factory Float DPS EVOL LV, 3 Pos. Adj. 230x57.5
Drivetrain
Rear Derailleur
SRAM XX Eagle AXS, Hangerless, Wireless, 12-speed
Shift Levers
SRAM AXS Pod Controller, 12-speed
Cassette
SRAM XX 1297, 12-speed, 10-52t, Black
Crank
SRAM XX Carbon Eagle, B148, 170mm, 30t
Bottom Bracket
SRAM DUB BSA 73mm threaded
Chain
SRAM XX Eagle, Flattop, Silver
Wheels
Rims
Front: 29: Industry Nine TR300/290 DUO 29, 24h, Tubeless, 6-Bolt, Boost 15x110, 27.5+: Industry Nine EN355 27.5, Tubeless, 6-Bolt, Boost 15x110, Rear: 29: Industry Nine TR300/290 DUO 29, 24h, Tubeless, XD, 6-Bolt, Boost 12x148, 27.5+: Industry Nine EN355 27.5, XD, Tubeless, 6-Bolt, Boost 12x148
Tires
Front: Maxxis Minion DHF 29x2.3, 60tpi, 3C Maxx Terra, 27.5+: Maxxis Rekon Plus 27.5x2.8 60tpi Dual EXO/TR, Rear: Maxxis Minion DHF 29x2.3, 60tpi, 3C Maxx Terra, 27.5+: Maxxis Rekon Plus 27.5x2.8 60tpi Dual EXO/TR
Brakes
Brakes
Front: SRAM G2 Ultimate, 4-piston, 180mm, Centerline X, 6-bolt rotor, Rear: SRAM G2 Ultimate, 4-piston, 180mm, Centerline X, 6-bolt rotor

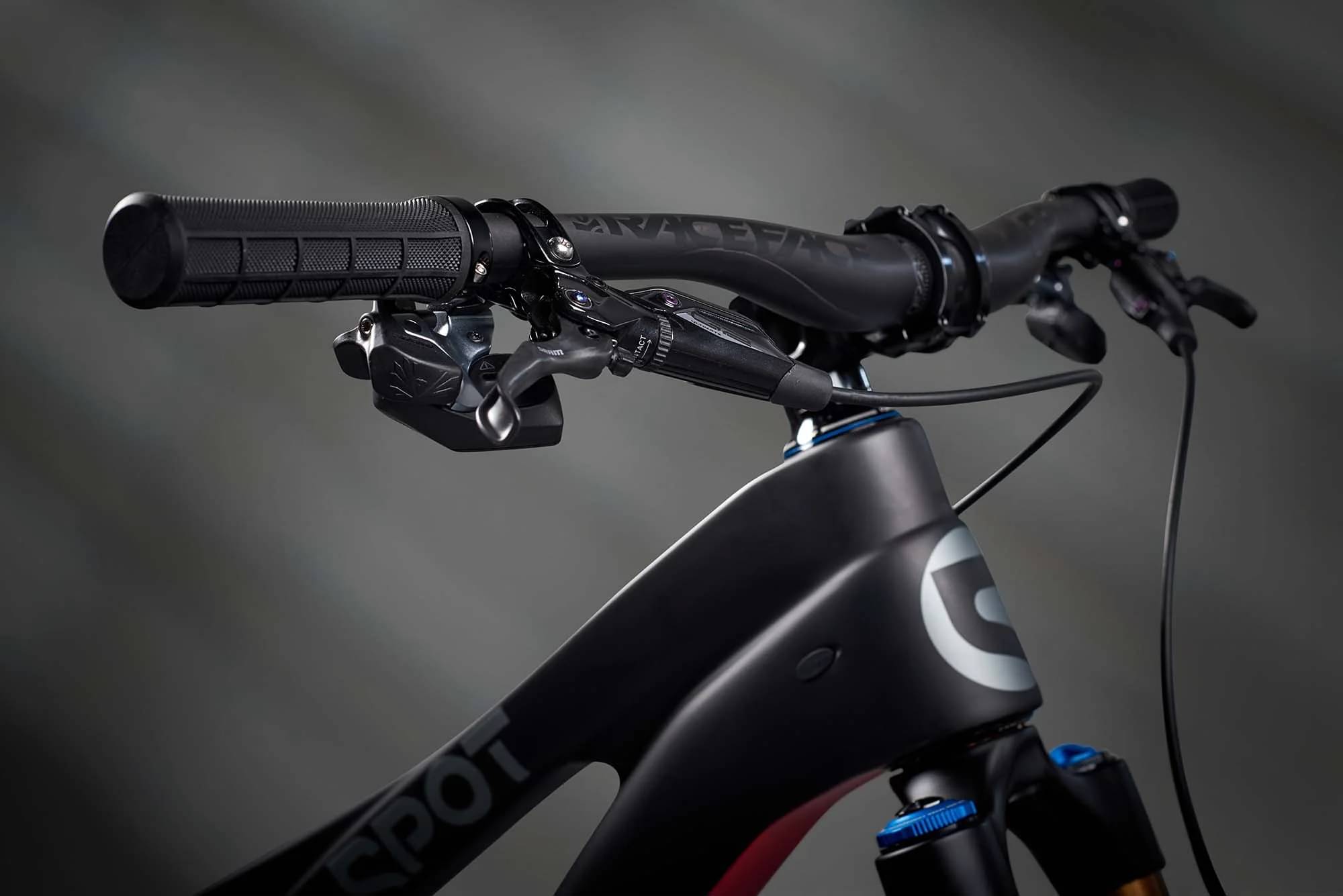

Cockpit
Stem
Race Face Turbine R, 35 x 50mm
Handlebar
OneUp, 35mm, XL 800mm, LG 780mm, MD 760mm, SM 750mm, 20mm rise, Carbon
Grips
Ergon GXR, Black
Headset
Cane Creek 40, ZS44/ZS56 ZS44 upper, ZS56 lower
Seat
Saddle
Spot MTB
Seatpost
SRAM AXS Wireless 170mm for XL and Large, 150mm for Medium, 125mm for Small, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM | MD | MD | LG | LG | XL | XL |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.43 mm | 1.38 mm | 1.38 mm | 1.34 mm | 1.34 mm | 1.29 mm | 1.29 mm |
| Bottom Bracket Height | 336 mm | 344 mm | 336 mm | 344 mm | 336 mm | 344 mm | 336 mm | 344 mm |
| Front Center | 719 mm | 719 mm | 750 mm | 750 mm | 782 mm | 782 mm | 811 mm | 811 mm |
| Rake | 45 mm | 45 mm | 44 mm | 44 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 111 mm | 120 mm | 112 mm | 121 mm | 111 mm | 120 mm | 111 mm | 120 mm |
| Stack | 604 mm | 604 mm | 619 mm | 619 mm | 633 mm | 633 mm | 642 mm | 642 mm |
| Reach | 422 mm | 422 mm | 447 mm | 447 mm | 472 mm | 472 mm | 497 mm | 497 mm |
| Top Tube Length | 576 mm | 576 mm | 600 mm | 600 mm | 622 mm | 622 mm | 644 mm | 644 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 76 ° | 76 ° | 76.5 ° | 76.5 ° | 77 ° | 77 ° |
| Seat Tube Length | 356 mm | 356 mm | 407 mm | 407 mm | 457 mm | 457 mm | 495 mm | 495 mm |
| Head Tube Angle | 65.7 ° | 65.7 ° | 65.7 ° | 65.7 ° | 65.7 ° | 65.7 ° | 65.7 ° | 65.7 ° |
| Head Tube Length | 90 mm | 90 mm | 105 mm | 105 mm | 120 mm | 120 mm | 130 mm | 130 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1161 mm | 1161 mm | 1192 mm | 1192 mm | 1224 mm | 1224 mm | 1253 mm | 1253 mm |
| Bottom Bracket Drop | 31 mm | 31 mm | 31 mm | 31 mm | 31 mm | 31 mm | 31 mm | 31 mm |
| Standover Height | 714 mm | 714 mm | 714 mm | 714 mm | 714 mm | 714 mm | 714 mm | 714 mm |
| Wheels | 27" | 29" | 27" | 29" | 27" | 29" | 27" | 29" |
| Rider Min Height | 158 cm | 158 cm | 168 cm | 168 cm | 178 cm | 178 cm | 186 cm | 186 cm |
| Rider Max Height | 171 cm | 171 cm | 180 cm | 180 cm | 189 cm | 189 cm | 199 cm | 199 cm |
Model Overview
Mayhem 130 6-Star AXS is part of the Spotbrand Mayhem model. 25 bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
The most economical model, the Spot Mayhem 130 4-Star 2023 has a starting price of 5499$. Spot Mayhem 150 6-Star AXS 2023 on the other hand is the most expensive at 9199$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Spot Mayhem 130 6-Star AXS price was 8999$. If we compare this with the average Trail bike cost we notice that the price is 225.81% more expensive.
Average weight for Trail bikes
The average weight for Trail bikes is 12.98 kg (28.62 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
slightly lighter than average, Mayhem 130 6-Star AXS has a weight of 12.75 kg (28.11 lbs). In other words, this model is 1.8% lighter than the average Trail bike.
Overview of components

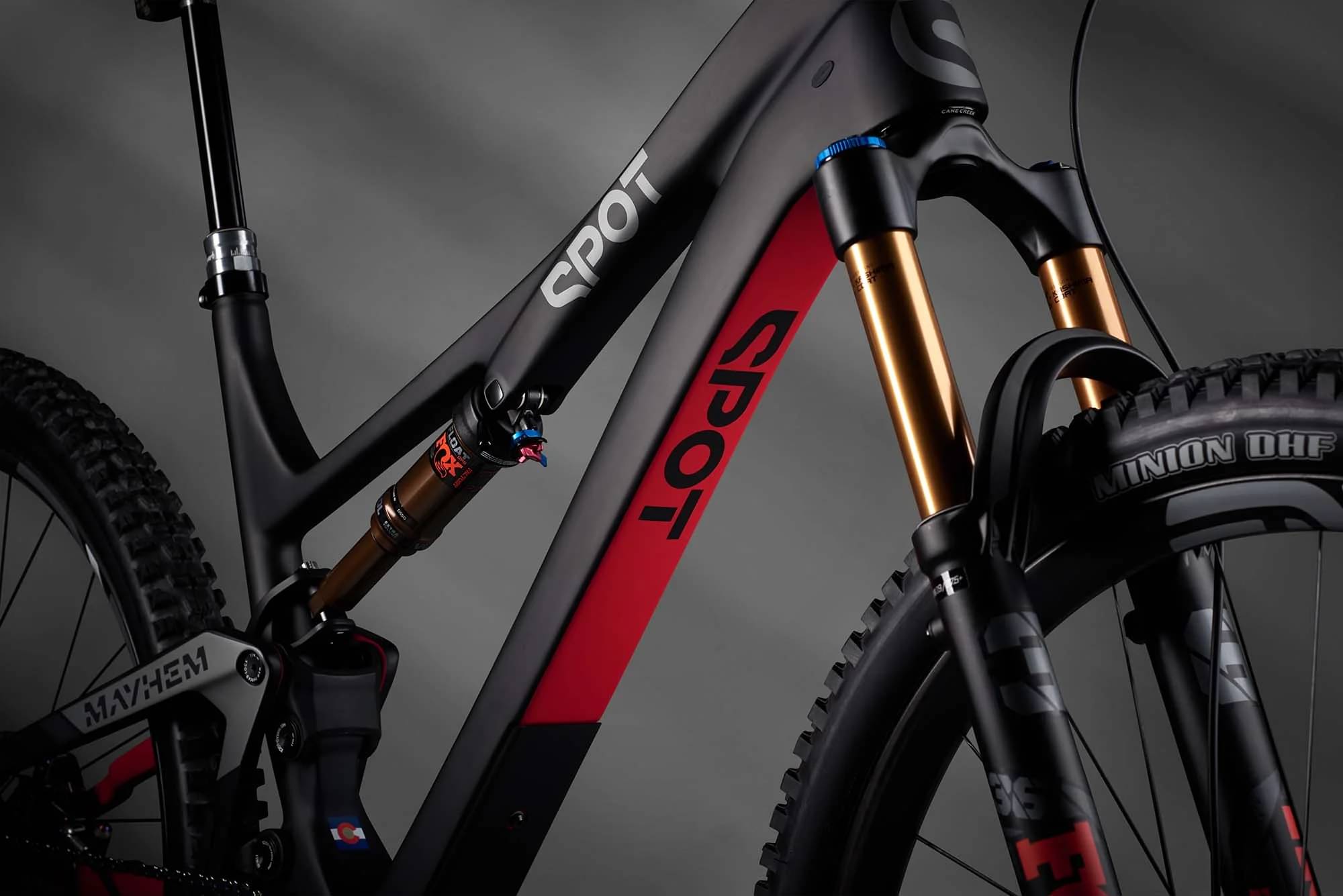

Fork
Spot Mayhem 130 6-Star AXS 2023 bike is equipped with the Fox Factory Float 36 fork, and has 140mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.

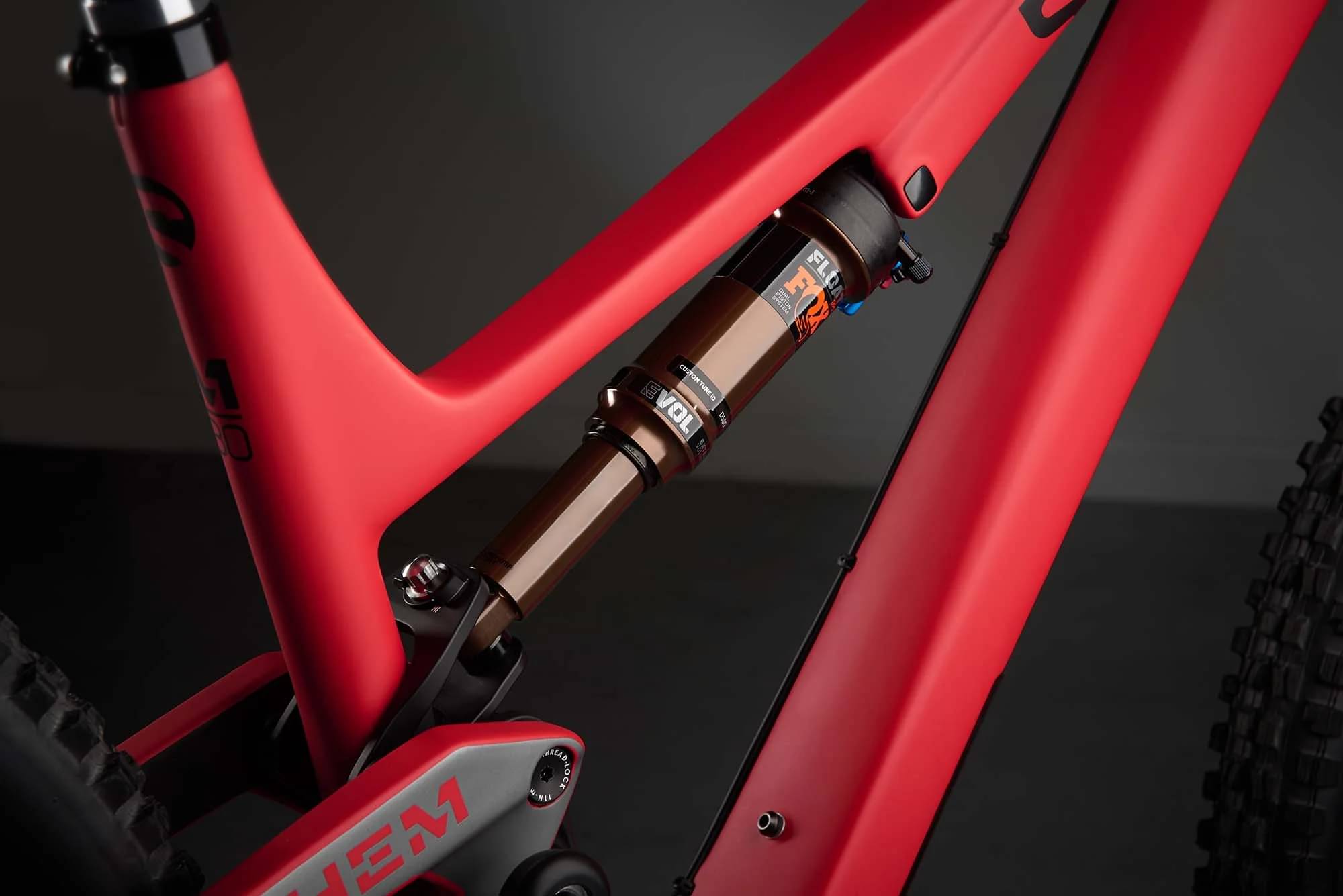

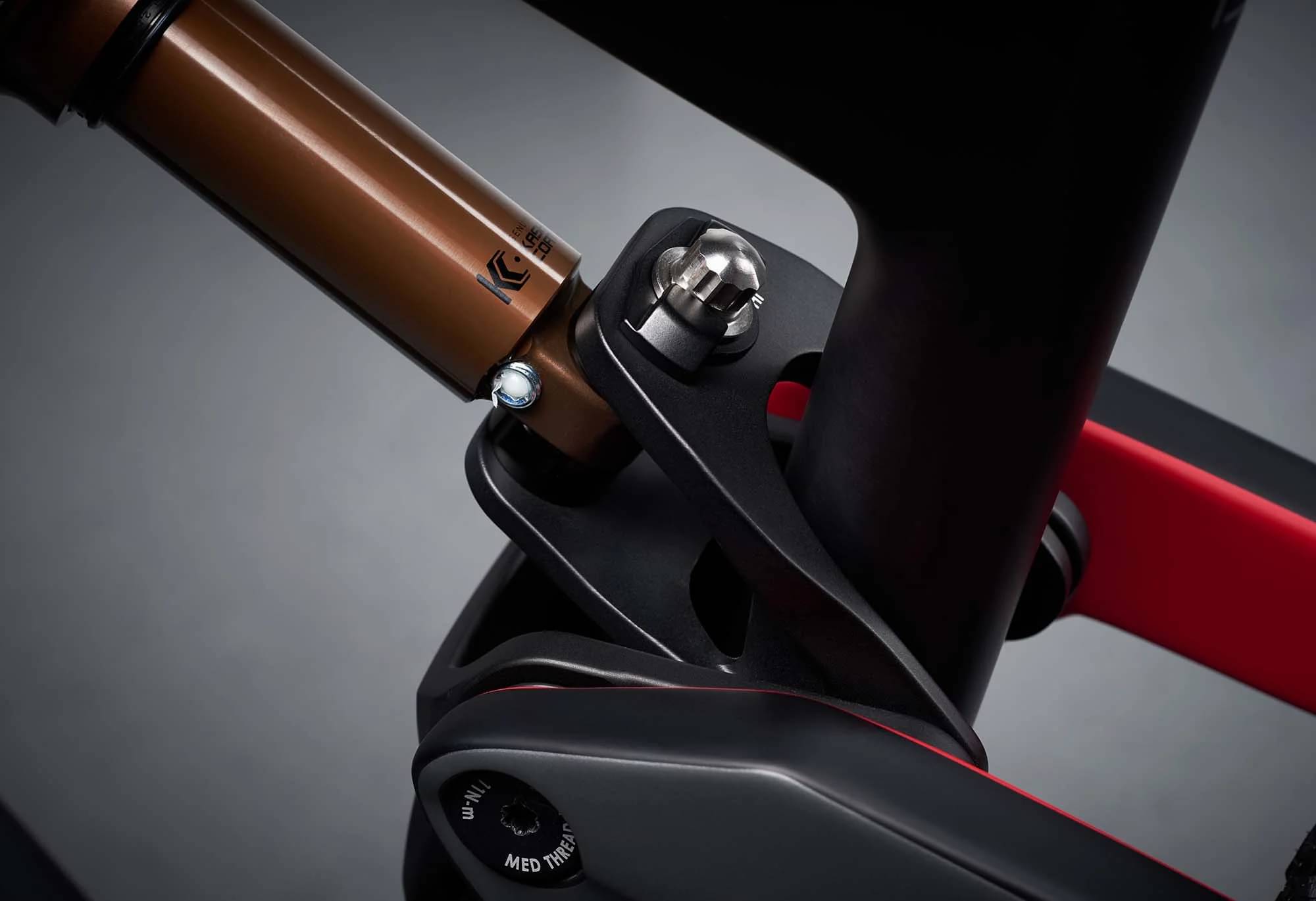

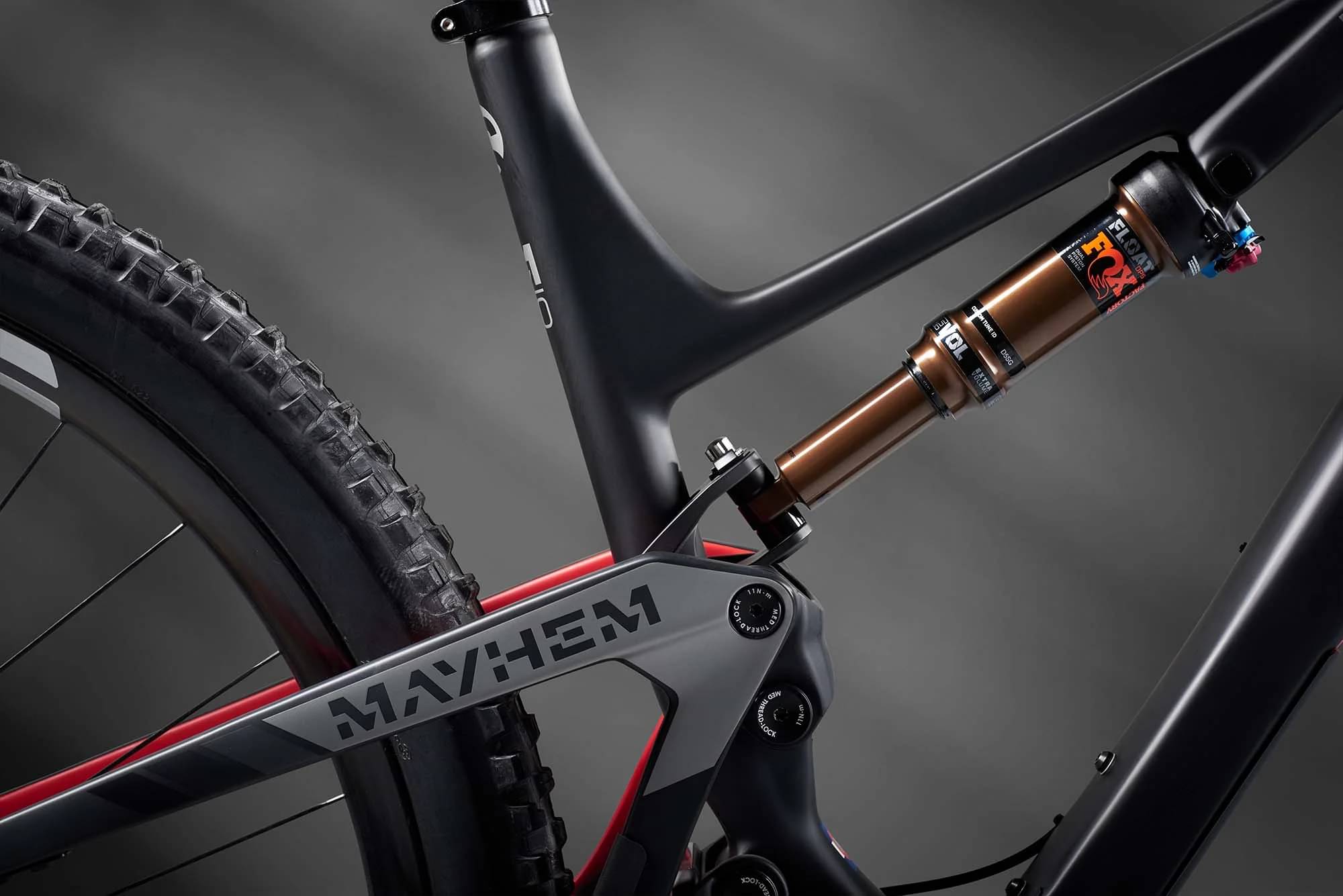

Rear Shock
The Mayhem 130 6-Star AXS has a rear shock with a travel of 130mm. The model Fox Factory Float DPS EVOL LV is the one installed in this bike. Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The wheels on Mayhem 130 6-Star AXS are the 27.5″ aluminum type. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Mayhem 130 6-Star AXS has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
This bike is available in 8 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
