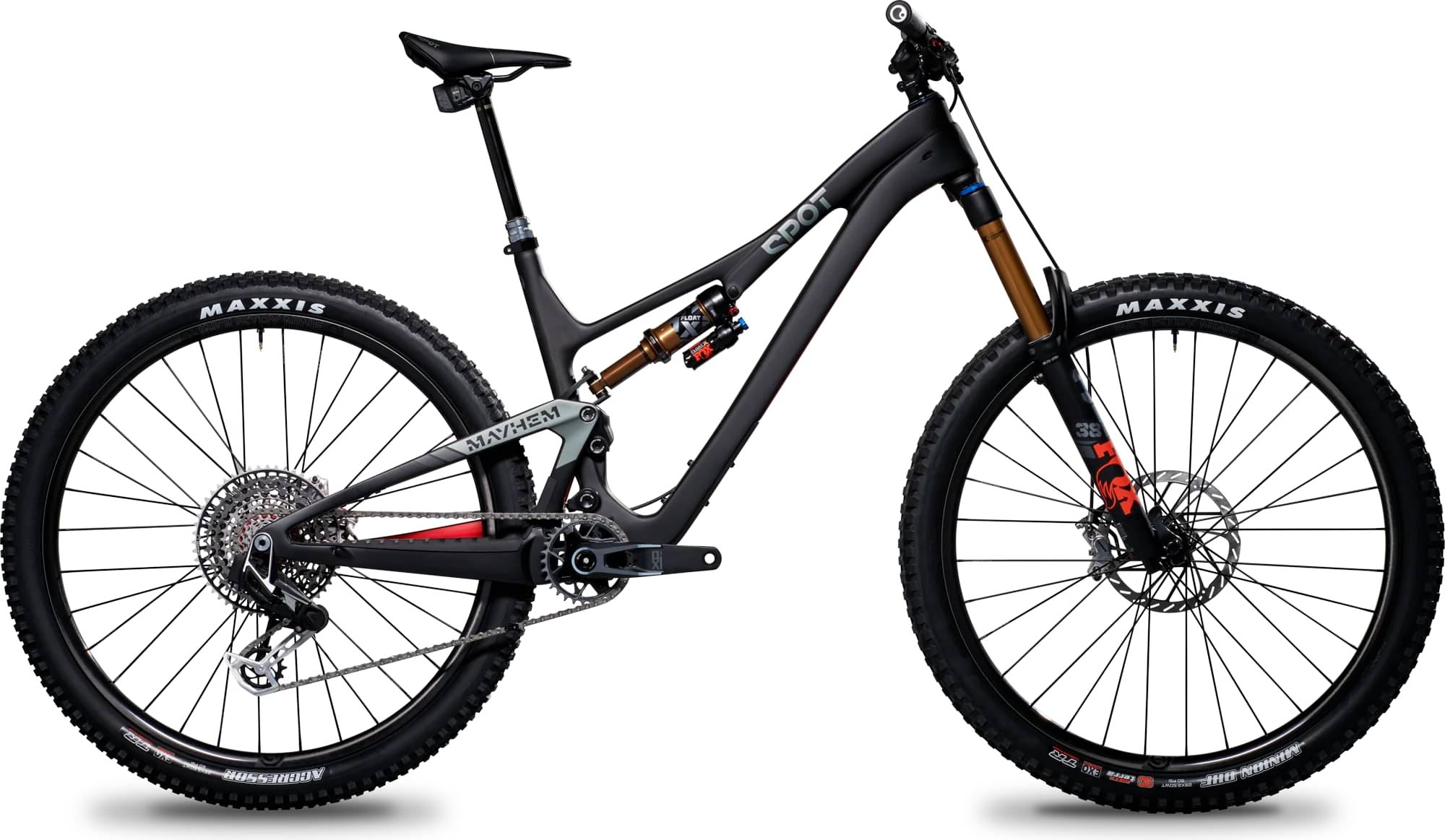

Spot Brand Spot Mayhem 150 5-Star 2023
2023 Mountain
Estimate price |
6,899$
Weight | 13.88 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Factory Float 38
-
Groupset X01 Eagle, GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Fox Factory 38 Float, 29, Grip 2, HSC, LSC, HSR, LSR, 160mm, 44mm rake, Boost
Rear Shock
Fox Factory Float X, 2 Pos. Adj. 230x65
Drivetrain
Rear Derailleur
SRAM XO1 Eagle BLK, 12-speed
Shift Levers
SRAM GX Eagle Lunar, 12-speed, Trigger
Cassette
SRAM XG1275, 12-speed, 10-52t
Crank
SRAM X1 Carbon Eagle, B148 DUB, 170mm, 32t
Bottom Bracket
SRAM DUB BSA 73mm threaded
Chain
SRAM GX Eagle
Wheels
Rims
Front: Stan's Flow MK4 Team 29, Tubeless, Boost 15x110, 6-bolt, Rear: Stan's Flow MK4 Team 29, E-Sync, Tubeless, Boost 12x148, XD, 6-bolt
Tires
Front: Maxxis Minion DHF 29x2.5 WT, 60tpi, 3C Maxx Terra, Rear: Maxxis Minion DHF 29x2.5 WT, 60tpi, 3C Maxx Terra
Brakes
Brakes
Front: SRAM CODE RSC, 200mm, 4-piston, Centerline, 6-bolt rotor, Rear: SRAM CODE RSC, 200mm, 4-piston, Centerline, 6-bolt rotor
Cockpit
Stem
Race Face Turbine R, 35 x 40mm
Handlebar
OneUp, 35mm, XL/LG 800mm, MD 780mm, SM 760mm, 20mm rise, Carbon
Grips
Ergon GXR, Black

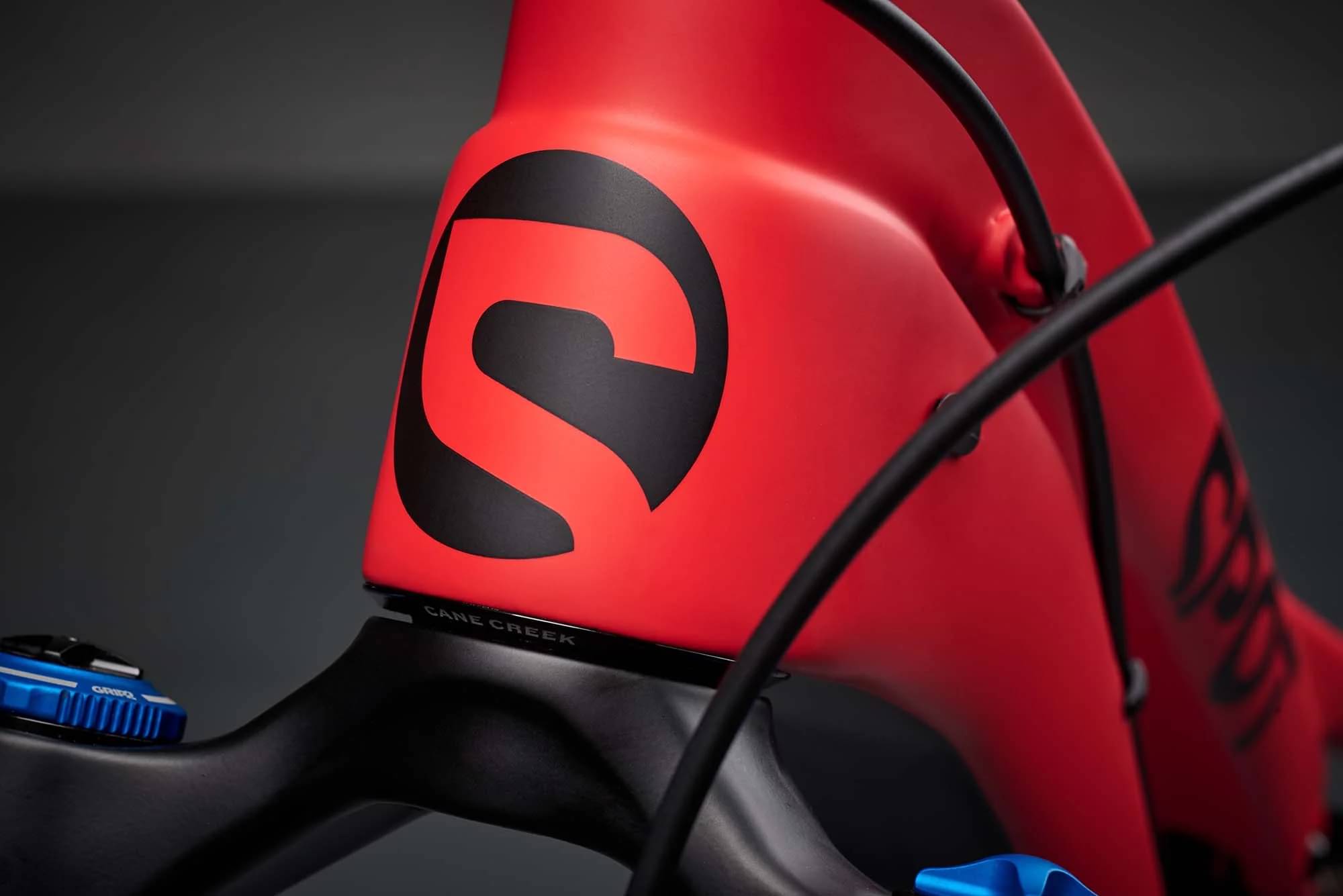

Headset
Cane Creek 40, ZS44/ZS56 ZS44 upper, ZS56 lower
Seat
Saddle
Spot MTB
Seatpost
BikeYoke Revive 185mm for XL and Large, 160mm for Medium, 125mm for Small, Internal, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.41 mm | 1.34 mm | 1.28 mm |
| Bottom Bracket Height | 348 mm | 348 mm | 348 mm | 348 mm |
| Front Center | 731 mm | 765 mm | 798 mm | 834 mm |
| Rake | 45 mm | 45 mm | 43 mm | 45 mm |
| Trail | 125 mm | 125 mm | 127 mm | 125 mm |
| Stack | 612 mm | 621 mm | 631 mm | 639 mm |
| Reach | 411 mm | 441 mm | 471 mm | 501 mm |
| Top Tube Length | 546 mm | 578 mm | 611 mm | 643 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 77.5 ° | 77.5 ° |
| Seat Tube Length | 350 mm | 400 mm | 450 mm | 490 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1172 mm | 1206 mm | 1239 mm | 1275 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm | 27 mm |
| Standover Height | 706 mm | 706 mm | 706 mm | 706 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Mayhem 150 5-Star is part of the Spotbrand Mayhem model. Spot launched 25 bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Spot Mayhem 130 4-Star 2023 is the cheapest bike model and costs 5499$. Spot Mayhem 150 6-Star AXS 2023 is the most expensive one and costs 9199$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Enduro bikes
According to our math, the average price for a trustworthy Enduro bike is 3599$. However, this doesn’t mean that if you spend less money on an Enduro bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 6899$. Doing a quick comparison, we notice that Mayhem 150 5-Star price is 91.69% higher than the average cost of an Enduro bike.
Average weight for Enduro bikes
Enduro bikes have an average weight of 14.27 kg (31.46 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 13.88 kg (30.6 lbs), the Mayhem 150 5-Star model is slightly lighter than average. In conclusion, the average Enduro bike weighs 2.81% more than Mayhem 150 5-Star.
Overview of components

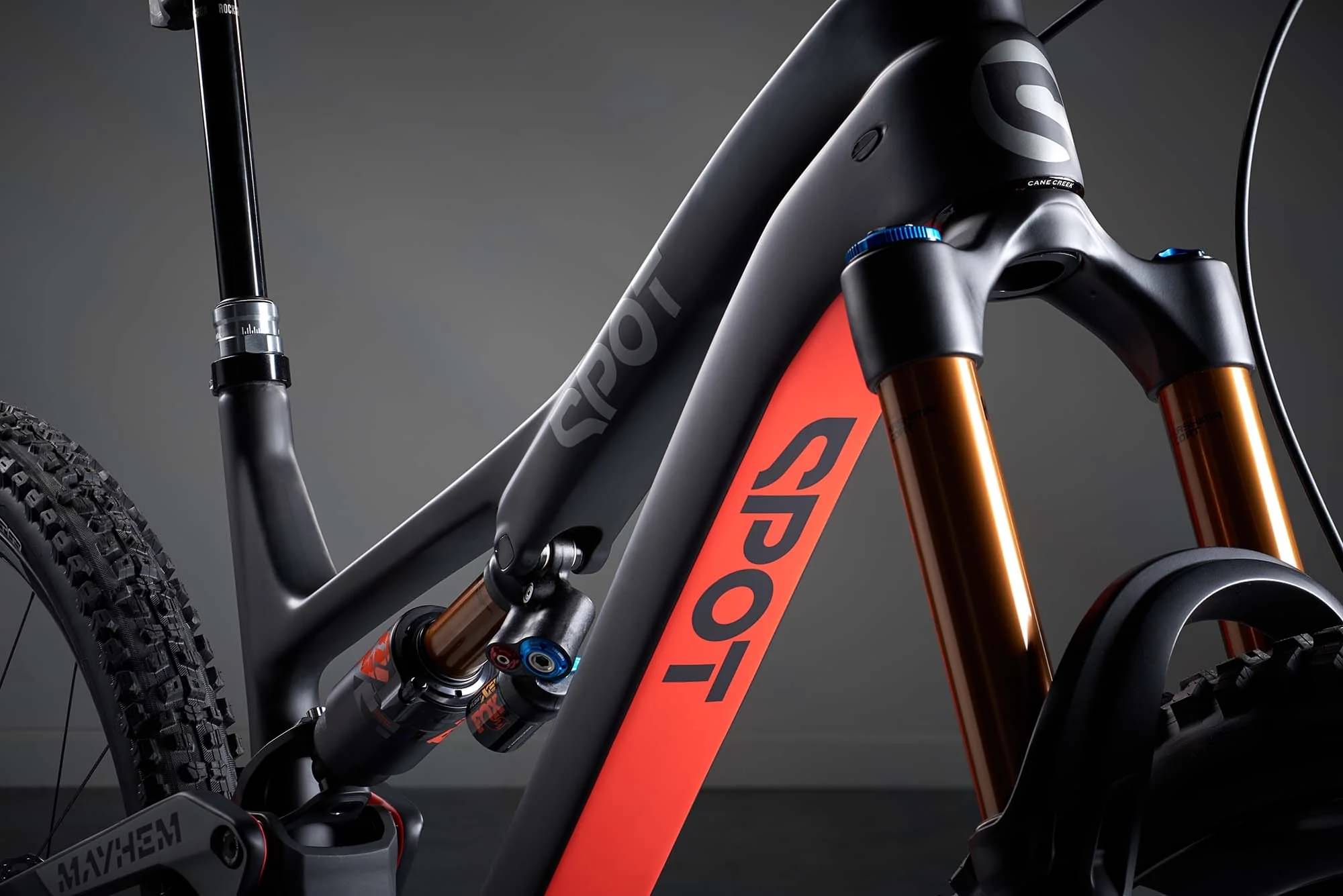

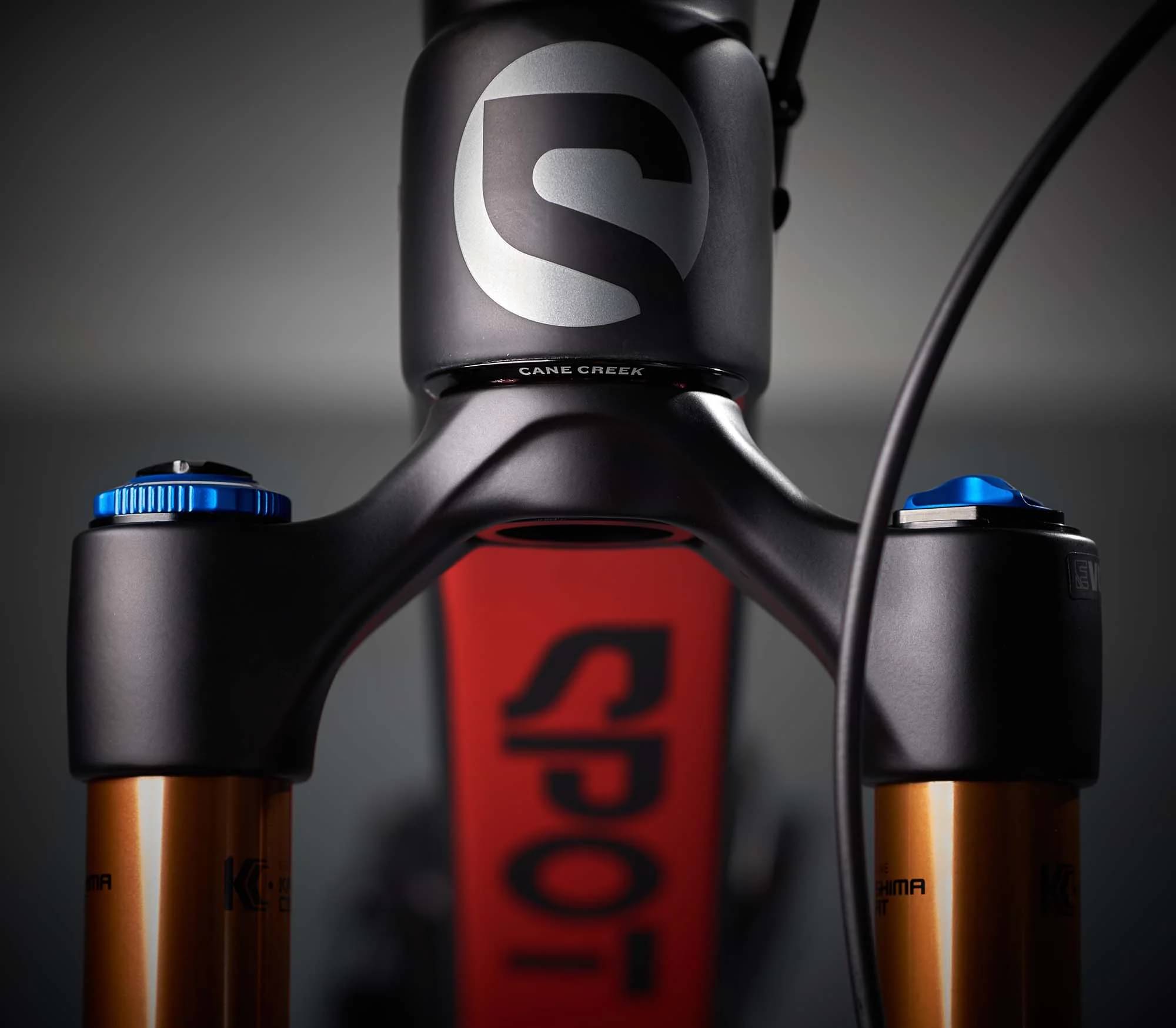

Fork
This bike has the Fox Factory Float 38 fork installed. The fork’s travel is 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.

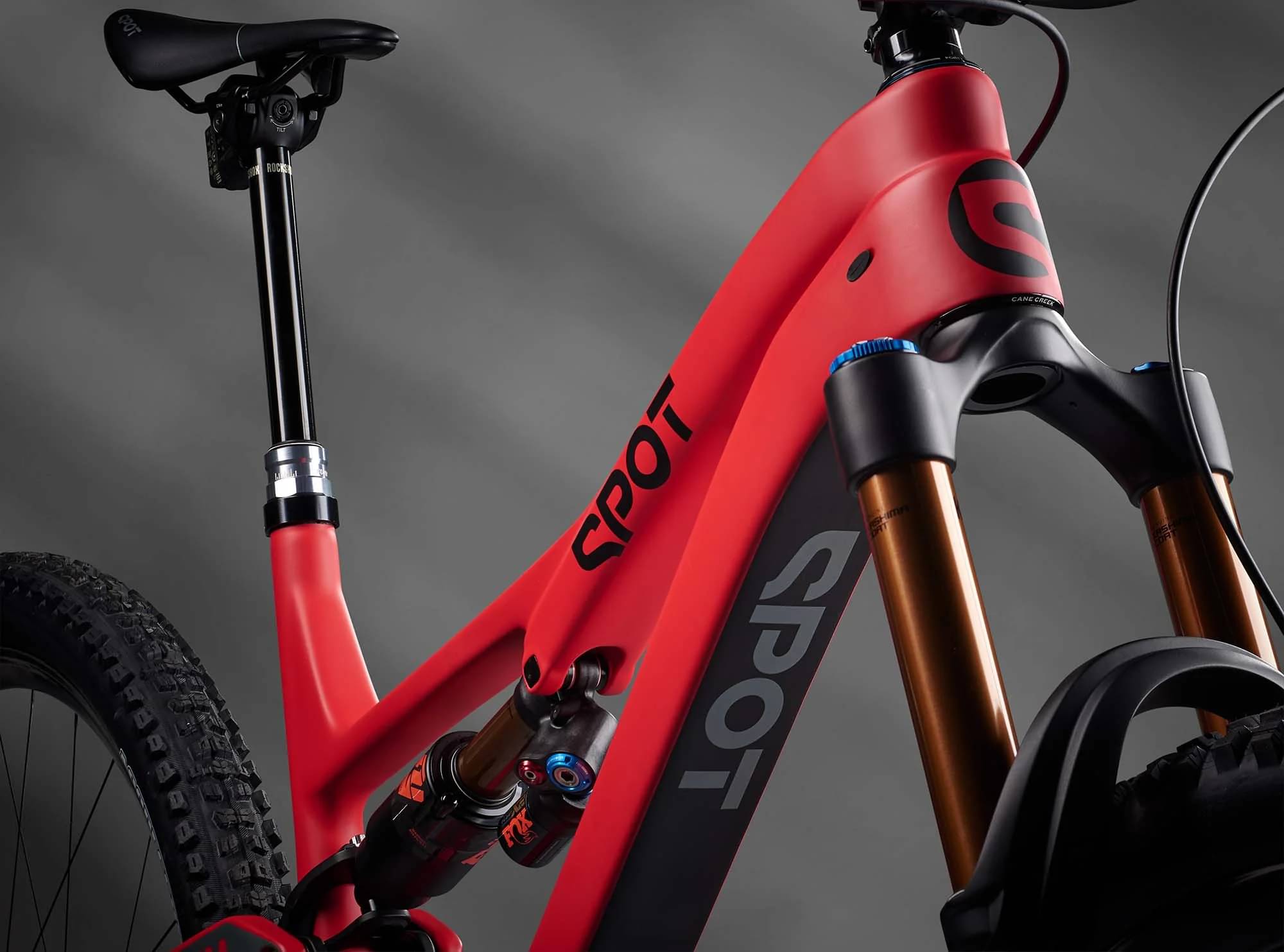

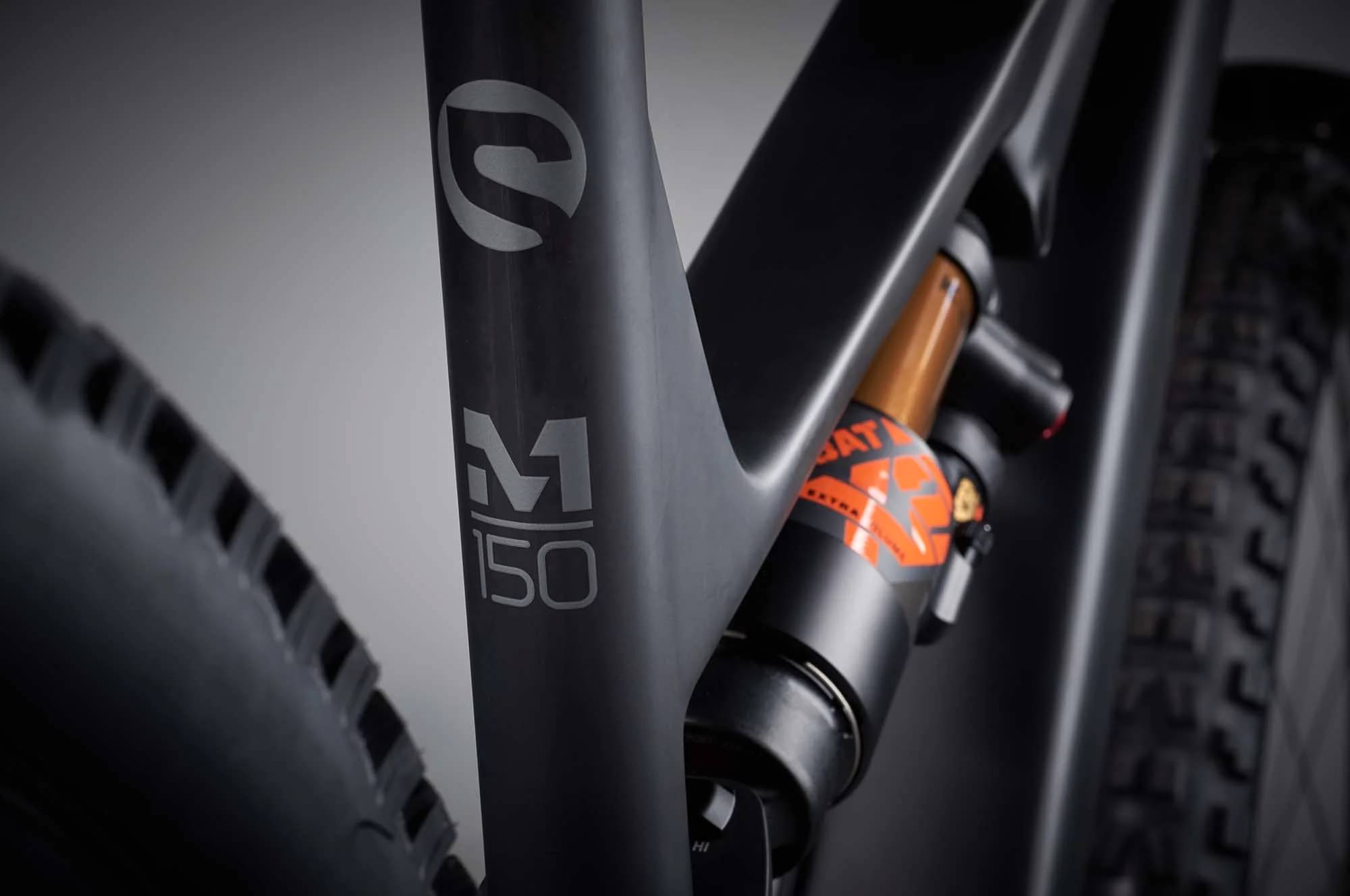

Rear Shock
Spot Mayhem 150 5-Star bike has the Fox Factory Float X model installed, and has a travel of 150mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When it comes to wheels, the Mayhem 150 5-Star bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The Mayhem 150 5-Star has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Spot Mayhem 150 5-Star comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
