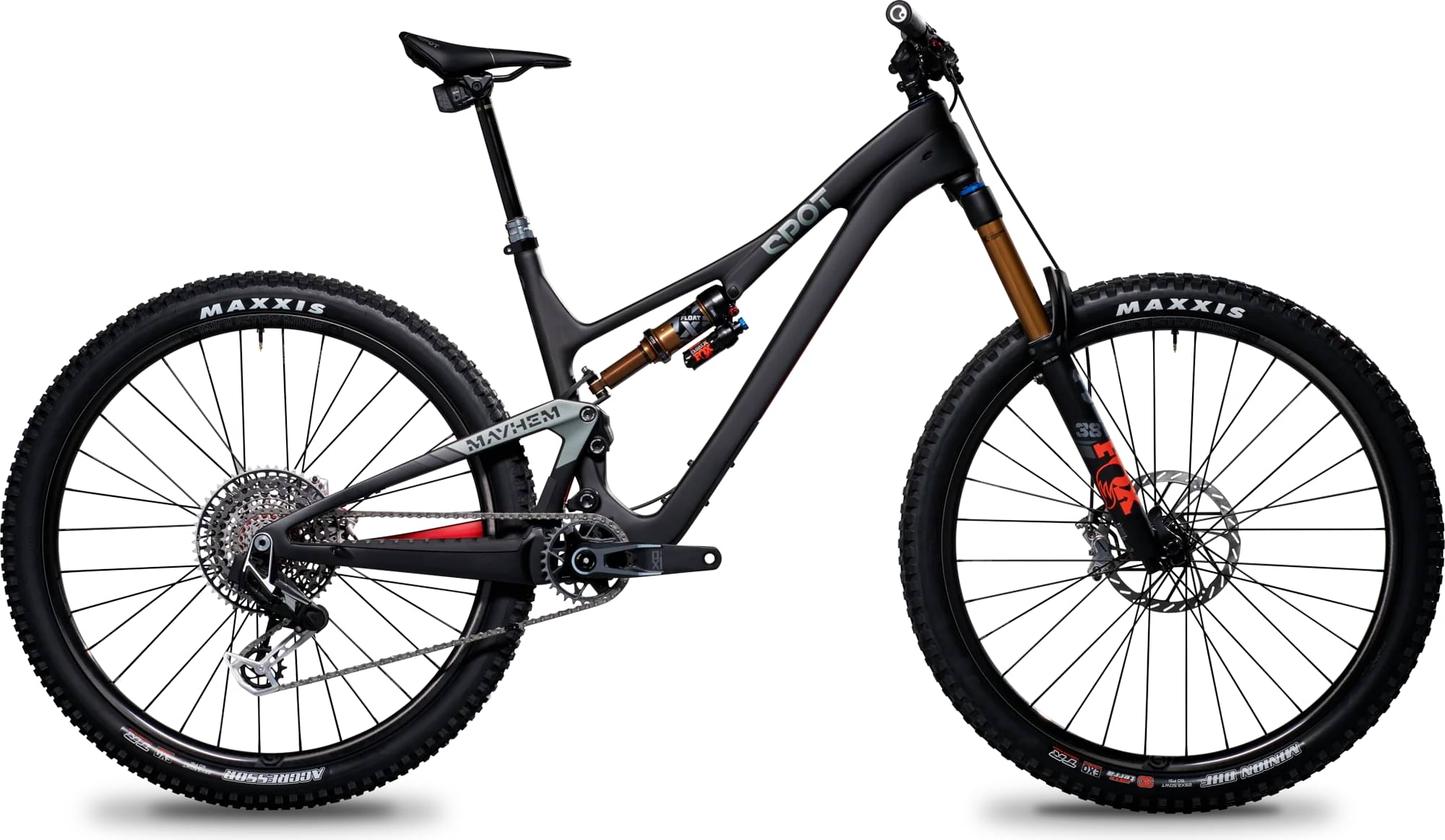

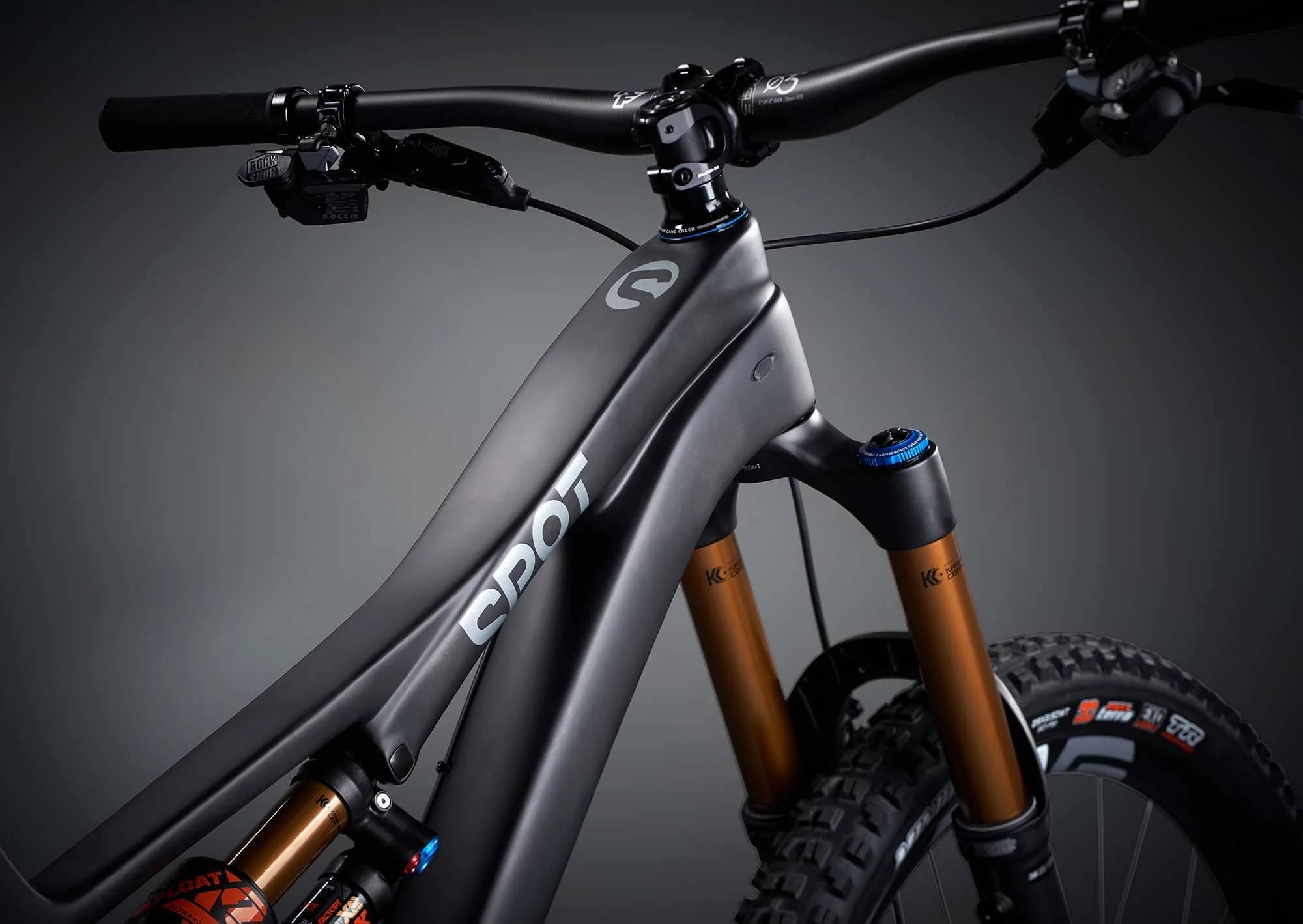

Spot Brand Spot Mayhem 150 6-Star XTR 2023
2023 Mountain
Estimate price |
8,999$
Weight | 13.38 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -

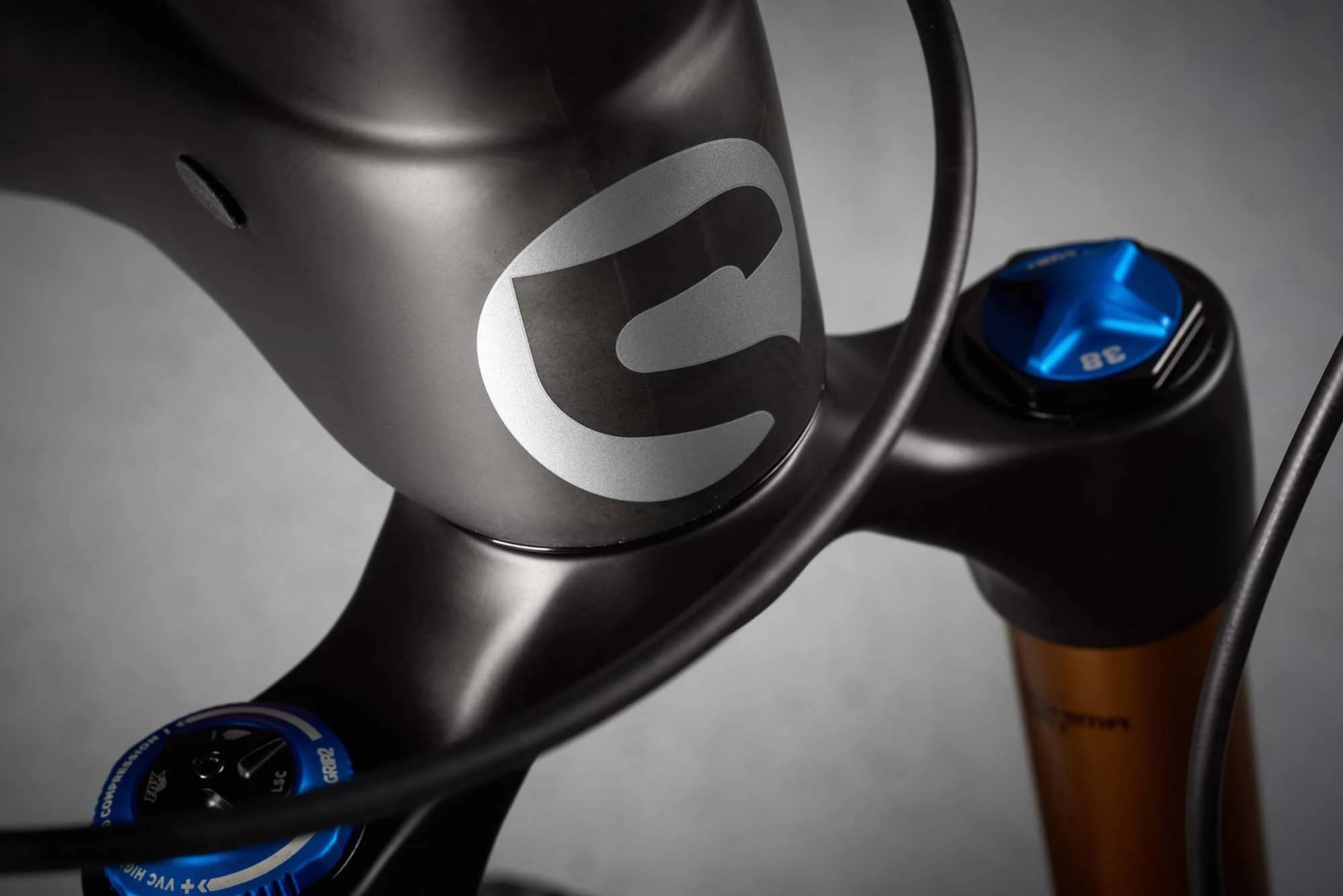

Fork Fox Factory Float 38
-
Groupset XTR -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Fox Factory 38 Float, 29, Grip 2, HSC, LSC, HSR, LSR, 160mm, 44mm rake, Boost
Rear Shock

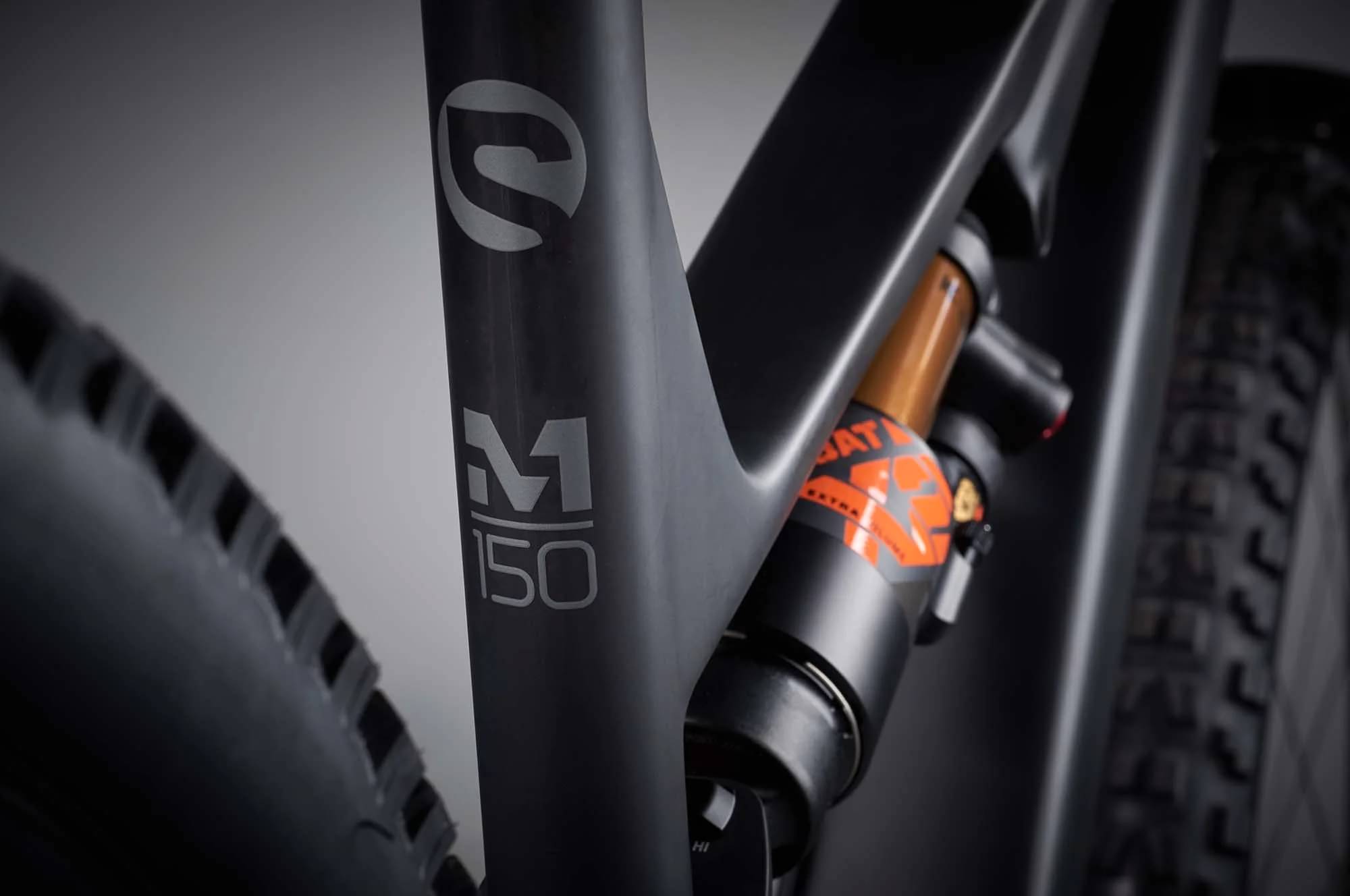

Fox Factory Float X, 2 Pos. Adj. 230x65
Drivetrain
Rear Derailleur
Shimano XTR 9100, 12-speed
Shift Levers
Shimano XTR 9100, 12-speed, Rapidfire Plus
Cassette
Shimano XTR 9100, 12-speed, 10-51t
Crank
Shimano M9120 XTR, 170mm, 32t
Bottom Bracket
Shimano SM-BB93 BSA 73mm
Chain
Shimano XTR 9100
Wheels
Rims
Front: Industry Nine EN325/310 DUO 29, 32H, Tubeless, 6-Bolt, Boost 15x110, Rear: Industry Nine EN325/310 DUO 29, 32H, Tubeless, 6-Bolt, Boost 12x148, Microspline
Tires
Front: Maxxis Minion DHF 29x2.5 WT, 60tpi, 3C Maxx Terra, Rear: Maxxis Minion DHF 29x2.5 WT, 60tpi, 3C Maxx Terra
Brakes
Brakes
Front: Shimano XTR 9120, 4-piston, 200mm, 6-Bolt rotor, Rear: Shimano XTR 9120, 4-piston, 200mm, 6-Bolt rotor
Cockpit
Stem
Race Face Turbine R, 35 x 40mm
Handlebar
>OneUp, 35mm, XL/LG 800mm, MD 780mm, SM 760mm, 20mm rise, Carbon
Grips
Ergon GXR, Black

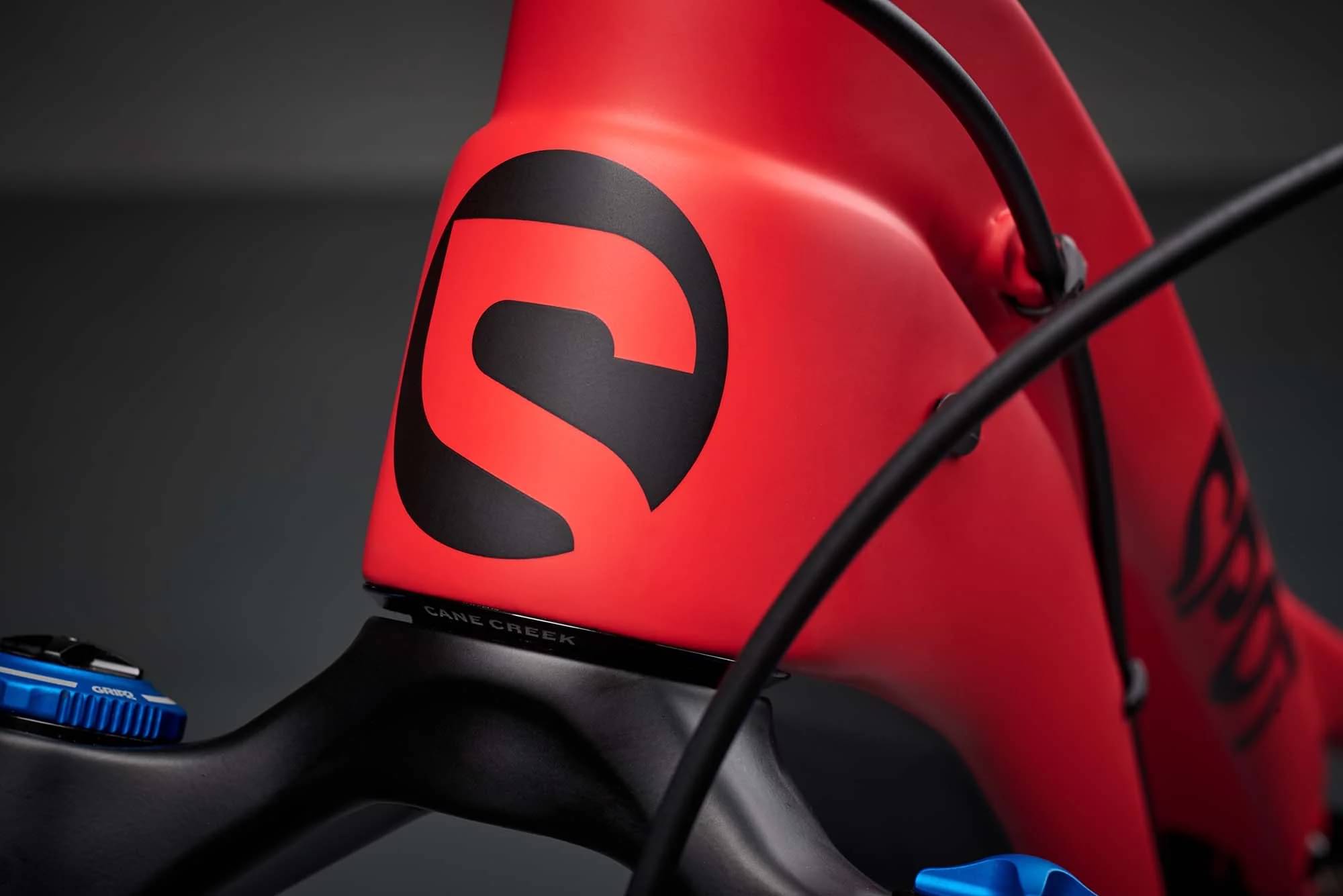

Headset
Cane Creek 40, ZS44/ZS56 ZS44 upper, ZS56 lower
Seat
Saddle
Spot MTB
Seatpost
BikeYoke Revive 185mm for XL and Large, 160mm for Medium, 125mm for Small, Internal, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.41 mm | 1.34 mm | 1.28 mm |
| Bottom Bracket Height | 348 mm | 348 mm | 348 mm | 348 mm |
| Front Center | 731 mm | 765 mm | 798 mm | 834 mm |
| Rake | 45 mm | 45 mm | 43 mm | 45 mm |
| Trail | 125 mm | 125 mm | 127 mm | 125 mm |
| Stack | 612 mm | 621 mm | 631 mm | 639 mm |
| Reach | 411 mm | 441 mm | 471 mm | 501 mm |
| Top Tube Length | 546 mm | 578 mm | 611 mm | 643 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 77.5 ° | 77.5 ° |
| Seat Tube Length | 350 mm | 400 mm | 450 mm | 490 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1172 mm | 1206 mm | 1239 mm | 1275 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm | 27 mm |
| Standover Height | 706 mm | 706 mm | 706 mm | 706 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Mayhem 150 6-Star XTR is part of the Spotbrand Mayhem model. Spot released 25 bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Spot Mayhem 130 4-Star 2023 is the most economical model, with a starting price of 5499$. Spot Mayhem 150 6-Star AXS 2023 on the other hand costs 9199$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Enduro bikes
If you want an acceptable Enduro bike you should know that the average price is 3599$. However, even though the average price of an Enduro bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Spot released this model in 2023, its price was 8999$. If we compare this with the average Enduro bike cost we notice that the price is 150.04% more expensive.
Enduro bikes average weight
If we make a quick analysis of the average weight of an Enduro bike, we get 14.27 kg (31.46 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
a bit lighter than average, Mayhem 150 6-Star XTR has a weight of 13.38 kg (29.5 lbs). In short, the average Enduro bike weight is 6.65% higher than this one.
Mayhem 150 6-Star XTR components

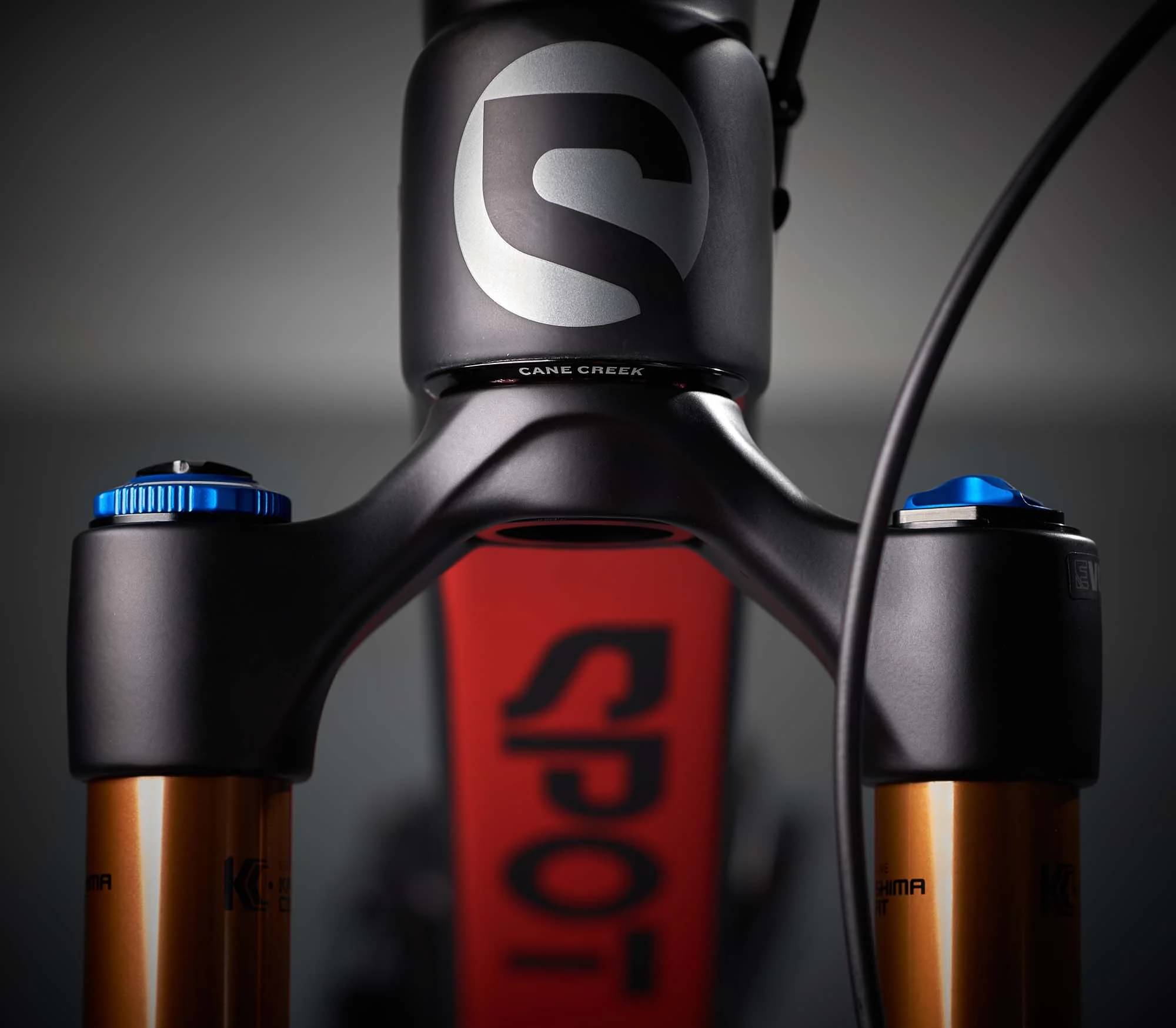

Fork
The Mayhem 150 6-Star XTR comes factory-installed with the Fox Factory Float 38 fork. This has a travel range of 160mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.

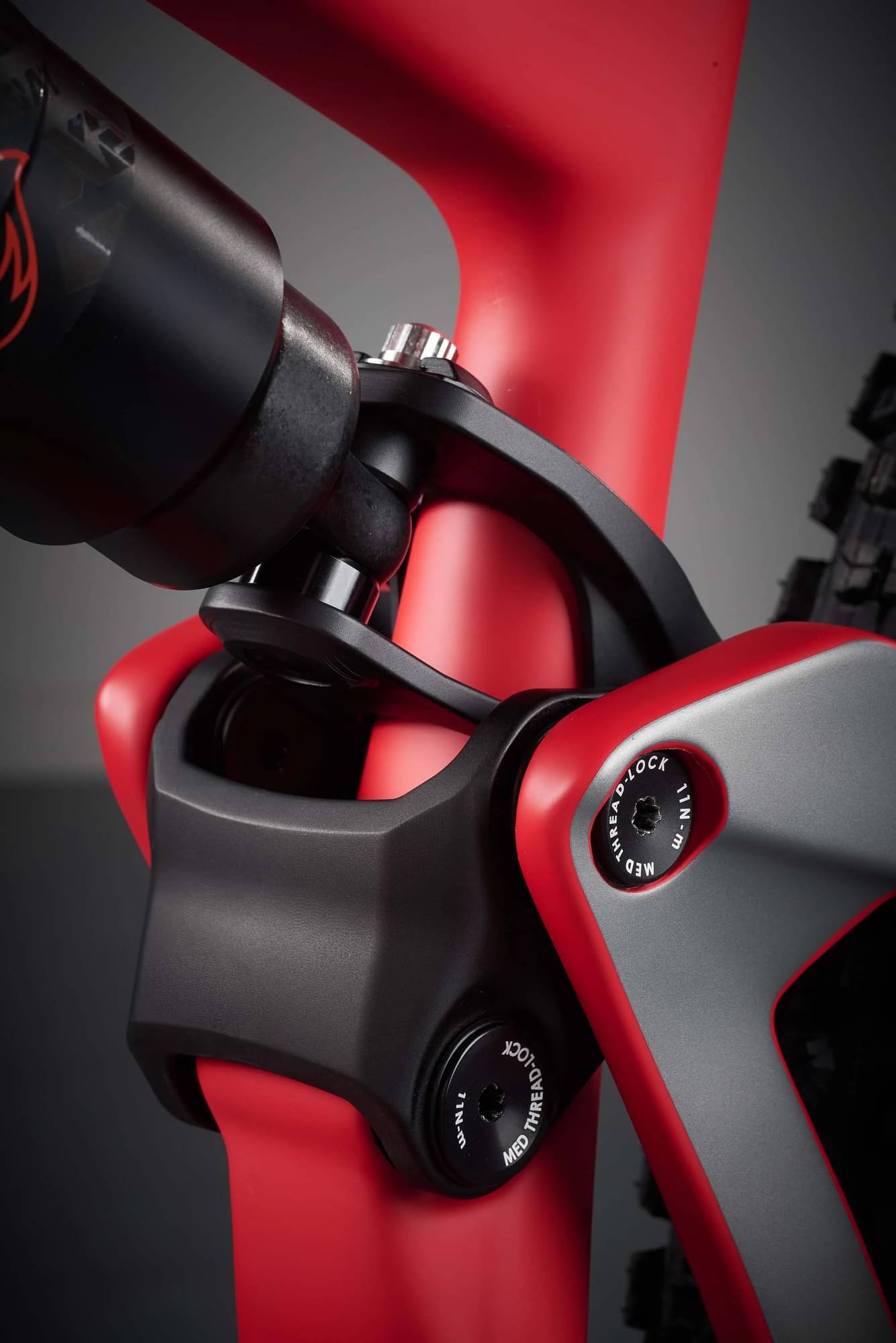

Rear Shock
From the factory, it comes with the Fox Factory Float X rear shock model, which has a travel of 150mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When leaving the production line, the Mayhem 150 6-Star XTR model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The Mayhem 150 6-Star XTR has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Spot Mayhem 150 6-Star XTR bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
The Spot model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
