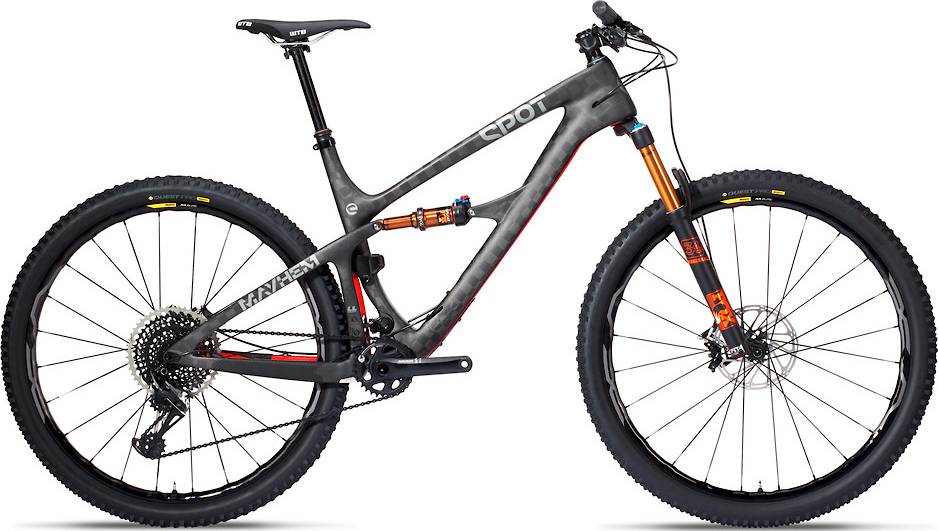

Spot Brand Mayhem 29″ 6-Star Build 2018
2018 Mountain
Estimate price |
6,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 130mm -
Fork Fox Factory Float 34
-
Groupset XX1 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX Factory 34 Float, Boost, FIT4 damper
Rear Shock
FOX Factory Float DPS EVOL, 3 position adjust, 200mm x 57mm
Drivetrain
Rear Derailleur
SRAM XX1 Eagle
Front Derailleur
N/A
Shift Levers
SRAM XX1 Eagle, 12-speed
Cassette
SRAM XG-1299, 12-speed, 10-50 tooth, gold
Crank
SRAM XX1 Eagle, carbon, 170mm length
Bottom Bracket
SRAM GXP, 73mm
Chain
SRAM XX1 Eagle, gold
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Mavic XA Pro Carbon, Boost front and rear, XD driver
Rear Hub
Mavic XA Pro Carbon, Boost front and rear, XD driver
Rims
Mavic XA Pro Carbon
Spokes
Mavic
Tires
Schwalbe Nobby Nic
Brakes
Brakes
SRAM Guide Ultimate with Centerline 180mm front/160mm rear rotors
Brake Levers
SRAM Guide Ultimate
Cockpit
Stem
Race Face Turbine, 60mm length, 35mm clamp
Handlebar
Race Face Next 35, carbon, stealth, 760mm width, 20mm rise, 35mm diameter
Grips
ODI Vans
Headset
Cane Creek 40, ZS44 upper, ZS56 lower
Seat
Saddle
WTB Silverado Pro
Seatpost
FOX Performance Elite
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.42 mm | 1.37 mm | 1.32 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Stack | 597 mm | 607 mm | 616 mm | 625 mm |
| Reach | 404 mm | 427 mm | 451 mm | 474 mm |
| Top Tube Length | 558 mm | 583 mm | 609 mm | 634 mm |
| Seat Tube Angle | 75.7 ° | 75.7 ° | 75.7 ° | 75.7 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 66.7 ° | 66.7 ° | 66.7 ° | 66.7 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1145 mm | 1172 mm | 1200 mm | 1234 mm |
| Bottom Bracket Drop | 29 mm | 29 mm | 29 mm | 29 mm |
| Standover Height | 701 mm | 706 mm | 712 mm | 718 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Mayhem 29″ 6-Star Build completes the Spotbrand Mayhem model. Spot Brand launched 25 bikes of this model so far. Take a sneak peek at all Spotbrand Mayhem bikes models from 2018, by clicking here.
Model range prices
The most economical model, the Spot Brand Mayhem 27.5″+ 4-Star Build 2018 has a starting price of 4399$. Spot Brand Mayhem 29″ 6-Star Build 2018 on the other hand is the most expensive at 6999$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Spot Brand Mayhem 29″ 6-Star Build price was 6999$. Comparing the average cost of a Trail bike to this one, you will see that Mayhem 29″ 6-Star Build price is 153.4% higher.
Overview of components
Fork
Spot Brand Mayhem 29″ 6-Star Build 2018 bike is equipped with the Fox Factory Float 34 fork, and has 130mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this bike is FOX Factory Float DPS EVOL, with a travel distance of 130mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When leaving the production line, the Mayhem 29″ 6-Star Build model has 29″ carbon wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Mayhem 29″ 6-Star Build comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Mayhem 29″ 6-Star Build comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
Spot Brand Mayhem 29″ 6-Star Build comes with a dropper post. Therefore, climbing or descending will be a breeze.
