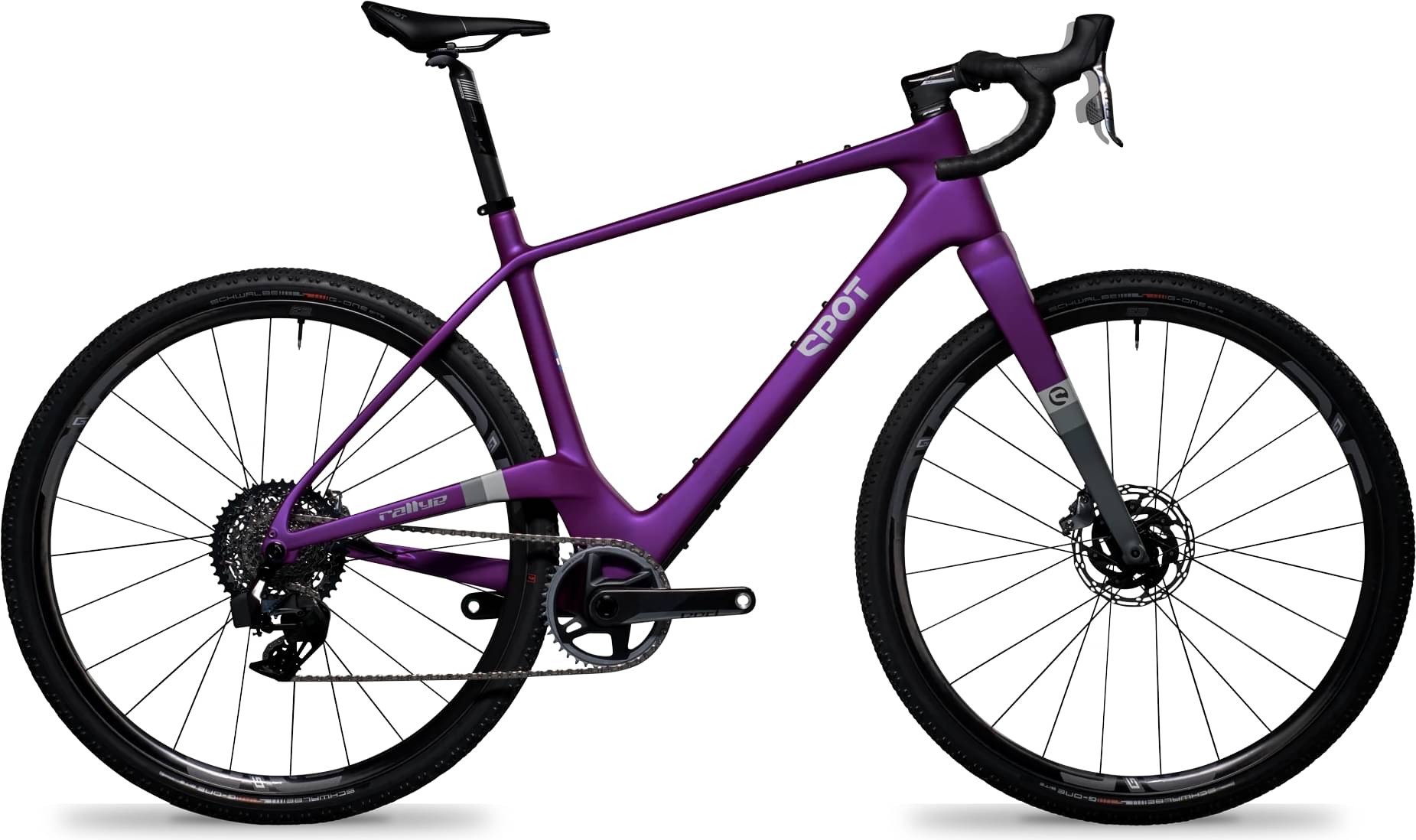

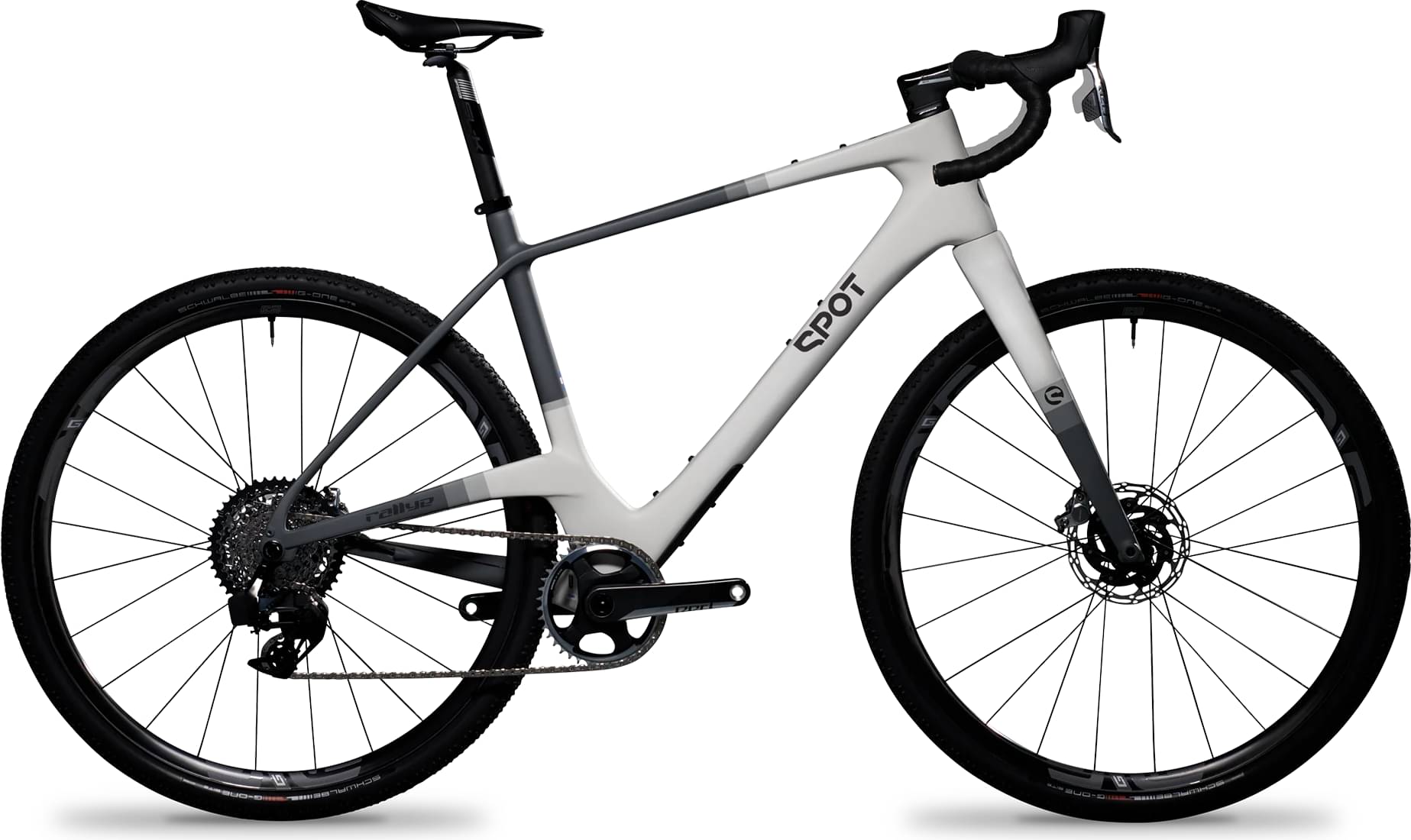

Spot Brand Spot Rallye 5-Star AXS 2023
2023 Road
Estimate price |
5,899$
Weight | 9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Rival XPLR AXS -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Spot Carbon, 438 mm length, 45 mm offset

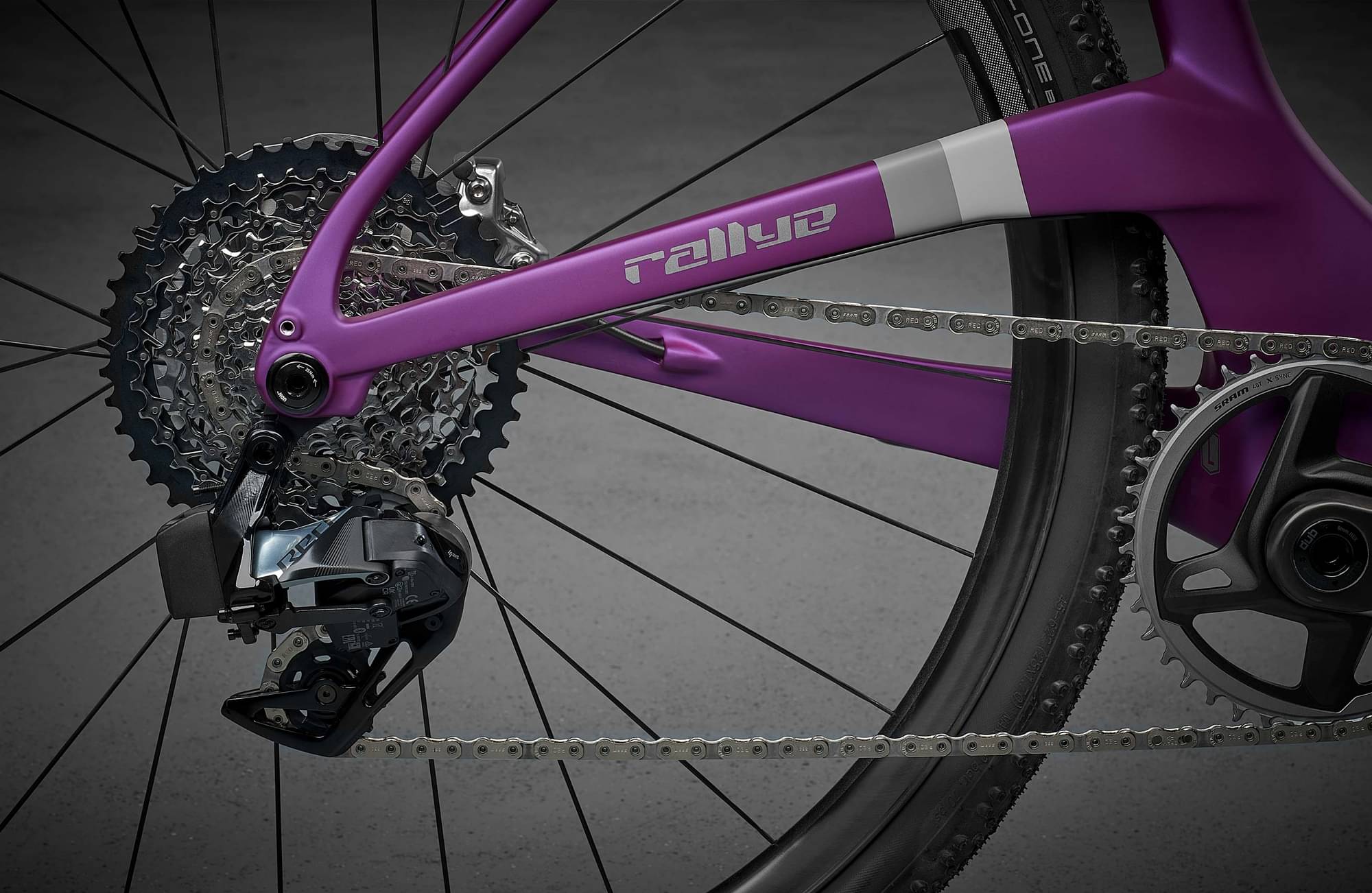

Drivetrain
Rear Derailleur
SRAM Rival XPLR AXS, 12-speed, Max 44t
Cassette
SRAM XG-1251 D1 XPLR, 12-speed, 10-44t
Crank
SRAM Rival D1 DUB 12S, 40t, XL 175mm, LG/MD 172.5mm, SM 170mm
Bottom Bracket
SRAM DUB BSA 68/73

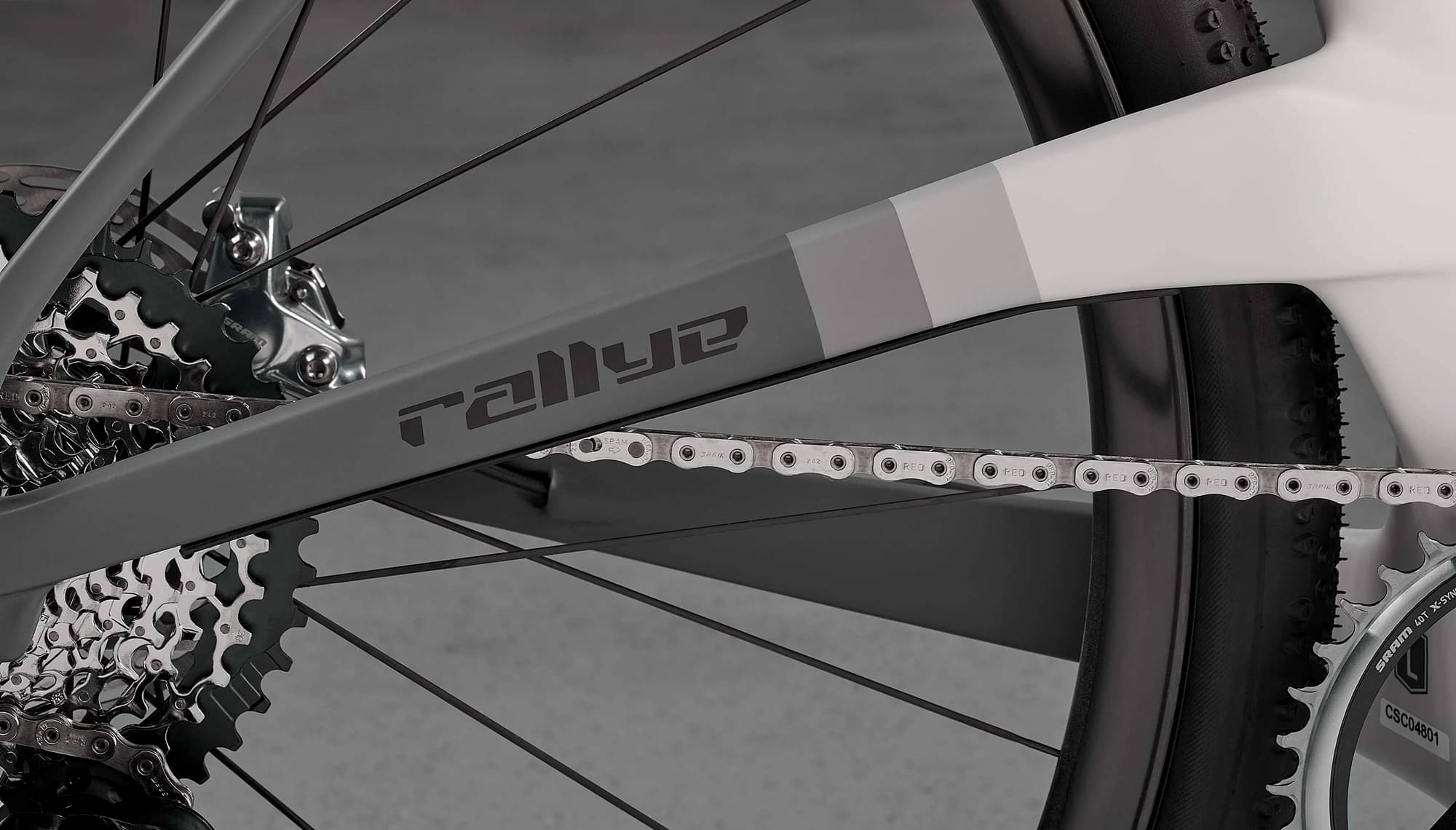

Chain
SRAM Rival D1 12s 120 links
Wheels
Rims
Front: Stan's No Tubes Crest MK4 Alloy 700C, 28H, E-sync, CenterLock, 12 x 100, Rear: Stan's No Tubes Crest MK4 Alloy 700C, 28H, E-sync XDR, CenterLock, 12 x 142

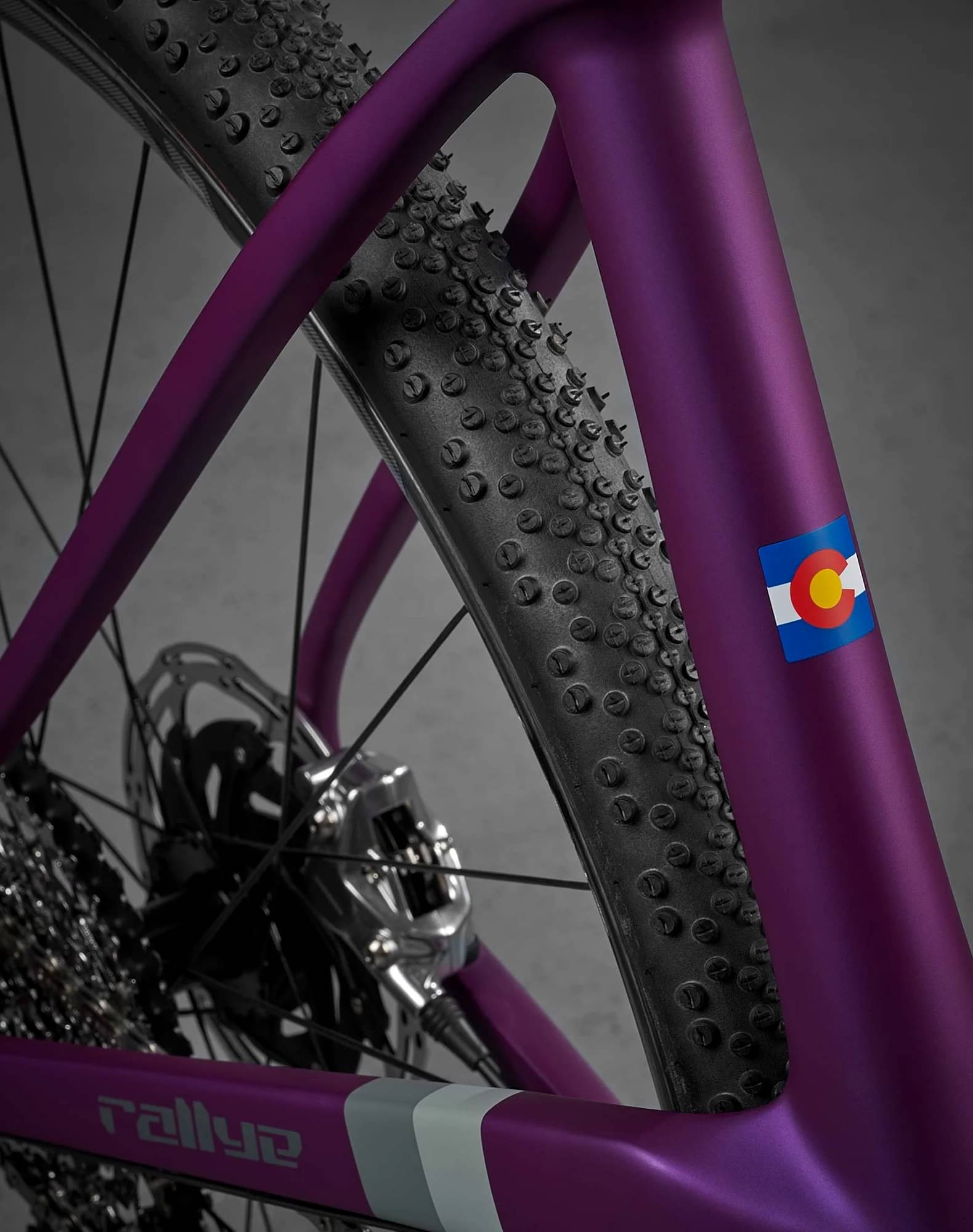

Tires
Front: Schwalbe G-One Bite, Evo, Super Ground, TLE 700 x 45, Rear: Schwalbe G-One Bite, Evo, Super Ground, TLE 700 x 45

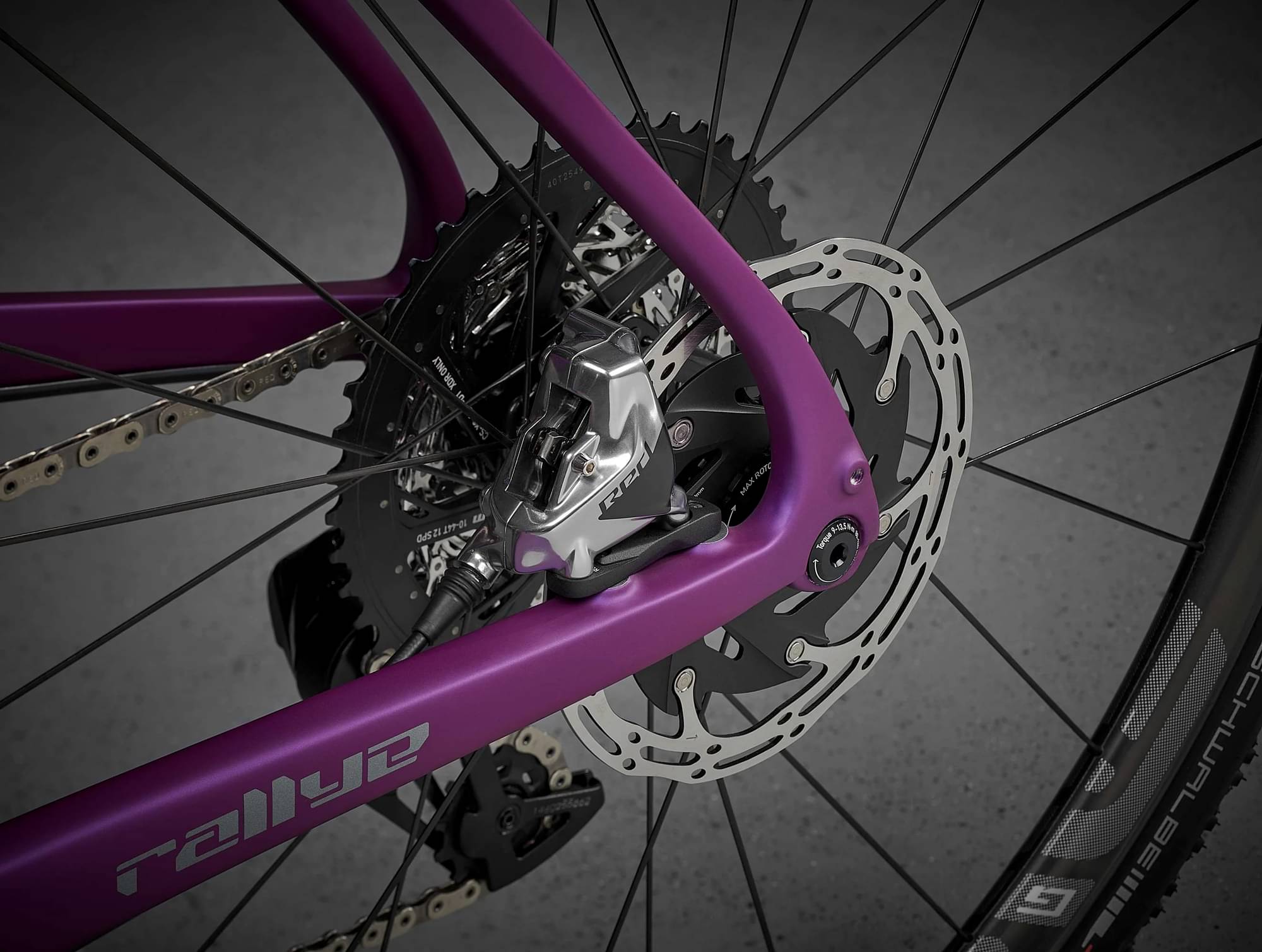

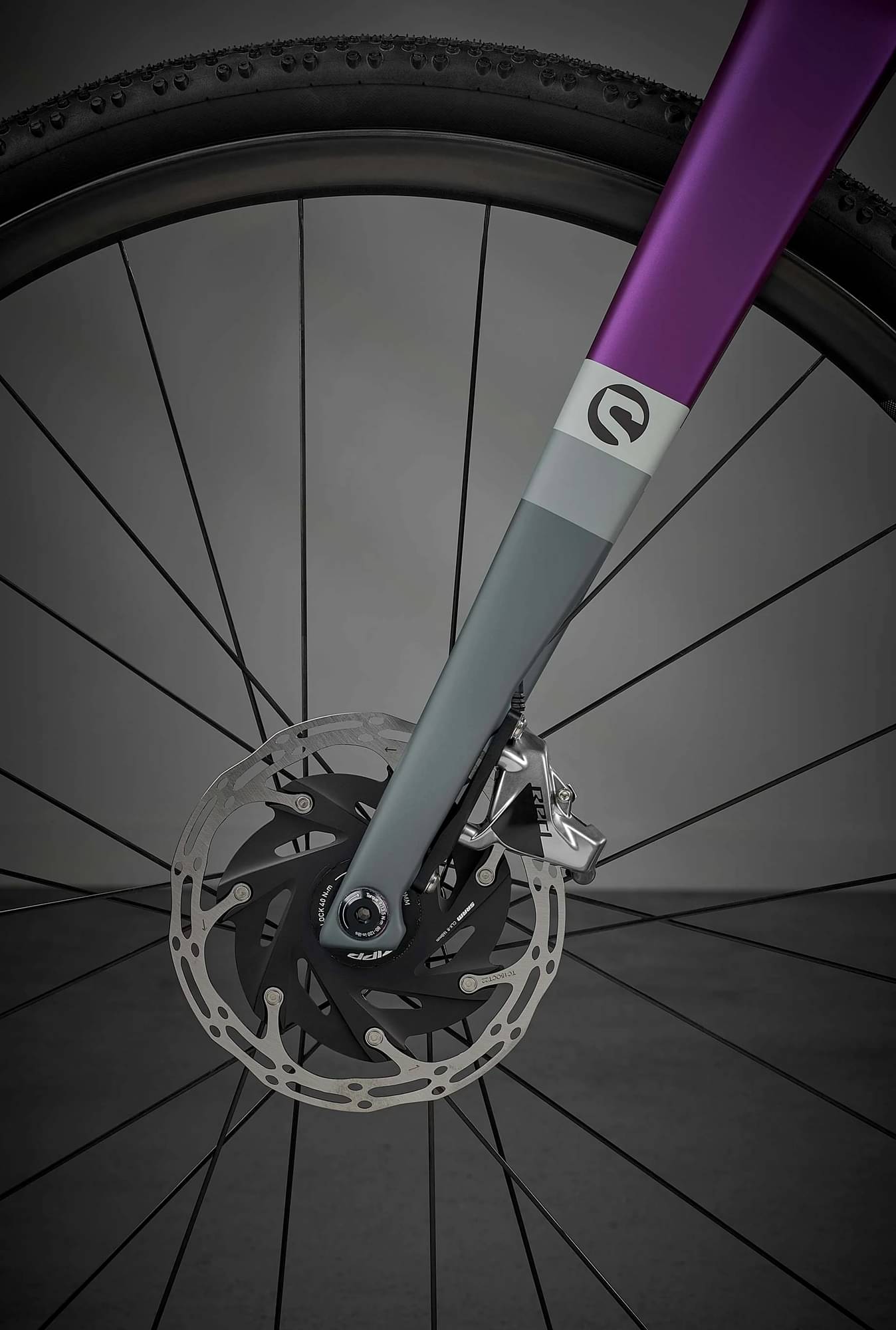

Brakes
Brakes
Front: SRAM Rival eTap AXS, 160mm rotor, CenterLock, Rear: SRAM Rival eTap AXS, 160mm rotor, CenterLock

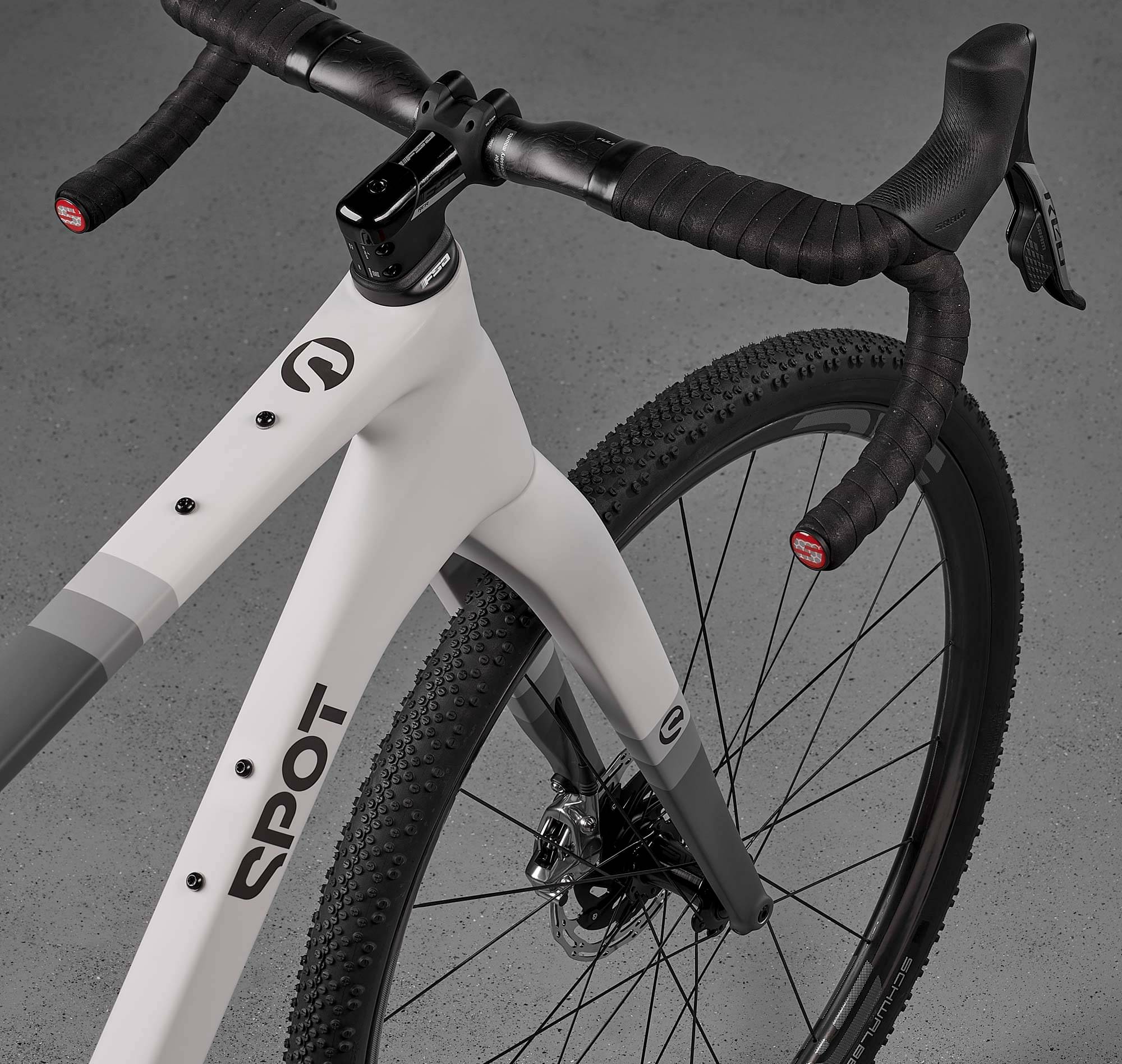

Cockpit
Stem
FSA NS ACR, 31.8 mm clamp x 70mm length

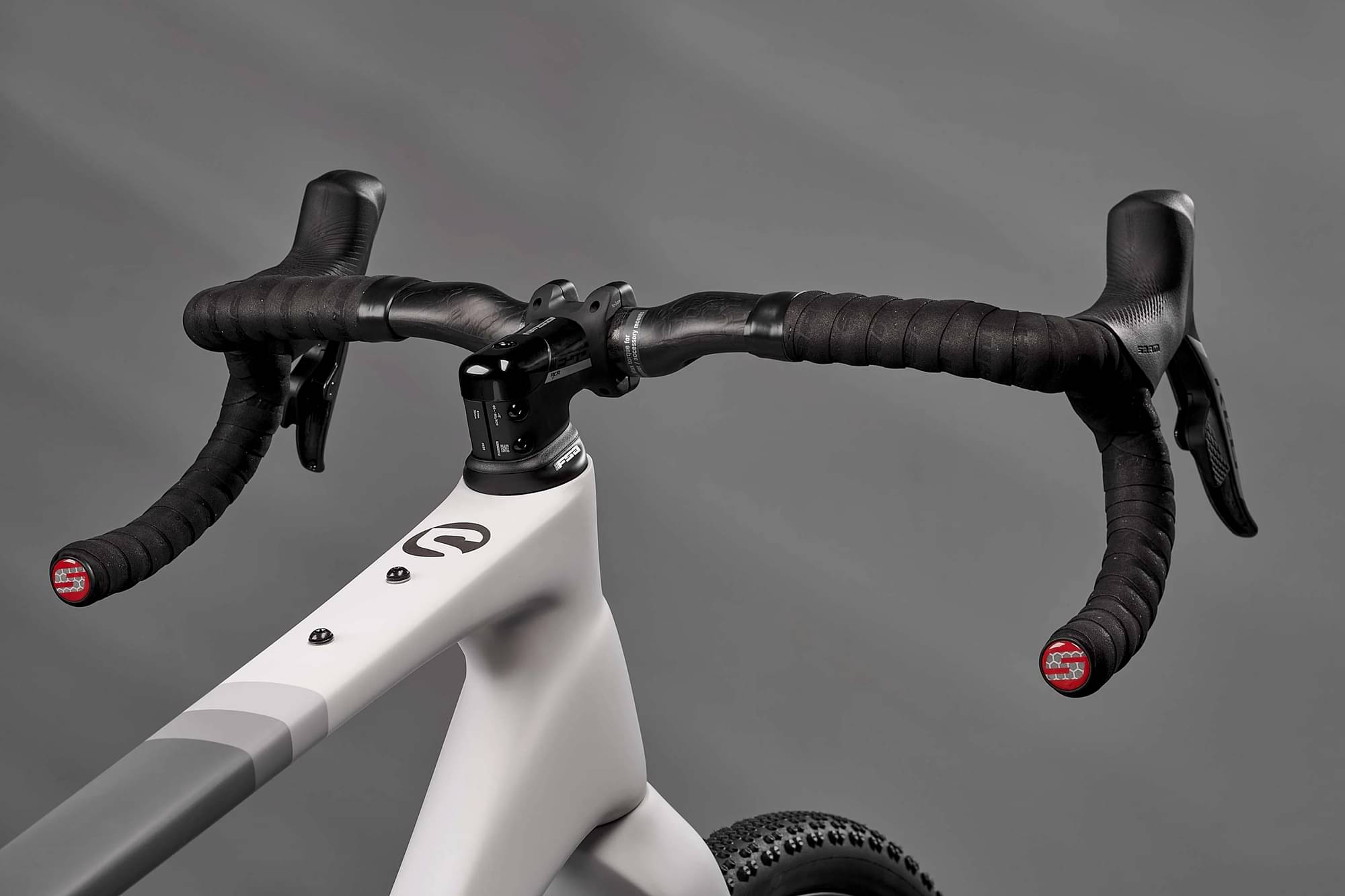

Handlebar
FSA A-Wing AGX Alloy Internal ACR, XL 480mm, LG 460mm, MD 440mm, SM 420mm, 20mm rise, 31.8mm clamp
Headset
FSA Internal, 1.5" ACR
Seat
Saddle
Spot
Seatpost
FSA SLK Carbon, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.5 mm | 1.49 mm | 1.49 mm |
| Bottom Bracket Height | 290 mm | 290 mm | 290 mm | 290 mm |
| Front Center | 626 mm | 649 mm | 671 mm | 694 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 77 mm | 77 mm | 77 mm | 77 mm |
| Stack | 582 mm | 602 mm | 622 mm | 642 mm |
| Reach | 387 mm | 402 mm | 417 mm | 432 mm |
| Top Tube Length | 547 mm | 568 mm | 589 mm | 610 mm |
| Seat Tube Angle | 74.6 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 470 mm | 500 mm | 530 mm | 560 mm |
| Head Tube Angle | 69.3 ° | 69.3 ° | 69.3 ° | 69.3 ° |
| Head Tube Length | 123 mm | 144 mm | 166 mm | 187 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 1043 mm | 1066 mm | 1088 mm | 1111 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 777 mm | 783 mm | 799 mm | 803 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Rallye 5-Star AXS completes the Spotbrand Rallye model. There are 4 bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Spot Rallye 5-Star AXS 2023 is the most economical model, with a starting price of 5899$. Spot Rallye 6-Star AXS 2023 on the other hand costs 8499$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Gravel bikes average price
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2023 for 5899$. Doing a quick comparison, we notice that Rallye 5-Star AXS price is 139.6% more expensive than the average cost of a Gravel bike.
Average weight for Gravel bikes
If we make a quick analysis of the average weight of a Gravel bike, we get 8.13 kg (17.92 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 9 kg (19.84 lbs), Spot bike is considerably heavier than average. In short, the average Gravel bike weight is 10.7% lower than this one.
Overview of components

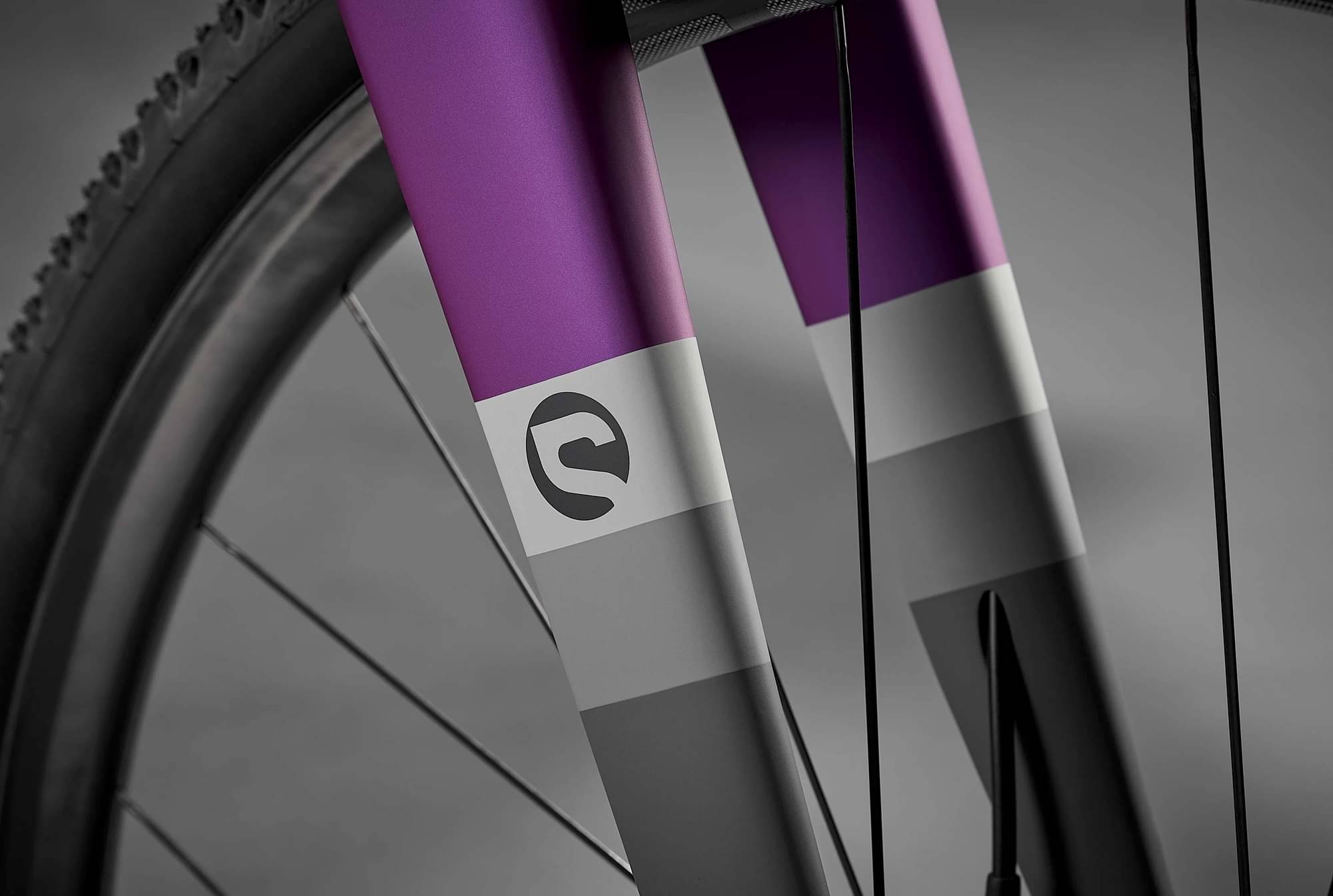

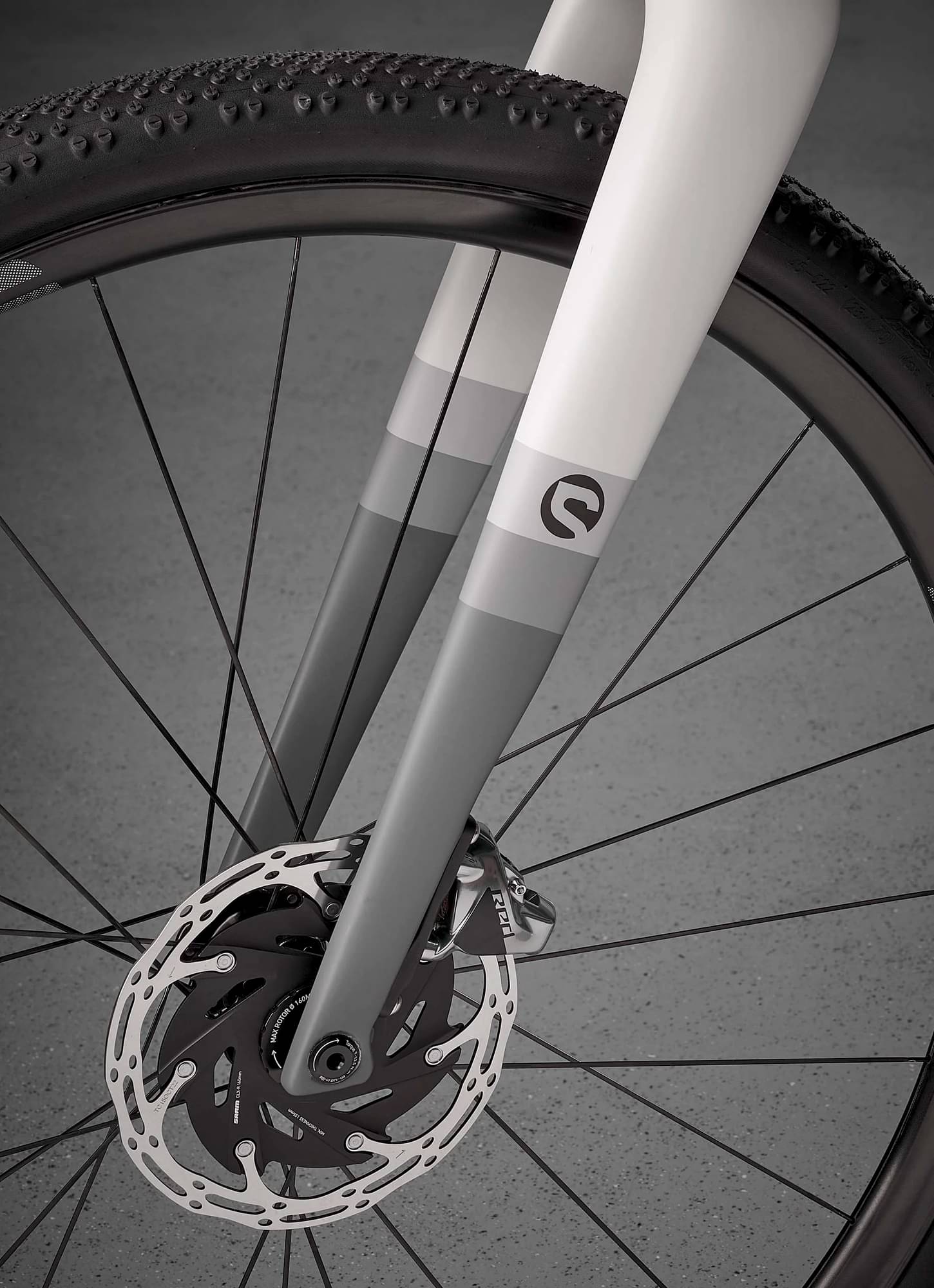

Fork material
Rallye 5-Star AXS has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When it comes to wheels, the Rallye 5-Star AXS bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Spot Rallye 5-Star AXS is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
