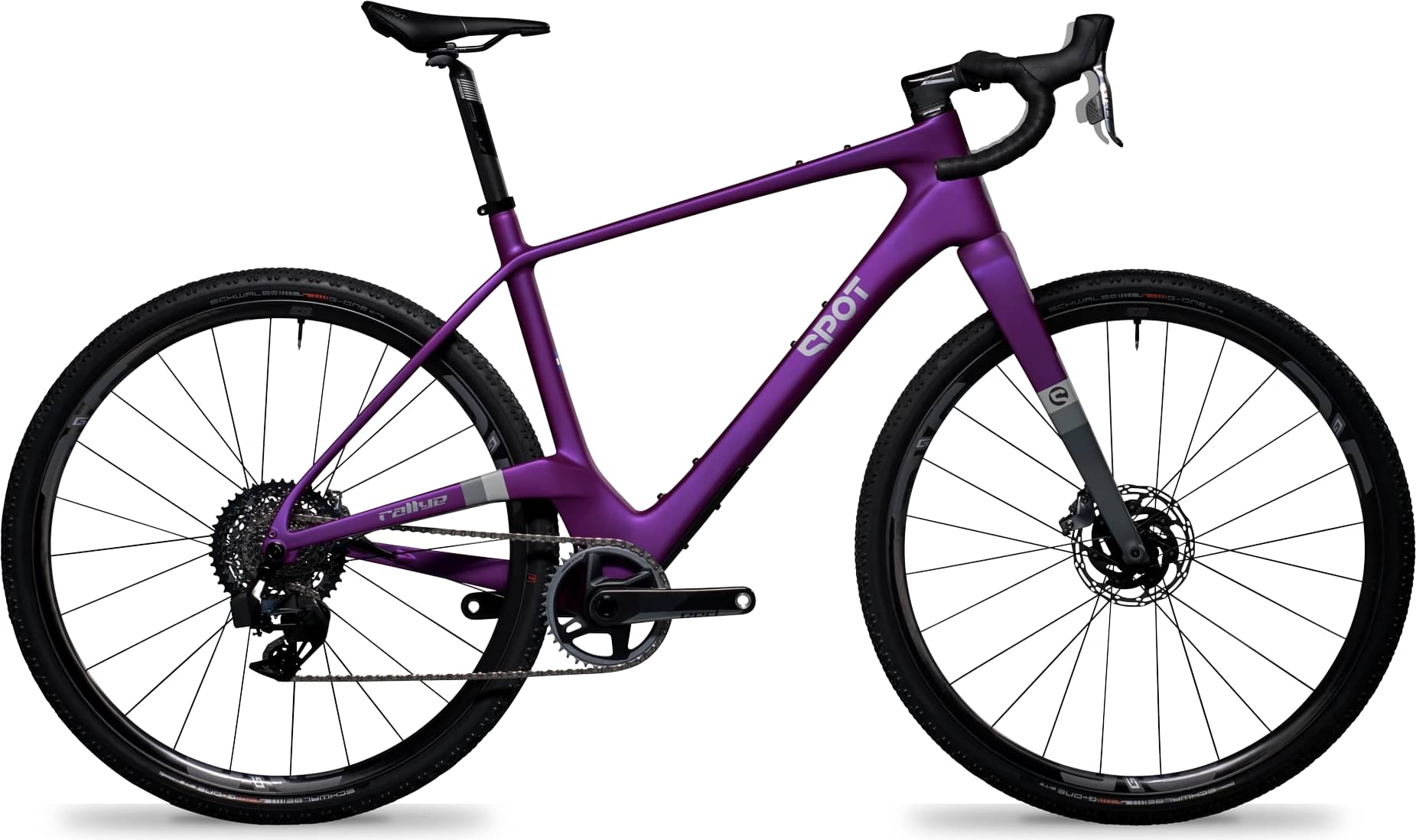

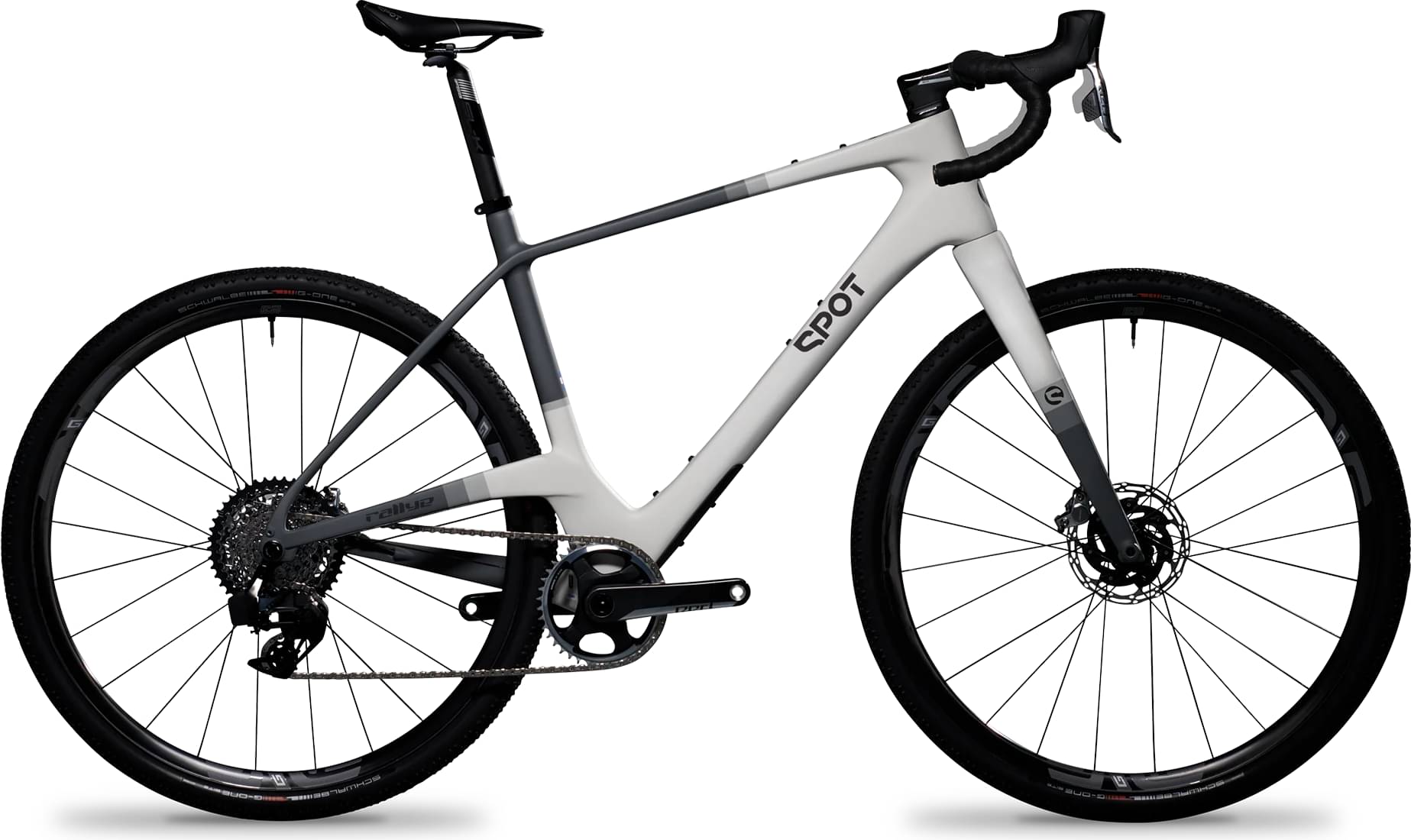

Spot Brand Spot Rallye 6-Star AXS 2023
2023 Road
Estimate price |
8,499$
Weight | 8.14 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-

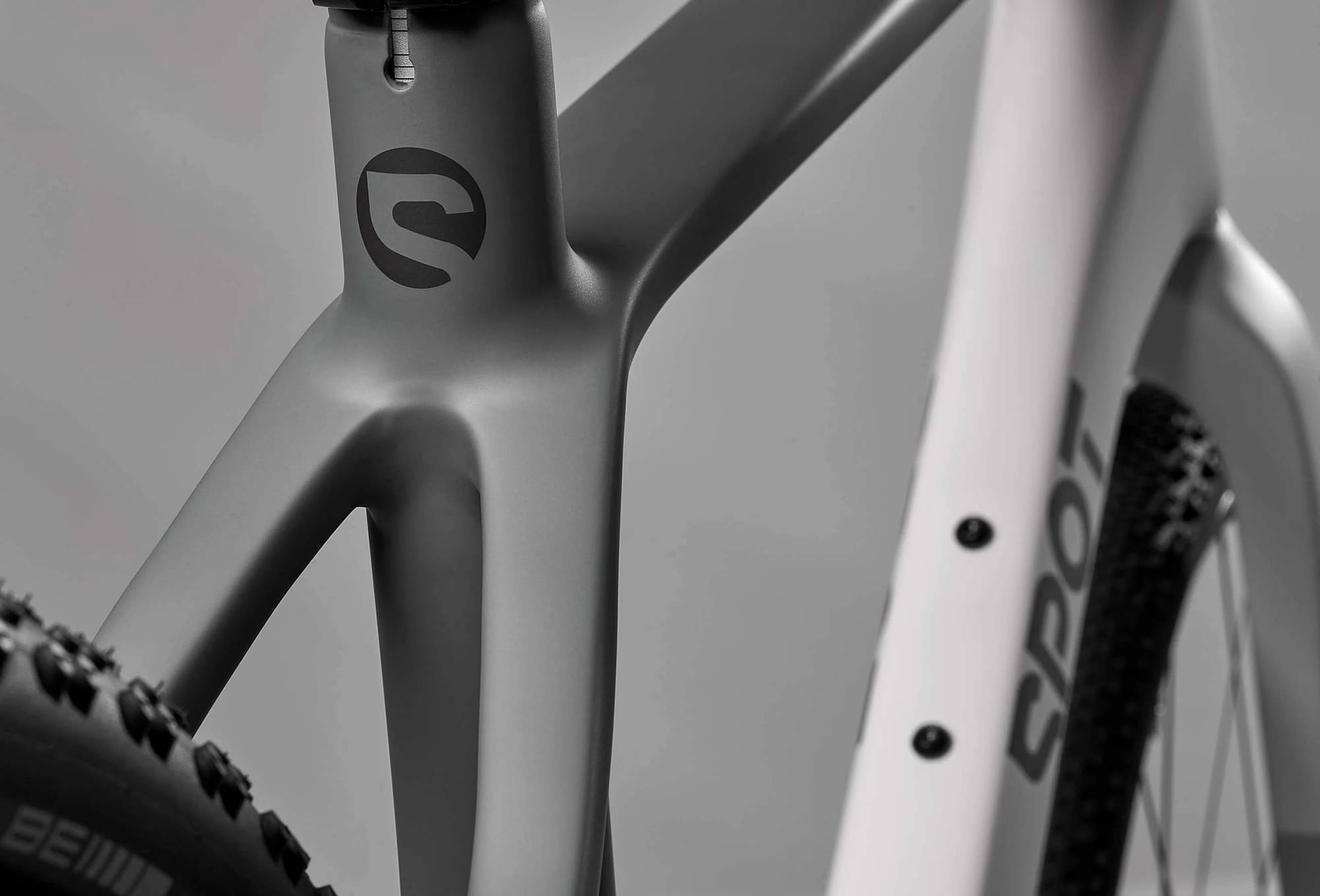

Frame Carbon -
Wheels 700c -
Groupset RED XPLR eTap -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Spot Carbon, 438 mm length, 45 mm offset
Drivetrain

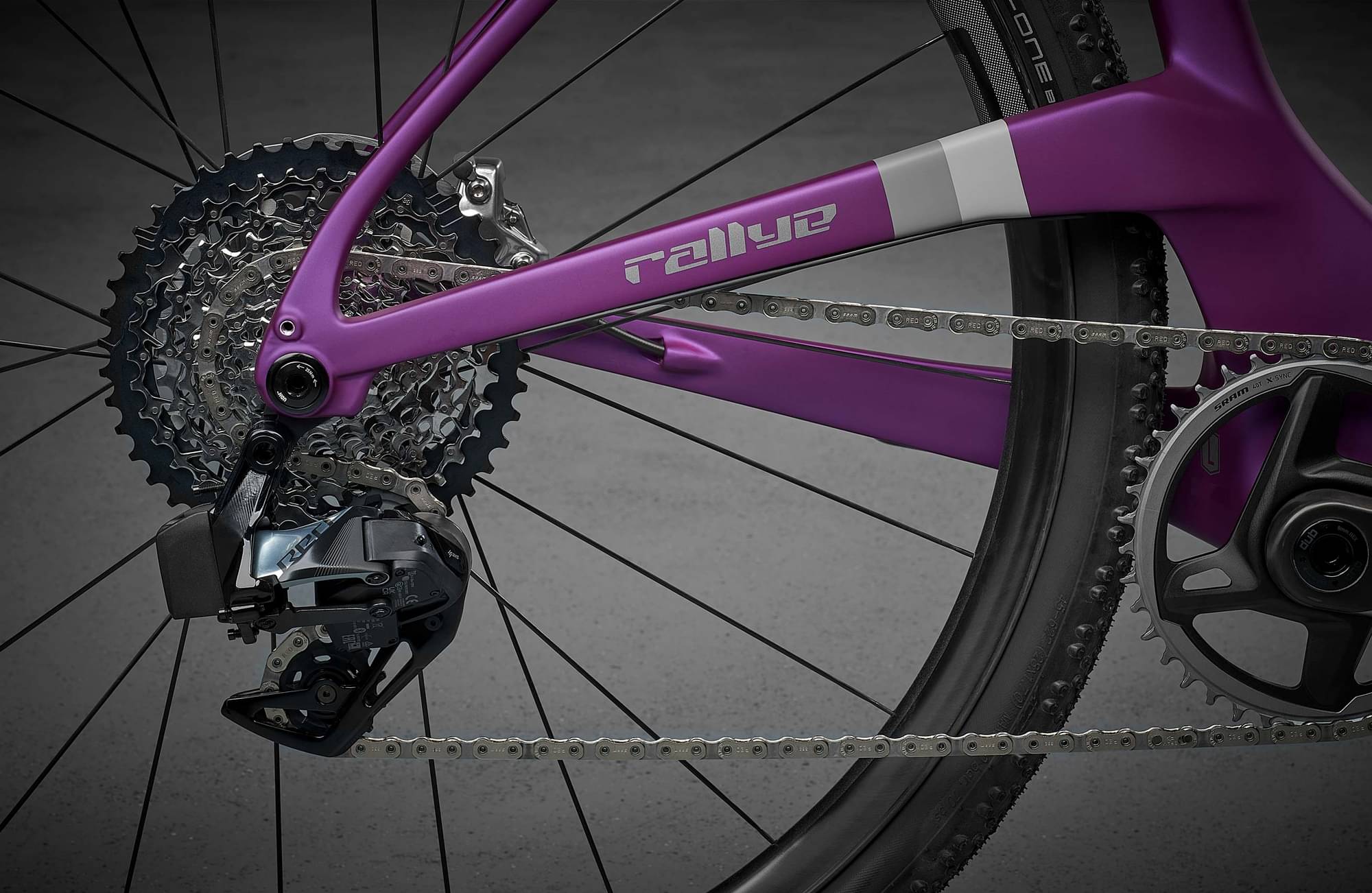

Rear Derailleur
SRAM Red XPLR AXS, 12-speed, Max 44t
Cassette
SRAM XG-1271 D1 XPLR, 12-speed, 10-44t
Crank
SRAM Red D1 DUB 12S, 40t, XL 175mm, LG/MD 172.5mm, SM 170mm
Bottom Bracket
SRAM DUB BSA 68/73

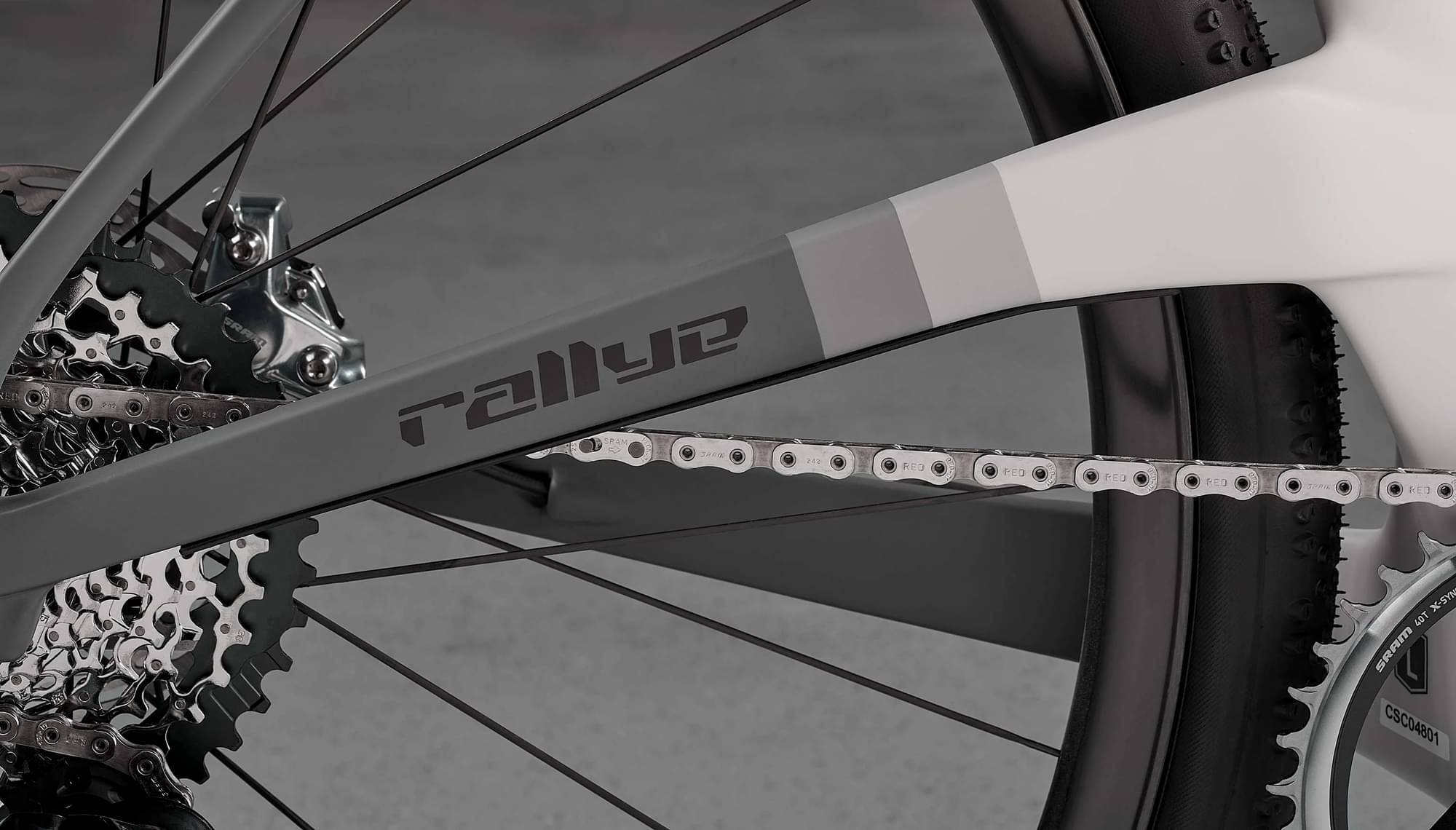

Chain
SRAM Red D1 12s 120 links
Wheels
Rims
Front: ENVE G23 Carbon 700C, 24H, CenterLock, 12 x 100, Rear: ENVE G23 Carbon 700C, 24H, CenterLock, 12 x 142
Tires
Front: Schwalbe G-One Bite, Evo, Super Ground, TLE 700 x 45, Rear: Schwalbe G-One Bite, Evo, Super Ground, TLE 700 x 45
Brakes
Brakes
Front: SRAM Red eTap AXS, 160mm rotor, CenterLock, Rear: SRAM Red eTap AXS, 160mm rotor, CenterLock
Cockpit
Stem
FSA NS ACR, 31.8 mm clamp x 70mm length

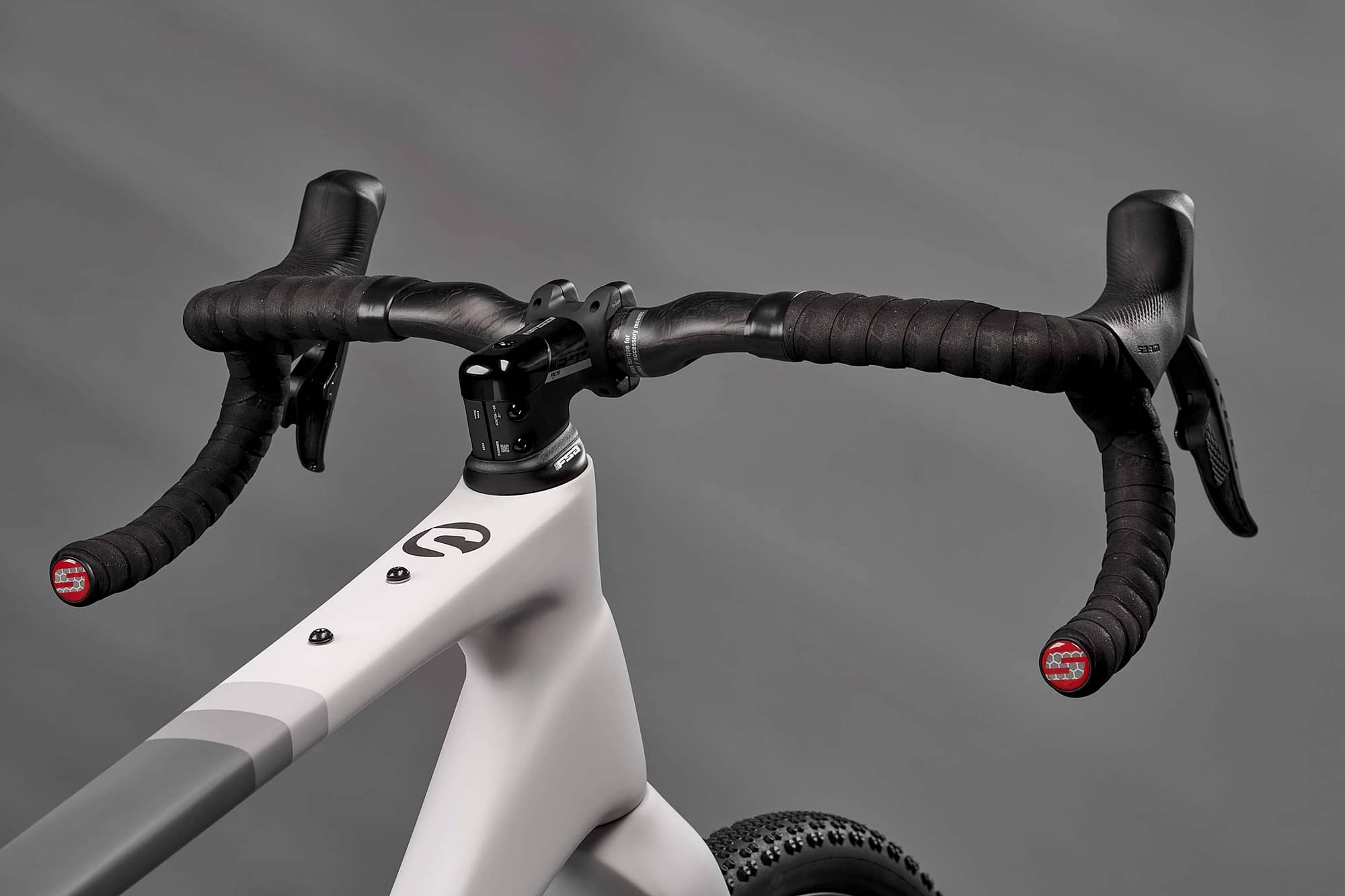

Handlebar
FSA K-Wing AGX Carbon Internal ACR, XL 480mm, LG 460mm, MD 440mm, SM 420mm, 20mm rise, 31.8mm clamp

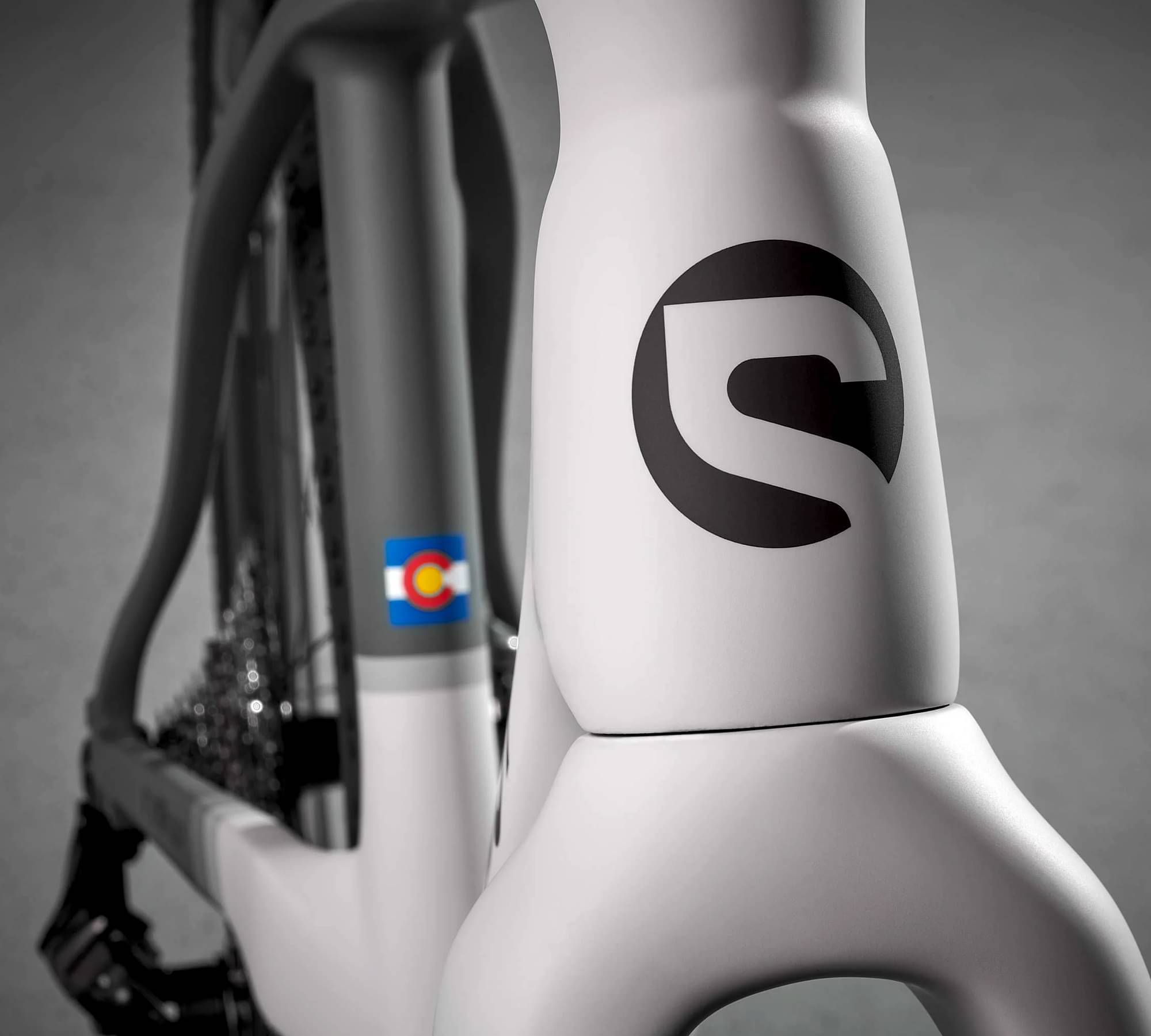

Headset
FSA Internal, 1.5" ACR
Seat
Saddle
Spot
Seatpost
FSA SLK Carbon, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.5 mm | 1.49 mm | 1.49 mm |
| Bottom Bracket Height | 290 mm | 290 mm | 290 mm | 290 mm |
| Front Center | 626 mm | 649 mm | 671 mm | 694 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 77 mm | 77 mm | 77 mm | 77 mm |
| Stack | 582 mm | 602 mm | 622 mm | 642 mm |
| Reach | 387 mm | 402 mm | 417 mm | 432 mm |
| Top Tube Length | 547 mm | 568 mm | 589 mm | 610 mm |
| Seat Tube Angle | 74.6 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 470 mm | 500 mm | 530 mm | 560 mm |
| Head Tube Angle | 69.3 ° | 69.3 ° | 69.3 ° | 69.3 ° |
| Head Tube Length | 123 mm | 144 mm | 166 mm | 187 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 1043 mm | 1066 mm | 1088 mm | 1111 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 777 mm | 783 mm | 799 mm | 803 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Rallye 6-Star AXS completes the Spotbrand Rallye model. 4 bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Spot Rallye 5-Star AXS 2023 is the most affordable bike of this model and has a price of 5899$. On the other hand, Spot Rallye 6-Star AXS 2023, is the most expensive and costs 8499$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Gravel bikes average price
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2023 for 8499$. Comparing the average cost of a Gravel bike to this one, you will see that Rallye 6-Star AXS price is 245.21% higher.
Gravel bikes average weight
The average weight for Gravel bikes is 8.13 kg (17.92 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Rallye 6-Star AXS weighs 8.14 kg (17.95 lbs) and is slightly heavier than the average. In conclusion, the average Gravel bike weighs 0.12% less than Rallye 6-Star AXS.
Rallye 6-Star AXS components

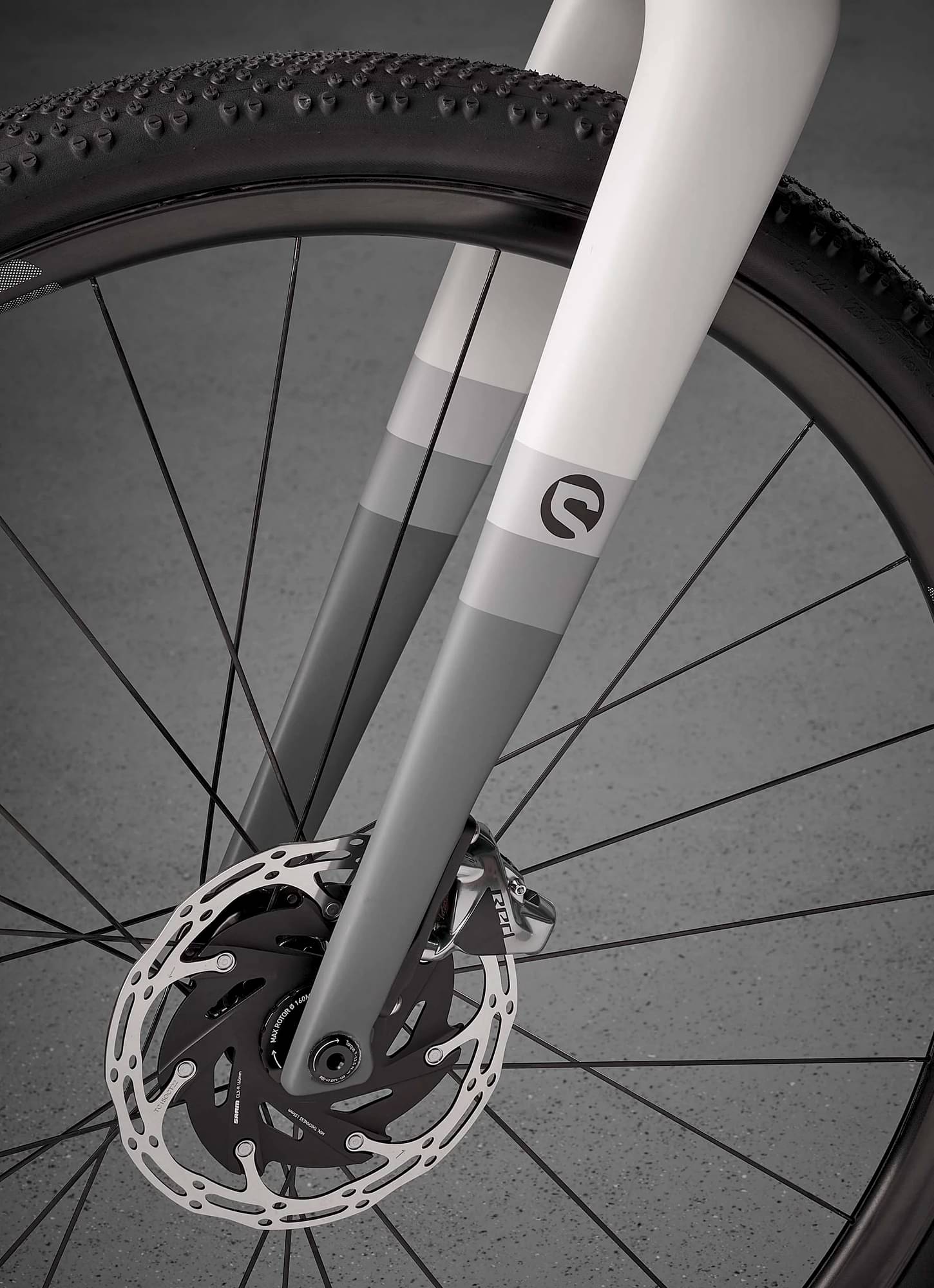

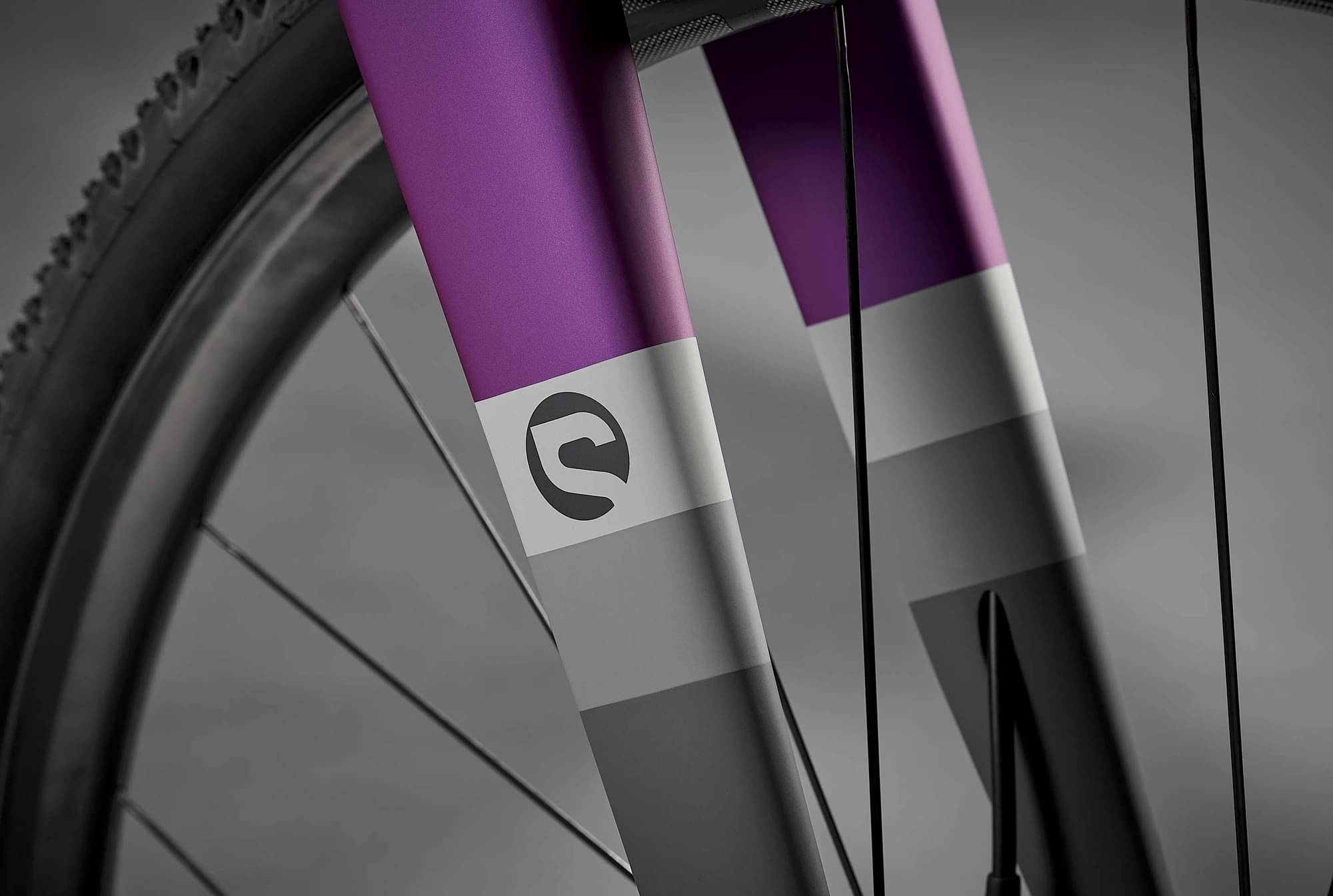

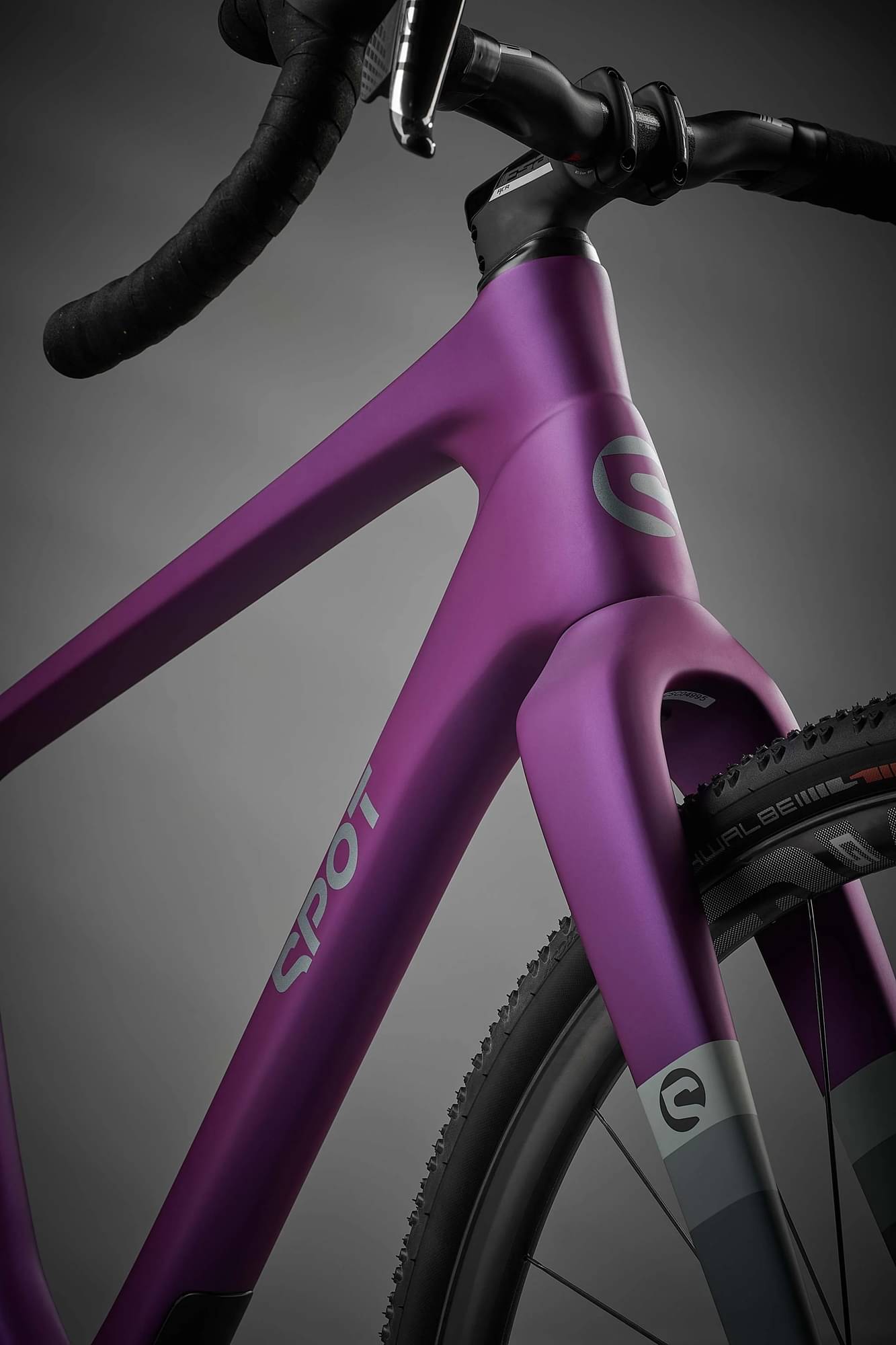

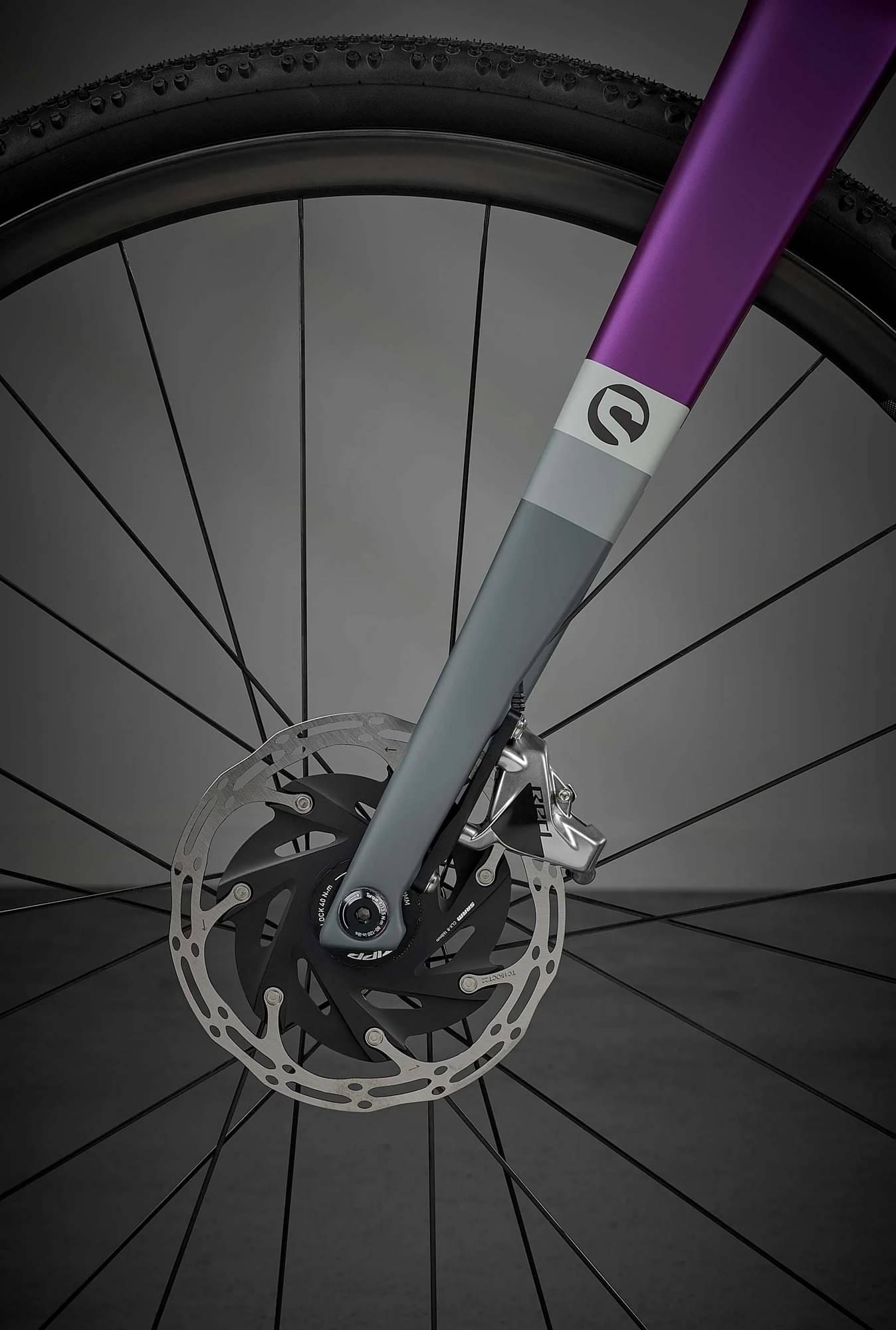

Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When it comes to wheels, the Rallye 6-Star AXS bike is equipped with the 700c carbon model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.

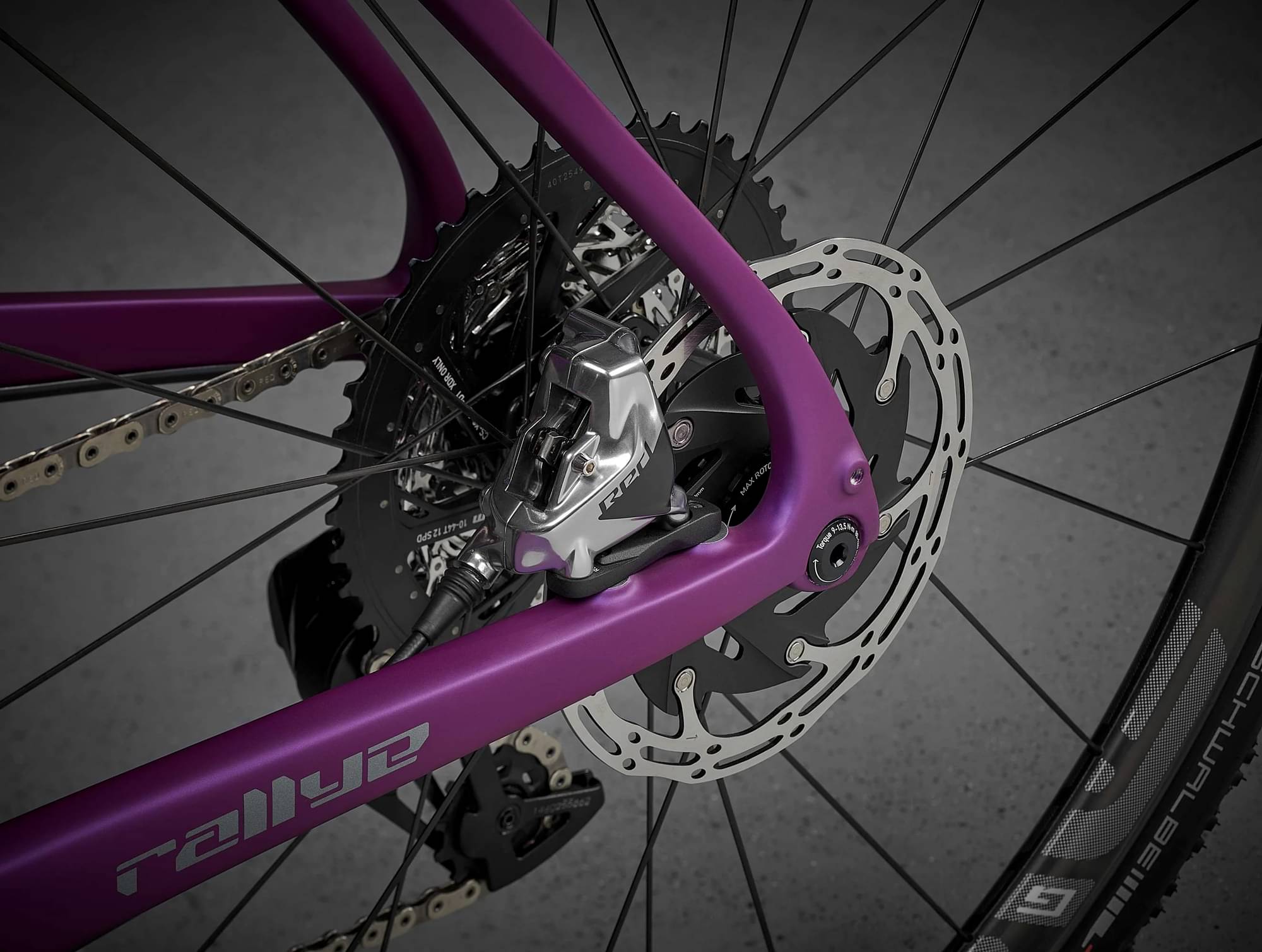

Brakes
For your safety, it is important to have quality breaks on your bike. Spot Rallye 6-Star AXS has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Rallye 6-Star AXS comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
