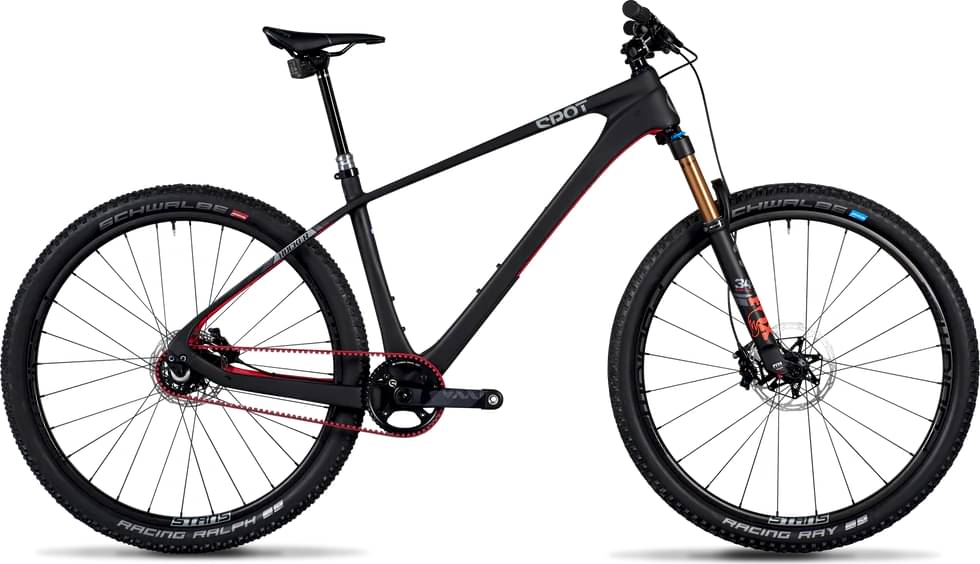

Spot Brand Spot Rocker SS — 6-Star AXS 2023
2023 Mountain
Estimate price |
6,999$
Weight | 9.03 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 120mm -
Fork Fox Factory Float 34
-
Groupset XX1 Eagle -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
29: Fox Factory Float 34 Step-Cast 29, 120mm travel, 3Pos-Adj, FIT4, 44mm Rake, Boost 15x110. 27.5+: RockShox SID Ultimate 3P, 35, 120mm travel, Charger Race Day 2, 44mm Rake, Boost 15x110
Drivetrain
Crank
SRAM XX1 Eagle, B148, DUB, 175mm, 46t
Bottom Bracket
SRAM DUB BSA MTB73
Wheels
Rims
Front: 29: Industry Nine TR300/290 DUO 29, 24h, Tubeless, 6-Bolt, Boost 15x110, 27.5+: Industry Nine EN355 27.5, Tubeless, 6-Bolt, Boost 15x110, Rear: 29: Industry Nine TR300/290 DUO 29, 24h, Tubeless, 9-spline, 6-Bolt, Boost 12x148, 27.5+: Industry Nine EN355 27.5, 9-spline, Tubeless, 6-Bolt, Boost 12x148
Tires
Front: 29: Schwalbe Racing Ray 29x2.25, 27.5+: Maxxis Rekon Plus 27.5x2.8, Rear: 29: Schwalbe Racing Ray 29x2.25, 27.5+: Maxxis Rekon Plus 27.5x2.8
Brakes
Brakes
Front: SRAM Level Ultimate Stealth, 2-piston, 180mm Centerline X rotor, 6-bolt, Rear: SRAM Level Ultimate Stealth, 2-piston, 180mm Centerline X rotor, 6-bolt
Cockpit
Stem
Race Face Turbine R, 31.8mm x 60mm
Handlebar
OneUp, XL 780mm, LG 760mm, MD/SM 740mm, 25mm rise, 31.8mm Carbon
Grips
Ergon GXR, Black
Headset
Cane Creek 40, ZS44/ZS56 ZS44 upper, ZS56 lower
Seat
Saddle
Spot MTB
Seatpost
SRAM AXS 170mm for XL and Large, 150mm for Medium, and 125mm for Small, Wireless, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.41 mm | 1.35 mm | 1.29 mm |
| Bottom Bracket Height | 320 mm | 320 mm | 320 mm | 320 mm |
| Front Center | 696 mm | 732 mm | 768 mm | 802 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm |
| Trail | 91 mm | 91 mm | 91 mm | 91 mm |
| Stack | 604 mm | 618 mm | 632 mm | 641 mm |
| Reach | 407 mm | 437 mm | 467 mm | 497 mm |
| Top Tube Length | 564 mm | 598 mm | 631 mm | 664 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 380 mm | 410 mm | 460 mm | 510 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 90 mm | 105 mm | 120 mm | 130 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1138 mm | 1174 mm | 1210 mm | 1244 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm |
| Standover Height | 738 mm | 738 mm | 779 mm | 779 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Rocker SS — 6-Star AXS completes the Spotbrand Rocker model. Spot launched 17 bikes of this model so far. You can easily view all of the Spotbrand Rocker bikes models from 2023, here.
Model range prices
Spot Rocker SS 4-star 2023 is the cheapest bike model and costs 3999$. Spot Rocker Geared 6-star AXS 2023 is the most expensive one and costs 7399$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Spot Rocker SS — 6-Star AXS price was 6999$. Comparing the average cost of a Trail bike to this one, you will see that Rocker SS — 6-Star AXS price is 153.4% higher.
Trail bikes average weight
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Spot Rocker SS — 6-Star AXS it’s weighing 9.03 kg (19.91 lbs). At this weight, is much lighter than average. In other words, this model is 43.74% lighter than the average Trail bike.
Rocker SS — 6-Star AXS components
Fork
The Fox Factory Float 34 is included from the factory. It has a travel distance of 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The Rocker SS — 6-Star AXS 2023 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Rocker SS — 6-Star AXS comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
