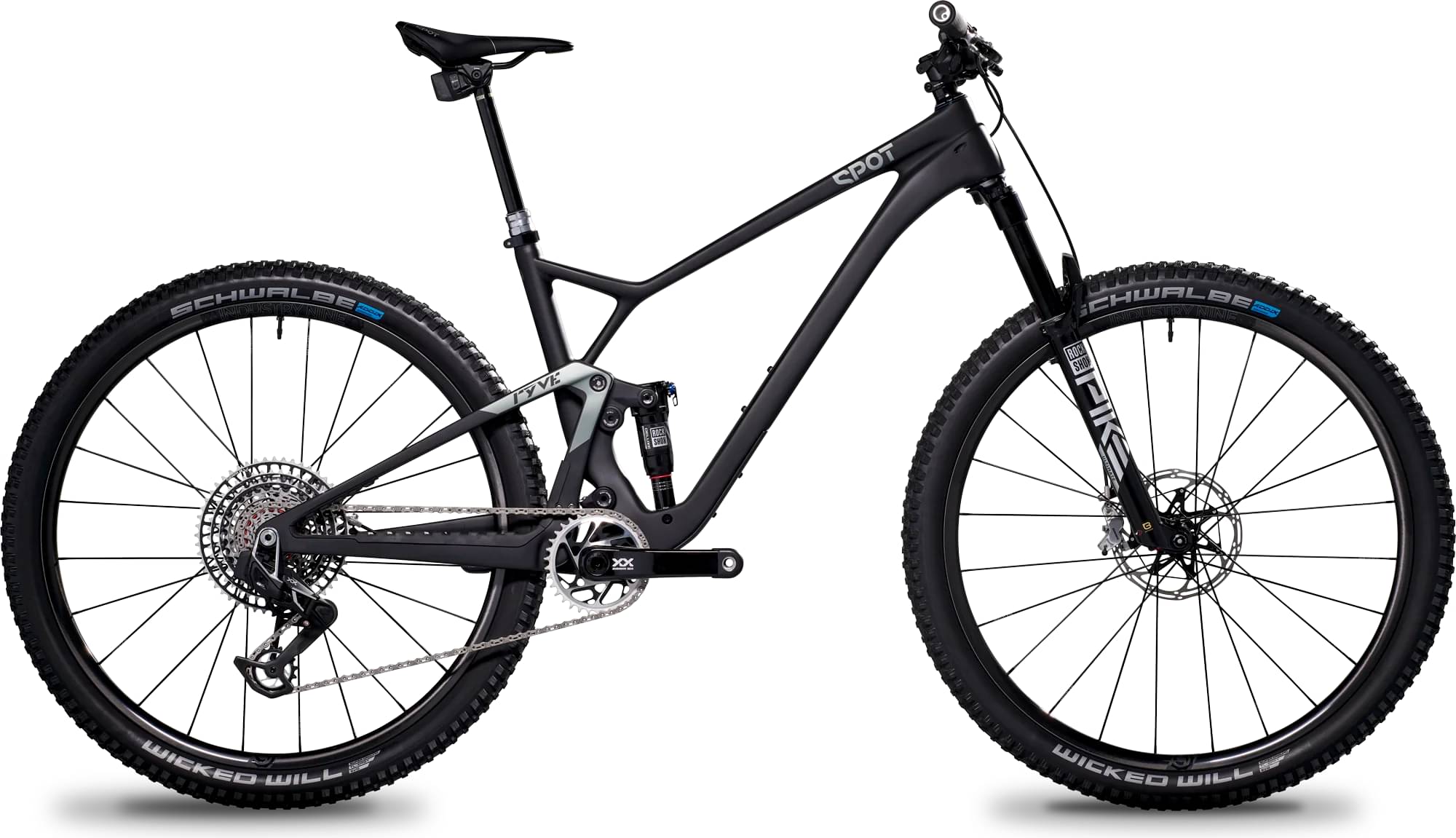

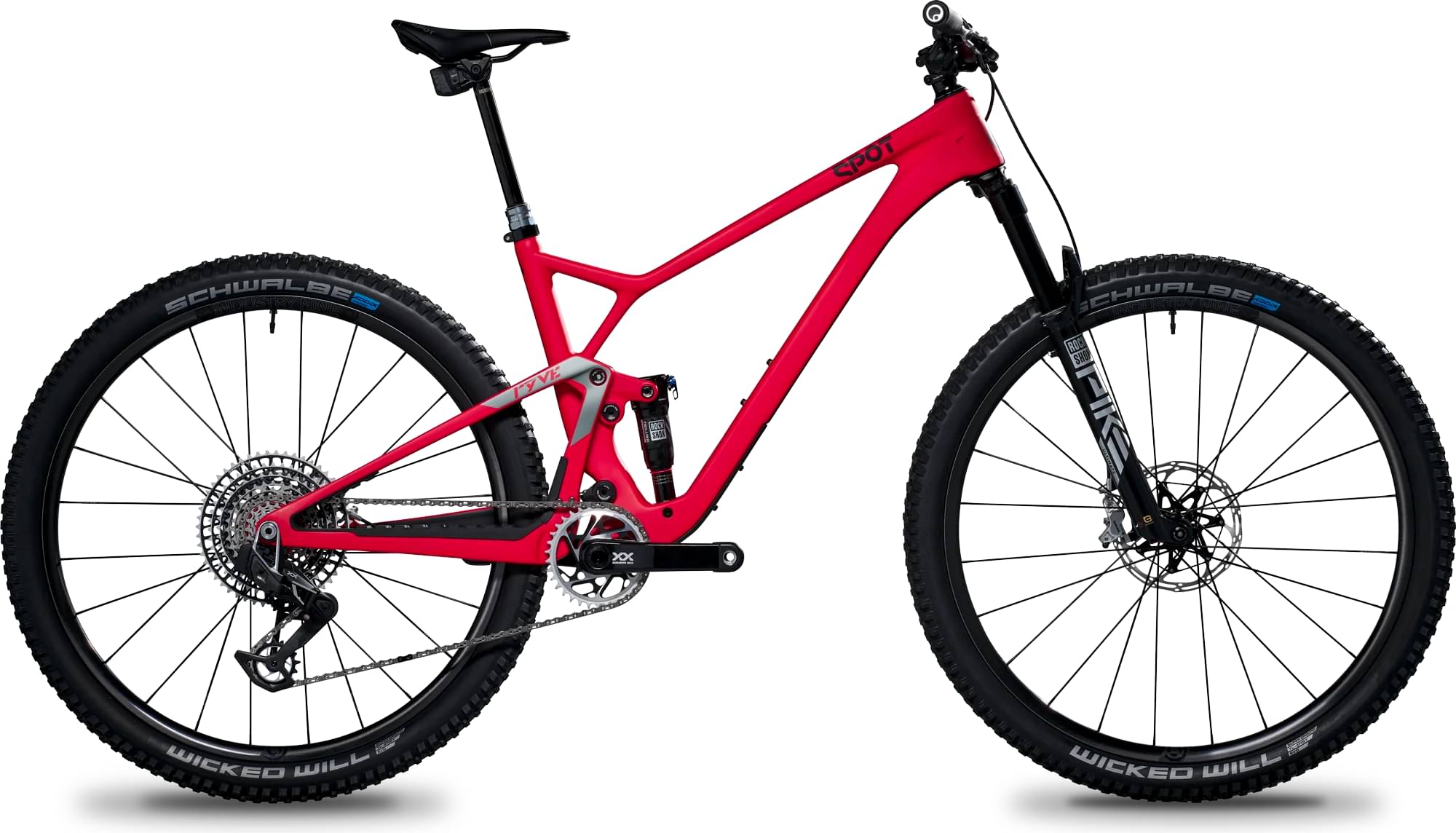

Spot Brand Spot Ryve 115 4-Star 2023
2023 Mountain
Estimate price |
5,599$
Weight | 13.02 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -

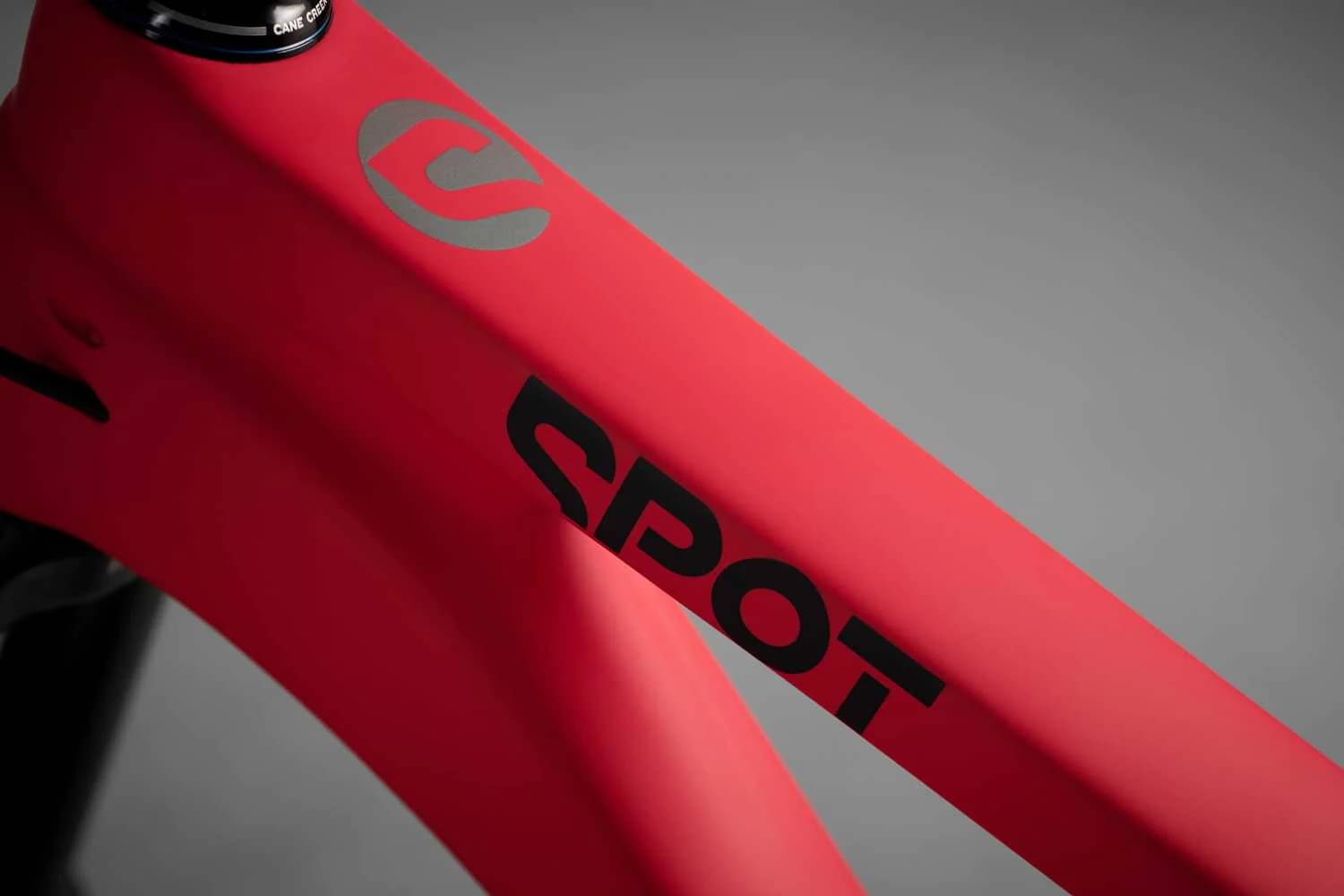

Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 115mm -
Fork Fox Performance Float 34
-
Groupset GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Fox Performance 34 Float 29, 130mm, 3Pos-Adj, Grip, 44mm Rake, Boost 15QRx110
Rear Shock
Fox Factory Float DPS EVOL LV, 3 Pos. Adj, Trunnion, 0.4 VS, 165x45

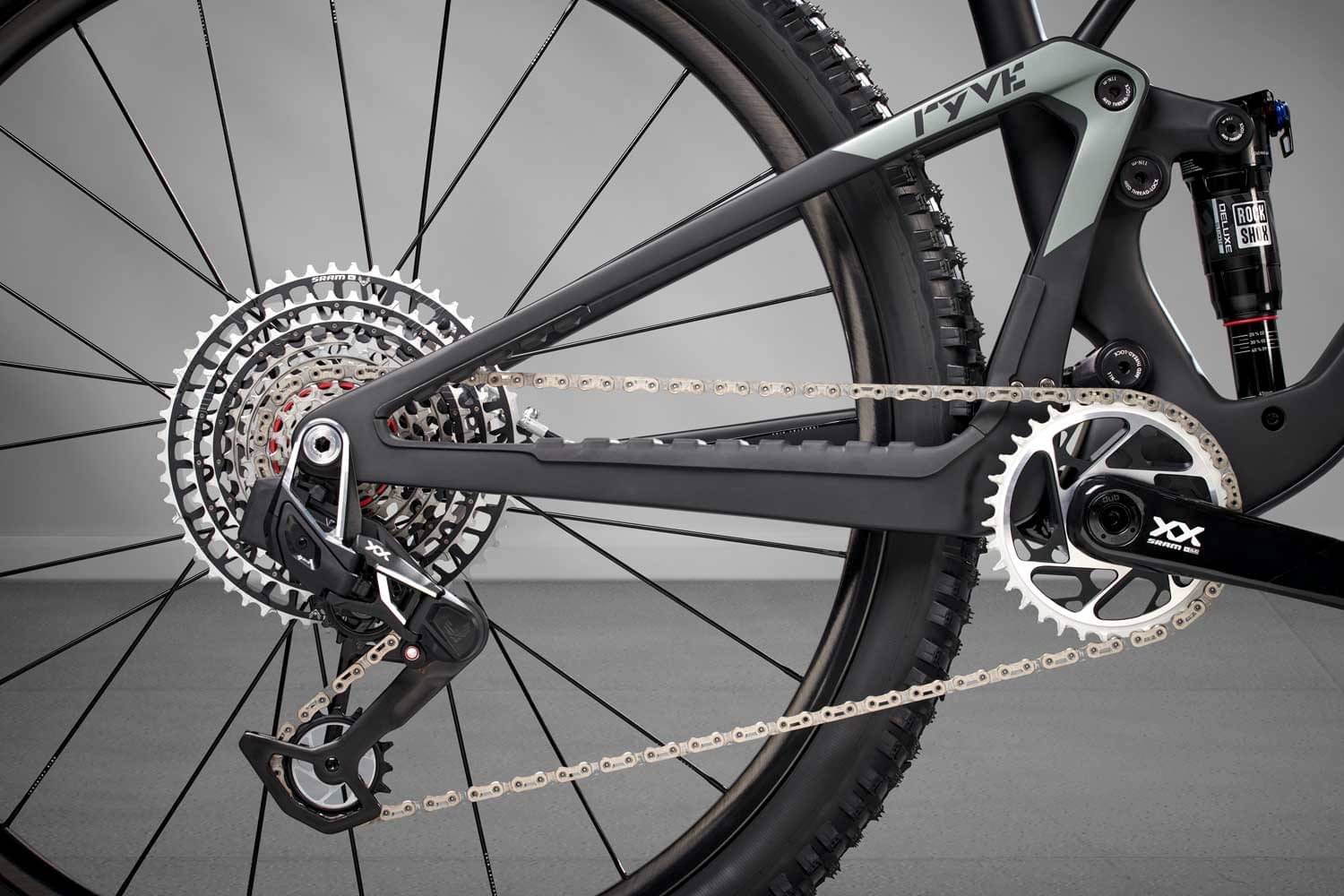

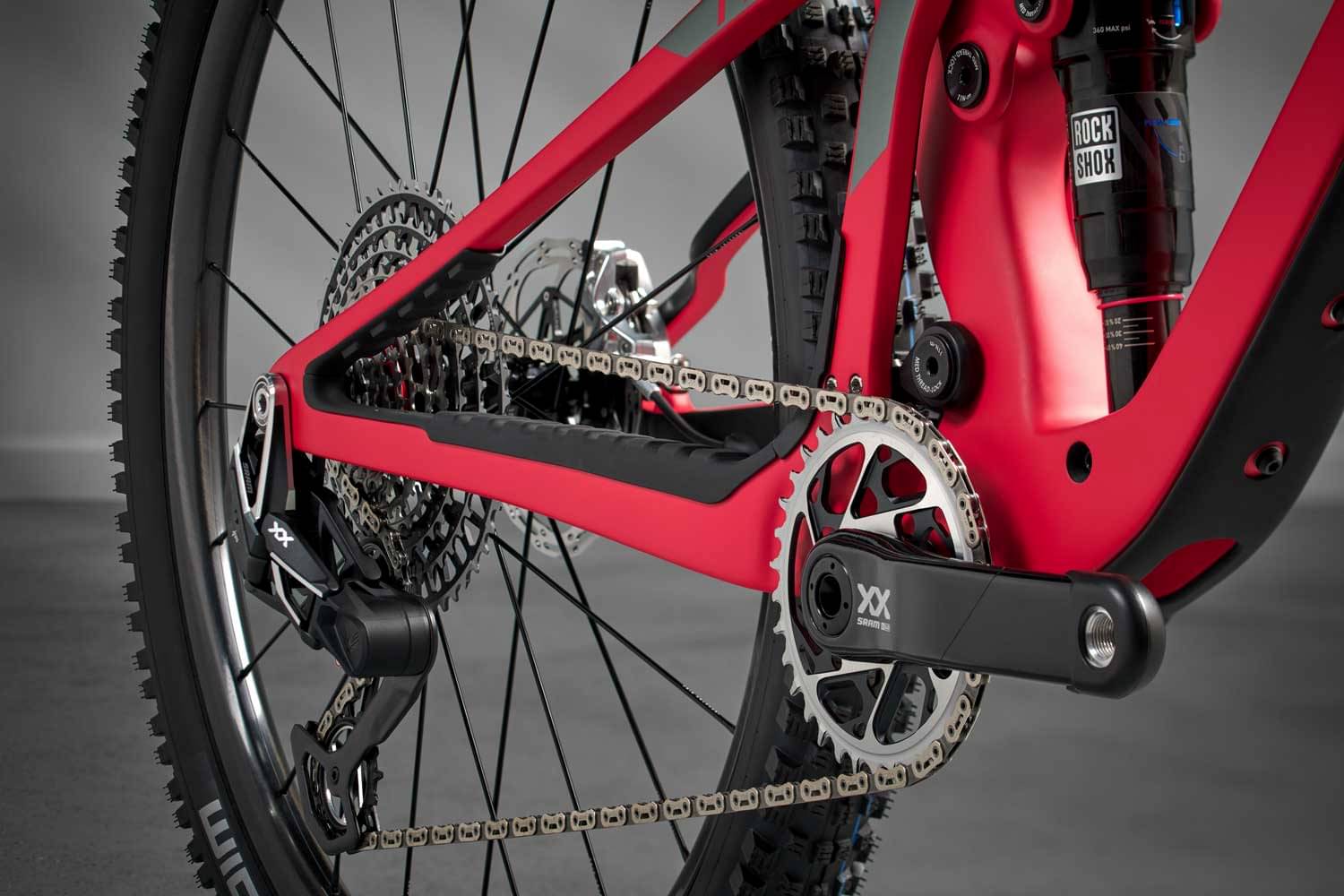

Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-speed
Shift Levers
SRAM GX Eagle 12-speed
Cassette
SRAM XG1275, 12-speed, 10-52t
Crank
SRAM FC GX Eagle, B148, DUB, 170mm, 32t
Bottom Bracket
SRAM DUB BSA 73 mm threaded
Chain
SRAM GX Eagle
Wheels
Rims
Front: Stan's No Tubes Arch S2 29,6-Bolt, Boost 15x110, Rear: Stan's No Tubes Arch S2 29, XD Driver, 6-Bolt Boost 12x148
Tires
Front: Schwalbe Wicked Will 29x2.40, Rear: Schwalbe Wicked Will 29x2.40
Brakes
Brakes

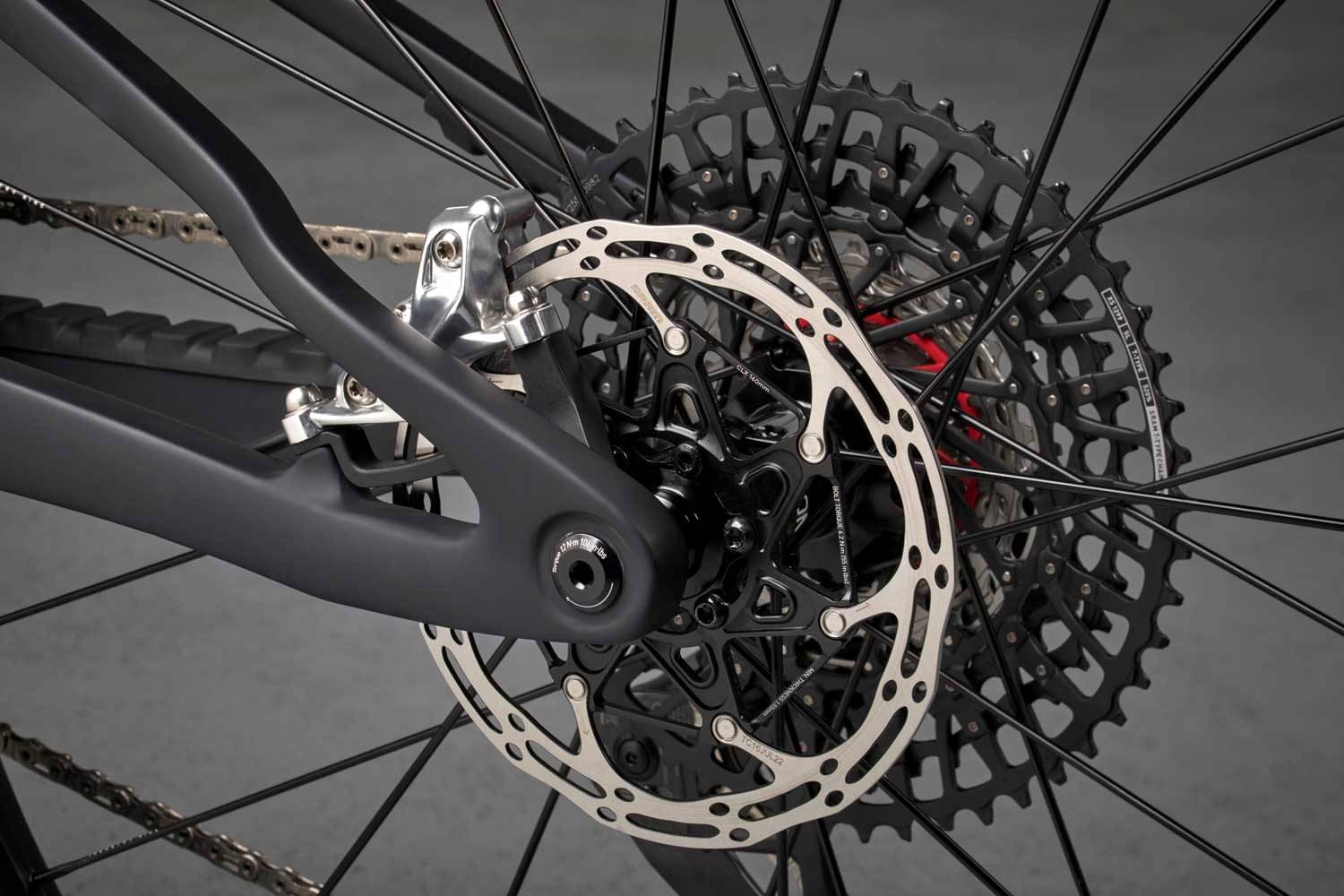

Front: SRAM G2 R, 180mm Centerline rotor, 6-bolt, Rear: SRAM G2 R, 180mm Centerline rotor, 6-bolt
Cockpit
Stem
Race Face Aeffect, 35.0 mm x 50mm
Handlebar
Race Face Aeffect, XL/LG 780mm, MD/SM 760mm, 20mm rise, 35.0 mm clamp, Alloy
Grips
Ergon GXR, Black

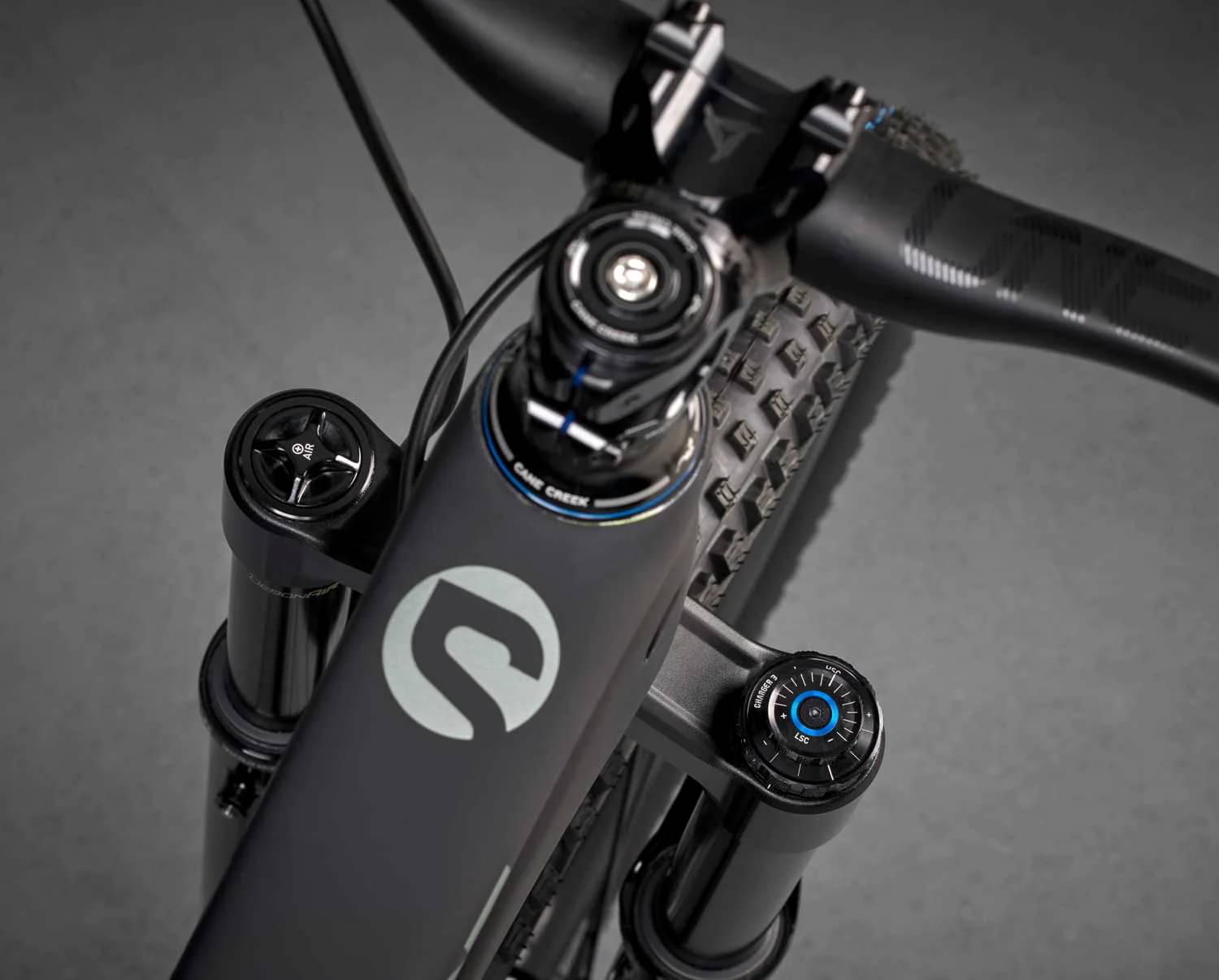

Headset
Cane Creek 40, ZS44/ZS56 ZS44 upper, ZS56 lower
Seat
Saddle
Spot MTB
Seatpost
BikeYoke Revive 185 mm for XL and Large, 160 mm for Medium, 125 mm for Small, Internal, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.37 mm | 1.3 mm | 1.24 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 717 mm | 746 mm | 780 mm | 813 mm |
| Rake | 46 mm | 46 mm | 45 mm | 45 mm |
| Trail | 115 mm | 115 mm | 116 mm | 116 mm |
| Stack | 591 mm | 600 mm | 610 mm | 619 mm |
| Reach | 414 mm | 439 mm | 469 mm | 499 mm |
| Top Tube Length | 574 mm | 601 mm | 622 mm | 640 mm |
| Seat Tube Angle | 75 ° | 75 ° | 76 ° | 77.3 ° |
| Seat Tube Length | 360 mm | 400 mm | 450 mm | 490 mm |
| Head Tube Angle | 66.2 ° | 66.2 ° | 66.2 ° | 66.2 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 429 mm |
| Wheelbase | 1146 mm | 1175 mm | 1209 mm | 1242 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm | 34 mm |
| Standover Height | 712 mm | 719 mm | 717 mm | 715 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Ryve 115 4-Star completes the Spotbrand Ryve model. Spot launched 15 bikes of this model so far. Take a sneak peek at all Spotbrand Ryve bikes models from 2023, by clicking here.
Model range prices
Spot Ryve 115 4-Star 2023 is the most economical model, with a starting price of 5599$. Spot Ryve 115 6-Star AXS 2023 on the other hand costs 8999$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Spot released this model in 2023, its price was 5599$. If we compare this with the average Crosscountry bike cost we notice that the price is 193.91% more expensive.
Crosscountry bikes average weight
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 13.02 kg (28.7 lbs), Spot bike is much heavier than average. To sum up, it’s 5% heavier than the average weight of Crosscountry bikes.
Ryve 115 4-Star components
Fork
Spot Ryve 115 4-Star 2023 bike is equipped with the Fox Performance Float 34 fork, and has 130mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this bike is Fox Factory Float DPS EVOL LV, with a travel distance of 115mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
As for the wheels, Spot Ryve 115 4-Star 2023, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.

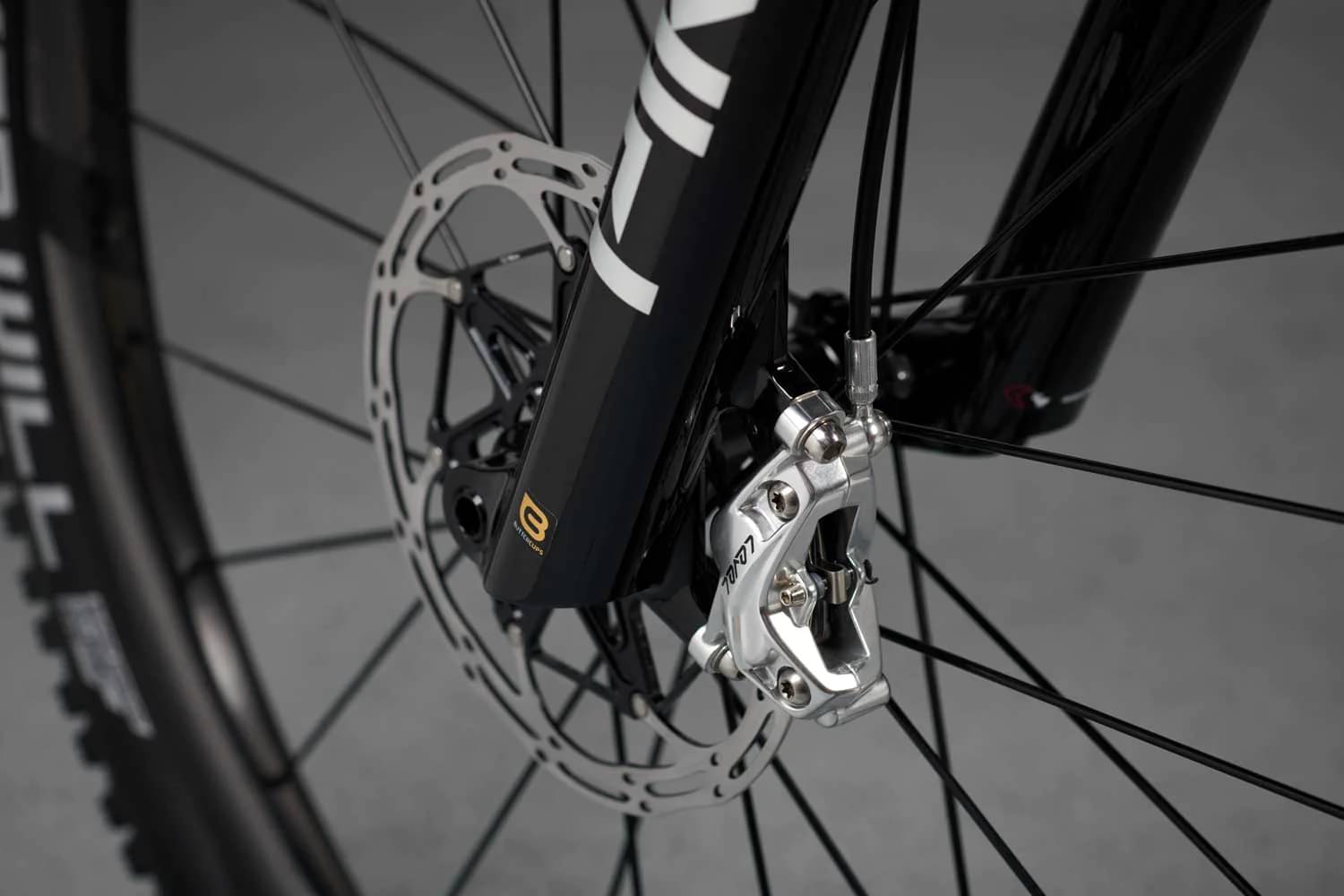

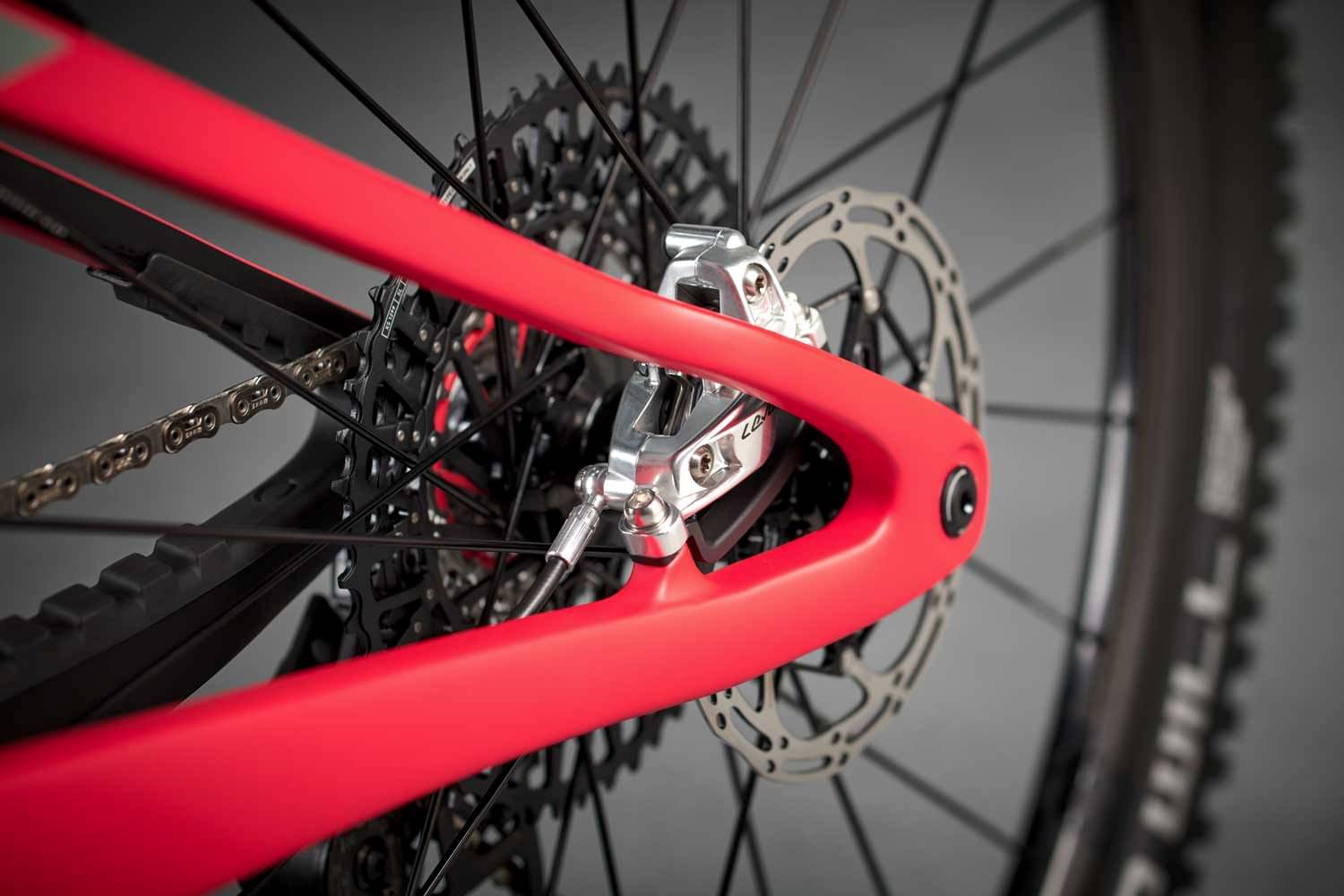

Brakes
When you want to stop the bike in time, the brakes are vital. The Ryve 115 4-Star has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Spot Ryve 115 4-Star bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
A dropper post is included with the Ryve 115 4-Star. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
