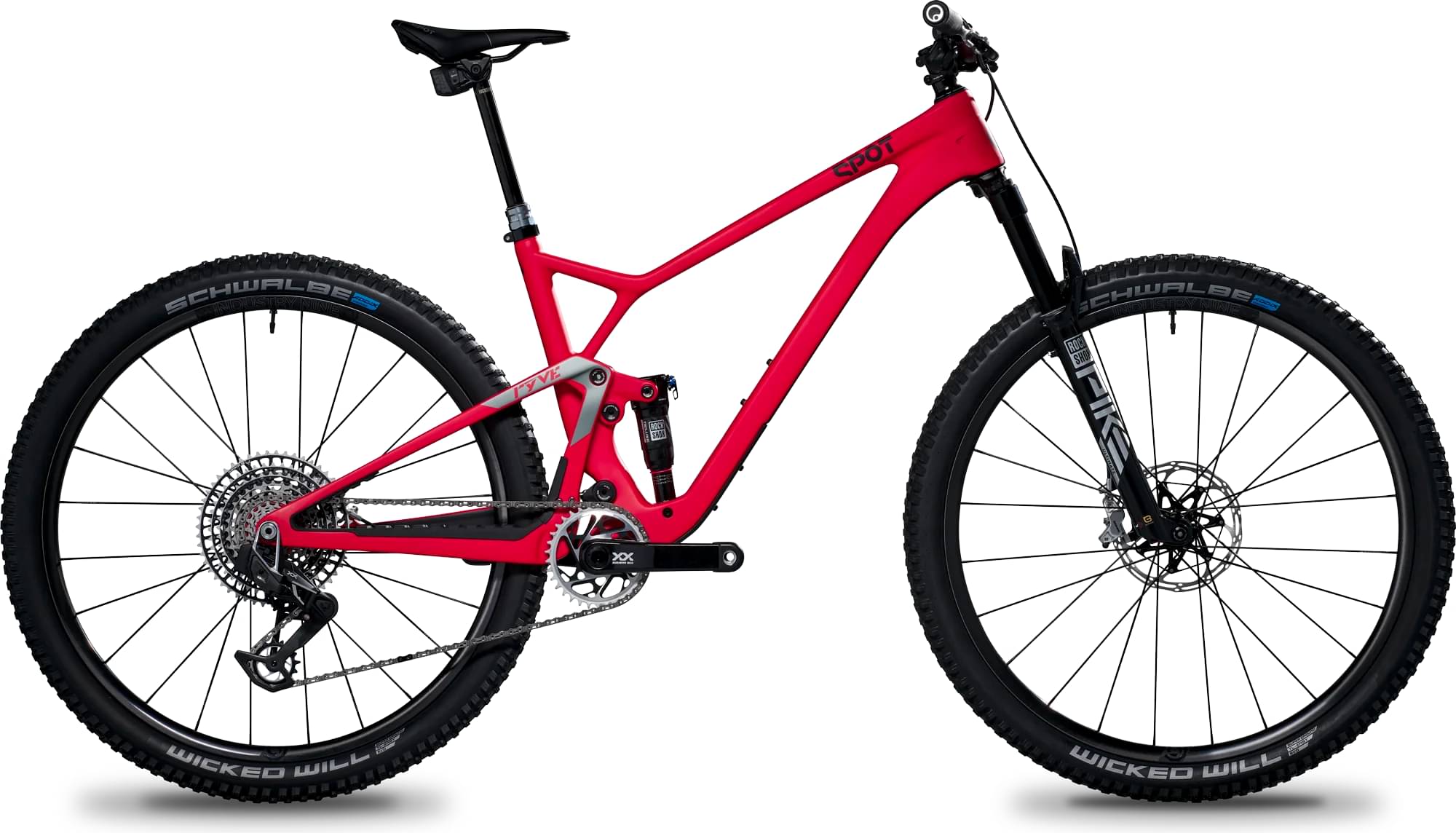

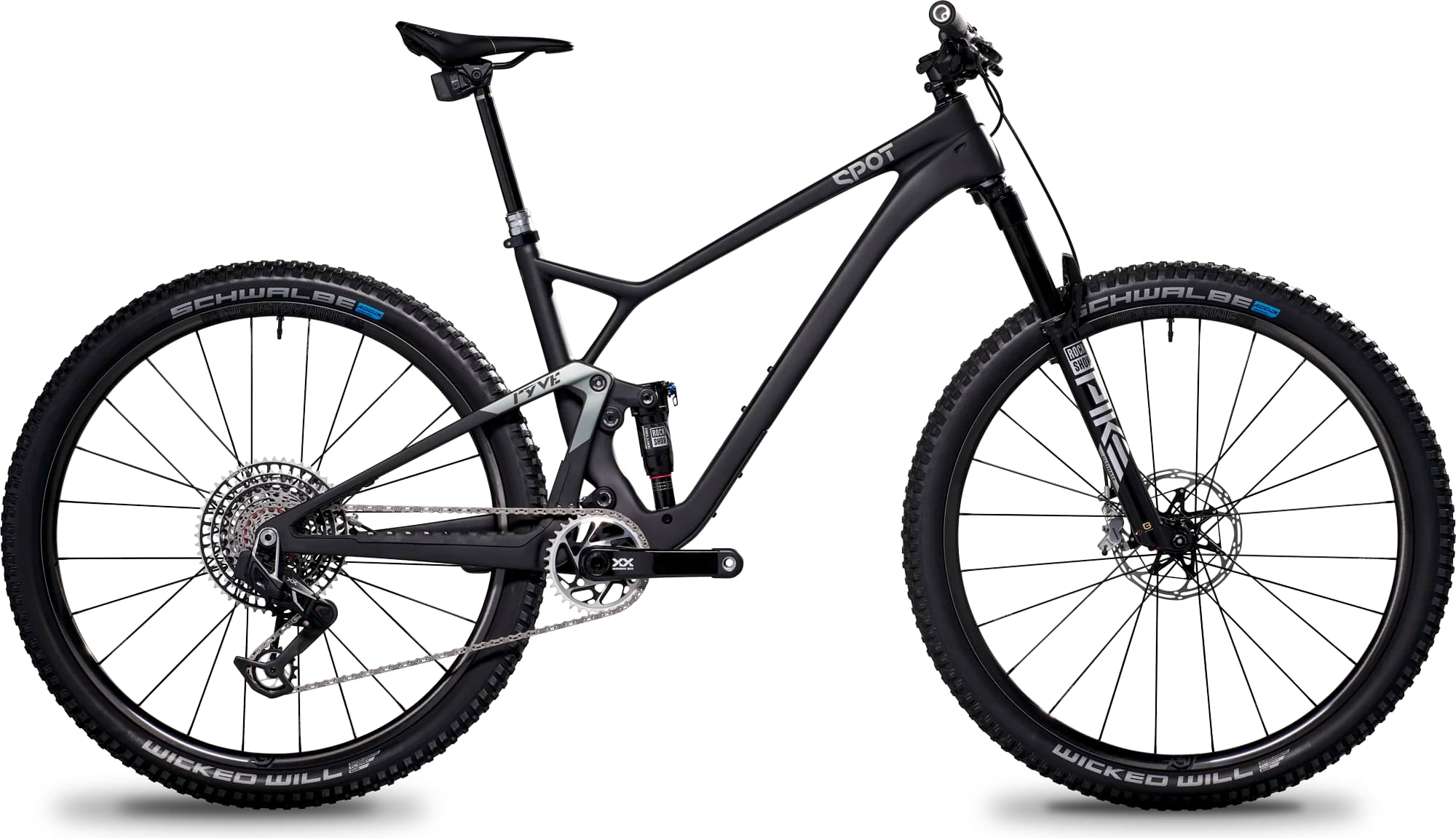

Spot Brand Spot Ryve 115 6-Star AXS 2023
2023 Mountain
Estimate price |
8,999$
Weight | 12.07 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 115mm -
Fork RockShox Pike Ultimate
-
Groupset XX1 Eagle AXS, SRAM -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components

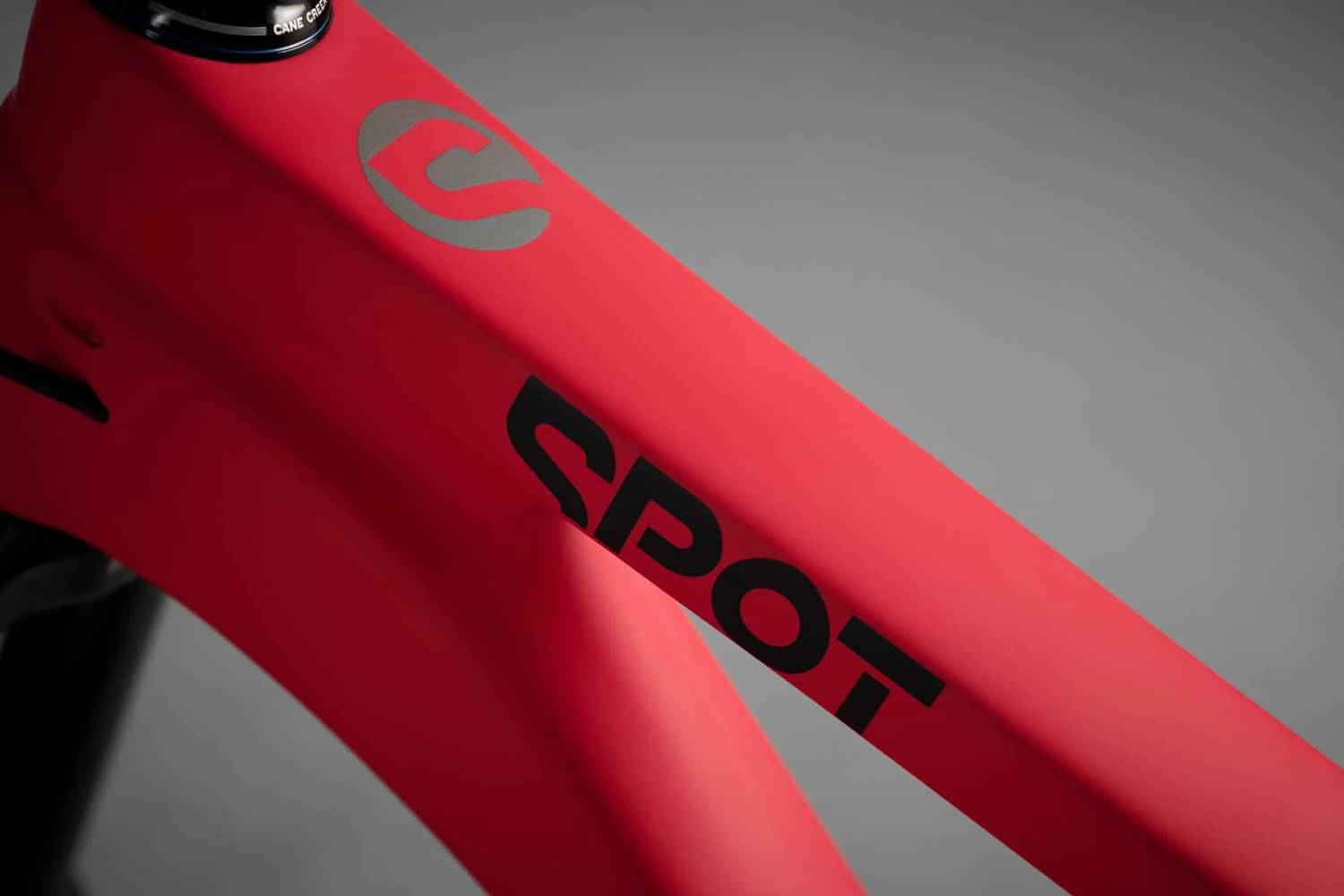

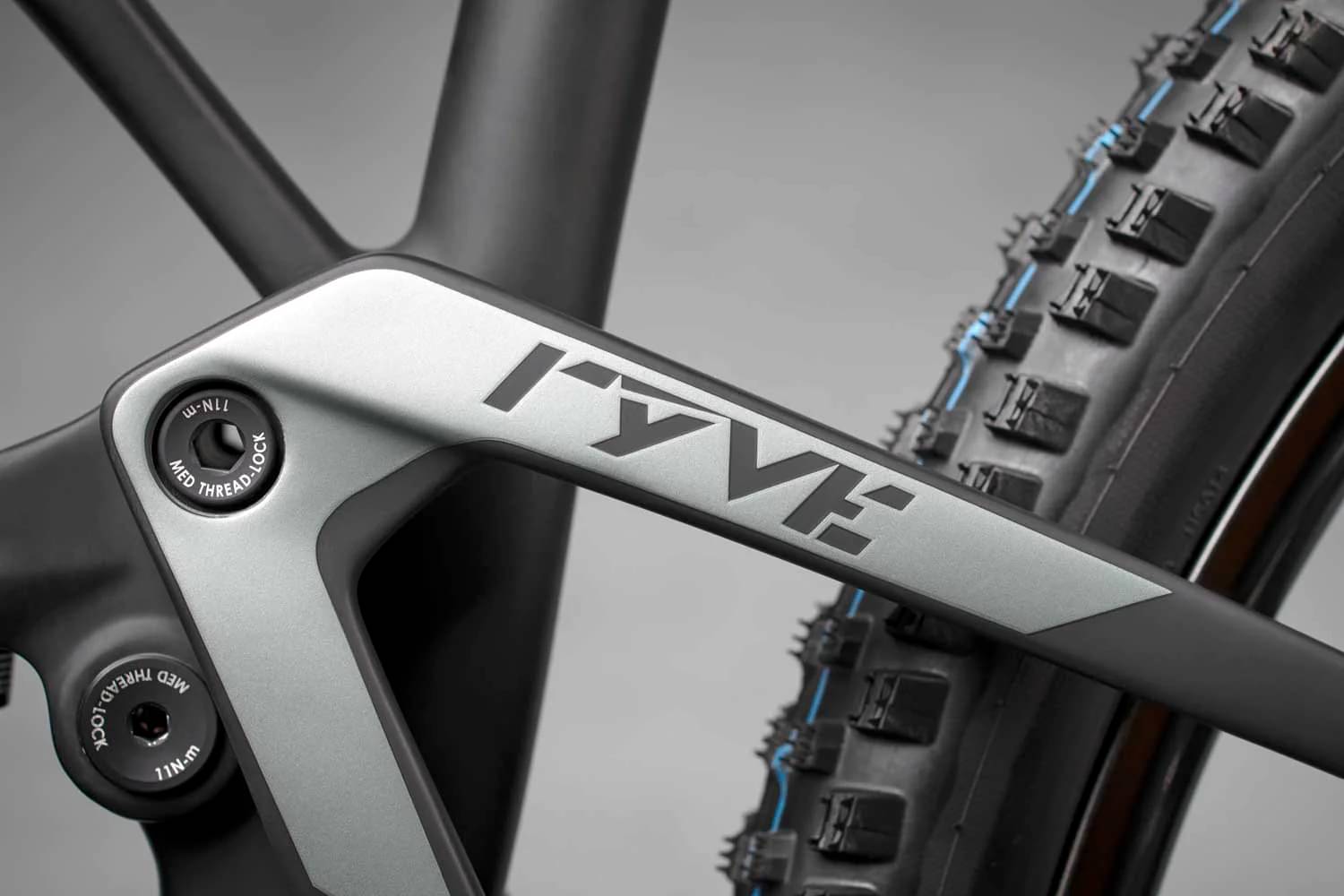

Frame
Suspension Fork
RockShox Pike Ultimate 29, 130 mm travel, 44 mm Rake, Boost 15QRx110
Rear Shock
RockShox Deluxe Ultimate, Trunnion, 165x45

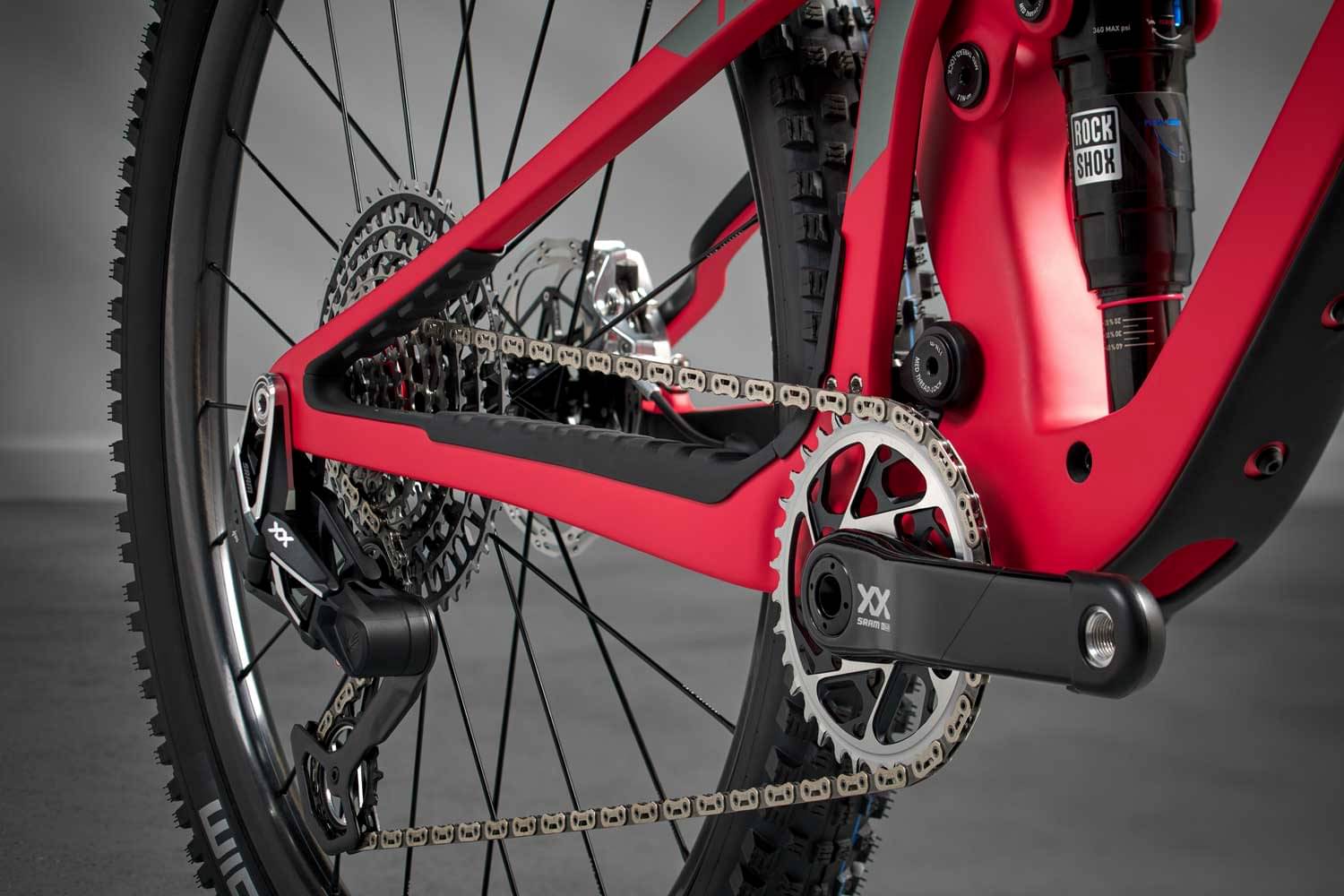

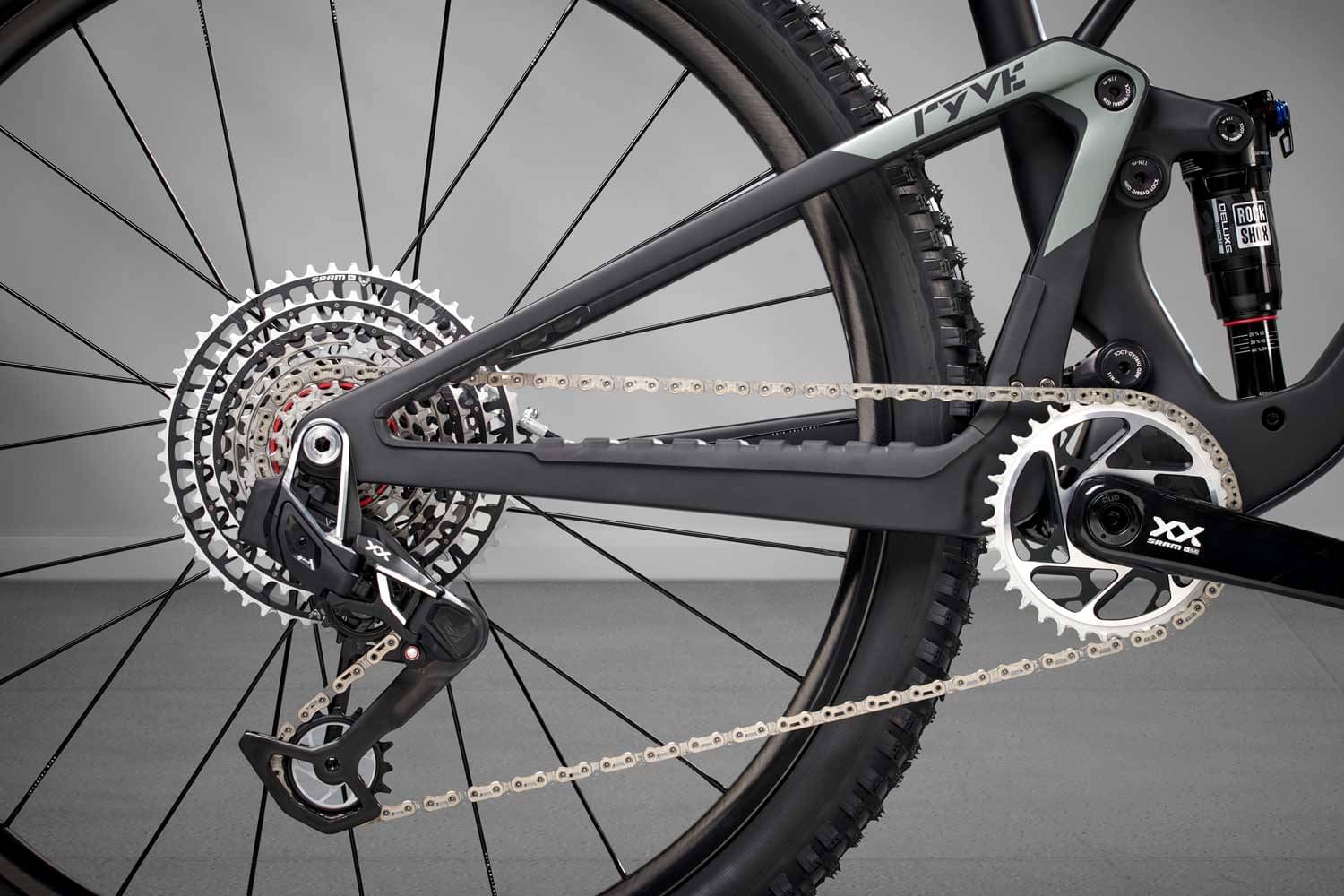

Drivetrain
Rear Derailleur
SRAM XX SL AXS Eagle, Hangerless, Wireless, 12-speed
Shift Levers
SRAM Pod Ultimate, Wireless, 12-speed
Cassette
SRAM XX SL 1299, 12-speed, 10-52t, Black
Crank
SRAM XX SL Eagle, B148, DUB, 170mm, 32t
Bottom Bracket
SRAM DUB BSA 73 mm threaded
Chain
SRAM XX SL, Eagle, Silver
Wheels
Rims
Front: Industry Nine UL300 29, 24h, Tubeless, 6-Bolt, Boost 15x110, Rear: Industry Nine UL300 29, 24h, Tubeless, XD, 6-Bolt, Boost 12x148
Tires
Front: Schwalbe Wicked Will 29x2.40, Rear: Schwalbe Wicked Will 29x2.40

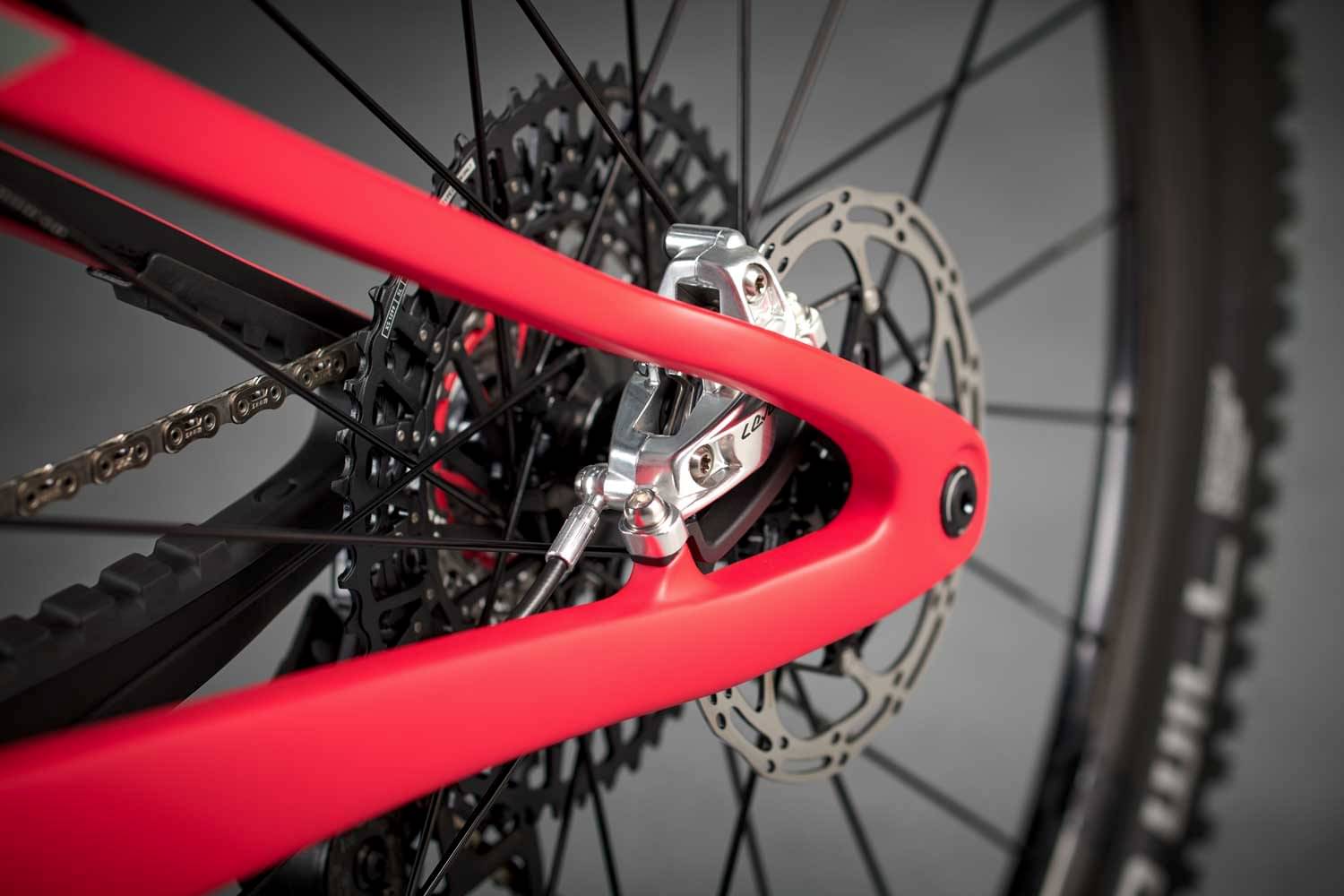

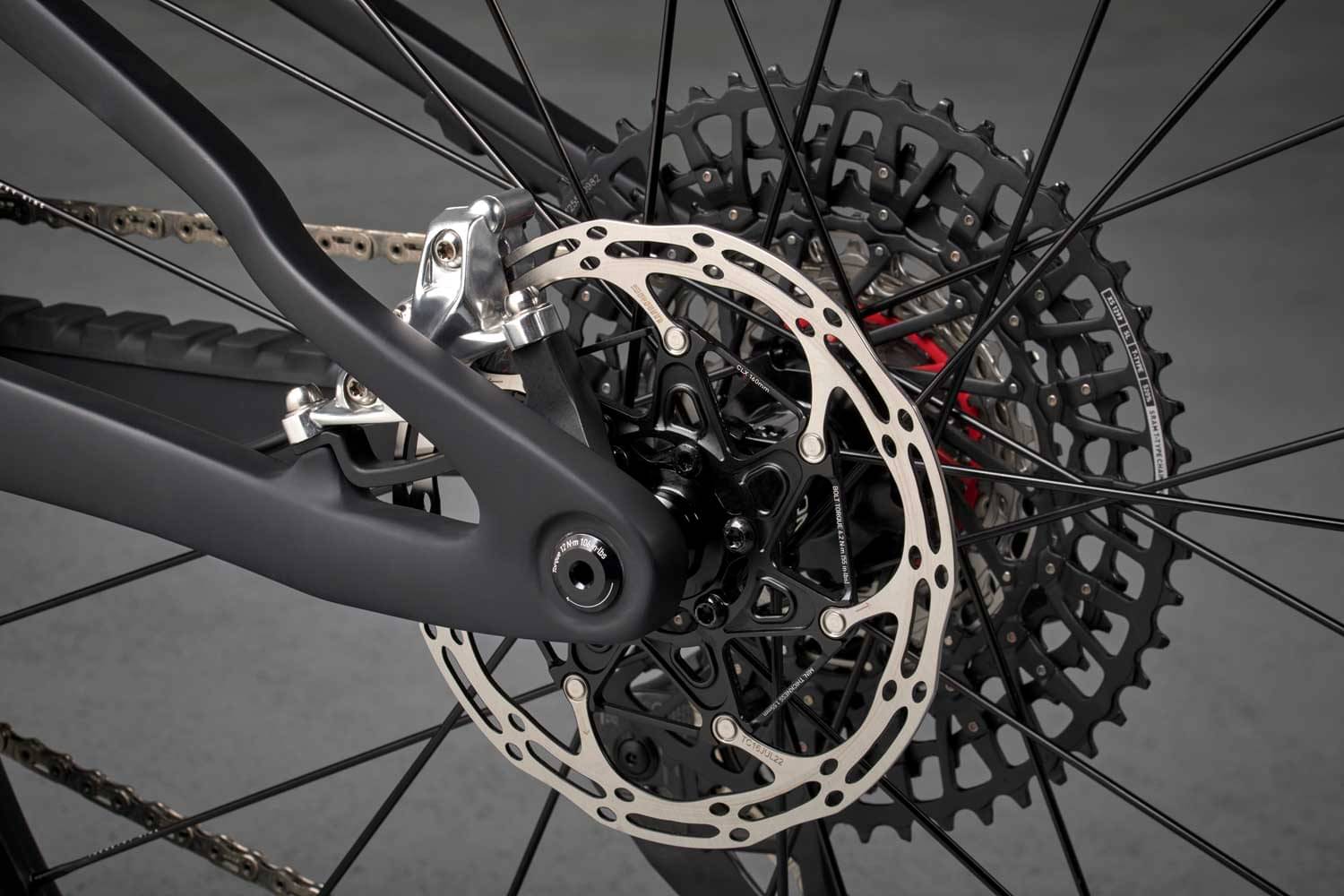

Brakes
Brakes
Front: SRAM Level Ultimate Stealth, 4-piston, 180mm Centerline X rotor, 6-bolt, Rear: SRAM Level Ultimate Stealth, 4-piston, 180mm Centerline X rotor, 6-bolt

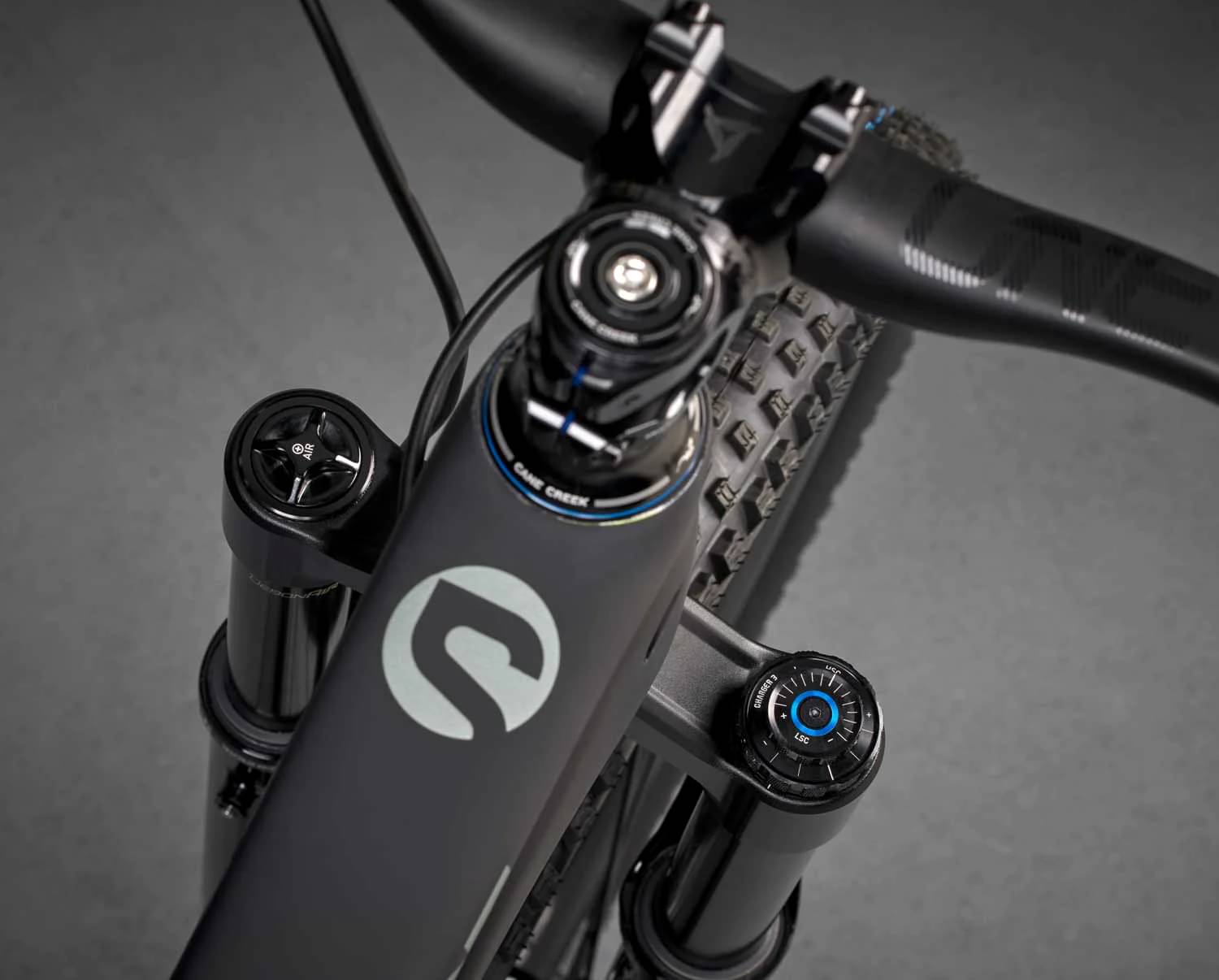

Cockpit
Stem
Race Face Turbine R, 35.0 mm x 50mm
Handlebar
OneUp Carbon, XL 800 mm, LG 780mm, MD/SM 760mm, 20 mm rise, 35.0 mm clamp, Sweep 8 deg back 5 deg up
Grips
Ergon GXR, Black
Headset
Cane Creek 40, ZS44/ZS56 ZS44 upper, ZS56 lower
Seat
Saddle
Spot MTB
Seatpost
SRAM AXS Wireless, 170 mm for XL and Large, 150 mm for Medium, 125 mm for Small, Internal, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.37 mm | 1.3 mm | 1.24 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 717 mm | 746 mm | 780 mm | 813 mm |
| Rake | 46 mm | 46 mm | 45 mm | 45 mm |
| Trail | 115 mm | 115 mm | 116 mm | 116 mm |
| Stack | 591 mm | 600 mm | 610 mm | 619 mm |
| Reach | 414 mm | 439 mm | 469 mm | 499 mm |
| Top Tube Length | 574 mm | 601 mm | 622 mm | 640 mm |
| Seat Tube Angle | 75 ° | 75 ° | 76 ° | 77.3 ° |
| Seat Tube Length | 360 mm | 400 mm | 450 mm | 490 mm |
| Head Tube Angle | 66.2 ° | 66.2 ° | 66.2 ° | 66.2 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 429 mm |
| Wheelbase | 1146 mm | 1175 mm | 1209 mm | 1242 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm | 34 mm |
| Standover Height | 712 mm | 719 mm | 717 mm | 715 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Ryve 115 6-Star AXS is part of the Spotbrand Ryve model. Spot released 15 bikes variations of this model so far. You can easily view all of the Spotbrand Ryve bikes models from 2023, here.
Model range prices
The most economical model, the Spot Ryve 115 4-Star 2023 has a starting price of 5599$. Spot Ryve 115 6-Star AXS 2023 on the other hand is the most expensive at 8999$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2023 for 8999$. Doing a quick comparison, we notice that Ryve 115 6-Star AXS price is 372.39% higher than the average cost of a Crosscountry bike.
Crosscountry bikes average weight
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 12.07 kg (26.61 lbs), Spot bike is slightly lighter than average. In short, the average Crosscountry bike weight is 2.73% higher than this one.
Overview of components
Fork
This bike has the RockShox Pike Ultimate fork installed. The fork’s travel is 130mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.

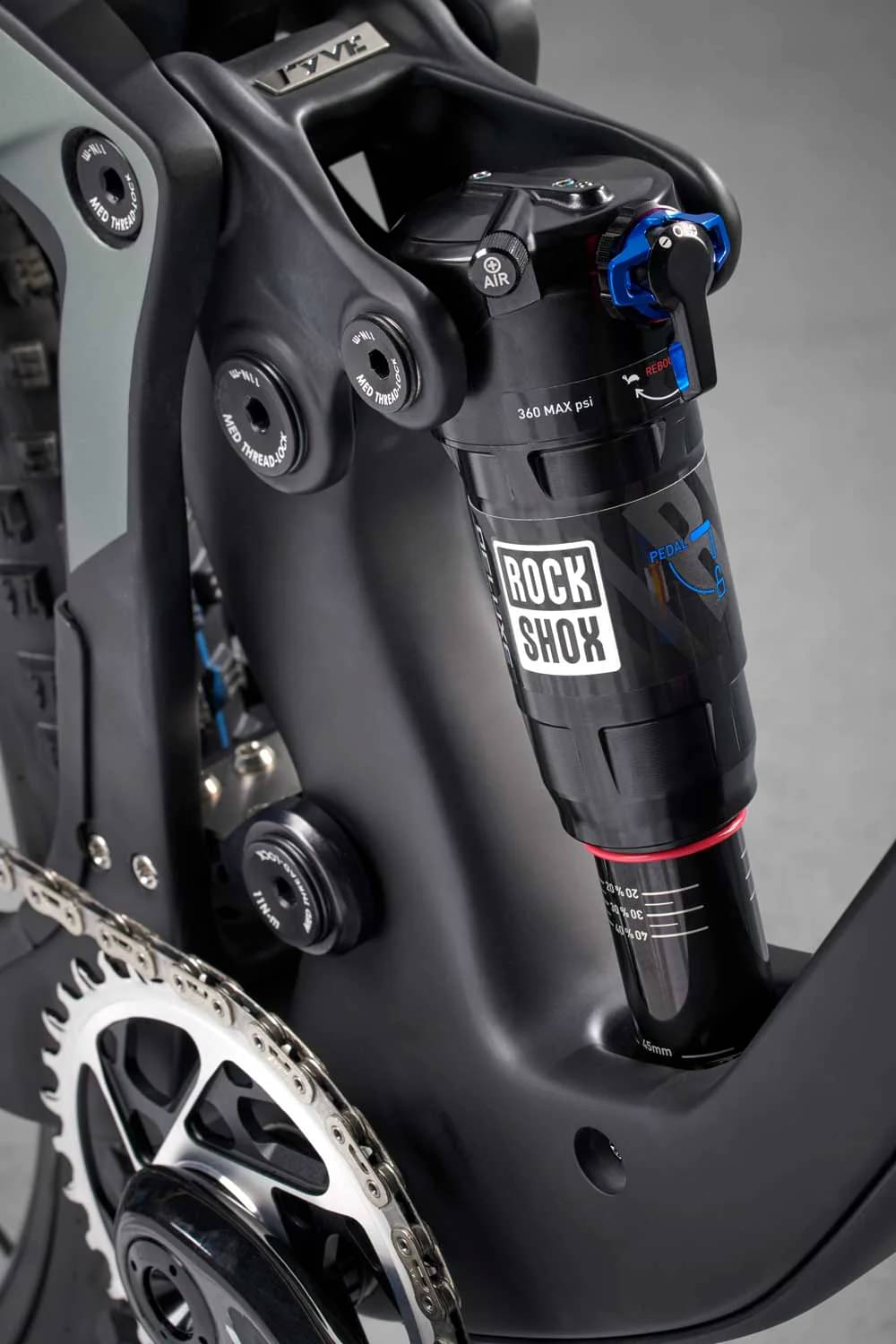

Rear Shock
Spot Ryve 115 6-Star AXS bike has the RockShox Deluxe Ultimate model installed, and has a travel of 115mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When it comes to wheels, the Ryve 115 6-Star AXS bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.

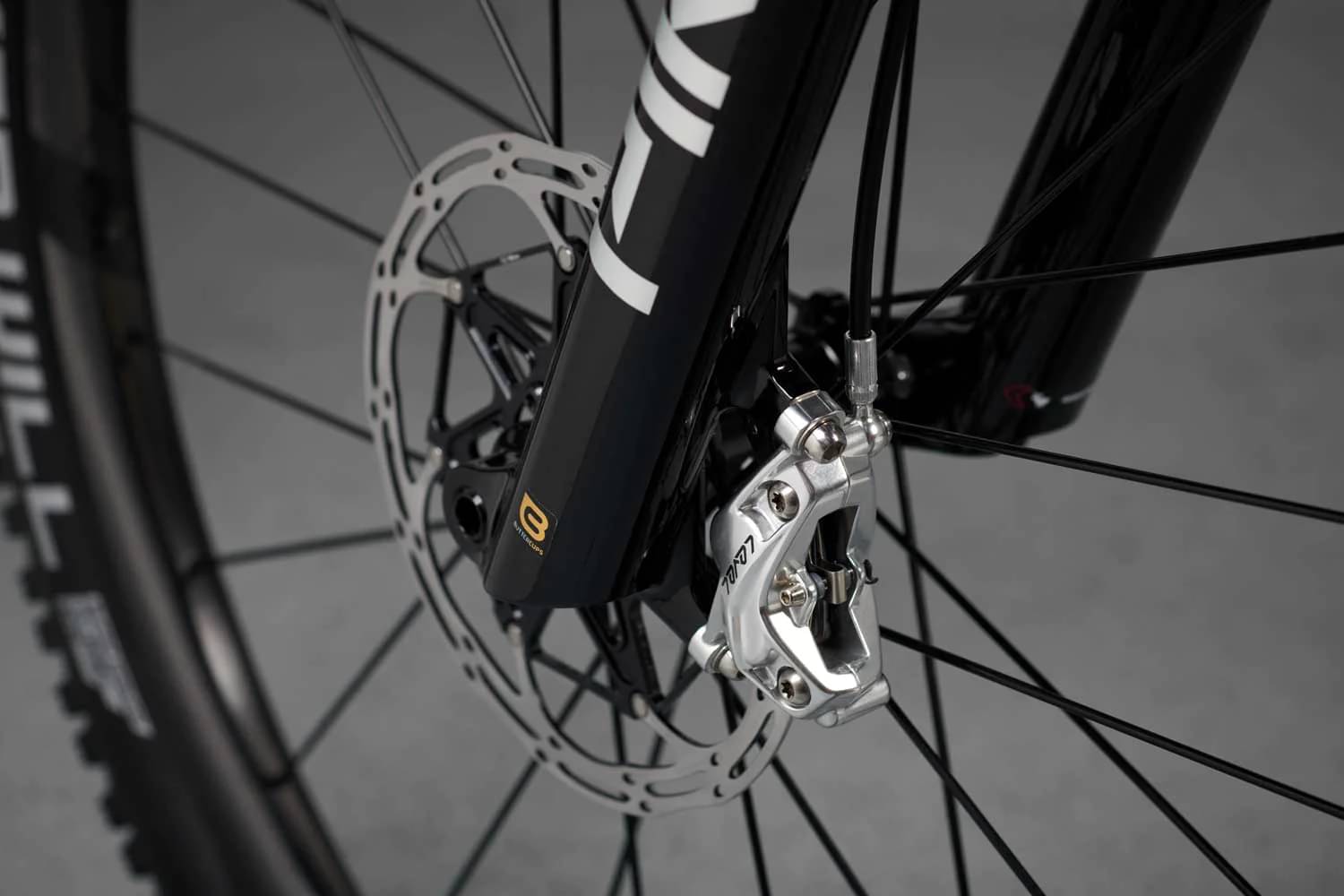

Brakes
When you want to stop the bike in time, the brakes are vital. The Ryve 115 6-Star AXS has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Spot Ryve 115 6-Star AXS bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Spot Ryve 115 6-Star AXS includes a dropper post. Therefore, climbing or descending will be a breeze.
