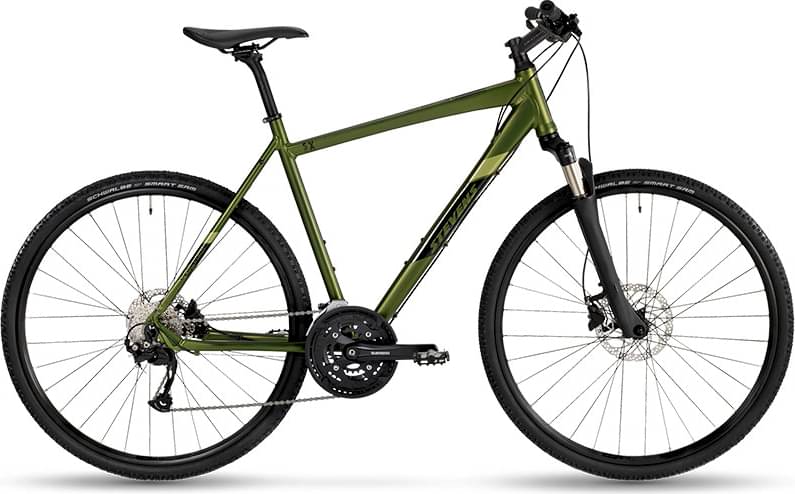

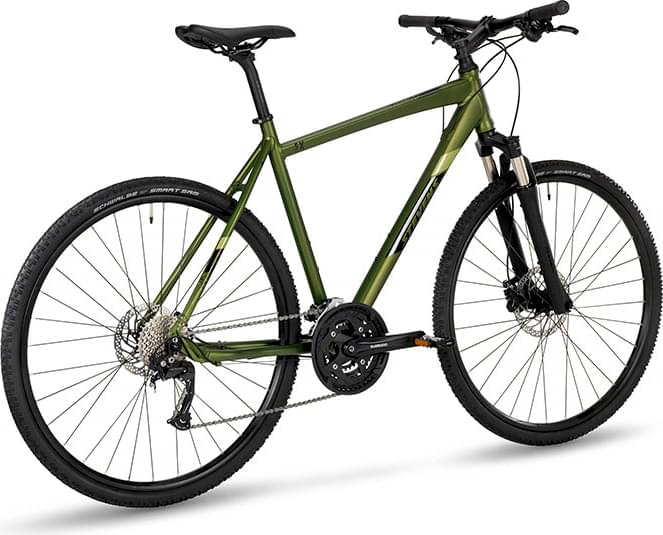

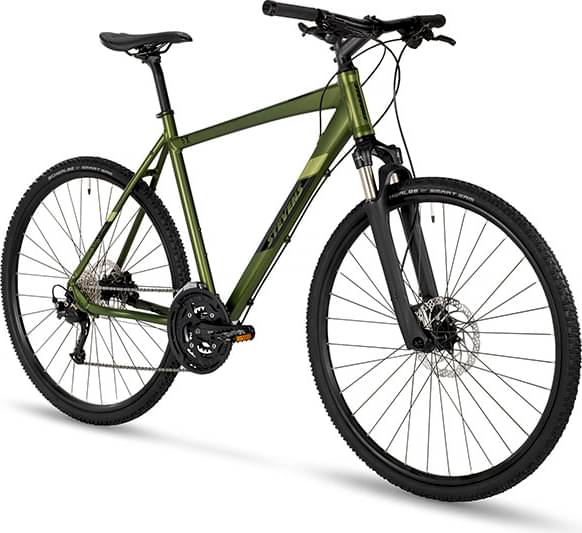

Stevens 5X Gent 2023
2023 Urban
Estimate price |
1,088$
Weight | 13.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NCX
-
Groupset SunRace, SunRace M9 -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061 TB, O.L.D.: 135 mm, Brake: IS disc, BB: BSA 73 mm, Cable routing: external, Fender + rack mounts
Suspension Fork
SR Suntour NCX-D LO, Travel: 63 mm, Coil spring, Lockout, Steerer 1 1/8", O.L.D.: 100 mm, Brake: postmount disc 6", Fender mounts
Drivetrain
Rear Derailleur
Sunrace RDM91, 8/9-speed, Total capacity: 40 T
Front Derailleur
Sunrace FDM924, 3-speed
Shift Levers
Sunrace DLM903, 3-speed
Cassette
Shimano CS-HG201, 9-speed, Combination: 11-13-15-17-19-21-24-28-32 T
Crank
Shimano FC-T4010-8, 48-36-26 Z. Tretlager: BSA 73 mm / Octalink (Wellenlänge: 126 mm), Kettenschutz
Bottom Bracket
BSA, 73mm, threaded
Chain
Shimano CN-HG53
Pedals
ATB Alu Comp Reflex
Wheels
Front Hub
Formula CL-25, Axle: QR9x100 mm
Rear Hub
Shimano FH-M3050, Axle: QR10x135 mm
Rims
Oxygen RM-M19, ETRTO: 19 x 622
Tires
Schwalbe Smart Sam Active-Line, Tire size: 42-622, SBC compound, KevlarGuard
Brakes
Brakes
Tektro HD-T275, Hydraulic disc brake
Brake Levers
Tektro HD-T275, 3 finger
Cockpit
Stem
Oxygen Driver, Handlebar clamp: 31.8 mm, Angle: 17°
Handlebar
Oxygen Driver, Width: 640 mm, Backsweep: 9°, Rise: 12 mm, Clamp: 31.8 mm
Headset
STEVENS AH 1 1/8", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS44/30
Seat
Saddle
Oxygen Havoc
Seatpost
Oxygen Driver, Length: 350 mm, Diameter: 27.2 mm, Insertion depth: min. 100 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 52cm | 55cm | 58cm | 61cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.53 mm | 1.55 mm | 1.58 mm | 1.62 mm |
| Bottom Bracket Height | 295 mm | 295 mm | 295 mm | 295 mm | 295 mm |
| Front Center | 620 mm | 618 mm | 630 mm | 620 mm | 620 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 81 mm | 79 mm | 75 mm | 86 mm | 94 mm |
| Stack | 569 mm | 599 mm | 620 mm | 641 mm | 660 mm |
| Reach | 398 mm | 392 mm | 401 mm | 405 mm | 407 mm |
| Top Tube Length | 571 mm | 581 mm | 594 mm | 609 mm | 619 mm |
| Seat Tube Angle | 73 ° | 72.5 ° | 72.5 ° | 72 ° | 72 ° |
| Seat Tube Length | 421 mm | 456 mm | 487 mm | 517 mm | 547 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 100 mm | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 449 mm | 449 mm | 449 mm | 449 mm | 449 mm |
| Wheelbase | 1063 mm | 1061 mm | 1073 mm | 1063 mm | 1063 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 761 mm | 798 mm | 823 mm | 849 mm | 874 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview
5X Gent is a Stevens 5x model. There are 4 bikes that carry this model name. You can easily view all of the Stevens 5x bikes models from 2023, here.
Model range prices
Stevens 5X Lady 2023 is the most economical model, with a starting price of 1005$. Stevens 5X Gent 2023 on the other hand costs 1005$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Hybrid bikes average price
Our math shows that the average cost of a dependable Hybrid bike is 562$. However, even though the average price of a Hybrid bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1005$. If we compare this with the average Hybrid bike cost we notice that the price is 78.83% higher.
Average weight for Hybrid bikes
The average weight for Hybrid bikes is 13.85 kg (30.53 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
5X Gent weighs 13.9 kg (30.64 lbs) and is slightly heavier than the average. To sum up, it’s 0.36% heavier than the average weight of Hybrid bikes.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
The fork installed on this bike is the Suntour NCX model. The travel on this model is 63mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The 5X Gent 2023 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Stevens 5X Gent has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
