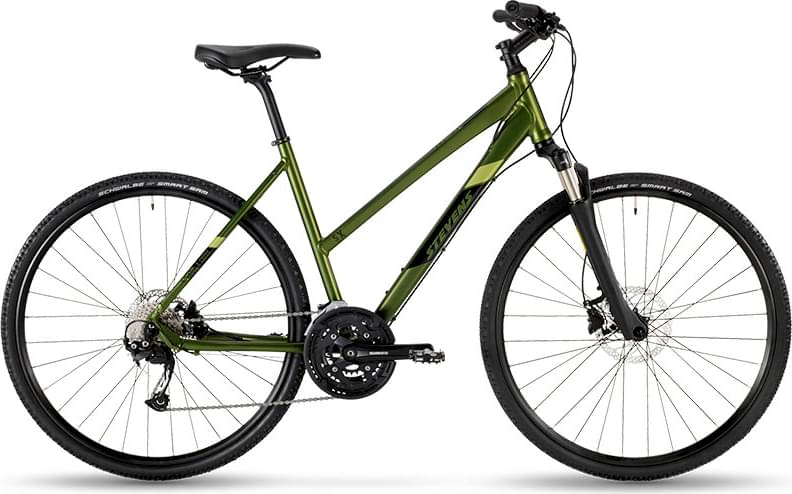

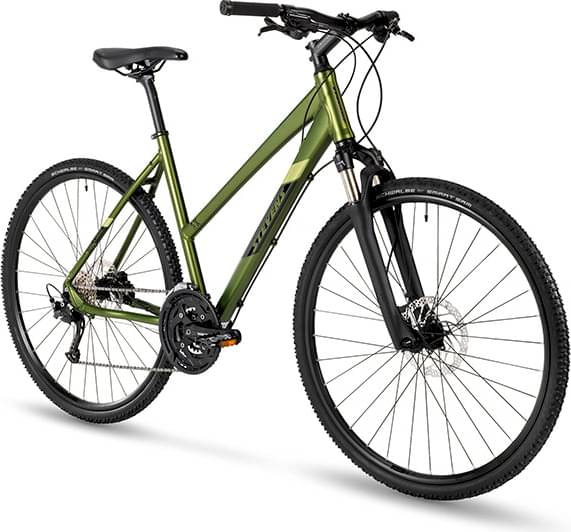

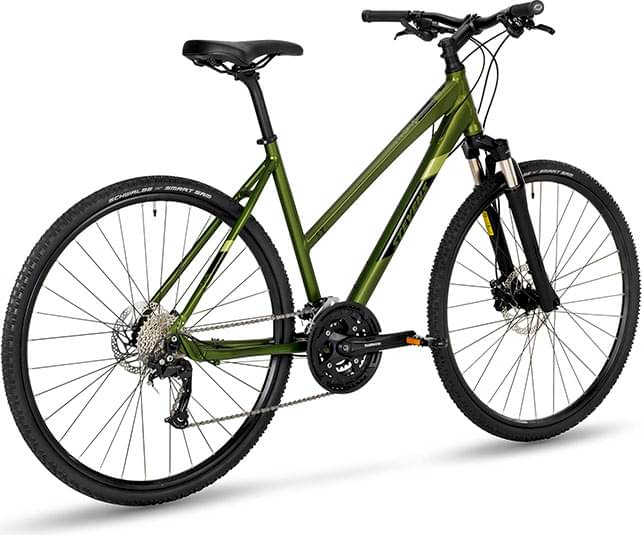

Stevens 5X Lady 2023
2023 Urban
Estimate price |
1,088$
Weight | 13.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NCX
-
Groupset SunRace, SunRace M9 -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061 TB, O.L.D.: 135 mm, Brake: IS disc, BB: BSA 73 mm, Cable routing: external, Fender + rack mounts
Suspension Fork
SR Suntour NCX-D LO, Travel: 63 mm, Coil spring, Lockout, Steerer 1 1/8", O.L.D.: 100 mm, Brake: postmount disc 6", Fender mounts
Drivetrain
Rear Derailleur
Sunrace RDM91, 8/9-speed, Total capacity: 40 T
Front Derailleur
Sunrace FDM924, 3-speed
Shift Levers
Sunrace DLM903, 3-speed
Cassette
Shimano CS-HG201, 9-speed, Combination: 11-13-15-17-19-21-24-28-32 T
Crank
Shimano FC-T4010-8, 48-36-26 Z. Tretlager: BSA 73 mm / Octalink (Wellenlänge: 126 mm), Kettenschutz
Bottom Bracket
BSA, 73mm, threaded
Chain
Shimano CN-HG53
Pedals
ATB Alu Comp Reflex
Wheels
Front Hub
Formula CL-25, Axle: QR9x100 mm
Rear Hub
Shimano FH-M3050, Axle: QR10x135 mm
Rims
Oxygen RM-M19, ETRTO: 19 x 622
Tires
Schwalbe Smart Sam Active-Line, Tire size: 42-622, SBC compound, KevlarGuard
Brakes
Brakes
Tektro HD-T275, Hydraulic disc brake
Brake Levers
Tektro HD-T275, 3 finger
Cockpit
Stem
Oxygen Driver, Handlebar clamp: 31.8 mm, Angle: 17°
Handlebar
Oxygen Driver, Width: 630 mm, Backsweep: 15°, Rise: 20 mm, Clamp: 31.8 mm
Headset
STEVENS AH 1 1/8", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS44/30
Seat
Saddle
Oxygen Lynx
Seatpost
Oxygen Driver, Length: 350 mm, Diameter: 27.2 mm, Insertion depth: min. 100 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm |
|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.64 mm | 1.63 mm |
| Bottom Bracket Height | 295 mm | 295 mm | 295 mm |
| Front Center | 618 mm | 631 mm | 649 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 82 mm | 79 mm | 81 mm |
| Stack | 584 mm | 612 mm | 631 mm |
| Reach | 374 mm | 374 mm | 388 mm |
| Top Tube Length | 556 mm | 571 mm | 591 mm |
| Seat Tube Angle | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 255 mm | 260 mm | 270 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 130 mm | 160 mm | 180 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1048 mm | 1061 mm | 1079 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm |
| Standover Height | 659 mm | 671 mm | 684 mm |
| Wheels | 700 | 700 | 700 |
About this model
5X Lady is part of the Stevens 5x model. Stevens launched 4 bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Stevens 5X Lady 2023 is the cheapest bike model and costs 1005$. Stevens 5X Gent 2023 is the most expensive one and costs 1005$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Hybrid bikes average price
Our math shows that the average cost of a dependable Hybrid bike is 562$. However, you could also get a good Hybrid bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1005$. In conclusion, this bike price is 78.83% higher than the price of the average Hybrid bike.
Average weight for Hybrid bikes
The average weight for Hybrid bikes is 13.85 kg (30.53 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
5X Lady weighs 13.9 kg (30.64 lbs) and is slightly heavier than the average. To sum up, it’s 0.36% heavier than the average weight of Hybrid bikes.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
The Suntour NCX is included from the factory. It has a travel distance of 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When leaving the production line, the 5X Lady model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
