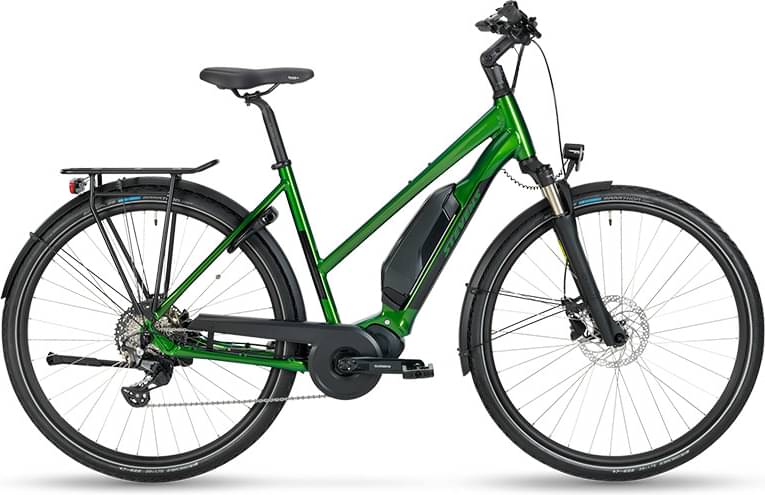

Stevens E-Bormio Lady 2022
2022 E-bike
Estimate price |
3,140$
Weight | 23.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NCX
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Shimano 250W 40Nm mid-drive -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061, O.L.D.: 135 mm, Brake: postmount disc 6", BB: Shimano Steps, Cable routing: internal, Fender + rack mounts
Suspension Fork
SR Suntour NCX-D Air LO, Travel: 63 mm, Air suspension, Lockout, Steerer 1 1/8", O.L.D.: 100 mm, Brake: postmount disc 6", Fender mounts
Drivetrain
Shift Levers
Shimano Deore, SL-M5130, 10-speed, Linkglide
Cassette
Shimano CS-LG600-10, 10-speed, Combination: 11-13-15-17-20-23-26-30-36-43 T
Crank
Shimano FC-E5010, 38 T, BB type: Shimano Steps
Bottom Bracket
STEPS, press-fit
Chain
Shimano CN-LG500
Pedals
ATB Alu Pro Reflex
Wheels
Rims
Oxygen RM-T20 Disc, ETRTO: 20 x 622
Tires
Schwalbe Marathon, Tire size: 47-622, Endurance compound, GreenGuard, Reflective stripes
Brakes
Brakes
Shimano BR-MT200, Hydraulic disc brake
Brake Levers
Shimano BL-MT200, 3 finger
Cockpit
Stem
Oxygen Versa II, adjustable, Handlebar clamp: 31.8 mm, Angle: adjustable (0° - 90°)
Handlebar
Oxygen Scorpo, Width: 680 mm, Backsweep: 5°, Rise: 25 mm, Clamp: 31.8 mm
Headset
STEVENS AH 1 1/8", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS44/30
Seat
Saddle
Selle Royal Nuvola Lady
Seatpost
Oxygen E-Scorpo, Length: 320 mm, Diameter: 30,9 mm, Insertion depth: min. 100 mm
Motor & Battery
Motor
Shimano Steps E5000, Continuous rated power: 250 W, Max. torque: 40 Nm, Breakaway at 25 km/h (15.5 mph), No of notches: 3 drive modes with support levels 70-230 % plus walk assistance, Mileage shimano-steps.com
Remote
Shimano SC-E5000
Charger
Shimano 2A charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm | Measuring mode |
|---|---|---|---|---|
| Stack Reach Ratio | 1.597 mm | 1.612 mm | 1.686 mm | mm |
| Bottom Bracket Height | 295 mm | 295 mm | 295 mm | mm |
| Front Center | 627 mm | 639 mm | 653 mm | mm |
| Rake | 42 mm | 42 mm | 42 mm | mm |
| Trail | 76 mm | 82 mm | 81 mm | mm |
| Stack | 602 mm | 624 mm | 656 mm | mm |
| Reach | 377 mm | 387 mm | 389 mm | mm |
| Top Tube Length | 566 mm | 578 mm | 590 mm | mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | ° |
| Seat Tube Length | 247 mm | 246 mm | 248 mm | mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | ° |
| Head Tube Length | 150 mm | 155 mm | 190 mm | mm |
| Chainstay Length | 472 mm | 472 mm | 472 mm | mm |
| Wheelbase | 1091 mm | 1103 mm | 1117 mm | mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | mm |
| Standover Height | 672 mm | 670 mm | 682 mm | mm |
| Wheels | 700 | 700 | 700 | 700 |
Model Overview
E-Bormio Lady completes the Stevens E E Bormio model. Stevens launched 6 e-bikes of this model so far. Take a sneak peek at all Stevens E E Bormio e-bikes models from 2022, by clicking here.
Model range prices
Stevens E-Bormio Forma 2022 is the most economical model, with a starting price of 2866$. Stevens E-Bormio Luxe Gent 2022 on the other hand costs 3290$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Commuter e-bikes average price
If you want an acceptable Commuter e-bike you should know that the average price is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Stevens E-Bormio Lady price was 2866$. Comparing this to the average Commuter e-bike price, we see that the price is 11.56% higher.
Average weight for Commuter e-bikes
The average weight for Commuter e-bikes is 25.2 kg (55.56 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
a bit lighter than average, E-Bormio Lady has a weight of 23.3 kg (51.37 lbs). To sum up, it’s 8.15% lighter than the average weight of Commuter e-bikes.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
This e-bike has the Suntour NCX fork installed. The fork’s travel is 63mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When it comes to wheels, the E-Bormio Lady e-bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
