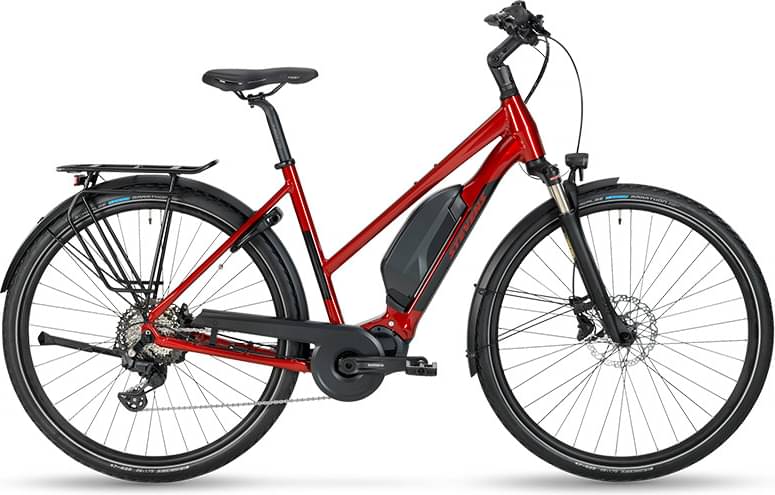

Stevens E-Bormio Luxe Lady 2022
2022 E-bike
Estimate price |
3,554$
Weight | 23.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NCX
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061, O.L.D.: 135 mm, Brake: postmount disc 6", BB: Shimano Steps, Cable routing: internal, Fender + rack mounts
Suspension Fork
SR Suntour NCX-D Air LO, Travel: 63 mm, Air suspension, Lockout, Steerer 1 1/8", O.L.D.: 100 mm, Brake: postmount disc 6", Fender mounts
Drivetrain
Shift Levers
Shimano Deore, SL-M5130, 10-speed, Linkglide
Cassette
Shimano CS-LG600-10, 10-speed, Combination: 11-13-15-17-20-23-26-30-36-43 T
Crank
Shimano Steps E8000, FC-E8000, 44 T, BB type: Shimano Steps
Bottom Bracket
STEPS, press-fit
Chain
Shimano CN-LG500
Pedals
ATB Alu Pro Reflex
Wheels
Rims
Oxygen RM-T20 Disc, ETRTO: 20 x 622
Tires
Schwalbe Marathon, Tire size: 47-622, Endurance compound, GreenGuard, Reflective stripes
Brakes
Brakes
Shimano BR-MT410, Hydraulic disc brake
Brake Levers
Shimano BL-MT402-3A
Cockpit
Stem
Oxygen Versa II, adjustable, Handlebar clamp: 31.8 mm, Angle: adjustable (0° - 90°)
Handlebar
Oxygen Scorpo, Width: 680 mm, Backsweep: 5°, Rise: 25 mm, Clamp: 31.8 mm
Headset
STEVENS AH Taper 1 1/8"-1 1/2", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS55/40
Seat
Saddle
Selle Royal Nuvola Lady
Seatpost
Oxygen E-Scorpo, Length: 320 mm, Diameter: 30,9 mm, Insertion depth: min. 100 mm
Motor & Battery
Motor
Shimano Steps E6100, Continuous rated power: 250 W, Max. torque: 60 Nm, Breakaway at 25 km/h (15.5 mph), No of notches: 3 drive modes with support levels 70-230 % plus walk assistance, Mileage shimano-steps.com
Remote
Shimano SC-E5000
Charger
Shimano 2A charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm | Measuring mode |
|---|---|---|---|---|
| Stack Reach Ratio | 1.597 mm | 1.612 mm | 1.686 mm | mm |
| Bottom Bracket Height | 295 mm | 295 mm | 295 mm | mm |
| Front Center | 627 mm | 639 mm | 653 mm | mm |
| Rake | 42 mm | 42 mm | 42 mm | mm |
| Trail | 76 mm | 82 mm | 81 mm | mm |
| Stack | 602 mm | 624 mm | 656 mm | mm |
| Reach | 377 mm | 387 mm | 389 mm | mm |
| Top Tube Length | 566 mm | 578 mm | 590 mm | mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | ° |
| Seat Tube Length | 247 mm | 246 mm | 248 mm | mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | ° |
| Head Tube Length | 150 mm | 155 mm | 190 mm | mm |
| Chainstay Length | 472 mm | 472 mm | 472 mm | mm |
| Wheelbase | 1091 mm | 1103 mm | 1117 mm | mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | mm |
| Standover Height | 672 mm | 670 mm | 682 mm | mm |
| Wheels | 700 | 700 | 700 | 700 |
Model Overview
E-Bormio Luxe Lady is a Stevens E E Bormio model. There are 6 e-bikes that carry this model name. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Stevens E-Bormio Forma 2022 is the most affordable e-bike of this model and has a price of 2866$. On the other hand, Stevens E-Bormio Luxe Gent 2022, is the most expensive and costs 3290$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Commuter e-bikes average price
Our math shows that the average cost of a dependable Commuter e-bike is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
This e-bike was released in 2022 and its price was 3290$. If we compare this with the average Commuter e-bike cost we notice that the price is 28.07% more expensive.
Commuter e-bikes average weight
Commuter e-bikes weigh an average of 25.2 kg (55.56 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Stevens E-Bormio Luxe Lady it’s weighing 23.2 kg (51.15 lbs). At this weight, is a bit lighter than average. In conclusion, the average Commuter e-bike weighs 8.62% more than E-Bormio Luxe Lady.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
E-Bormio Luxe Lady components
Fork
The fork installed on this bike is the Suntour NCX model. The travel on this model is 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The E-Bormio Luxe Lady 2022 e-bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
