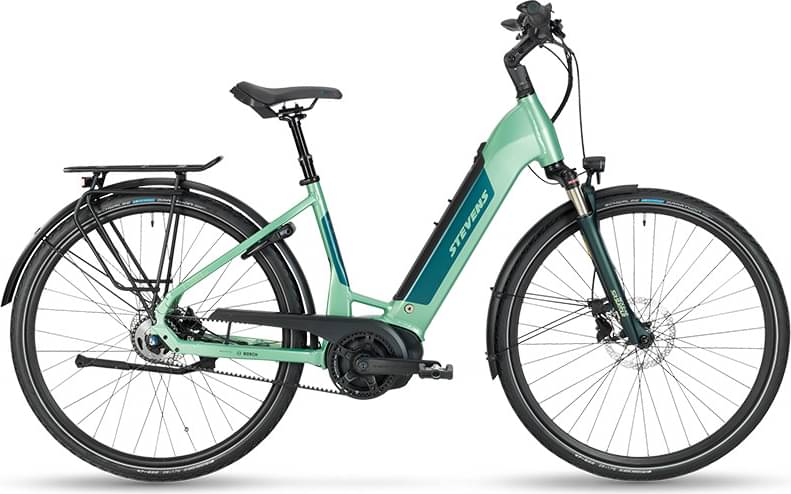

Stevens E-Courier Luxe Forma 2022
2022 E-bike
Estimate price |
4,536$
Weight | 26.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NCX
-
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 250W 65Nm mid-drive -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061, O.L.D.: 135 mm, Brake: postmount disc 6", BB: Bosch, Cable routing: internal, Fender + rack mounts, Adjustable dropouts, Carrying handle, PowerTube box (lockable)
Suspension Fork
SR Suntour NCX-D Air LO, Travel: 63 mm, Air suspension, Lockout, Tapered Steerer 1 1/8" - 1 1/2", O.L.D.: 100 mm, Brake: postmount disc 6", Fender mounts
Drivetrain
Shift Levers
Shimano Nexus-5 Revo, SL-C7000-5, Twist shifter, 5-speed
Cassette
Gates CDX Center Track sprocket, 32 T
Crank
Oxygen E-Scorpo, BB type: Bosch / ISIS, Chainguard
Bottom Bracket
Bosch, press-fit
Pedals
City Reflex
Wheels
Rims
Oxygen RM-T20 Disc, ETRTO: 20 x 622
Tires
Schwalbe Marathon, Tire size: 47-622, Endurance compound, GreenGuard, Reflective stripes
Brakes
Brakes
Shimano BR-MT200, Hydraulic disc brake
Brake Levers
Shimano BL-MT201
Cockpit
Stem
Oxygen Versa II, adjustable, Handlebar clamp: 31.8 mm, Angle: adjustable (0° - 90°)
Handlebar
Oxygen Scorpo, Width: 680 mm, Backsweep: 5°, Rise: 25 mm, Clamp: 31.8 mm
Headset
STEVENS AH Taper 1 1/8"-1 1/2", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS55/40
Seat
Saddle
Selle Royal E-Zone
Seatpost
Oxygen E-Scorpo DPR-S-E, Travel: 75 mm | 100 mm, Suspension, Remote Lockout, Length: 360 mm | 410 mm, Diameter: 30.9 mm, Insertion depth: 100 mm
Motor & Battery
Motor
Bosch G3 Performance Line Cruise, Continuous rated power: 250 W, Max. torque: 65 Nm, Breakaway at 25 km/h (15.5 mph), No of notches: 4 drive modes with support levels 55-300 % plus walk assistance, Mileage: See BOSCH Range Assistant
Remote
Bosch Intuvia
Charger
Bosch 2A charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 52cm | 56cm | Measuring mode |
|---|---|---|---|---|
| Stack Reach Ratio | 1.598 mm | 1.575 mm | 1.598 mm | mm |
| Bottom Bracket Height | 295 mm | 295 mm | 295 mm | mm |
| Front Center | 663 mm | 668 mm | 681 mm | mm |
| Rake | 42 mm | 42 mm | 42 mm | mm |
| Trail | 89 mm | 89 mm | 89 mm | mm |
| Stack | 633 mm | 633 mm | 652 mm | mm |
| Reach | 396 mm | 402 mm | 408 mm | mm |
| Top Tube Length | 572 mm | 578 mm | 589 mm | mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | ° |
| Seat Tube Length | 176 mm | 176 mm | 176 mm | mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | ° |
| Head Tube Length | 170 mm | 170 mm | 190 mm | mm |
| Chainstay Length | 490 mm | 490 mm | 490 mm | mm |
| Wheelbase | 1145 mm | 1151 mm | 1164 mm | mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | mm |
| Standover Height | 459 mm | 458 mm | 458 mm | mm |
| Wheels | 700 | 700 | 700 | 700 |
About this model
E-Courier Luxe Forma is part of the Stevens E E Courier model. Stevens launched 6 e-bikes of this model so far. You can easily view all of the Stevens E E Courier e-bikes models from 2022, here.
Model range prices
The most economical model, the Stevens E-Courier 2022 has a starting price of 3290$. Stevens E-Courier Plus 2022 on the other hand is the most expensive at 5096$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
General Urban e-bikes average price
According to our calculations, the average cost of a General Urban e-bike that is reliable is 2098$. However, paying less money than this amount doesn’t mean that you couldn’t get a great General Urban e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4140$. In conclusion, this e-bike price is 97.33% more expensive than the price of the average General Urban e-bike.
General Urban e-bikes average weight
On a deeper look, we notice that the average weight of a General Urban e-bike is 24.08 kg (53.09 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 26.8 kg (59.08 lbs), Stevens e-bike is considerably heavier than average. In conclusion, the average General Urban e-bike weighs 11.3% less than E-Courier Luxe Forma.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
E-Courier Luxe Forma components
Fork
Stevens E-Courier Luxe Forma 2022 e-bike is equipped with the Suntour NCX fork, and has 63mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The wheels on E-Courier Luxe Forma are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Stevens E-Courier Luxe Forma is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
