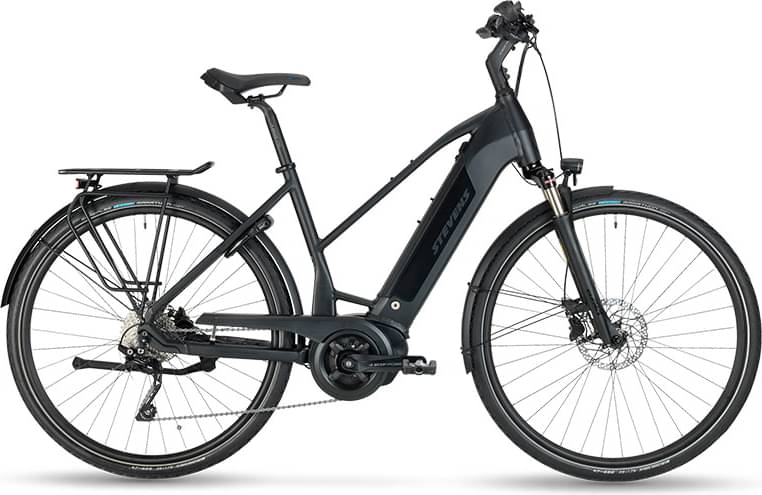

Stevens E-Lavena PT5 Lady 2022
2022 E-bike
Estimate price |
4,013$
Weight | 25.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NCX
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 65Nm mid-drive -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061, O.L.D.: 135 mm, Brake: postmount disc 6", BB: Bosch, Cable routing: internal, Fender + rack mounts, Carrying handle, PowerTube box (lockable)
Suspension Fork
SR Suntour NCX-D Air LO, Travel: 63 mm, Air suspension, Lockout, Tapered Steerer 1 1/8" - 1 1/2", O.L.D.: 100 mm, Brake: postmount disc 6", Fender mounts
Drivetrain
Shift Levers
Shimano Deore, SL-M6000, 10-speed
Cassette
Shimano CS-HG50-10, CS-HG50, 10-speed, Combination: 11-13-15-17-19-21-24-28-32-36 T
Crank
Oxygen E-Scorpo, BB type: Bosch / BNI, Chainguard
Bottom Bracket
Bosch, press-fit
Chain
KMC X10eS EPT
Pedals
City Reflex
Wheels
Rims
Oxygen RM-T20 Disc, ETRTO: 20 x 622
Tires
Schwalbe Marathon, Tire size: 47-622, Endurance compound, GreenGuard, Reflective stripes
Brakes
Brakes
Shimano BR-MT200, Hydraulic disc brake
Brake Levers
Shimano BL-MT200, 3 finger
Cockpit
Stem
Oxygen E-Scorpo, Handlebar clamp: 31.8 mm, Angle: 35°
Handlebar
Oxygen Scorpo, Width: 680 mm, Backsweep: 5°, Rise: 25 mm, Clamp: 31.8 mm
Headset
STEVENS AH Taper 1 1/8"-1 1/2", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS55/39.8
Seat
Saddle
Selle Royal E-Zone
Seatpost
Oxygen E-Scorpo, Length: 320 mm, Diameter: 30,9 mm, Insertion depth: min. 100 mm
Motor & Battery
Motor
Bosch G3 Performance Line Cruise, Continuous rated power: 250 W, Max. torque: 65 Nm, Breakaway at 25 km/h (15.5 mph), No of notches: 4 drive modes with support levels 55-300 % plus walk assistance, Mileage: See BOSCH Range Assistant
Remote
Bosch Intuvia
Charger
Bosch 4A charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm | Measuring mode |
|---|---|---|---|---|
| Stack Reach Ratio | 1.715 mm | 1.674 mm | 1.651 mm | mm |
| Bottom Bracket Height | 295 mm | 295 mm | 295 mm | mm |
| Front Center | 635 mm | 642 mm | 653 mm | mm |
| Rake | 42 mm | 42 mm | 42 mm | mm |
| Trail | 82 mm | 83 mm | 81 mm | mm |
| Stack | 645 mm | 643 mm | 647 mm | mm |
| Reach | 376 mm | 384 mm | 392 mm | mm |
| Top Tube Length | 573 mm | 580 mm | 590 mm | mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | ° |
| Seat Tube Length | 303 mm | 303 mm | 303 mm | mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | ° |
| Head Tube Length | 175 mm | 175 mm | 180 mm | mm |
| Chainstay Length | 496 mm | 496 mm | 496 mm | mm |
| Wheelbase | 1123 mm | 1130 mm | 1141 mm | mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | mm |
| Standover Height | 738 mm | 733 mm | 730 mm | mm |
| Wheels | 700 | 700 | 700 | 700 |
About this model
E-Lavena PT5 Lady belongs to the Stevens E E Lavena model. 3 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Stevens E-Lavena PT5 Forma 2022 is the most affordable e-bike of this model and has a price of 3715$. On the other hand, Stevens E-Lavena PT5 Gent 2022, is the most expensive and costs 3715$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Commuter e-bikes average price
Our math shows that the average cost of a dependable Commuter e-bike is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2022 for 3715$. Doing a quick comparison, we notice that E-Lavena PT5 Lady price is 44.61% higher than the average cost of a Commuter e-bike.
Average weight for Commuter e-bikes
Commuter e-bikes weigh an average of 25.2 kg (55.56 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Stevens E-Lavena PT5 Lady it’s weighing 25.9 kg (57.1 lbs). At this weight, is slightly heavier than average. In conclusion, the average Commuter e-bike weighs 2.78% less than E-Lavena PT5 Lady.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
E-Lavena PT5 Lady components
Fork
Stevens E-Lavena PT5 Lady 2022 e-bike is equipped with the Suntour NCX fork, and has 63mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
As for the wheels, Stevens E-Lavena PT5 Lady 2022, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Stevens E-Lavena PT5 Lady is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
