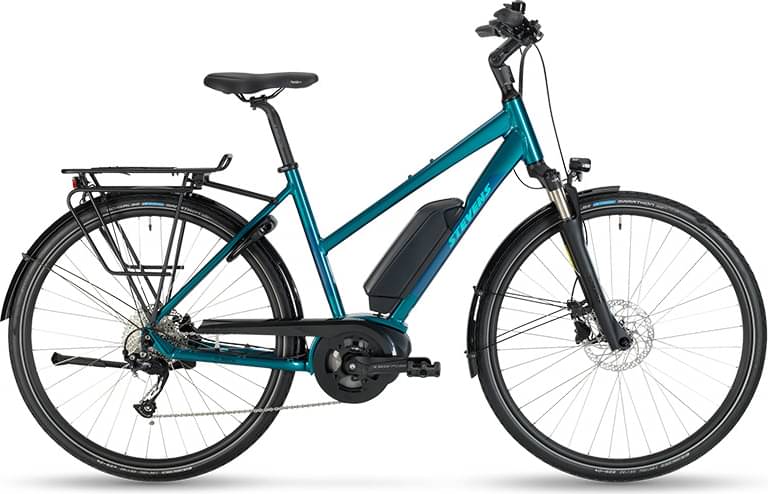

Stevens E-Molveno Lady 2022
2022 E-bike
Estimate price |
2,637$
Weight | 23.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NCX
-
Groupset Altus -
Suspension Hardtail -
Motor Bosch 250W 40Nm mid-drive -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061, O.L.D.: 135 mm, Brake: IS disc, BB: Bosch, Cable routing: internal, Fender + rack mounts
Suspension Fork
SR Suntour NCX-D LO, Travel: 63 mm, Coil spring, Lockout, Steerer 1 1/8", O.L.D.: 100 mm, Brake: postmount disc 6", Fender mounts
Drivetrain
Shift Levers
Shimano Altus, SL-M2010-9R, 9-speed
Cassette
Shimano CS-HG201, 9-speed, Combination: 11-13-15-17-20-23-26-30-36 T
Crank
Oxygen E-Scorpo, BB type: Bosch / BNI, Chainguard
Bottom Bracket
Bosch, press-fit
Chain
KMC X9 NPGY
Pedals
City Reflex
Wheels
Rims
Oxygen RM-T20 Disc, ETRTO: 20 x 622
Tires
Schwalbe Marathon, Tire size: 40-622, Endurance compound, GreenGuard, Reflective stripes
Brakes
Brakes
Shimano BR-MT200, Hydraulic disc brake
Brake Levers
Shimano BL-MT200, 3 finger
Cockpit
Stem
Oxygen Versa II, adjustable, Handlebar clamp: 31.8 mm, Angle: adjustable (0° - 90°)
Handlebar
Oxygen Scorpo, Width: 680 mm, Backsweep: 5°, Rise: 25 mm, Clamp: 31.8 mm
Headset
STEVENS AH 1 1/8", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS44/30
Seat
Saddle
Selle Royal Nuvola Lady
Seatpost
Oxygen E-Scorpo, Length: 320 mm, Diameter: 30,9 mm, Insertion depth: min. 100 mm
Motor & Battery
Motor
Bosch G3 Active Line Cruise, Continuous rated power: 250 W, Max. torque: 40 Nm, Breakaway at 25 km/h (15.5 mph), Mileage: See BOSCH Range Assistant, No of notches: 4 drive modes with support levels 40-250 % plus walk assistance
Remote
Bosch Purion
Charger
Bosch 2A charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm | Measuring mode |
|---|---|---|---|---|
| Stack Reach Ratio | 1.646 mm | 1.617 mm | 1.693 mm | mm |
| Bottom Bracket Height | 291 mm | 291 mm | 291 mm | mm |
| Front Center | 627 mm | 639 mm | 649 mm | mm |
| Rake | 42 mm | 42 mm | 42 mm | mm |
| Trail | 81 mm | 81 mm | 86 mm | mm |
| Stack | 619 mm | 624 mm | 657 mm | mm |
| Reach | 376 mm | 386 mm | 388 mm | mm |
| Top Tube Length | 566 mm | 578 mm | 590 mm | mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | ° |
| Seat Tube Length | 306 mm | 299 mm | 269 mm | mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | ° |
| Head Tube Length | 150 mm | 155 mm | 190 mm | mm |
| Chainstay Length | 492 mm | 492 mm | 492 mm | mm |
| Wheelbase | 1111 mm | 1123 mm | 1133 mm | mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | mm |
| Standover Height | 709 mm | 708 mm | 721 mm | mm |
| Wheels | 700 | 700 | 700 | 700 |
Model Overview
E-Molveno Lady belongs to the Stevens E E Molveno model. There are 3 e-bikes that carry this model name. You can easily view all of the Stevens E E Molveno e-bikes models from 2022, here.
Model range prices
Stevens E-Molveno Gent 2022 is the most affordable e-bike of this model and has a price of 2441$. On the other hand, Stevens E-Molveno Forma 2022, is the most expensive and costs 2441$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Commuter e-bikes average price
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Stevens E-Molveno Lady price was 2441$. If we compare this with the average Commuter e-bike cost we notice that the price is 5.24% lower.
Average weight for Commuter e-bikes
Commuter e-bikes weigh an average of 25.2 kg (55.56 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Stevens E-Molveno Lady it’s weighing 23.2 kg (51.15 lbs). At this weight, is a bit lighter than average. To sum up, it’s 8.62% lighter than the average weight of Commuter e-bikes.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
The Suntour NCX is included from the factory. It has a travel distance of 63mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When it comes to wheels, the E-Molveno Lady e-bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Stevens E-Molveno Lady is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
