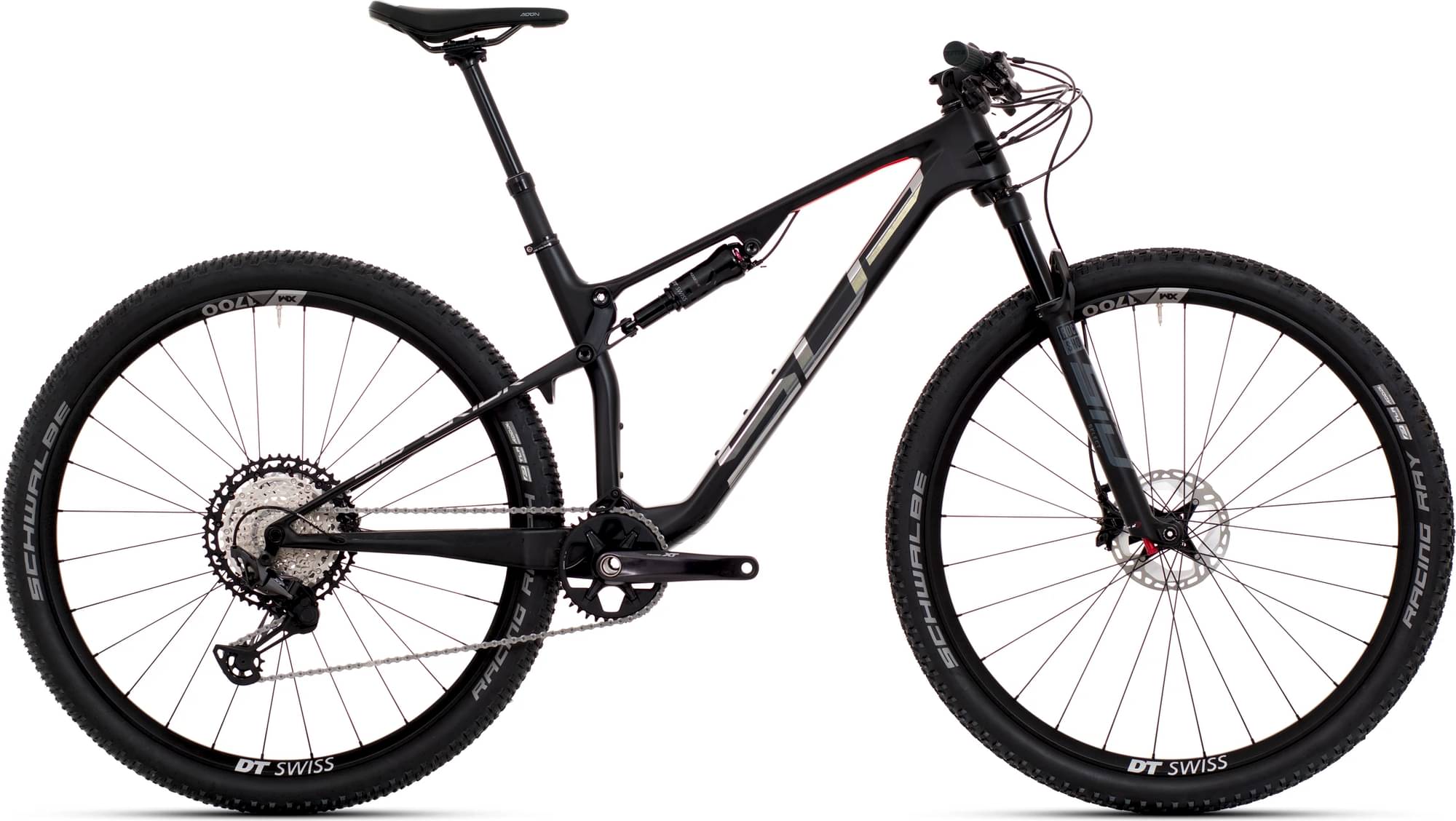

Superior TEAM XF 29 Elite 2023
2023 Mountain
Estimate price |
6,307$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 110mm -
Travel Rear 100mm -
Fork RockShox SID
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 171cm
MD
169cm - 181cm
LG
179cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon MTB Race Pro SU-01, Advanced Race Geometry, Travel 100 mm, Tapered Head Tube, BB92, 3D alloy one piece link, Carbon swingarm, SR dropout, Boost Thru Axle 12x148 mm, Inner cable routing, Dropped seat post ready
Suspension Fork
RockShox SID RL R, Tapered, DebonAir, 15x110mm axle, 110mm travel
Rear Shock
DT Swiss R232 ONE, size 190x45mm
Drivetrain
Rear Derailleur
SHIMANO XT RD-M8100, Shadow Plus Design
Shift Levers
SHIMANO DEORE XT SL-M8100-IR, RAPIDFIRE Plus, 12-speed
Cassette
SHIMANO XT CS-M8100, 12-speed, 10-51T
Crank
SHIMANO XT FC-M8120, Hollowtech II, 36T
Bottom Bracket
SHIMANO BB-MT500PA, PressFit, shell 41x92mm
Chain
SHIMANO DEORE CN-M6100
Wheels
Rims
DT Swiss XM 1700 SPLINE®, CL, 15x110mm, Tubeless Ready
Tires
Schwalbe Racing Ray Performance, TL-Ready, 29x2.25", ADDIX SpeedGrip
Brakes
Brakes
SHIMANO XT M8100, hydraulic disc brake
Cockpit
Stem
ONE Race, Alloy, 31,8mm, -7°
Handlebar
ONE Race, Alloy, 5mm rise, 760mm, 31.8mm
Headset
ACROS AZX-220 R4, ZS44/28.6 - ZS56/40, BlockLock 150°
Seat
Saddle
Fizi:k Terra Aidon X5, Alloy
Seatpost
ONE Sport Dropper Post, Alloy, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.32 mm | 1.29 mm | 1.26 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 699 mm | 724 mm | 744 mm | 764 mm |
| Rake | 49 mm | 48 mm | 49 mm | 48 mm |
| Trail | 98 mm | 100 mm | 98 mm | 100 mm |
| Stack | 572 mm | 582 mm | 590 mm | 600 mm |
| Reach | 420 mm | 442 mm | 458 mm | 475 mm |
| Top Tube Length | 577 mm | 603 mm | 623 mm | 643 mm |
| Seat Tube Angle | 74.9 ° | 74.7 ° | 74.6 ° | 74.5 ° |
| Seat Tube Length | 393 mm | 431 mm | 482 mm | 533 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 421 mm | 421 mm | 421 mm | 421 mm |
| Wheelbase | 1117 mm | 1142 mm | 1162 mm | 1182 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 169 cm | 179 cm | 189 cm |
| Rider Max Height | 171 cm | 181 cm | 191 cm | 200 cm |
About this model
TEAM XF 29 Elite completes the Superior Team Xf model. Superior released 15 bikes variations of this model so far. Take a sneak peek at all Superior Team Xf bikes models from 2023, by clicking here.
Model range prices
Superior TEAM XF 29 Elite 2023 is the most affordable bike of this model and has a price of 5823$. On the other hand, Superior TEAM XF 29 Factory Racing 2023, is the most expensive and costs 10482$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2023 for 5823$. In conclusion, this bike price is 205.67% higher than the price of the average Crosscountry bike.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
TEAM XF 29 Elite components
Fork
Superior TEAM XF 29 Elite 2023 bike is equipped with the RockShox SID fork, and has 110mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The TEAM XF 29 Elite has a rear shock with a travel of 100mm. The model DT Swiss R232 ONE is the one installed in this bike. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The wheels on TEAM XF 29 Elite are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Superior TEAM XF 29 Elite is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Superior TEAM XF 29 Elite bike has 4 sizes, in the range of 160 cm – 200 cm (5.25 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
A dropper post is included with the TEAM XF 29 Elite. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
