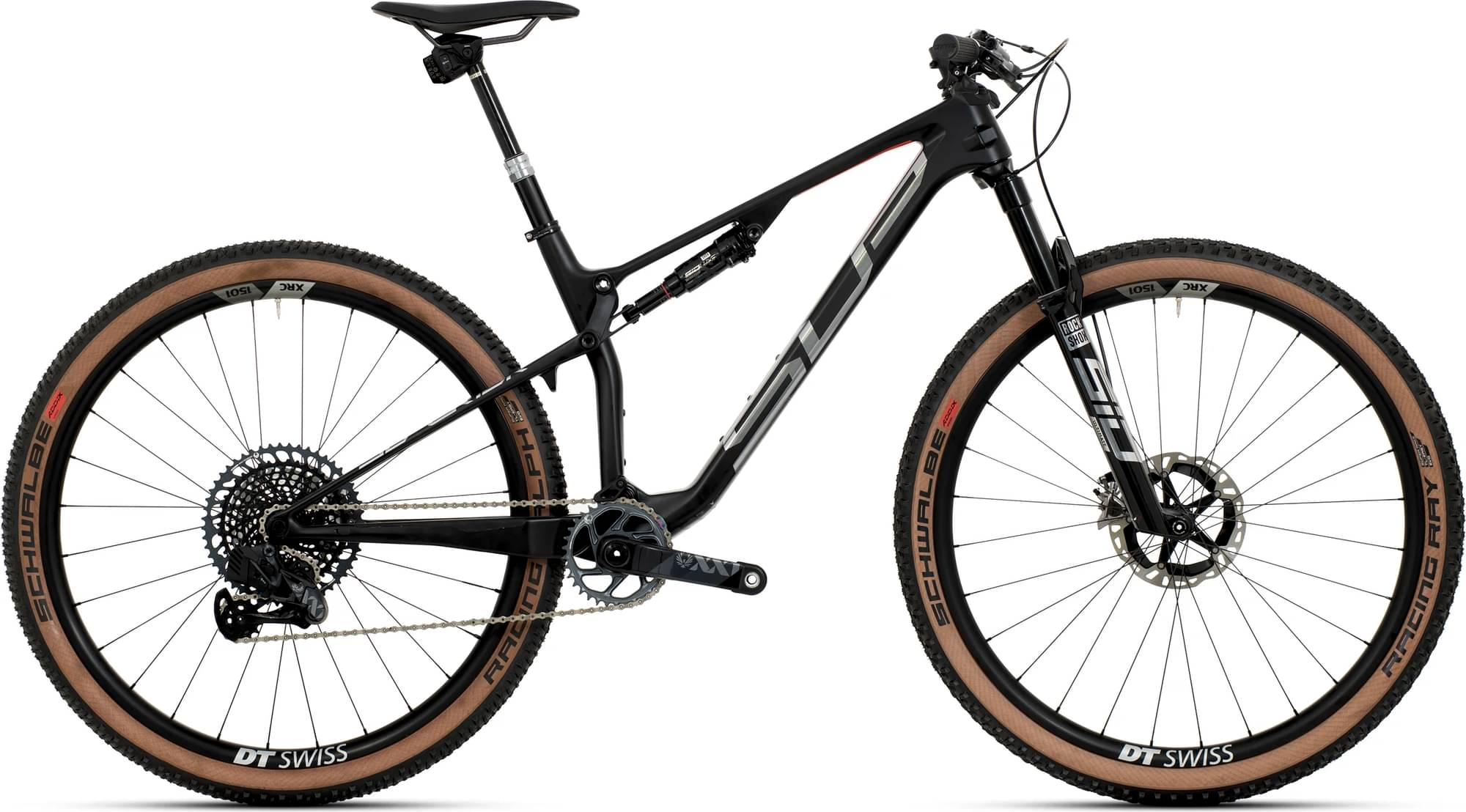

Superior TEAM XF 29 Factory Racing 2023
2023 Mountain
Estimate price |
11,354$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 110mm -
Travel Rear 100mm -
Fork RockShox SID Ultimate
-
Groupset XX1 Eagle AXS, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 171cm
MD
169cm - 181cm
LG
179cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon MTB Race Pro SU-01, Advanced Race Geometry, Travel 100 mm, Tapered Head Tube, BB92, 3D alloy one piece link, Carbon swingarm, SR dropout, Boost Thru Axle 12x148 mm, Inner cable routing, Dropped seat post ready
Suspension Fork
RockShox SID Ultimate Charger RD R, Tapered, DebonAir, 15x110mm axle, 110mm travel
Rear Shock
RockShox SIDluxe Ultimate Remote, size 190x45mm
Drivetrain
Rear Derailleur
SRAM XX EAGLE AXS
Shift Levers
SRAM AXS ROCKER, 12-speed
Cassette
SRAM X0 XG-1295, 12-speed, 10-52T
Crank
SRAM XX, DUB, Carbon, 34T
Bottom Bracket
SRAM DUB , PressFit, shell 41x92 mm
Chain
SRAM X0, Eagle
Wheels
Rims
DT Swiss XRC 1501 SPLINE®, Carbon, CL, 15x110mm, Tubeless Ready
Tires
Schwalbe Racing Ray Evo, TL-Easy, SuperRace, 29x2.25", ADDIX Speed
Brakes
Brakes
SHIMANO XTR M9100, hydraulic disc brake
Cockpit
Stem
ONE Race, Alloy, 31,8mm, -7°
Handlebar
ONE Race, Carbon, 760mm, 31.8mm
Headset
ACROS AZX-220 R4, ZS44/28.6 - ZS56/40, BlockLock 150°
Seat
Saddle
Fizi:k Terra Argo X3, Kium
Seatpost
SRAM Reverb AXS dropper post, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.32 mm | 1.29 mm | 1.26 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 699 mm | 724 mm | 744 mm | 764 mm |
| Rake | 49 mm | 48 mm | 49 mm | 48 mm |
| Trail | 98 mm | 100 mm | 98 mm | 100 mm |
| Stack | 572 mm | 582 mm | 590 mm | 600 mm |
| Reach | 420 mm | 442 mm | 458 mm | 475 mm |
| Top Tube Length | 577 mm | 603 mm | 623 mm | 643 mm |
| Seat Tube Angle | 74.9 ° | 74.7 ° | 74.6 ° | 74.5 ° |
| Seat Tube Length | 393 mm | 431 mm | 482 mm | 533 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 421 mm | 421 mm | 421 mm | 421 mm |
| Wheelbase | 1117 mm | 1142 mm | 1162 mm | 1182 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 169 cm | 179 cm | 189 cm |
| Rider Max Height | 171 cm | 181 cm | 191 cm | 200 cm |
About this model
TEAM XF 29 Factory Racing belongs to the Superior Team Xf model. There are 15 bikes that carry this model name. Take a sneak peek at all Superior Team Xf bikes models from 2023, by clicking here.
Model range prices
Superior TEAM XF 29 Elite 2023 is the most affordable bike of this model and has a price of 5823$. On the other hand, Superior TEAM XF 29 Factory Racing 2023, is the most expensive and costs 10482$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2023 and its price was 10482$. Comparing this to the average Crosscountry bike price, we see that the price is 450.24% more expensive.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
The RockShox SID Ultimate is included from the factory. It has a travel distance of 110mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The TEAM XF 29 Factory Racing has a rear shock with a travel of 100mm. The model RockShox SIDluxe Ultimate Remote is the one installed in this bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
As for the wheels, Superior TEAM XF 29 Factory Racing 2023, has a 29″ carbon model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The TEAM XF 29 Factory Racing has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
TEAM XF 29 Factory Racing comes in 4 sizes, that range from 160 cm – 200 cm (5.25 ft – 6.56 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Superior TEAM XF 29 Factory Racing comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
