Tern GSD S10 LR 2023
Bike details
Key information split into simple groups.
Bike summary
-
Category
-
Frame Aluminum
-
Wheels 20"
-
Travel Front 70mm
-
Fork Suntour
-
Groupset Deore
-
Suspension Hardtail
-
Motor Bosch 85Nm mid-drive
-
Battery Bosch Dual Battery system, 400 Wh/900 Wh
-
Drivetrain 1 × 10
-
Brakes Hydraulic Disc
Parts list
Main components, grouped by system.
Bike components
Frame
Frame
Tern GSD, 6061-AL, patented MultiTruss design, EFBE Tri-Test approved: 200 kg
Suspension Fork
Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 200 kg
Drivetrain
Rear Derailleur
Shimano Deore Shadow+
Shift Levers
Shimano Deore, 1 x 10 spd
Cassette
Shimano 11-42T, 10 spd
Crank
Tern GSD custom, forged 6061-AL DH crankarm
Bottom Bracket
Motor integrated
Chain
10 spd, DHT for eBike, GST corrosion resistant coating
Chain Guide
Tern Custom, full chain cover
Pedals
Urban with non-slip surface, sealed bearings
Wheels
Front Hub
Tern Atlas, Boost Thru-Axle, Cargo-optimized design, sealed cartridge bearing
Rear Hub
Tern Atlas, Boost Thru-Axle, Syntace X-12 standard, Cargo-optimized design
Rims
Tern Atlas, ultra wide 36 mm, dual reinforced joint
Tires
F: Schwalbe Big Ben Plus, 55-406, Green Guard puncture protection, Reflex R: Tern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex
Brakes
Brakes
Hydraulic Disc
Brake Levers
Magura MT5 e-stop, hydraulic, with brake sensor
Cockpit
Stem
Tern Andros, adjustable, forged construction, patented technology
Handlebar
Tern Sweep, 6061-AL, Tern Andros adapted
Headset
Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated
Seat
Saddle
Tern GSD by Velo, with rear handle
Seatpost
Tern Telescope, 34.9/30.9 mm, 2014-AL
Motor & Battery
Motor
Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
Battery
Bosch Dual Battery system, 400 Wh/900 Wh
Model Overview
GSD S10 LR belongs to the Tern E Gsd model. There are 16 e-bikes that carry this model name. Take a sneak peek at all Tern E Gsd e-bikes models from 2023, by clicking here.
Model range prices
Tern GSD S10 2023 is the cheapest e-bike model and costs 4999$. Tern GSD R14 2023 is the most expensive one and costs 7999$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Long Tail Cargo e-bikes
If you want an acceptable Long Tail Cargo e-bike you should know that the average price is 3082$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Long Tail Cargo e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
When Tern released this model in 2023, its price was 6204$. Comparing this to the average Long Tail Cargo e-bike price, we see that the price is 101.3% more expensive.
Average weight for Long Tail Cargo e-bikes
Long Tail Cargo e-bikes weigh an average of 32.16 kg (70.9 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
GSD S10 LR weighs 33.58 kg (74.03 lbs) and is slightly heavier than the average. In other words, this model is 4.42% heavier than the average Long Tail Cargo e-bike.
GSD S10 LR components
Fork
Tern GSD S10 LR 2023 e-bike is equipped with the Suntour fork, and has 70mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
The fork on this e-bike is made out of steel, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the e-bike.
Wheels size
When it comes to wheels, the GSD S10 LR e-bike is equipped with the 20″ aluminum model. This wheel size is used on bike models like BMX, children, or folding bikes. In conclusion, you can use them better on-road, and less on technical terrain.

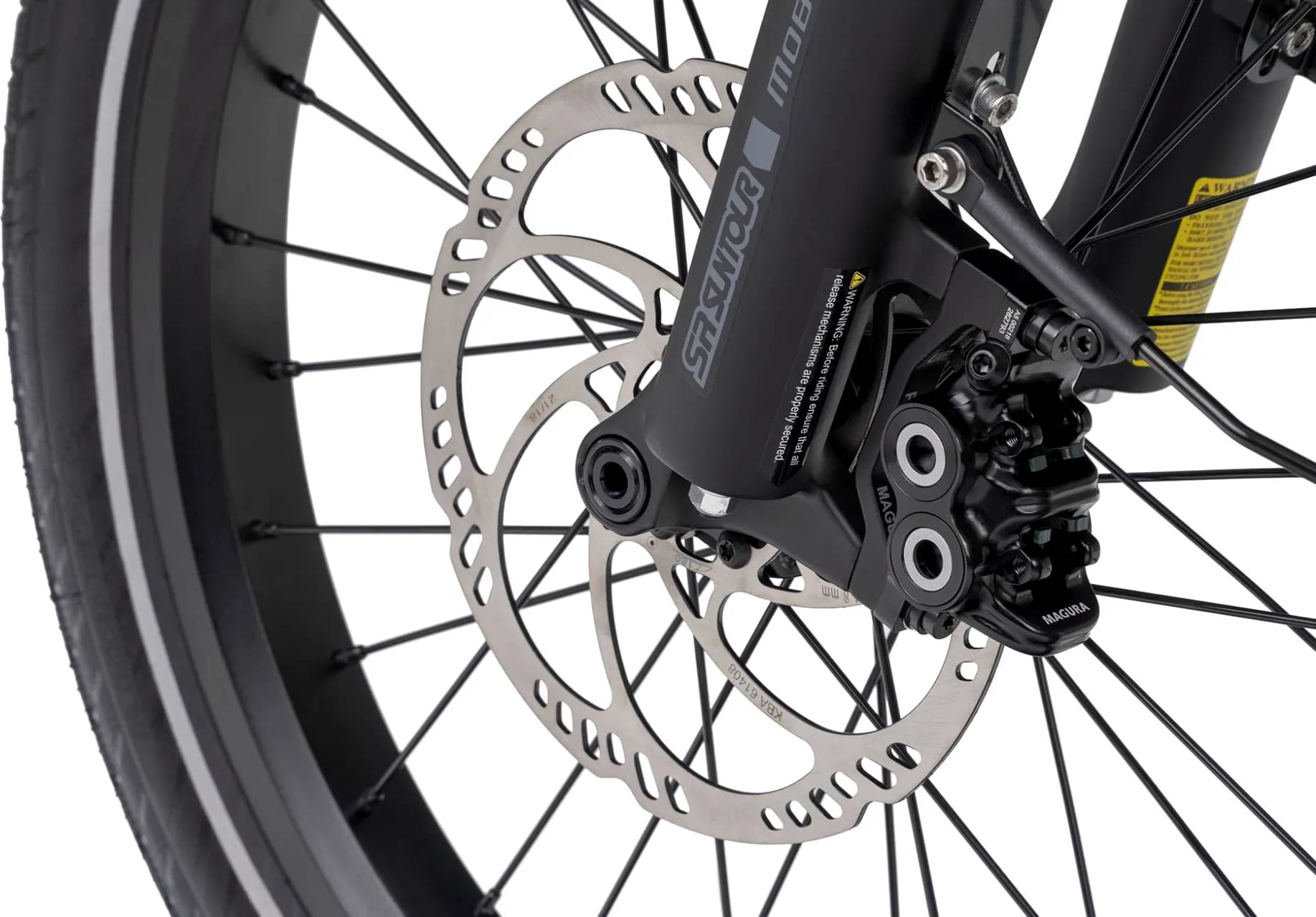

Brakes
For your safety, it is important to have quality breaks on your bike. Tern GSD S10 LR has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Tern GSD S10 LR 2023 is available in one size only. In conclusion, make sure it fits you, or look for another model.
