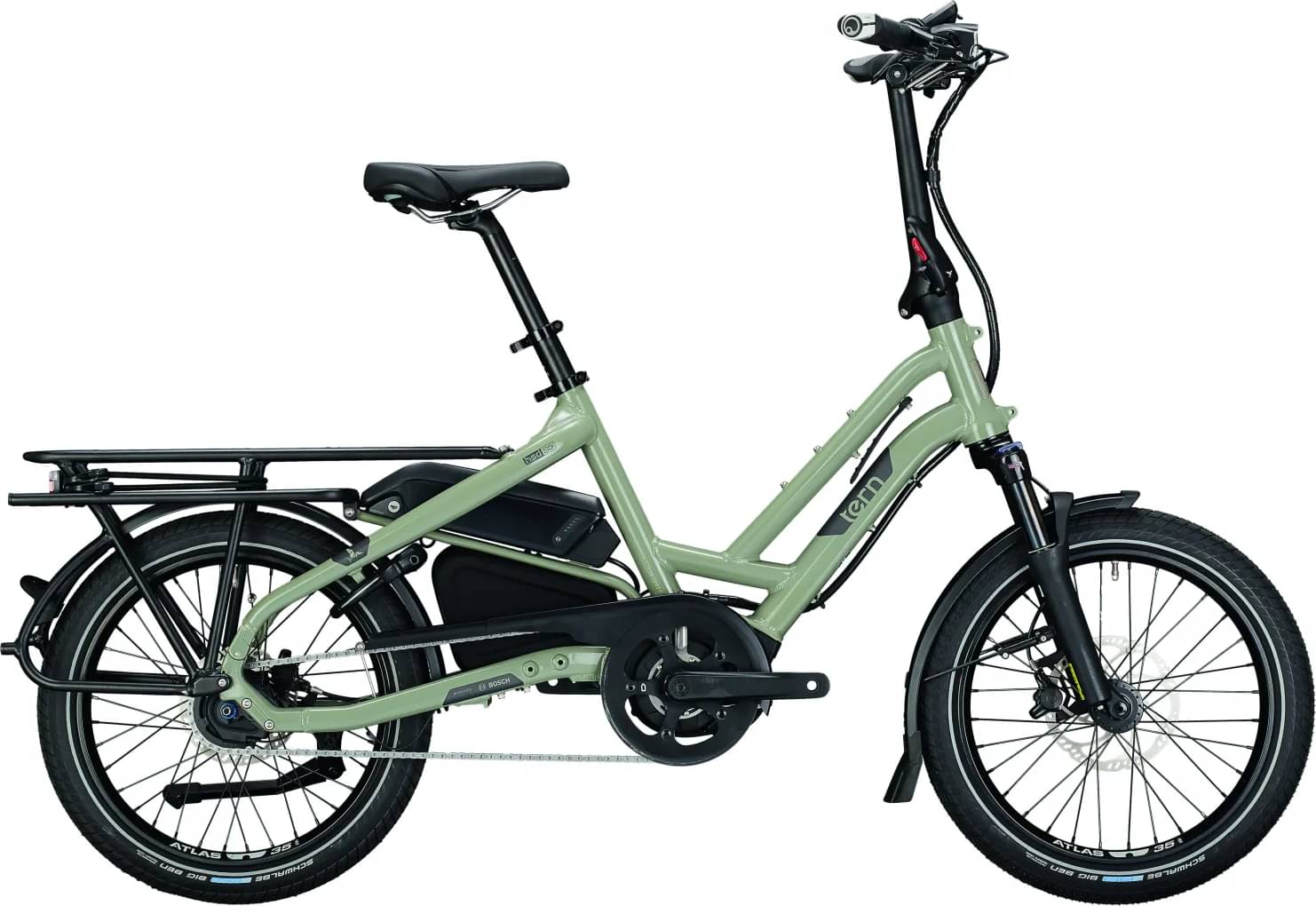

Tern HSD S5i 2022
2022 E-bike
Estimate price |
5,699$
Weight | 26 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 20" -
Travel Front 70mm -
Fork Suntour
-
Groupset Shimano -
Suspension Hardtail -
Motor Bosch 250W 60Nm mid-drive -
Battery Bosch PowerPack 500 -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Tern HSD, 6061-AL, patented design, EFBE Tri-Test approved: 170 kg
Suspension Fork
Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE Tri-Test approved: 170 kg
Drivetrain
Shift Levers
Shimano Di2, e-shift, 5 spd
Cassette
Shimano 27T
Crank
Tern HSD custom
Bottom Bracket
Motor integrated
Chain
KMC, EPT corrision resistant coating
Chain Guide
SKS Chainblade
Pedals
Urban with non-slip surface, sealed bearings
Wheels
Front Hub
Novatec, Thru-axle, sealed bearings
Rear Hub
Shimano Nexus 5E, Di2
Rims
Tern Atlas H, wide 35 mm
Tires
Schwalbe Big Ben, 55-406, RaceGuard puncture protection, ECE-R75 ebike certification
Brakes
Brakes
Hydraulic Disc
Brake Levers
Magura, hydraulic
Cockpit
Stem
Tern Andros, adjustable, forged construction, patented technology
Handlebar
Tern Sweep, 6061-AL, Tern Andros adapted
Headset
Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated
Seat
Saddle
Tern HSD
Seatpost
Cane Creek Thudbuster ST, Tern Telescope, 34.9/30.9 mm
Motor & Battery
Motor
Bosch Performance, 300% Assist, 60 Nm Torque, max speed 25 kph (EU)
Battery
Bosch PowerPack 500
Model Overview
HSD S5i is a Tern E Hsd model. 20 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Tern HSD P9 2022 is the most affordable e-bike of this model and has a price of 3699$. On the other hand, Tern HSD S+ 2022, is the most expensive and costs 6370$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Utility e-bikes average price
If you want an acceptable Utility e-bike you should know that the average price is 3636$. However, even if your budget is less than the average, you might still be able to get a top-quality Utility e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Tern HSD S5i price was 5202$. Doing a quick comparison, we notice that HSD S5i price is 43.07% higher than the average cost of an Utility e-bike.
Utility e-bikes average weight
The average weight for Utility e-bikes is 34.2 kg (75.4 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 26 kg (57.32 lbs), the HSD S5i model is much lighter than average. To sum up, it’s 31.54% lighter than the average weight of Utility e-bikes.
Overview of components
Fork
The Suntour is included from the factory. It has a travel distance of 70mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
The fork on this e-bike is made out of steel, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels
The wheels on HSD S5i are the 20″ aluminum type. This wheel size is used on bike models like BMX, children, or folding bikes. In conclusion, you can use them better on-road, and less on technical terrain.
Brakes
Nothing is more important on a bike than its ability to brake properly. Tern HSD S5i is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Tern HSD S5i 2022 is available in one size only. In conclusion, make sure it fits you, or look for another model.
