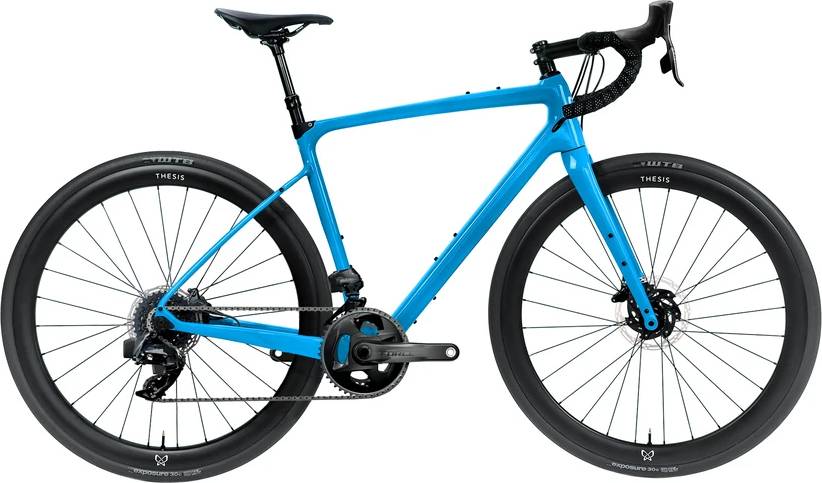

Thesis The OB1 AXS 2x — 650b 2020
2020 Road
Estimate price |
5,199$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 650b -
Groupset Force eTAP, SRAM -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Thesis OB1 Carbon
Suspension Fork
Thesis OB1 Carbon with SteerSafe
Drivetrain
Rear Derailleur
SRAM Force AXS 12spd Electronic
Front Derailleur
SRAM Force eTap AXS Electronic
Shift Levers
SRAM Force AXS HRD Electronic/Hydraulic
Cassette
SRAM Force XG-1270 10-33T 12spd
Crank
SRAM 46/33T
Bottom Bracket
Thesis 2-Piece Aluminum Interlocking
Chain
SRAM Force AXS
Wheels
Front Hub
DT Swiss DT350
Rear Hub
DT Swiss DT350
Rims
Hand-Built
Spokes
Pillar PSR X-TRA 1420 Cold-Forged Bladed
Brakes
Brakes
SRAM Force AXS HRD Electronic/Hydraulic
Disk Rotors
SRAM Centerline XR Centerlock 160mm
Cockpit
Stem
Thesis Ultralight
Handlebar
Thesis Compact Ergo Flare
Headset
Thesis Oversized Integrated
Seat
Saddle
Thesis Endurance 148 Saddle
Seatpost
Thesis Ultralight 3D Forged ? 1-piece 3D forged 2014-T6 aluminum quill ? Micro-adjustable 2-bolt clamp ? Broadly supportive lower clamp ? 0 offset to match OB1's 73° seattube angle ? 230g
Motor & Battery
Charger
SRAM AXS Powerpack Dual Battery Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.51 mm | 1.5 mm | 1.53 mm | 1.52 mm |
| Front Center | 578 mm | 586 mm | 598 mm | 616 mm | 637 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 66 mm | 60 mm | 54 mm | 54 mm | 54 mm |
| Stack | 527 mm | 557 mm | 577 mm | 601 mm | 620 mm |
| Reach | 362 mm | 369 mm | 384 mm | 394 mm | 409 mm |
| Top Tube Length | 521 mm | 537 mm | 553 mm | 576 mm | 597 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 530 mm | 560 mm |
| Head Tube Angle | 70 ° | 71 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 110 mm | 138 mm | 155 mm | 180 mm | 200 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 993 mm | 1001 mm | 1013 mm | 1031 mm | 1052 mm |
| Bottom Bracket Drop | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Standover Height | 726 mm | 756 mm | 781 mm | 811 mm | 841 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
The OB1 AXS 2x — 650b is part of the Thesis Ob1 model. Thesis launched 6 bikes of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Thesis The OB1 — 650b 2020 is the most affordable bike of this model and has a price of 3299$. On the other hand, Thesis The OB1 AXS 2x — 700 2020, is the most expensive and costs 5199$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Gravel bikes average price
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2020 and its price was 5199$. If we compare this with the average Gravel bike cost we notice that the price is 111.17% higher.
The OB1 AXS 2x — 650b components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
The wheels on The OB1 AXS 2x — 650b are the aluminum type. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
Nothing is more important on a bike than its ability to brake properly. Thesis The OB1 AXS 2x — 650b is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
