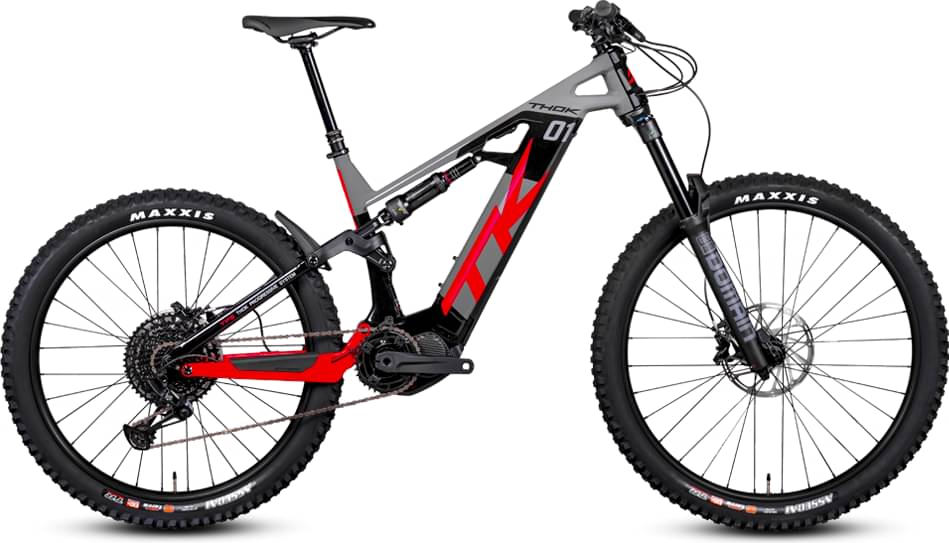

thok TK01 2022
2022 E-bike
Estimate price |
6,573$
Weight | 24.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 170mm -
Travel Rear 170mm -
Fork RockShox Domain
-
Groupset NX, SX Eagle -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery SHIMANO EP8 - 85 Nm (250W) - 630Wh integrated Shimano battery -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 169cm
MD
166cm - 179cm
LG
176cm - 186cm
XL
184cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy frame 6061 T4 T6 with 170mm rear travel, forged and CNC parts, hydroformed tubes, headtube tapered 1.8 and integrated battery.
Suspension Fork
ROCK SHOX - DOMAIN 29" Boost, DebonAir 170 mm, E-MTB, 44 OFFSET, 1.8 Tapered.
Rear Shock
ROCK SHOX - DELUXE Select R, THOK Custom tuned
Drivetrain
Rear Derailleur
SRAM - NX, 12s
Shift Levers
SRAM - SX Eagle Trigger, 12s
Cassette
SRAM - Eagle 12s (11-50)
Crank
FSA 165mm - chainring 34T
Chain
SRAM - Eagle 12s
Pedals
Pedals in polyethylene
Wheels
Rims
THOK Drift - 29"x30 mm front & 27.5"x35 mm rear
Tires
MAXXIS - Assegai 29x2.6 front & 27.5x2.6 rear. 3C / EXO+ / TR
Brakes
Brakes
SRAM - Guide T, 4 pistons calipter, 200mm Centerline rotor
Cockpit
Stem
THOK forged, 35mm front clamp oversize, 37mm length
Handlebar
THOK 35mm, rise 20mm, 780mm width
Grips
THOK - Lock-On grip, regular size
Seat
Saddle
THOK Fit in Chromo
Seatpost
THOK telescopic dropper post, (125mm size S - 150mm size M - 170mm sizes L and XL)
Motor & Battery
Motor
SHIMANO EP8 - 85 Nm (250W) - 630Wh integrated Shimano battery
Battery
SHIMANO EP8 - 85 Nm (250W) - 630Wh integrated Shimano battery
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.42 mm | 1.37 mm | 1.33 mm |
| Bottom Bracket Height | 355 mm | 355 mm | 355 mm | 355 mm |
| Front Center | 759 mm | 780 mm | 812 mm | 845 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 133.6 mm | 133.6 mm | 133.6 mm | 133.6 mm |
| Stack | 616 mm | 625 mm | 640 mm | 656 mm |
| Reach | 425 mm | 441 mm | 466 mm | 493 mm |
| Top Tube Length | 584 mm | 602 mm | 631 mm | 662 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 385 mm | 415 mm | 450 mm | 495 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 105 mm | 115 mm | 131 mm | 149 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1214 mm | 1235 mm | 1267 mm | 1300 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 785 mm | 785 mm | 785 mm | 785 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 166 cm | 176 cm | 184 cm |
| Rider Max Height | 169 cm | 179 cm | 186 cm | 199 cm |
Model Overview
TK01 completes the Thok E Tk01 model. Thok launched 7 e-bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Thok TK01 2022 is the most economical model, with a starting price of 5999$. Thok TK01 R 2022 on the other hand costs 7316$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Enduro e-bikes
According to our math, the average price for a trustworthy Enduro e-bike is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5999$. Doing a quick comparison, we notice that TK01 price is 25.37% higher than the average cost of an Enduro e-bike.
Enduro e-bikes average weight
If we make a quick analysis of the average weight of an Enduro e-bike, we get 23.42 kg (51.63 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 24.8 kg (54.67 lbs), Thok e-bike is a bit heavier than average. To sum up, it’s 5.89% heavier than the average weight of Enduro e-bikes.
Overview of components
Fork
This e-bike has the RockShox Domain fork installed. The fork’s travel is 170mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
As for the rear shock, this e-bike has the ROCK SHOX – DELUXE Select R model, with a travel of 170mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The TK01 2022 e-bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The TK01 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 154 cm – 199 cm (5.05 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the TK01. Therefore, climbing or descending will be a breeze.
