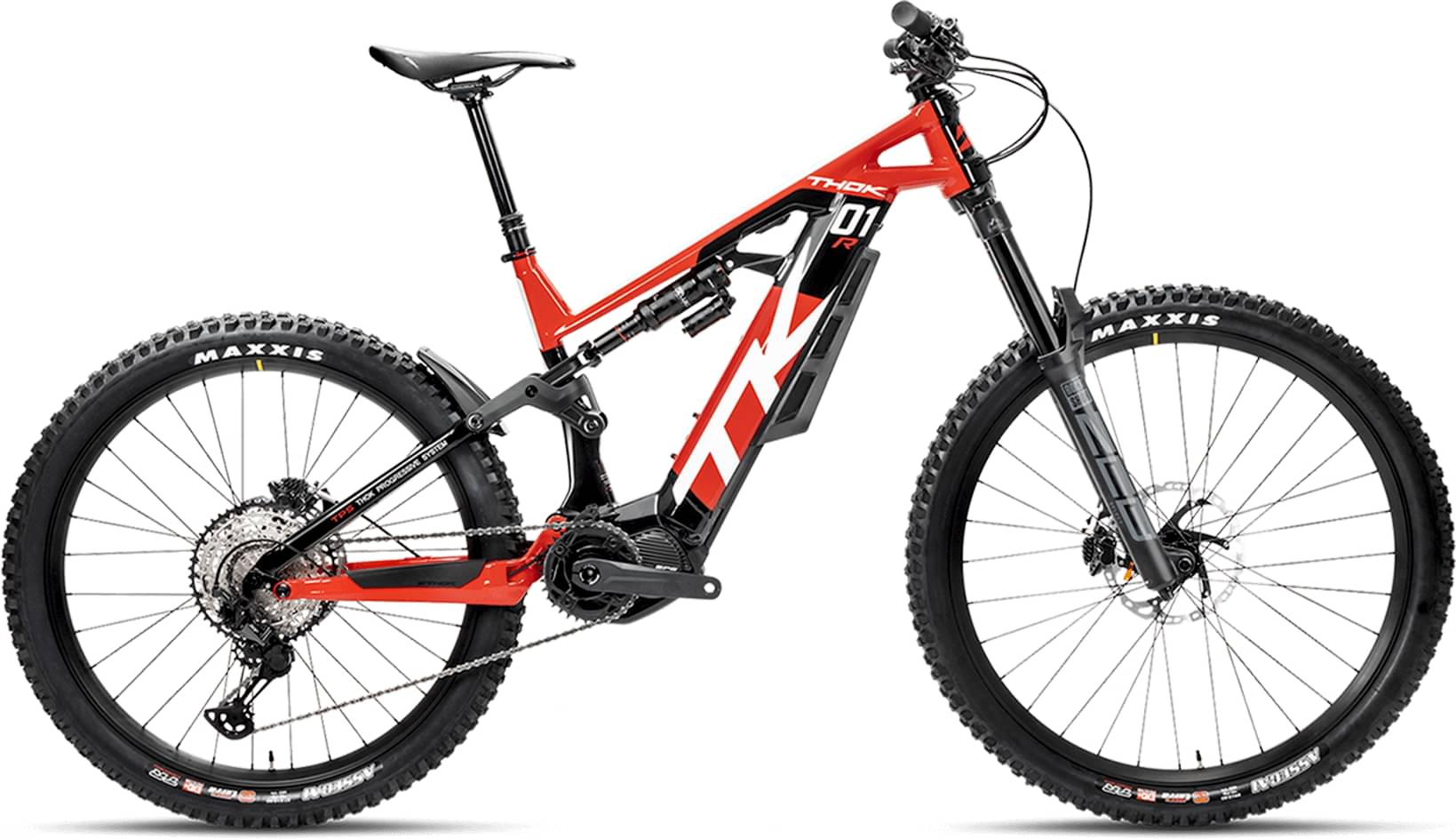

thok TK01 R 2022
2022 E-bike
Estimate price |
8,015$
Weight | 24.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 170mm -
Travel Rear 170mm -
Fork RockShox ZEB Select
-
Groupset XT, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery SHIMANO EP8 - 85 Nm (250W) - 630Wh integrated Shimano battery -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 169cm
MD
166cm - 179cm
LG
176cm - 186cm
XL
184cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy frame 6061 T4 T6 with 170mm rear travel, forged and CNC parts, hydroformed tubes, headtube tapered 1.8 and integrated battery.
Suspension Fork
ROCK SHOX - ZEB select RC 29" Boost, DebonAir 170 mm, E-MTB, 44 OFFSET, 1.8 Tapered
Rear Shock
ROCK SHOX - SUPER DELUXE Select+ RT, DebonAir 230x65mm, THOK Custom tuned
Drivetrain
Rear Derailleur
SHIMANO - XT, 12s
Shift Levers
SHIMANO - 12s
Cassette
SHIMANO - 12s (10-51)
Crank
FSA 165mm - chainring 34T
Chain
SHIMANO - 12s
Pedals
Pedals in polyethylene
Wheels
Rims
MAVIC rims - 29"x30 mm front and 27.5"x35 mm rear
Tires
MAXXIS - Assegai 29x2.6 front & 27.5x2.6 rear. 3C / EXO+ / TR
Brakes
Brakes
SHIMANO - XT, 4 pistons caliper, 203mm rotors
Cockpit
Stem
THOK, 35mm oversize, 37mm length
Handlebar
THOK 35mm, rise 20mm, 780mm width
Grips
THOK - Lock-On
Seat
Saddle
THOK Fit in Chromo
Seatpost
THOK telescopic dropper post, (125mm size S - 150mm size M - 170mm sizes L and XL)
Motor & Battery
Motor
SHIMANO EP8 - 85 Nm (250W) - 630Wh integrated Shimano battery
Battery
SHIMANO EP8 - 85 Nm (250W) - 630Wh integrated Shimano battery
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.42 mm | 1.37 mm | 1.33 mm |
| Bottom Bracket Height | 355 mm | 355 mm | 355 mm | 355 mm |
| Front Center | 759 mm | 780 mm | 812 mm | 845 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 133.6 mm | 133.6 mm | 133.6 mm | 133.6 mm |
| Stack | 625 mm | 625 mm | 640 mm | 656 mm |
| Reach | 425 mm | 441 mm | 466 mm | 493 mm |
| Top Tube Length | 584 mm | 602 mm | 631 mm | 662 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 385 mm | 415 mm | 450 mm | 495 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 105 mm | 115 mm | 131 mm | 149 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1214 mm | 1235 mm | 1267 mm | 1300 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 785 mm | 785 mm | 785 mm | 785 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 166 cm | 176 cm | 184 cm |
| Rider Max Height | 169 cm | 179 cm | 186 cm | 199 cm |
About this model
TK01 R belongs to the Thok E Tk01 model. There are 7 e-bikes that carry this model name. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Thok TK01 2022 is the cheapest e-bike model and costs 5999$. Thok TK01 R 2022 is the most expensive one and costs 7316$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Enduro e-bikes average price
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
This e-bike was released in 2022 and its price was 7316$. If we compare this with the average Enduro e-bike cost we notice that the price is 52.89% higher.
Average weight for Enduro e-bikes
On a deeper look, we notice that the average weight of an Enduro e-bike is 23.42 kg (51.63 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Thok TK01 R it’s weighing 24.8 kg (54.67 lbs). At this weight, is a bit heavier than average. To sum up, it’s 5.89% heavier than the average weight of Enduro e-bikes.
Overview of components
Fork
The TK01 R comes factory-installed with the RockShox ZEB Select fork. This has a travel range of 170mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The shock that’s installed on this e-bike is ROCK SHOX – SUPER DELUXE Select+ RT, with a travel distance of 170mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When it comes to wheels, the TK01 R e-bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Thok TK01 R has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
TK01 R comes in 4 sizes, that range from 154 cm – 199 cm (5.05 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Thok TK01 R includes a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
