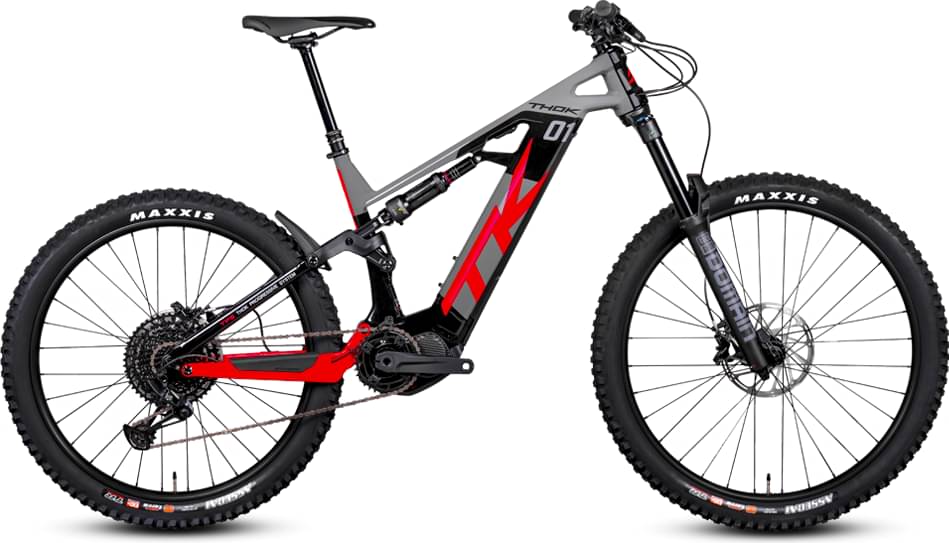

thok TK01 2023
2023 E-bike
Estimate price |
6,573$
Weight | 24.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 170mm -
Travel Rear 170mm -
Fork RockShox Domain
-
Groupset NX, SX Eagle -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery SHIMANO EP8 - 85 Nm (250W) - 630Wh integrated Shimano battery -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 169cm
MD
166cm - 179cm
LG
176cm - 186cm
XL
184cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy frame 6061 T4 T6 with 170mm rear travel, forged and CNC parts, hydroformed tubes, headtube tapered 1.8 and integrated battery.
Suspension Fork
ROCK SHOX - DOMAIN 29" Boost, DebonAir 170 mm, E-MTB, 44 OFFSET, 1.8 Tapered.
Rear Shock
ROCK SHOX - DELUXE Select R, THOK Custom tuned
Drivetrain
Rear Derailleur
SRAM - NX, 12s
Shift Levers
SRAM - SX Eagle Trigger, 12s
Cassette
SRAM - Eagle 12s (11-50)
Crank
FSA 165mm - chainring 34T
Chain
SRAM - Eagle 12s
Pedals
Pedals in polyethylene
Wheels
Rims
THOK Drift - 29"x30 mm front & 27.5"x35 mm rear
Tires
MAXXIS - Assegai 29x2.6 front & 27.5x2.6 rear. 3C / EXO+ / TR
Brakes
Brakes
SRAM - Guide T, 4 pistons calipter, 200mm Centerline rotor
Cockpit
Stem
THOK forged, 35mm front clamp oversize, 37mm length
Handlebar
THOK 35mm, rise 20mm, 780mm width
Grips
THOK - Lock-On grip, regular size
Seat
Saddle
THOK Fit in Chromo
Seatpost
THOK telescopic dropper post, (125mm size S - 150mm size M - 170mm sizes L and XL)
Motor & Battery
Motor
SHIMANO EP8 - 85 Nm (250W) - 630Wh integrated Shimano battery
Battery
SHIMANO EP8 - 85 Nm (250W) - 630Wh integrated Shimano battery
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.42 mm | 1.37 mm | 1.33 mm |
| Bottom Bracket Height | 355 mm | 355 mm | 355 mm | 355 mm |
| Front Center | 759 mm | 780 mm | 812 mm | 845 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 133.6 mm | 133.6 mm | 133.6 mm | 133.6 mm |
| Stack | 616 mm | 625 mm | 640 mm | 656 mm |
| Reach | 425 mm | 441 mm | 466 mm | 493 mm |
| Top Tube Length | 584 mm | 602 mm | 631 mm | 662 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 385 mm | 415 mm | 450 mm | 495 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 105 mm | 115 mm | 131 mm | 149 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1214 mm | 1235 mm | 1267 mm | 1300 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 785 mm | 785 mm | 785 mm | 785 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 166 cm | 176 cm | 184 cm |
| Rider Max Height | 169 cm | 179 cm | 186 cm | 199 cm |
Model Overview
TK01 is a Thok E Tk01 model. There are 7 e-bikes that carry this model name. Take a sneak peek at all Thok E Tk01 e-bikes models from 2023, by clicking here.
Model range prices
The most economical model, the Thok TK01 Matt Grey 2023 has a starting price of 5829$. Thok TK01 R 2023 on the other hand is the most expensive at 7316$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Enduro e-bikes average price
If you want to purchase a solid Enduro e-bike, it is important to know that the average cost is 4785$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
This e-bike was released in 2023 and its price was 5999$. Comparing this to the average Enduro e-bike price, we see that the price is 25.37% more expensive.
Enduro e-bikes average weight
Enduro e-bikes weigh an average of 23.42 kg (51.63 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
a bit heavier than average, TK01 has a weight of 24.8 kg (54.67 lbs). To sum up, it’s 5.89% heavier than the average weight of Enduro e-bikes.
Overview of components
Fork
This e-bike has the RockShox Domain fork installed. The fork’s travel is 170mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
As for the rear shock, this e-bike has the ROCK SHOX – DELUXE Select R model, with a travel of 170mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When leaving the production line, the TK01 model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The TK01 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Thok TK01 e-bike has 4 sizes, in the range of 154 cm – 199 cm (5.05 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Every bike should have a dropper post, and this one does. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
