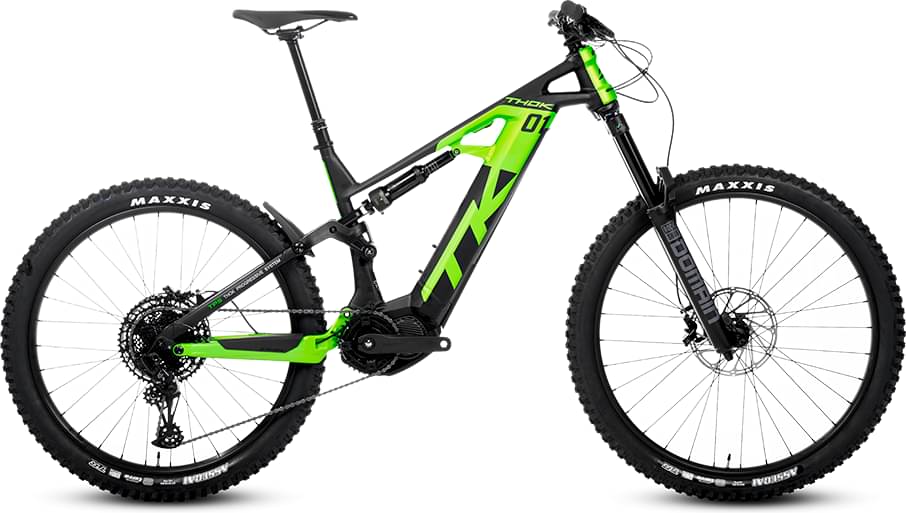

thok TK01 Color Edition 2023
2023 E-bike
Estimate price |
6,689$
Weight | 24.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 170mm -
Travel Rear 170mm -
Fork RockShox Domain
-
Groupset NX, SX Eagle -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery SHIMANO EP8 - 85 Nm (250W) - 630Wh integrated Shimano battery -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 169cm
MD
166cm - 179cm
LG
176cm - 186cm
XL
184cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy frame 6061 T4 T6 with 170mm rear travel, forged and CNC parts, hydroformed tubes, headtube tapered 1.8 and integrated battery.
Suspension Fork
ROCK SHOX - DOMAIN 29" Boost, DebonAir 170 mm, E-MTB, 44 OFFSET, 1.8 Tapered.
Rear Shock
ROCK SHOX - DELUXE Select R, THOK Custom tuned
Drivetrain
Rear Derailleur
SRAM - NX, 12s
Shift Levers
SRAM - SX Eagle Trigger, 12s
Cassette
SRAM - Eagle 12s (11-50)
Crank
FSA 165mm - chainring 34T
Chain
SRAM - Eagle 12s
Pedals
Pedals in polyethylene
Wheels
Rims
THOK Drift - 29"x30 mm front & 27.5"x35 mm rear
Tires
MAXXIS - Assegai 29x2.6 front & 27.5x2.6 rear. 3C / EXO+ / TR
Brakes
Brakes
SRAM - Guide T, 4 pistons calipter, 200mm Centerline rotor
Cockpit
Stem
THOK forged, 35mm front clamp oversize, 37mm length
Handlebar
THOK 35mm, rise 20mm, 780mm width
Grips
THOK - Lock-On grip, regular size
Seat
Saddle
THOK Fit in Chromo
Seatpost
THOK telescopic dropper post, (125mm size S - 150mm size M - 170mm sizes L and XL)
Motor & Battery
Motor
SHIMANO EP8 - 85 Nm (250W) - 630Wh integrated Shimano battery
Battery
SHIMANO EP8 - 85 Nm (250W) - 630Wh integrated Shimano battery
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.42 mm | 1.37 mm | 1.33 mm |
| Bottom Bracket Height | 355 mm | 355 mm | 355 mm | 355 mm |
| Front Center | 759 mm | 780 mm | 812 mm | 845 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 133.6 mm | 133.6 mm | 133.6 mm | 133.6 mm |
| Stack | 616 mm | 625 mm | 640 mm | 656 mm |
| Reach | 425 mm | 441 mm | 466 mm | 493 mm |
| Top Tube Length | 584 mm | 602 mm | 631 mm | 662 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 385 mm | 415 mm | 450 mm | 495 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 105 mm | 115 mm | 131 mm | 149 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1214 mm | 1235 mm | 1267 mm | 1300 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 785 mm | 785 mm | 785 mm | 785 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 166 cm | 176 cm | 184 cm |
| Rider Max Height | 169 cm | 179 cm | 186 cm | 199 cm |
Model Overview
TK01 Color Edition completes the Thok E Tk01 model. There are 7 e-bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
The most economical model, the Thok TK01 Matt Grey 2023 has a starting price of 5829$. Thok TK01 R 2023 on the other hand is the most expensive at 7316$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Enduro e-bikes
According to our calculations, the average cost of an Enduro e-bike that is reliable is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
This e-bike was released in 2023 and its price was 6105$. Comparing this to the average Enduro e-bike price, we see that the price is 27.59% higher.
Average weight for Enduro e-bikes
Enduro e-bikes weigh an average of 23.42 kg (51.63 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 24.8 kg (54.67 lbs), the TK01 Color Edition model is a bit heavier than average. To sum up, it’s 5.89% heavier than the average weight of Enduro e-bikes.
Overview of components
Fork
Thok TK01 Color Edition 2023 e-bike is equipped with the RockShox Domain fork, and has 170mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The shock that’s installed on this e-bike is ROCK SHOX – DELUXE Select R, with a travel distance of 170mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
As for the wheels, Thok TK01 Color Edition 2023, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Thok TK01 Color Edition is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
TK01 Color Edition comes in 4 sizes, that range from 154 cm – 199 cm (5.05 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
A dropper post is included with the TK01 Color Edition. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
