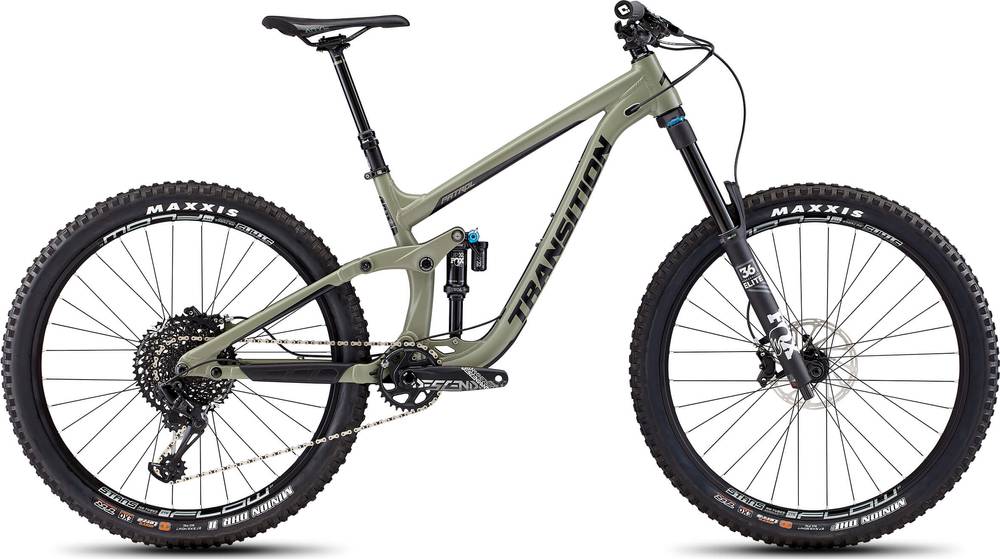

Transition PATROL ALLOY COMPLETE GX 2019
2019 Mountain
Estimate price |
4,399$
Weight | 15.05 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 170mm -
Travel Rear 160mm -
Fork Fox Performance Elite Float 36
-
Groupset GX Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
143cm - 160cm
SM
154cm - 170cm
MD
164cm - 182cm
LG
175cm - 190cm
XL
184cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Patrol Alloy 160mm Rear/170mm Front
Suspension Fork
Fox 36 Grip 2 Performance Elite 170mm
Rear Shock
Fox DPX2 Performance Elite
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM GX Eagle
Cassette
SRAM XG 1275 (10-50t)
Crank
SRAM Descendent 7K DUB (170mm x 32t)
Chain
SRAM GX Eagle
Wheels
Rims
Stans Flow S1 Team
Tires
Front: Maxxis Minion DHF 3C WT (27.5x2.5), Rear: Maxxis Minion DHRII 3C WT (27.5x2.4)
Brakes
Brakes
SRAM Code RSC
Disk Rotors
SRAM Centerline (180mm)
Cockpit
Stem
RaceFace Aeffect R (40mm)
Handlebar
RaceFace Chester 35, XS (760 x 10mm), SM (780 x 20mm), MD/LG/XL (780 x 35mm)
Grips
ODI Elite Flow
Headset
FSA No.57E
Seat
Saddle
ANVL Forge Cromo
Seatpost
RockShox Reverb Stealth 1x Remote, XS (100mm), SM (125mm), MD (150mm), LG/XL (170mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.41 mm | 1.35 mm | 1.3 mm | 1.25 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 724 mm | 749 mm | 779 mm | 808 mm | 838 mm |
| Rake | 37 mm | 37 mm | 37 mm | 37 mm | 37 mm |
| Trail | 132 mm | 132 mm | 132 mm | 132 mm | 132 mm |
| Stack | 590 mm | 590 mm | 599 mm | 608 mm | 617 mm |
| Reach | 394 mm | 419 mm | 444 mm | 469 mm | 494 mm |
| Seat Tube Angle | 78.4 ° | 77.8 ° | 77.1 ° | 76.6 ° | 76.1 ° |
| Seat Tube Length | 360 mm | 360 mm | 400 mm | 440 mm | 490 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1148 mm | 1173 mm | 1203 mm | 1232 mm | 1262 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 674 mm | 674 mm | 679 mm | 689 mm | 704 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 143 cm | 154 cm | 164 cm | 175 cm | 184 cm |
| Rider Max Height | 160 cm | 170 cm | 182 cm | 190 cm | 200 cm |
About this model
PATROL ALLOY COMPLETE GX completes the Transition Patrol model. There are 56 bikes that carry this model name. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
The most economical model, the Transition PATROL ALLOY COMPLETE NX 2019 has a starting price of 3199$. Transition PATROL CARBON COMPLETE XO1 2019 on the other hand is the most expensive at 5999$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Enduro bikes
If you want an acceptable Enduro bike you should know that the average price is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Transition PATROL ALLOY COMPLETE GX price was 4399$. In conclusion, this bike price is 22.23% more expensive than the price of the average Enduro bike.
Average weight for Enduro bikes
Enduro bikes have an average weight of 14.27 kg (31.46 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 15.05 kg (33.18 lbs), Transition bike is a bit heavier than average. In short, the average Enduro bike weight is 5.47% lower than this one.
Overview of components
Fork
Transition PATROL ALLOY COMPLETE GX 2019 bike is equipped with the Fox Performance Elite Float 36 fork, and has 170mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The PATROL ALLOY COMPLETE GX has a rear shock with a travel of 160mm. The model Fox DPX2 Performance Elite is the one installed in this bike. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
The wheels on PATROL ALLOY COMPLETE GX are the 27.5″ aluminum type. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Transition PATROL ALLOY COMPLETE GX bike has 5 sizes, in the range of 143 cm – 200 cm (4.69 ft – 6.56 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Transition PATROL ALLOY COMPLETE GX includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
