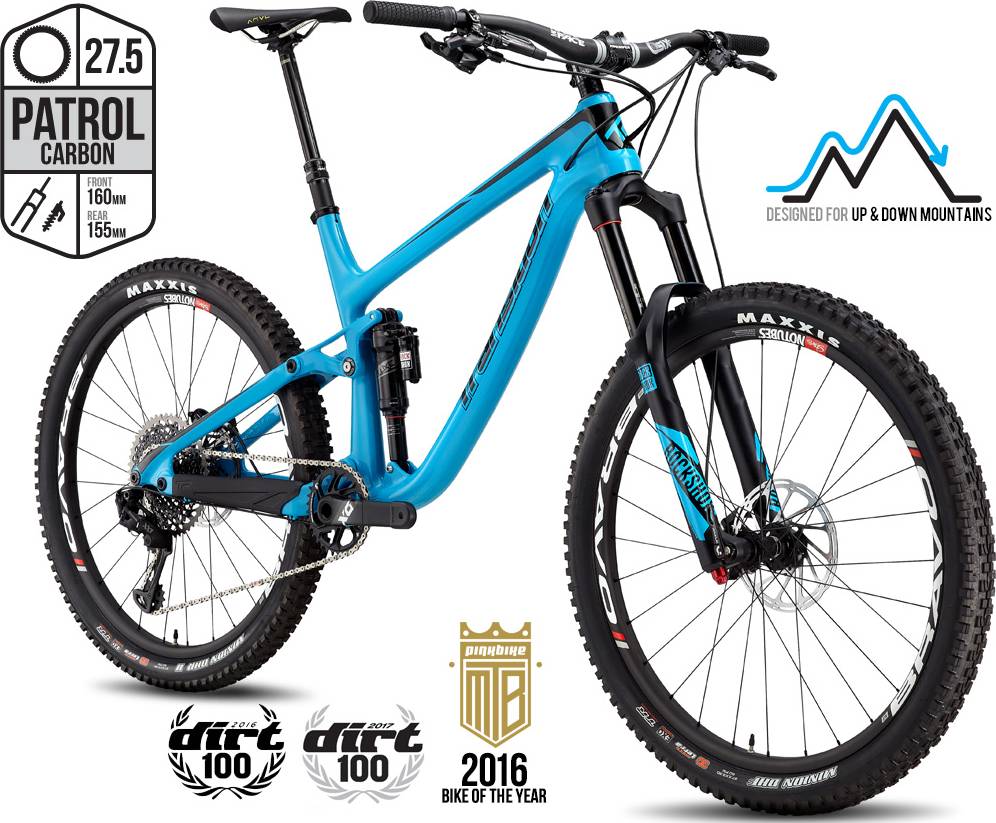

Transition PATROL CARBON Complete 2017
2017 Mountain
Estimate price |
5,299$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Fork RockShox Lyrik
-
Groupset GX, Race Face -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
164cm - 182cm
LG
175cm - 190cm
XL
184cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
RockShox Lyrik RC Solo Air 160mm (Color Match Fork Decals Included)
Rear Shock
RockShox Super Deluxe RC3
Drivetrain
Rear Derailleur
SRAM GX
Shift Levers
SRAM GX
Cassette
SRAM XG1150 (10-42)
Crank
RaceFace Aeffect Cinch (DM32t, 170mm or 175mm)**
Chain
SRAM PC1130
Wheels
Front Hub
SRAM MTH 716/746
Rear Hub
SRAM MTH 716/746
Rims
RaceFace AR 30mm 27.5 32h
Tires
Maxxis Minion DHF 27.5x2.3 EXO Dual Front, Maxxis Minion DHR II 27.5x2.3 EXO Dual Rear
Brakes
Brakes
SRAM Guide R
Disk Rotors
SRAM Centerline (180mm)
Cockpit
Stem
RaceFace Aeffect 35 50mm
Handlebar
RaceFace Chester 35 (780mm x 35mm)
Grips
Velo Single Clamp
Headset
FSA No.57E
Seat
Saddle
ANVL Forge Stealth CroMo
Seatpost
KS Lev Integra w/ Southpaw Remote (150mm, 125mm or 100mm)**
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.4 mm | 1.34 mm | 1.28 mm |
| Bottom Bracket Height | 339 mm | 339 mm | 339 mm | 339 mm |
| Front Center | 721 mm | 751 mm | 780 mm | 810 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 119 mm | 119 mm | 119 mm | 119 mm |
| Stack | 584 mm | 593 mm | 602 mm | 611 mm |
| Reach | 399 mm | 425 mm | 450 mm | 476 mm |
| Top Tube Length | 548 mm | 576 mm | 606 mm | 634 mm |
| Seat Tube Angle | 76 ° | 75.4 ° | 74.9 ° | 74.5 ° |
| Seat Tube Length | 393 mm | 419 mm | 457 mm | 495 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1144 mm | 1174 mm | 1203 mm | 1233 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 678 mm | 686 mm | 698 mm | 710 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 154 cm | 164 cm | 175 cm | 184 cm |
| Rider Max Height | 170 cm | 182 cm | 190 cm | 200 cm |
About this model
PATROL CARBON Complete completes the Transition Patrol model. 56 bikes variations carry this model name so far. You can easily view all of the Transition Patrol bikes models from 2017, here.
Model range prices
Transition PATROL Complete 2017 is the most affordable bike of this model and has a price of 3099$. On the other hand, Transition PATROL CARBON Complete Kit 1 2017, is the most expensive and costs 8999$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Enduro bikes
Our math shows that the average cost of a dependable Enduro bike is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2017 for 5299$. If we compare this with the average Enduro bike cost we notice that the price is 47.24% higher.
PATROL CARBON Complete components
Fork
Transition PATROL CARBON Complete 2017 bike is equipped with the RockShox Lyrik fork, and has 160mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
As for the wheels, Transition PATROL CARBON Complete 2017, has a 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The PATROL CARBON Complete comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 154 cm – 200 cm (5.05 ft – 6.56 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Transition PATROL CARBON Complete comes with a dropper post. Therefore, climbing or descending will be a breeze.
