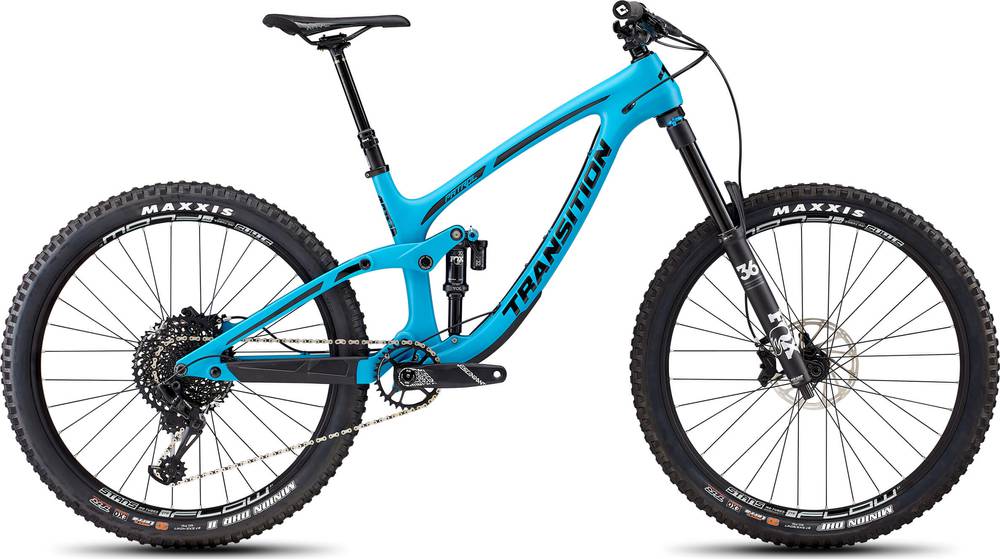

Transition PATROL CARBON COMPLETE GX 2019
2019 Mountain
Estimate price |
4,999$
Weight | 14.26 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 170mm -
Travel Rear 160mm -
Fork Fox Performance Float 36
-
Groupset GX Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
164cm - 182cm
LG
175cm - 190cm
XL
184cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Patrol Carbon 160mm Rear/170mm Front
Suspension Fork
Fox 36 Grip Performance 170mm
Rear Shock
Fox DPX2 Performance
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM GX Eagle
Cassette
SRAM XG 1275 (10-50t)
Crank
SRAM Descendent 6K DUB (170mm x 32t)
Chain
SRAM GX Eagle
Wheels
Rims
Stans Flow S1 Comp
Tires
Front: Maxxis Minion DHF 3C WT (27.5x2.5), Rear: Maxxis Minion DHRII 3C WT (27.5x2.4)
Brakes
Brakes
SRAM Code R
Disk Rotors
SRAM Centerline (180mm)
Cockpit
Stem
RaceFace Aeffect R (40mm)
Handlebar
RaceFace Chester 35, SM 780 x 20mm), MD/LG/XL (780 x 35mm)
Grips
ODI Elite Flow
Headset
FSA No.57E
Seat
Saddle
ANVL Forge Cromo
Seatpost
RockShox Reverb Stealth, SM (125mm), MD (150mm), LG/XL (170mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.35 mm | 1.3 mm | 1.25 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 749 mm | 779 mm | 808 mm | 838 mm |
| Rake | 37 mm | 37 mm | 37 mm | 37 mm |
| Trail | 132 mm | 132 mm | 132 mm | 132 mm |
| Stack | 590 mm | 599 mm | 608 mm | 617 mm |
| Reach | 419 mm | 444 mm | 469 mm | 494 mm |
| Seat Tube Angle | 77.8 ° | 77.1 ° | 76.6 ° | 76.1 ° |
| Seat Tube Length | 360 mm | 400 mm | 440 mm | 490 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1173 mm | 1203 mm | 1232 mm | 1262 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 674 mm | 679 mm | 689 mm | 704 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 154 cm | 164 cm | 175 cm | 184 cm |
| Rider Max Height | 170 cm | 182 cm | 190 cm | 200 cm |
Model Overview
PATROL CARBON COMPLETE GX completes the Transition Patrol model. 56 bikes variations carry this model name so far. You can easily view all of the Transition Patrol bikes models from 2019, here.
Model range prices
Transition PATROL ALLOY COMPLETE NX 2019 is the most economical model, with a starting price of 3199$. Transition PATROL CARBON COMPLETE XO1 2019 on the other hand costs 5999$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Enduro bikes average price
According to our math, the average price for a trustworthy Enduro bike is 3599$. However, even though the average price of an Enduro bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4999$. Doing a quick comparison, we notice that PATROL CARBON COMPLETE GX price is 38.9% more expensive than the average cost of an Enduro bike.
Average weight for Enduro bikes
On a deeper look, we notice that the average weight of an Enduro bike is 14.27 kg (31.46 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Transition PATROL CARBON COMPLETE GX it’s weighing 14.26 kg (31.44 lbs). At this weight, is slightly lighter than average. In conclusion, the average Enduro bike weighs 0.07% more than PATROL CARBON COMPLETE GX.
Overview of components
Fork
This bike has the Fox Performance Float 36 fork installed. The fork’s travel is 170mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The PATROL CARBON COMPLETE GX has a rear shock with a travel of 160mm. The model Fox DPX2 Performance is the one installed in this bike. Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When leaving the production line, the PATROL CARBON COMPLETE GX model has 27.5″ aluminum wheels. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Transition PATROL CARBON COMPLETE GX has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 154 cm – 200 cm (5.05 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Transition PATROL CARBON COMPLETE GX includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
