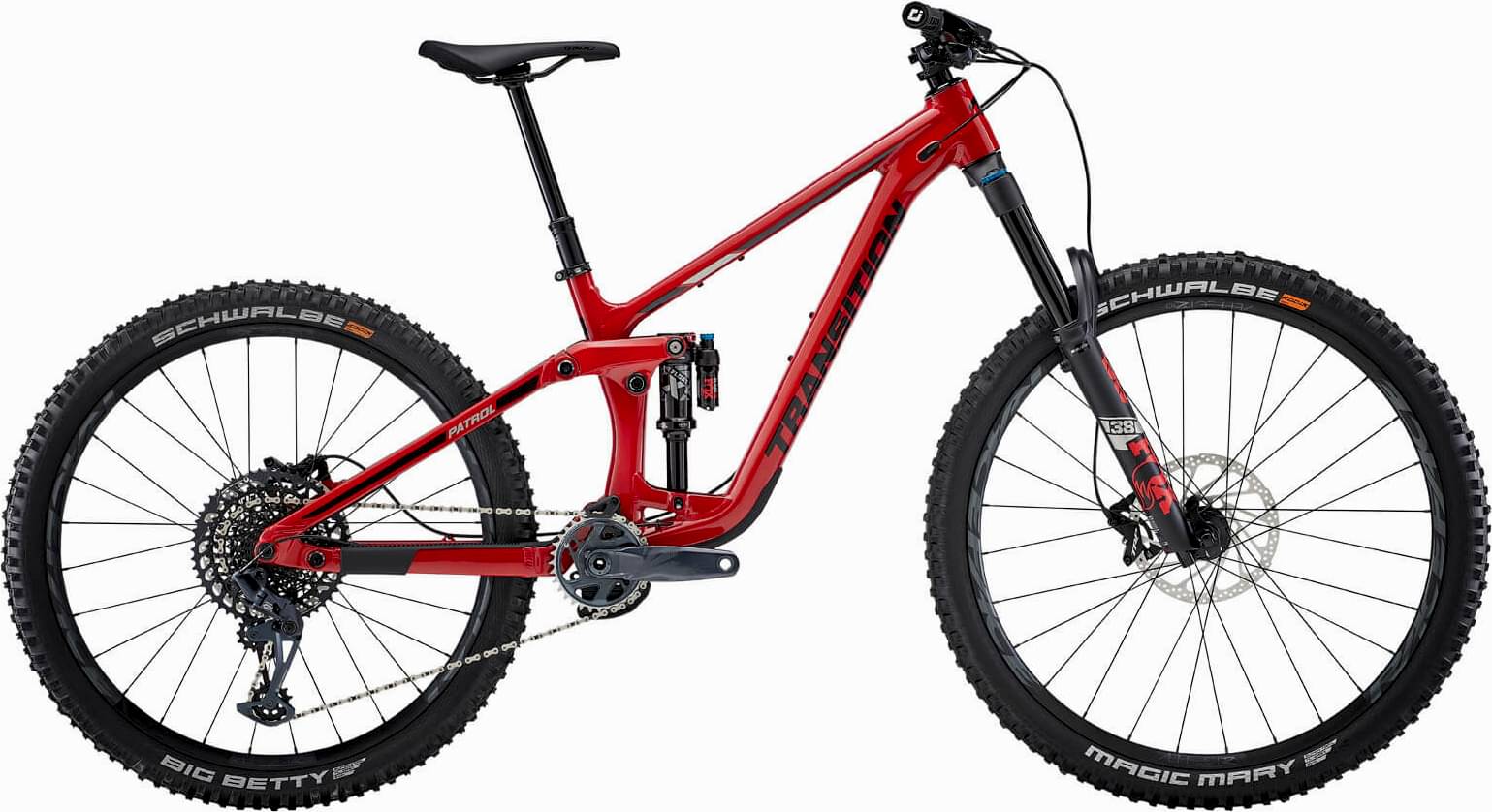

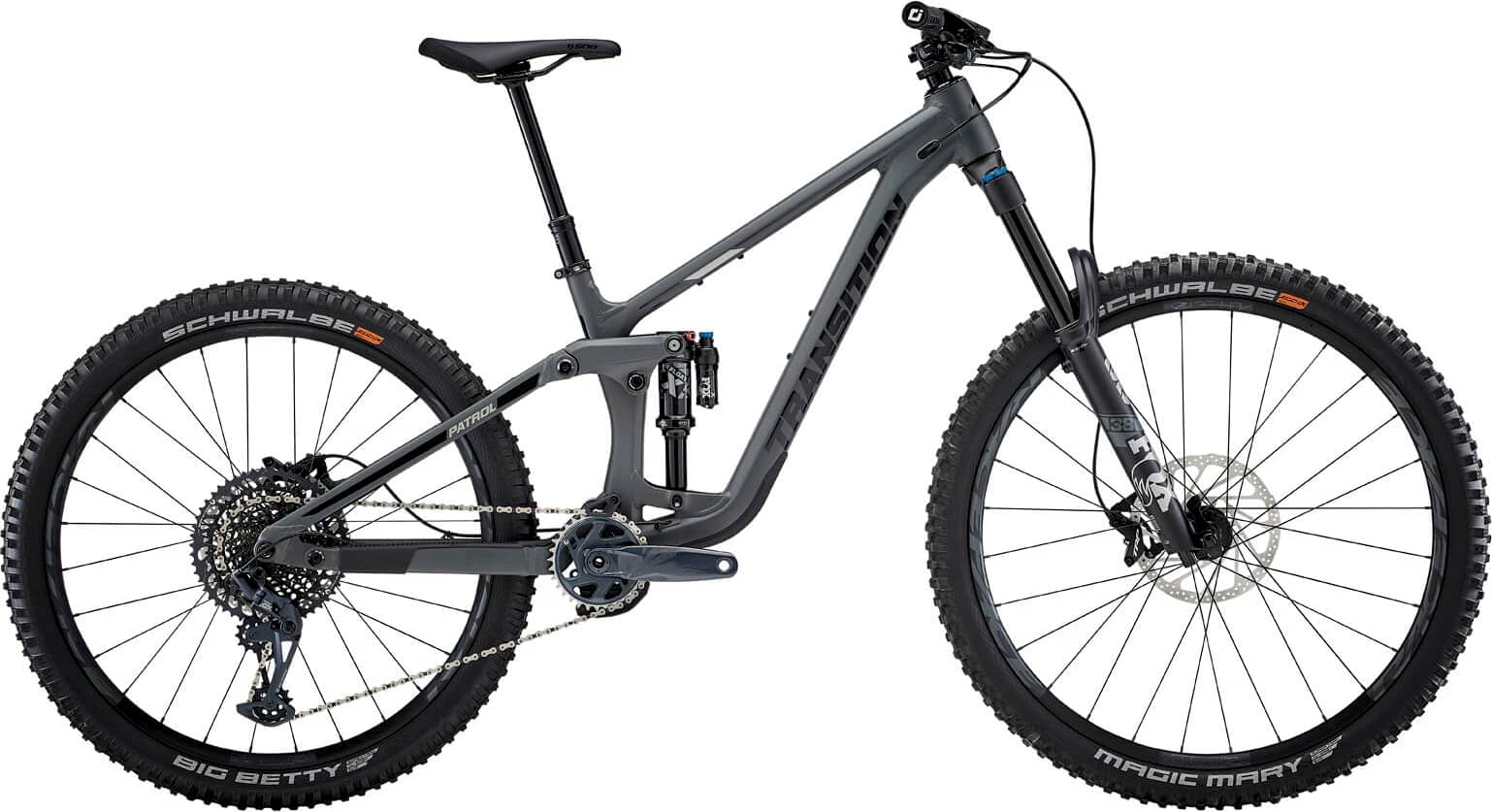

Transition Patrol GX Alloy Fox 2023
2023 Mountain
Estimate price |
5,499$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox Performance Elite Float 38
-
Groupset GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM High
154cm - 170cm
SM Low
154cm - 170cm
MD High
164cm - 182cm
MD Low
164cm - 182cm
LG High
175cm - 190cm
LG Low
175cm - 190cm
XL High
184cm - 200cm
XL Low
184cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Patrol Alloy 160mm
Suspension Fork
Fox Float 38 Performance Elite, (160mm)
Rear Shock
Fox Float X Performance Elite, (205x60)
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM GX Eagle
Cassette
SRAM XG 1275 (10-52t)
Crank
SRAM GX Alloy DUB, (32t/165mm)
Bottom Bracket
73mm BSA Threaded
Chain
SRAM GX Eagle
Chain Guide
OneUp Bash Guide
Wheels
Front Hub
RaceFace Trace 28H
Rear Hub
RaceFace Trace 28H
Rims
RaceFace Aeffect R
Spokes
RaceFace 2.0/1.7/2.0
Tires
Front: Schwalbe Magic Mary, Super Trail, Soft (2.4), Rear: Schwalbe Big Betty, Super Trail, Soft (2.4)
Brakes
Brakes
TRP DH-R Evo
Cockpit
Stem
ANVL Swage (40mm)
Handlebar
ANVL Mandrel Alloy 35, SM(800x20) MD/LG/XL(800x30)
Grips
ODI Elite Flow
Headset
FSA NO.55R/57
Seat
Saddle
SDG Bel Air 3
Seatpost
OneUp Dropper Post
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.52 mm | 1.37 mm | 1.4 mm | 1.32 mm | 1.35 mm | 1.26 mm | 1.28 mm |
| Bottom Bracket Height | 340 mm | 333 mm | 340 mm | 333 mm | 340 mm | 333 mm | 340 mm | 333 mm |
| Front Center | 762 mm | 763 mm | 797 mm | 798 mm | 826 mm | 827 mm | 861 mm | 862 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 148 mm | 152 mm | 148 mm | 152 mm | 148 mm | 153 mm | 148 mm | 153 mm |
| Stack | 617 mm | 622 mm | 617 mm | 622 mm | 626 mm | 631 mm | 635 mm | 640 mm |
| Reach | 414 mm | 409 mm | 449 mm | 444 mm | 474 mm | 469 mm | 504 mm | 499 mm |
| Top Tube Length | 534 mm | 537 mm | 569 mm | 572 mm | 597 mm | 600 mm | 630 mm | 633 mm |
| Seat Tube Angle | 79.6 ° | 79.1 ° | 78.8 ° | 78.3 ° | 78.1 ° | 77.6 ° | 77.5 ° | 77 ° |
| Seat Tube Length | 360 mm | 360 mm | 390 mm | 390 mm | 430 mm | 430 mm | 460 mm | 460 mm |
| Head Tube Angle | 63.5 ° | 63 ° | 63.5 ° | 63 ° | 63.5 ° | 63 ° | 63.5 ° | 63 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm | 100 mm | 110 mm | 110 mm | 120 mm | 120 mm |
| Chainstay Length | 428 mm | 430 mm | 428 mm | 430 mm | 434 mm | 436 mm | 434 mm | 436 mm |
| Wheelbase | 1190 mm | 1192 mm | 1225 mm | 1227 mm | 1260 mm | 1262 mm | 1295 mm | 1297 mm |
| Bottom Bracket Drop | 15 mm | 22 mm | 15 mm | 22 mm | 15 mm | 22 mm | 15 mm | 22 mm |
| Standover Height | 669 mm | 679 mm | 684 mm | 694 mm | 699 mm | 709 mm | 714 mm | 724 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 154 cm | 164 cm | 164 cm | 175 cm | 175 cm | 184 cm | 184 cm |
| Rider Max Height | 170 cm | 170 cm | 182 cm | 182 cm | 190 cm | 190 cm | 200 cm | 200 cm |
About this model
Patrol GX Alloy Fox belongs to the Transition Patrol model. 56 bikes variations carry this model name so far. You can easily view all of the Transition Patrol bikes models from 2023, here.
Model range prices
Transition Patrol Alloy NX 2023 is the most affordable bike of this model and has a price of 4199$. On the other hand, Transition Patrol XO Carbon 2023, is the most expensive and costs 8499$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Enduro bikes
According to our calculations, the average cost of an Enduro bike that is reliable is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Transition Patrol GX Alloy Fox price was 5499$. Comparing the average cost of an Enduro bike to this one, you will see that Patrol GX Alloy Fox price is 52.79% higher.
Overview of components
Fork
The Patrol GX Alloy Fox comes factory-installed with the Fox Performance Elite Float 38 fork. This has a travel range of 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The Patrol GX Alloy Fox has a rear shock with a travel of 160mm. The model Fox Float X Performance Elite is the one installed in this bike. Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
The wheels on Patrol GX Alloy Fox are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Transition Patrol GX Alloy Fox is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Transition Patrol GX Alloy Fox bike has 8 sizes, in the range of 154 cm – 200 cm (5.05 ft – 6.56 ft). In short, you can easily find one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
