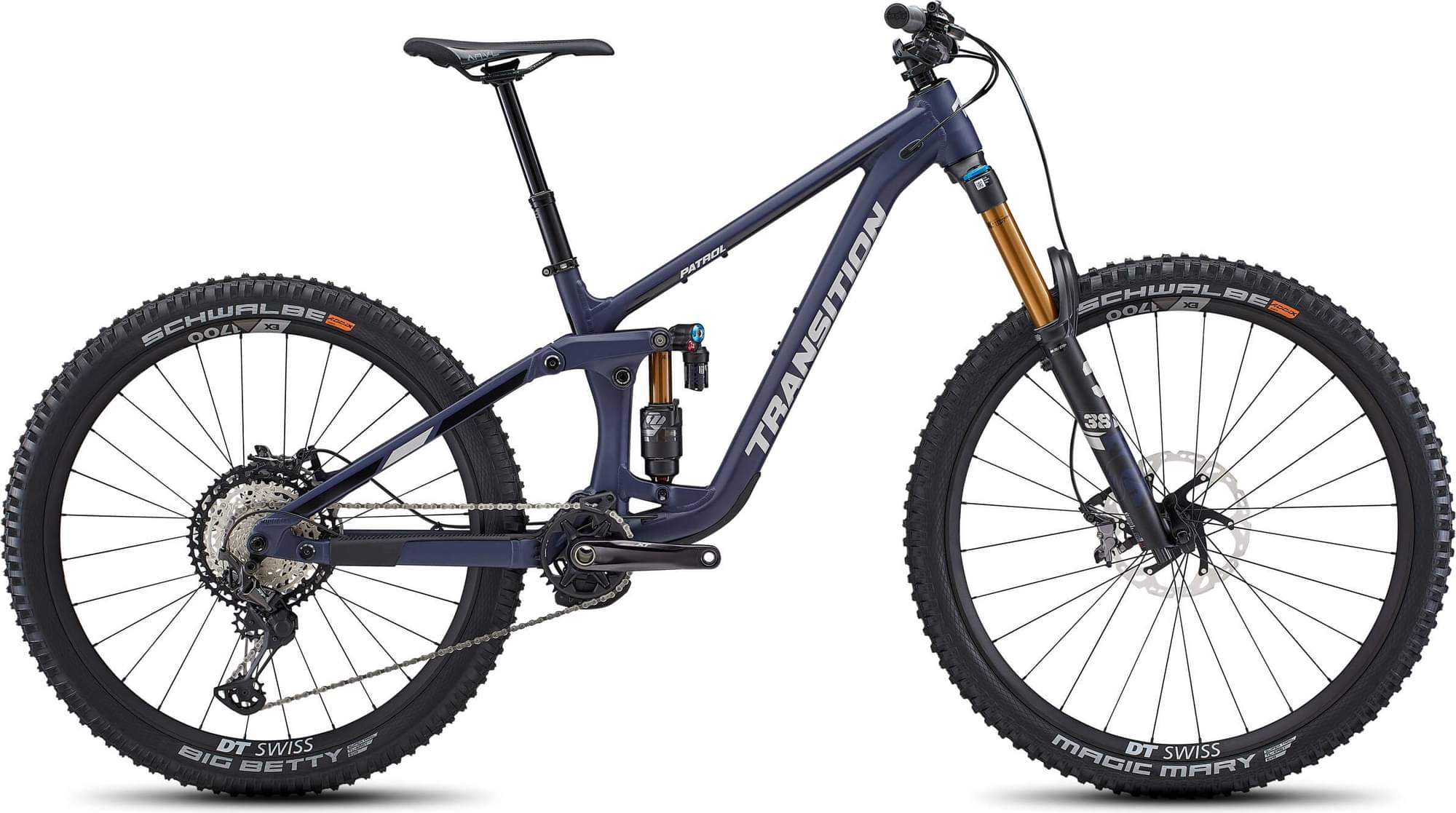

Transition Patrol GX TRP Alloy 2022
2022 Mountain
Estimate price |
5,299$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Travel Rear 160mm -
Fork RockShox ZEB Ultimate
-
Groupset GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM High
154cm - 170cm
SM Low
154cm - 170cm
MD High
164cm - 182cm
MD Low
164cm - 182cm
LG High
175cm - 190cm
LG Low
175cm - 190cm
XL High
184cm - 200cm
XL Low
184cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Patrol Alloy 160mm
Suspension Fork
RockShox ZEB Ultimate, 160mm Travel/44mm Offset
Rear Shock
RockShox Super Deluxe, Ultimate Air (205x60)
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM GX Eagle
Cassette
SRAM XG 1275 (10-52t)
Crank
SRAM GX Alloy DUB (32t/165mm)
Chain
SRAM GX Eagle
Chain Guide
OneUp Bash Guide
Wheels
Front Hub
Stans Neo Durasync
Rear Hub
Stans Neo Durasync
Rims
Stans Flow S1
Spokes
Sapim Race Double Butted
Tires
Front: Schwalbe Magic Mary, Super Trail, Soft (29x2.4), Rear: Schwalbe Big Betty, Super Trail, Soft (27.5x2.4)
Brakes
Brakes
TRP DH-R Evo
Cockpit
Stem
ANVL Swage (40mm)
Handlebar
ANVL Mandrel Alloy 35, SM (800x20), MD/LG/XL (800x30)
Grips
ODI Elite Flow
Headset
FSA NO.55R/57
Seat
Saddle
ANVL Forge Cromo
Seatpost
OneUp Dropper Post
Fit data

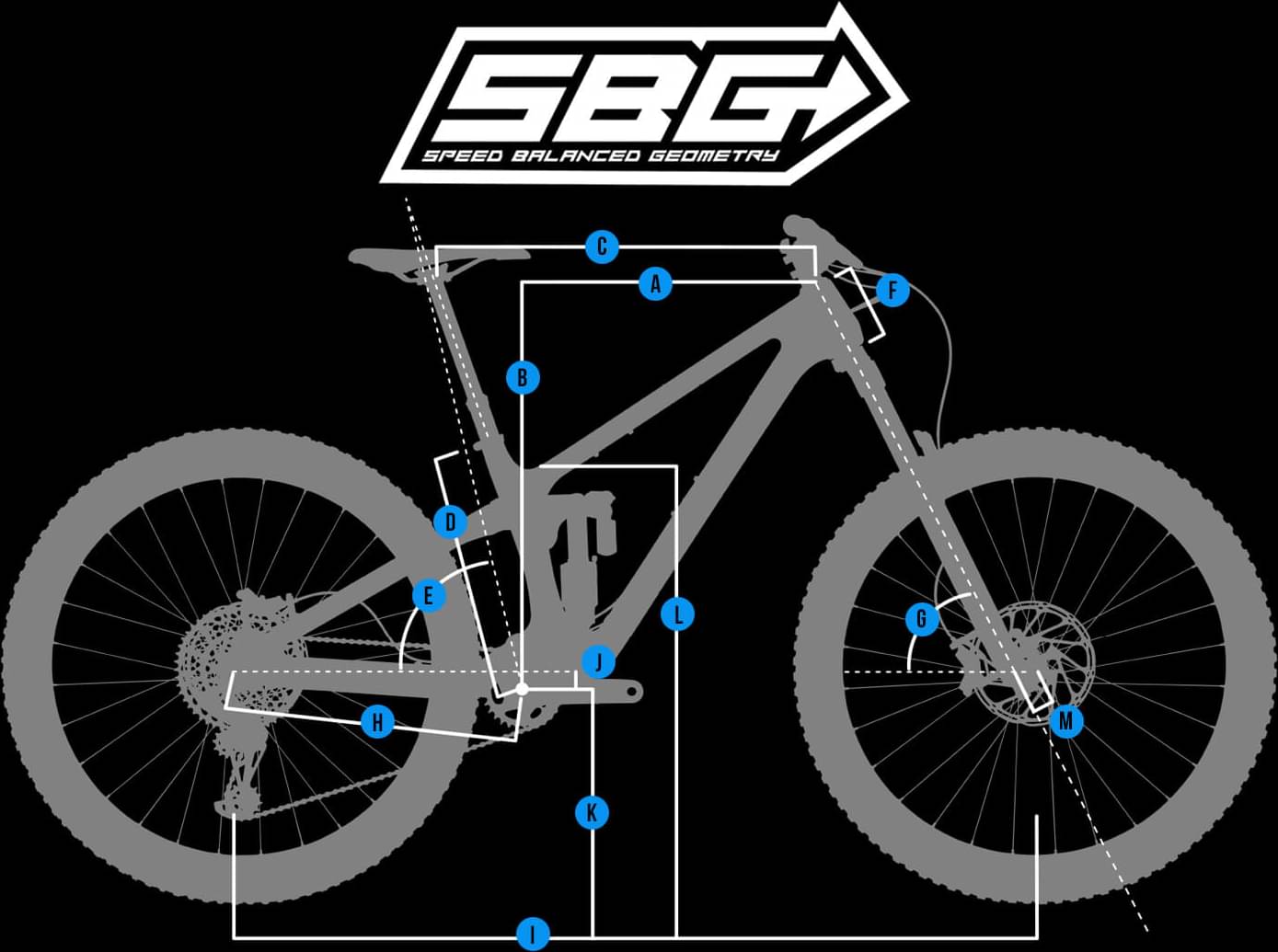

Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.52 mm | 1.37 mm | 1.4 mm | 1.32 mm | 1.35 mm | 1.26 mm | 1.28 mm |
| Bottom Bracket Height | 340 mm | 333 mm | 340 mm | 333 mm | 340 mm | 333 mm | 340 mm | 333 mm |
| Front Center | 762 mm | 763 mm | 797 mm | 798 mm | 826 mm | 827 mm | 861 mm | 862 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 148 mm | 152 mm | 148 mm | 152 mm | 148 mm | 153 mm | 148 mm | 153 mm |
| Stack | 617 mm | 622 mm | 617 mm | 622 mm | 626 mm | 631 mm | 635 mm | 640 mm |
| Reach | 414 mm | 409 mm | 449 mm | 444 mm | 474 mm | 469 mm | 504 mm | 499 mm |
| Top Tube Length | 534 mm | 537 mm | 569 mm | 572 mm | 597 mm | 600 mm | 630 mm | 633 mm |
| Seat Tube Angle | 79.6 ° | 79.1 ° | 78.8 ° | 78.3 ° | 78.1 ° | 77.6 ° | 77.5 ° | 77 ° |
| Seat Tube Length | 360 mm | 360 mm | 390 mm | 390 mm | 430 mm | 430 mm | 460 mm | 460 mm |
| Head Tube Angle | 63.5 ° | 63 ° | 63.5 ° | 63 ° | 63.5 ° | 63 ° | 63.5 ° | 63 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm | 100 mm | 110 mm | 110 mm | 120 mm | 120 mm |
| Chainstay Length | 428 mm | 430 mm | 428 mm | 430 mm | 434 mm | 436 mm | 434 mm | 436 mm |
| Wheelbase | 1190 mm | 1192 mm | 1225 mm | 1227 mm | 1260 mm | 1262 mm | 1295 mm | 1297 mm |
| Bottom Bracket Drop | 15 mm | 22 mm | 15 mm | 22 mm | 15 mm | 22 mm | 15 mm | 22 mm |
| Standover Height | 669 mm | 679 mm | 684 mm | 694 mm | 699 mm | 709 mm | 714 mm | 724 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 154 cm | 164 cm | 164 cm | 175 cm | 175 cm | 184 cm | 184 cm |
| Rider Max Height | 170 cm | 170 cm | 182 cm | 182 cm | 190 cm | 190 cm | 200 cm | 200 cm |
About this model
Patrol GX TRP Alloy is a Transition Patrol model. Transition released 56 bikes variations of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Transition Patrol Deore Alloy 2022 is the most affordable bike of this model and has a price of 3799$. On the other hand, Transition Patrol GX Carbon 2022, is the most expensive and costs 6699$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Enduro bikes
According to our math, the average price for a trustworthy Enduro bike is 3599$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5299$. Comparing the average cost of an Enduro bike to this one, you will see that Patrol GX TRP Alloy price is 47.24% higher.
Overview of components
Fork
Transition Patrol GX TRP Alloy 2022 bike is equipped with the RockShox ZEB Ultimate fork, and has 160mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
As for the rear shock, this bike has the RockShox Super Deluxe model, with a travel of 160mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The wheels on Patrol GX TRP Alloy are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This bike is available in 8 sizes. They vary from 154 cm – 200 cm (5.05 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
A dropper post is included with the Patrol GX TRP Alloy. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
