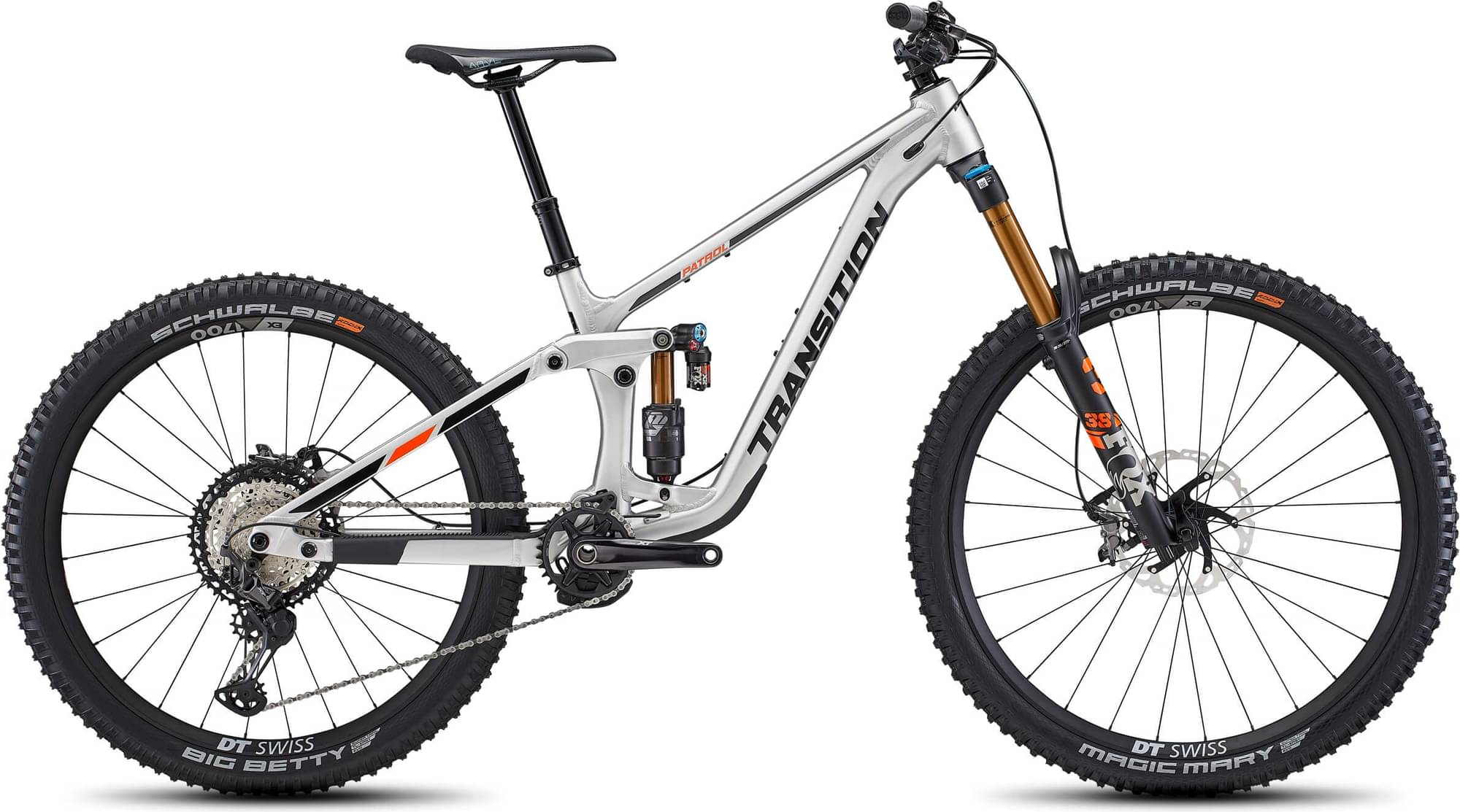

Transition Patrol XT Alloy 2022
2022 Mountain
Estimate price |
5,599$
Weight | 15.69 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 29" -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox Factory Float 38
-
Groupset XT -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM High
154cm - 170cm
SM Low
154cm - 170cm
MD High
164cm - 182cm
MD Low
164cm - 182cm
LG High
175cm - 190cm
LG Low
175cm - 190cm
XL High
184cm - 200cm
XL Low
184cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Patrol Alloy 160mm
Suspension Fork
Fox Float 38 Grip 2 Factory, 160mm Travel/44mm Offset
Rear Shock
Fox Float X2 Factory, 2 Position (205x60)
Drivetrain
Rear Derailleur
Shimano XT M8100
Shift Levers
Shimano XT M8100
Cassette
Shimano XT M8100 (10-51t)
Crank
Shimano XT M8100 (32t/165mm)
Bottom Bracket
BSA, 73mm, threaded
Chain
Shimano XT M8100
Chain Guide
OneUp Bash Guide
Wheels
Front Hub
DT Swiss 350 Straight Pull 36SL
Rear Hub
DT Swiss 350 Straight Pull 36SL
Rims
DT Swiss EX 1700 Spline 30
Spokes
DT Swiss Competition
Tires
Front: Schwalbe Magic Mary, Super Trail, Soft (29x2.4), Rear: Schwalbe Big Betty, Super Trail, Soft (27.5x2.4)
Brakes
Brakes
Shimano XT M8120
Disk Rotors
Shimano RT86 (203mm)
Cockpit
Stem
ANVL Swage (40mm)
Handlebar
ANVL Mandrel Alloy 35, SM (800x20), MD/LG/XL (800x30)
Grips
Sensus Lite
Headset
FSA NO.55R/57
Seat
Saddle
ANVL Forge Cromo
Seatpost
OneUp Dropper Post
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.52 mm | 1.37 mm | 1.4 mm | 1.32 mm | 1.35 mm | 1.26 mm | 1.28 mm |
| Bottom Bracket Height | 340 mm | 333 mm | 340 mm | 333 mm | 340 mm | 333 mm | 340 mm | 333 mm |
| Front Center | 762 mm | 763 mm | 797 mm | 798 mm | 826 mm | 827 mm | 861 mm | 862 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 148 mm | 152 mm | 148 mm | 152 mm | 148 mm | 153 mm | 148 mm | 153 mm |
| Stack | 617 mm | 622 mm | 617 mm | 622 mm | 626 mm | 631 mm | 635 mm | 640 mm |
| Reach | 414 mm | 409 mm | 449 mm | 444 mm | 474 mm | 469 mm | 504 mm | 499 mm |
| Top Tube Length | 534 mm | 537 mm | 569 mm | 572 mm | 597 mm | 600 mm | 630 mm | 633 mm |
| Seat Tube Angle | 79.6 ° | 79.1 ° | 78.8 ° | 78.3 ° | 78.1 ° | 77.6 ° | 77.5 ° | 77 ° |
| Seat Tube Length | 360 mm | 360 mm | 390 mm | 390 mm | 430 mm | 430 mm | 460 mm | 460 mm |
| Head Tube Angle | 63.5 ° | 63 ° | 63.5 ° | 63 ° | 63.5 ° | 63 ° | 63.5 ° | 63 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm | 100 mm | 110 mm | 110 mm | 120 mm | 120 mm |
| Chainstay Length | 428 mm | 430 mm | 428 mm | 430 mm | 434 mm | 436 mm | 434 mm | 436 mm |
| Wheelbase | 1190 mm | 1192 mm | 1225 mm | 1227 mm | 1260 mm | 1262 mm | 1295 mm | 1297 mm |
| Bottom Bracket Drop | 15 mm | 22 mm | 15 mm | 22 mm | 15 mm | 22 mm | 15 mm | 22 mm |
| Standover Height | 669 mm | 679 mm | 684 mm | 694 mm | 699 mm | 709 mm | 714 mm | 724 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 154 cm | 164 cm | 164 cm | 175 cm | 175 cm | 184 cm | 184 cm |
| Rider Max Height | 170 cm | 170 cm | 182 cm | 182 cm | 190 cm | 190 cm | 200 cm | 200 cm |
Model Overview
Patrol XT Alloy is part of the Transition Patrol model. Transition launched 56 bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Transition Patrol Deore Alloy 2022 is the most economical model, with a starting price of 3799$. Transition Patrol GX Carbon 2022 on the other hand costs 6699$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Enduro bikes
According to our calculations, the average cost of an Enduro bike that is reliable is 3599$. However, you could also get a good Enduro bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2022 and its price was 5599$. Comparing this to the average Enduro bike price, we see that the price is 55.57% more expensive.
Enduro bikes average weight
Enduro bikes weigh an average of 14.27 kg (31.46 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 15.69 kg (34.59 lbs), the Patrol XT Alloy model is a bit heavier than average. In other words, this model is 9.95% heavier than the average Enduro bike.
Patrol XT Alloy components
Fork
This bike has the Fox Factory Float 38 fork installed. The fork’s travel is 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Transition Patrol XT Alloy bike has the Fox Float X2 Factory model installed, and has a travel of 160mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The wheels on Patrol XT Alloy are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Transition Patrol XT Alloy has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
There are 8 sizes available for this model. Rider height can be anywhere between 154 cm – 200 cm (5.05 ft – 6.56 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Transition Patrol XT Alloy comes with a dropper post. Therefore, climbing or descending will be a breeze.
