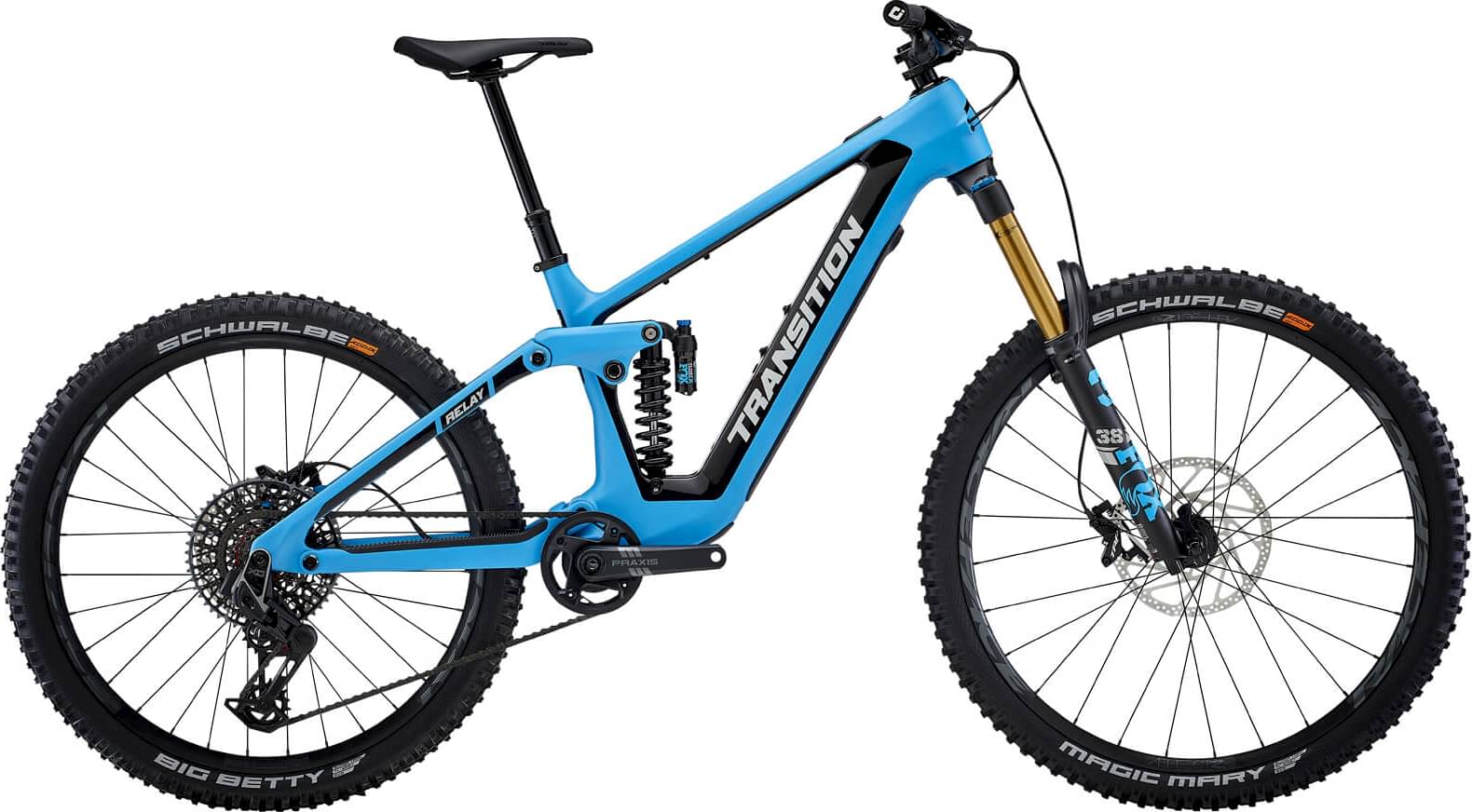

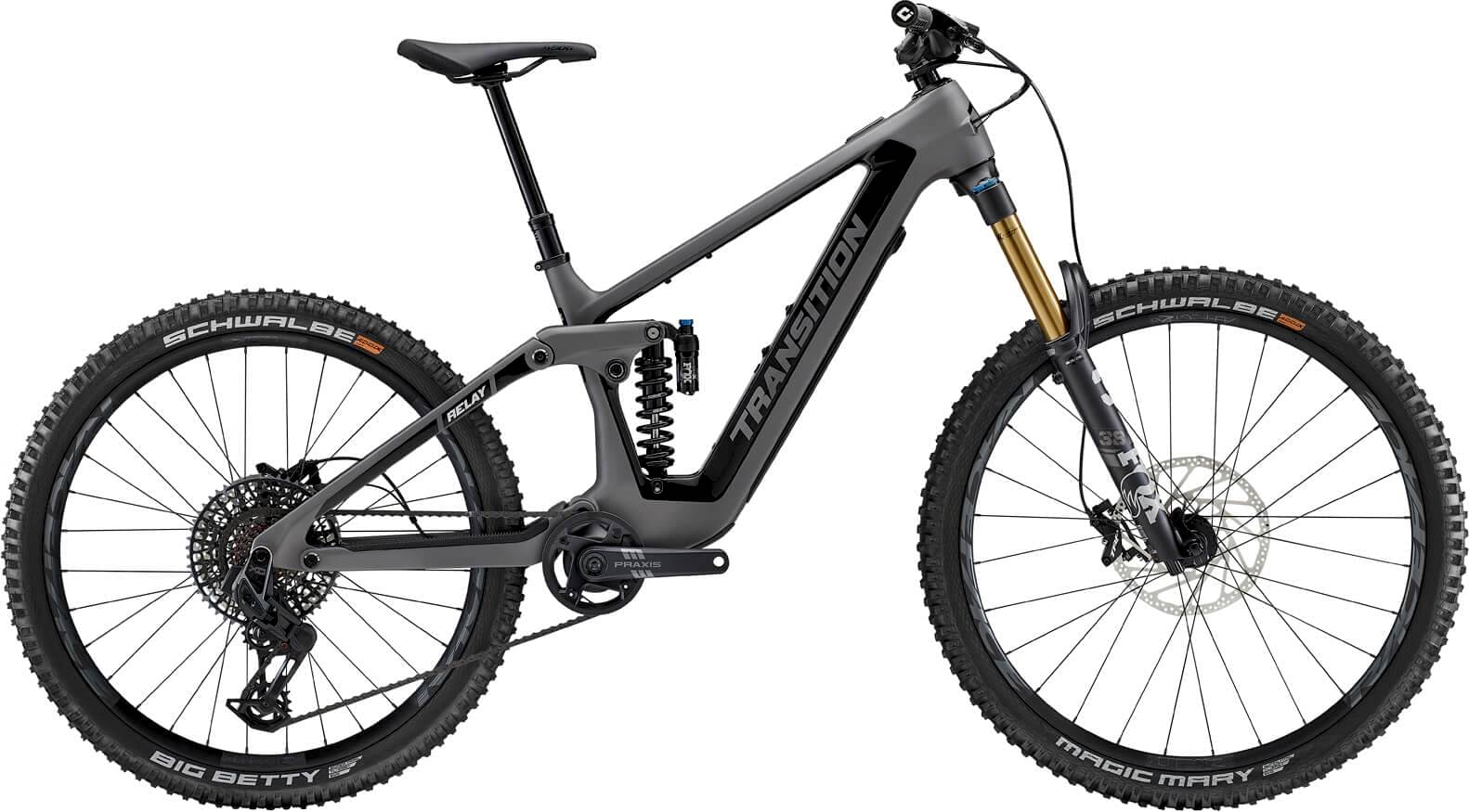

Transition Relay PNW Carbon XO AXS 2023
2023 E-bike
Estimate price |
10,999$
Weight | 20.64 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 170mm -
Travel Rear 170mm -
Fork Fox Factory Float 38
-
Groupset X0 Eagle Transmission, SRAM -
Suspension Full -
Motor Fazua mid-drive -
Battery Fazua Energy 430 Take Out -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
143cm - 160cm
SM
154cm - 170cm
MD
164cm - 182cm
LG
175cm - 190cm
XL
184cm - 200cm
XXL
190cm - 207cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Relay Carbon 170mm
Suspension Fork
Fox Float 38 Grip 2 Factory, (170mm)
Rear Shock
Fox DHX Coil Factory, (205x65mm), XS/SM(350lb) MD(400lb) LG(450lb) XL(500lb) XXL(550lb)
Drivetrain
Rear Derailleur
SRAM XO AXS Eagle Transmission
Shift Levers
SRAM POD Ultimate Bridge MMX
Cassette
SRAM XS 1295 T-Type (10-52t)
Crank
Praxis Alloy ETOR, (165mm, X-Small 160mm)
Bottom Bracket
Fazua Ride 60 System
Chain
SRAM XO Eagle Transmission
Wheels
Front Hub
RaceFace Trace 28H
Rear Hub
RaceFace Trace 28H
Rims
RaceFace Aeffect R
Spokes
RaceFace 2.0/1.7/2.0
Tires
Front: Schwalbe Magic Mary, Super Trail, Soft 2.4, Rear: Schwalbe Big Betty, Super Trail, Soft 2.4
Brakes
Brakes
TRP DH-R EVO
Cockpit
Stem
ANVL Swage (40mm)
Handlebar
ANVL Mandrel Alloy 35, XS/SM(800x20) MD/LG/XL(800x30) XXL (800x40)
Grips
ODI Elite Flow Lock-On
Headset
FSA No.55R
Seat
Saddle
SDG Bel Air 3
Seatpost
OneUp Dropper Post, XS(120mm) SM(150mm) MD(180mm) LG/XL/XXL(210mm)
Motor & Battery
Motor
Fazua Ride 60
Battery
Fazua Energy 430 Take Out
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.48 mm | 1.41 mm | 1.35 mm | 1.3 mm | 1.26 mm |
| Bottom Bracket Height | 343 mm | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 736 mm | 772 mm | 808 mm | 837 mm | 867 mm | 896 mm |
| Rake | 38 mm | 45 mm | 44 mm | 44 mm | 45 mm | 45 mm |
| Trail | 134 mm | 138 mm | 139 mm | 139 mm | 137 mm | 137 mm |
| Stack | 586 mm | 613 mm | 627 mm | 636 mm | 645 mm | 654 mm |
| Reach | 398 mm | 415 mm | 445 mm | 470 mm | 495 mm | 520 mm |
| Top Tube Length | 525 mm | 557 mm | 590 mm | 624 mm | 658 mm | 689 mm |
| Seat Tube Angle | 79.3 ° | 78.4 ° | 77.7 ° | 77.1 ° | 76.6 ° | 76.3 ° |
| Seat Tube Length | 410 mm | 410 mm | 410 mm | 430 mm | 460 mm | 490 mm |
| Head Tube Angle | 63.6 ° | 63.3 ° | 63.3 ° | 63.3 ° | 63.4 ° | 63.4 ° |
| Head Tube Length | 105 mm | 105 mm | 115 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 429 mm | 433 mm | 433 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1165 mm | 1204 mm | 1240 mm | 1275 mm | 1305 mm | 1334 mm |
| Bottom Bracket Drop | 11 mm | 25 mm | 25 mm | 25 mm | 25 mm | 25 mm |
| Wheels | 27" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 143 cm | 154 cm | 164 cm | 175 cm | 184 cm | 190 cm |
| Rider Max Height | 160 cm | 170 cm | 182 cm | 190 cm | 200 cm | 207 cm |
About this model
Relay PNW Carbon XO AXS is part of the Transition E Relay model. Transition released 6 e-bikes variations of this model so far. You can easily view all of the Transition E Relay e-bikes models from 2023, here.
Model range prices
The most economical model, the Transition Relay Alloy NX 2023 has a starting price of 6799$. Transition Relay Carbon XX AXS 2023 on the other hand is the most expensive at 12499$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Enduro e-bikes
According to our calculations, the average cost of an Enduro e-bike that is reliable is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
This e-bike was released in 2023 and its price was 10999$. Comparing the average cost of an Enduro e-bike to this one, you will see that Relay PNW Carbon XO AXS price is 129.86% higher.
Enduro e-bikes average weight
If we make a quick analysis of the average weight of an Enduro e-bike, we get 23.42 kg (51.63 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Transition Relay PNW Carbon XO AXS it’s weighing 20.64 kg (45.5 lbs). At this weight, is considerably lighter than average. In short, the average Enduro e-bike weight is 13.47% higher than this one.
Relay PNW Carbon XO AXS components
Fork
The Fox Factory Float 38 is included from the factory. It has a travel distance of 170mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
From the factory, it comes with the Fox DHX Coil Factory rear shock model, which has a travel of 170mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
As for the wheels, Transition Relay PNW Carbon XO AXS 2023, has a 27.5″ aluminum model. These wheels will provide you with more control over the e-bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Transition Relay PNW Carbon XO AXS has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Relay PNW Carbon XO AXS comes in 6 sizes, that range from 143 cm – 207 cm (4.69 ft – 6.79 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The Transition model is also equipped with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
