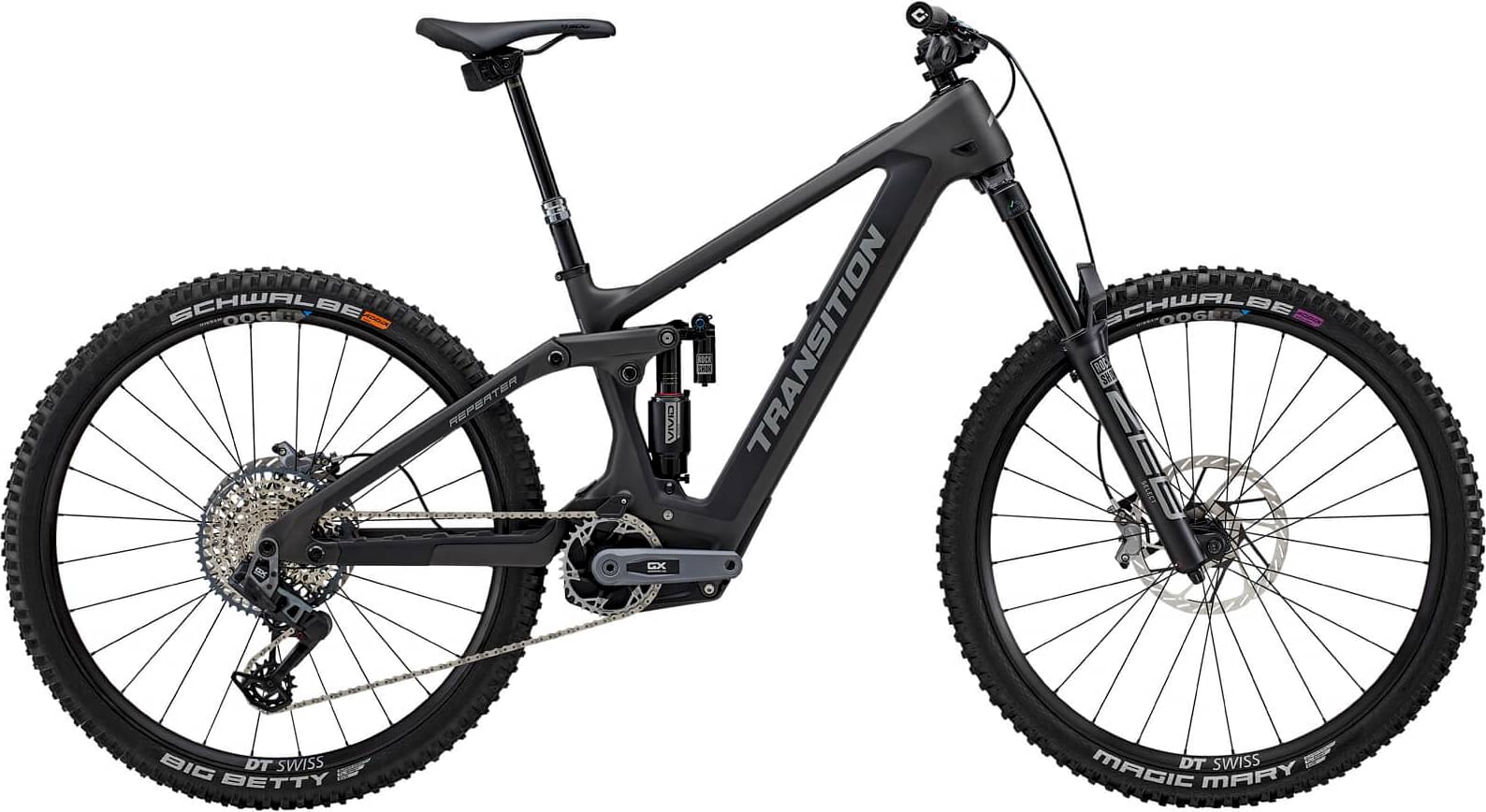

Transition Repeater PT GX AXS 2024
2024 E-bike
Estimate price |
10,499$
Weight | 24.01 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 170mm -
Fork RockShox ZEB Select
-
Groupset GX Eagle Transmission, SRAM -
Suspension Full -
Motor 90Nm mid-drive -
Battery SRAM Eagle Powertrain Full-Size (720wh) -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
164cm - 182cm
LG
175cm - 190cm
XL
184cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Repeater PT Carbon 170mm
Suspension Fork
Rockshox ZEB Select, (170mm)
Rear Shock
Rockshox Vivid Select+, (205x65mm)
Drivetrain
Rear Derailleur
SRAM GX AXS Eagle Transmission
Shift Levers
SRAM POD Bridge MMX
Cassette
SRAM XS 1275 T-Type (10-52t)
Crank
SRAM GX Eagle E-MTB (160mm)
Chain
SRAM GX Eagle Transmission
Chain Guide
Transition Integrated Top Guide
Wheels
Front Hub
DT Swiss Hybrid 370
Rear Hub
DT Swiss Hybrid 370
Rims
DT Swiss H 1900 Spline
Spokes
DT Swiss Hybrid 1
Tires
Front: Schwalbe Magic Mary, Super Gravity, Ultra Soft (2.4), Rear: Schwalbe Big Betty, Super Gravity, Soft (2.4)
Brakes
Brakes
SRAM Code Bronze Stealth
Cockpit
Stem
ANVL Swage (40mm)
Handlebar
ANVL Mandrel Alloy, SM(800x20) MD/LG(800x30) XL(800x40)
Grips
ODI Elite Flow Lock-On
Headset
FSA NO.55R/44
Seat
Saddle
SDG Bel Air 3
Seatpost
Rockshox Reverb AXS, SM(150mm) MD/LG/XL(170mm)
Motor & Battery
Motor
SRAM Eagle Powertrain (90nm)
Battery
SRAM Eagle Powertrain Full-Size (720wh)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.482 mm | 1.396 mm | 1.34 mm | 1.278 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 776 mm | 808 mm | 838 mm | 872 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 138 mm | 139 mm | 138 mm | 138 mm |
| Stack | 630 mm | 635 mm | 643 mm | 652 mm |
| Reach | 425 mm | 455 mm | 480 mm | 510 mm |
| Top Tube Length | 551 mm | 584 mm | 615 mm | 654 mm |
| Seat Tube Angle | 79.2 ° | 78.5 ° | 78.2 ° | 77.5 ° |
| Seat Tube Length | 380 mm | 400 mm | 440 mm | 470 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 110 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1230 mm | 1262 mm | 1292 mm | 1326 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 710 mm | 720 mm | 730 mm | 740 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 164 cm | 175 cm | 184 cm |
| Rider Max Height | 170 cm | 182 cm | 190 cm | 200 cm |
Model Overview
Repeater PT GX AXS is a Transition E Repeater model. Transition released 11 e-bikes variations of this model so far. Check out the entire range from 2024 of this model, by clicking this link.
Model range prices
Transition Repeater PT GX AXS 2024 is the most affordable e-bike of this model and has a price of 10499$. On the other hand, Transition Repeater PT XO AXS 2024, is the most expensive and costs 11999$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Enduro e-bikes average price
If you want to purchase a solid Enduro e-bike, it is important to know that the average cost is 4785$. However, even though the average price of an Enduro e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Transition Repeater PT GX AXS price was 10499$. If we compare this with the average Enduro e-bike cost we notice that the price is 119.41% higher.
Average weight for Enduro e-bikes
The average weight for Enduro e-bikes is 23.42 kg (51.63 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Repeater PT GX AXS weighs 24.01 kg (52.93 lbs) and is slightly heavier than the average. In other words, this model is 2.52% heavier than the average Enduro e-bike.
Repeater PT GX AXS components
Fork
The fork installed on this bike is the RockShox ZEB Select model. The travel on this model is 170mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this e-bike is Rockshox Vivid Select+, with a travel distance of 170mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
As for the wheels, Transition Repeater PT GX AXS 2024, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. Transition Repeater PT GX AXS has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 4 sizes. They vary from 154 cm – 200 cm (5.05 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
