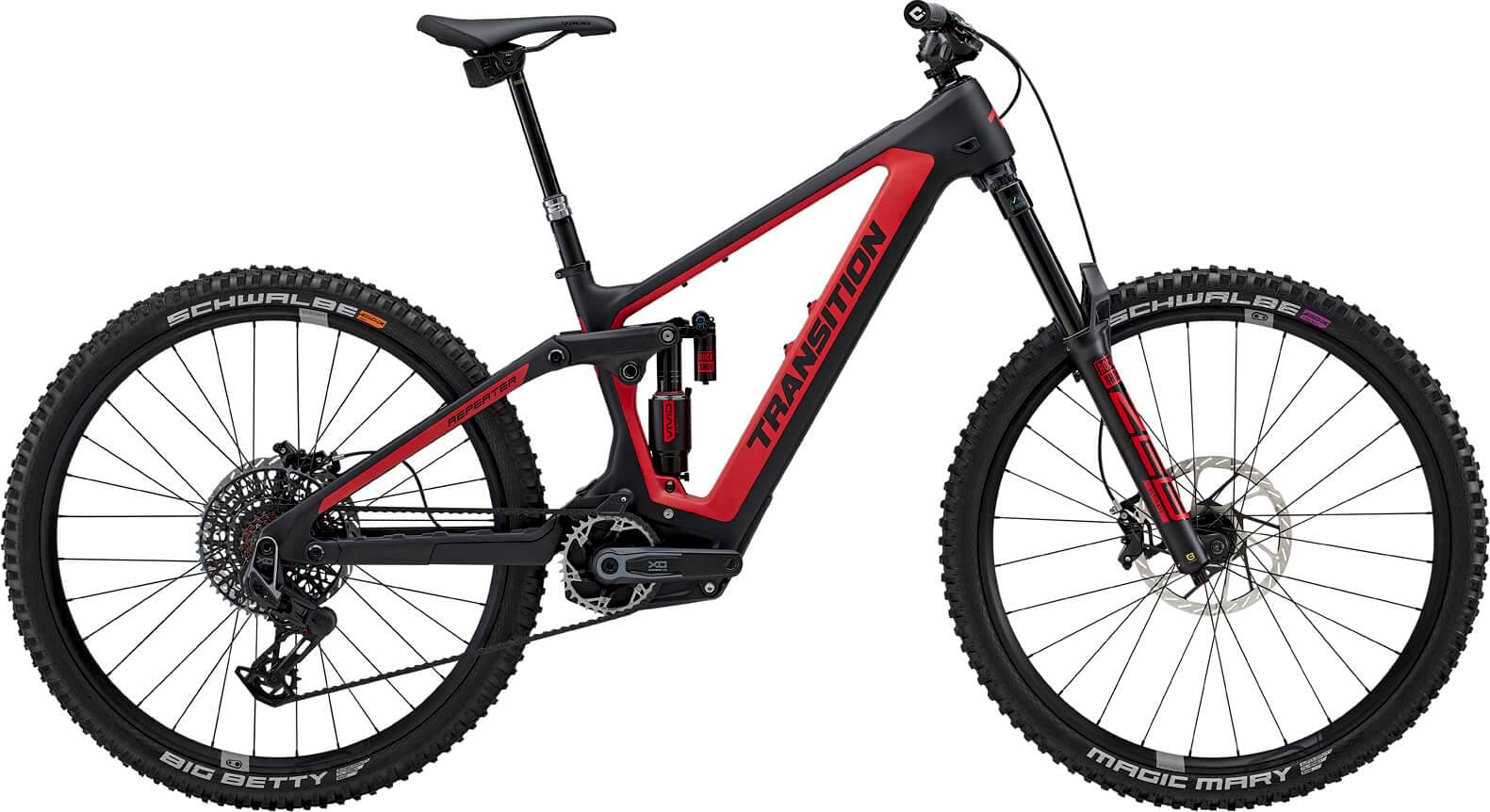

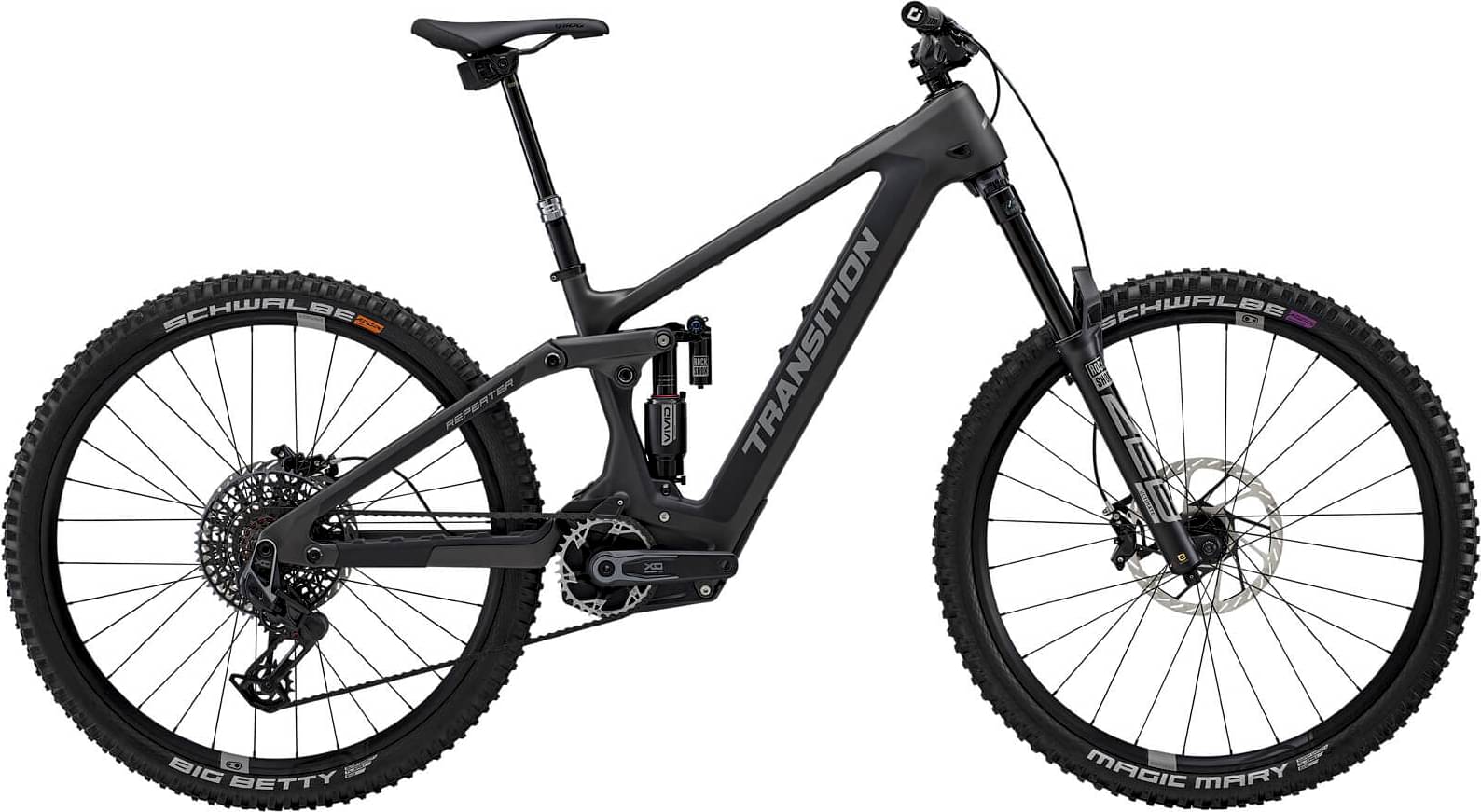

Transition Repeater PT XO AXS 2024
2024 E-bike
Estimate price |
11,999$
Weight | 23.95 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 170mm -
Fork RockShox ZEB Ultimate
-
Groupset X0 Eagle Transmission, SRAM -
Suspension Full -
Motor 90Nm mid-drive -
Battery SRAM Eagle Powertrain Full-Size (720wh) -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
164cm - 182cm
LG
175cm - 190cm
XL
184cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Repeater PT Carbon 170mm
Suspension Fork
Rockshox ZEB Ultimate, (170mm)
Rear Shock
Rockshox Vivid Ultimate, (205x65mm)
Drivetrain
Rear Derailleur
SRAM XO AXS Eagle Transmission
Shift Levers
SRAM POD Ultimate Bridge MMX
Cassette
SRAM XS 1295 T-Type (10-52t)
Crank
SRAM XO Eagle E-MTB (160mm)
Chain
SRAM XO Eagle Transmission
Chain Guide
Transition Integrated Top Guide
Wheels
Front Hub
Industry Nine 1/1, 28 (Front), 32 (Rear)
Rear Hub
Industry Nine 1/1, 28 (Front), 32 (Rear)
Rims
Crankbrothers Synthesis E-Bike Alloy
Spokes
Sapim E-Light (Front) Sapim Strong (Rear)
Tires
Front: Schwalbe Magic Mary, Super Gravity, Ultra Soft (2.4), Rear: Schwalbe Big Betty, Super Gravity, Soft (2.4)
Brakes
Brakes
SRAM Code Silver Stealth
Cockpit
Stem
ANVL Swage (40mm)
Handlebar
OneUp Carbon, SM(800x20) MD/LG/XL(800x35)
Grips
ODI Elite Flow Lock-On
Headset
FSA NO.55R/44
Seat
Saddle
SDG Bel Air 3
Seatpost
Rockshox Reverb AXS, SM(150mm) MD/LG/XL(170mm)
Motor & Battery
Motor
SRAM Eagle Powertrain (90nm)
Battery
SRAM Eagle Powertrain Full-Size (720wh)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.482 mm | 1.396 mm | 1.34 mm | 1.278 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 776 mm | 808 mm | 838 mm | 872 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 138 mm | 139 mm | 138 mm | 138 mm |
| Stack | 630 mm | 635 mm | 643 mm | 652 mm |
| Reach | 425 mm | 455 mm | 480 mm | 510 mm |
| Top Tube Length | 551 mm | 584 mm | 615 mm | 654 mm |
| Seat Tube Angle | 79.2 ° | 78.5 ° | 78.2 ° | 77.5 ° |
| Seat Tube Length | 380 mm | 400 mm | 440 mm | 470 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 110 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1230 mm | 1262 mm | 1292 mm | 1326 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 710 mm | 720 mm | 730 mm | 740 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 164 cm | 175 cm | 184 cm |
| Rider Max Height | 170 cm | 182 cm | 190 cm | 200 cm |
About this model
Repeater PT XO AXS completes the Transition E Repeater model. Transition released 11 e-bikes variations of this model so far. Take a sneak peek at all Transition E Repeater e-bikes models from 2024, by clicking here.
Model range prices
Transition Repeater PT GX AXS 2024 is the most affordable e-bike of this model and has a price of 10499$. On the other hand, Transition Repeater PT XO AXS 2024, is the most expensive and costs 11999$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Enduro e-bikes average price
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Transition Repeater PT XO AXS price was 11999$. Doing a quick comparison, we notice that Repeater PT XO AXS price is 150.76% higher than the average cost of an Enduro e-bike.
Average weight for Enduro e-bikes
If we make a quick analysis of the average weight of an Enduro e-bike, we get 23.42 kg (51.63 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
slightly heavier than average, Repeater PT XO AXS has a weight of 23.95 kg (52.8 lbs). In other words, this model is 2.26% heavier than the average Enduro e-bike.
Overview of components
Fork
The RockShox ZEB Ultimate is included from the factory. It has a travel distance of 170mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The Repeater PT XO AXS has a rear shock with a travel of 170mm. The model Rockshox Vivid Ultimate is the one installed in this e-bike. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When it comes to wheels, the Repeater PT XO AXS e-bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The Repeater PT XO AXS has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Transition Repeater PT XO AXS e-bike has 4 sizes, in the range of 154 cm – 200 cm (5.05 ft – 6.56 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Transition Repeater PT XO AXS includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
