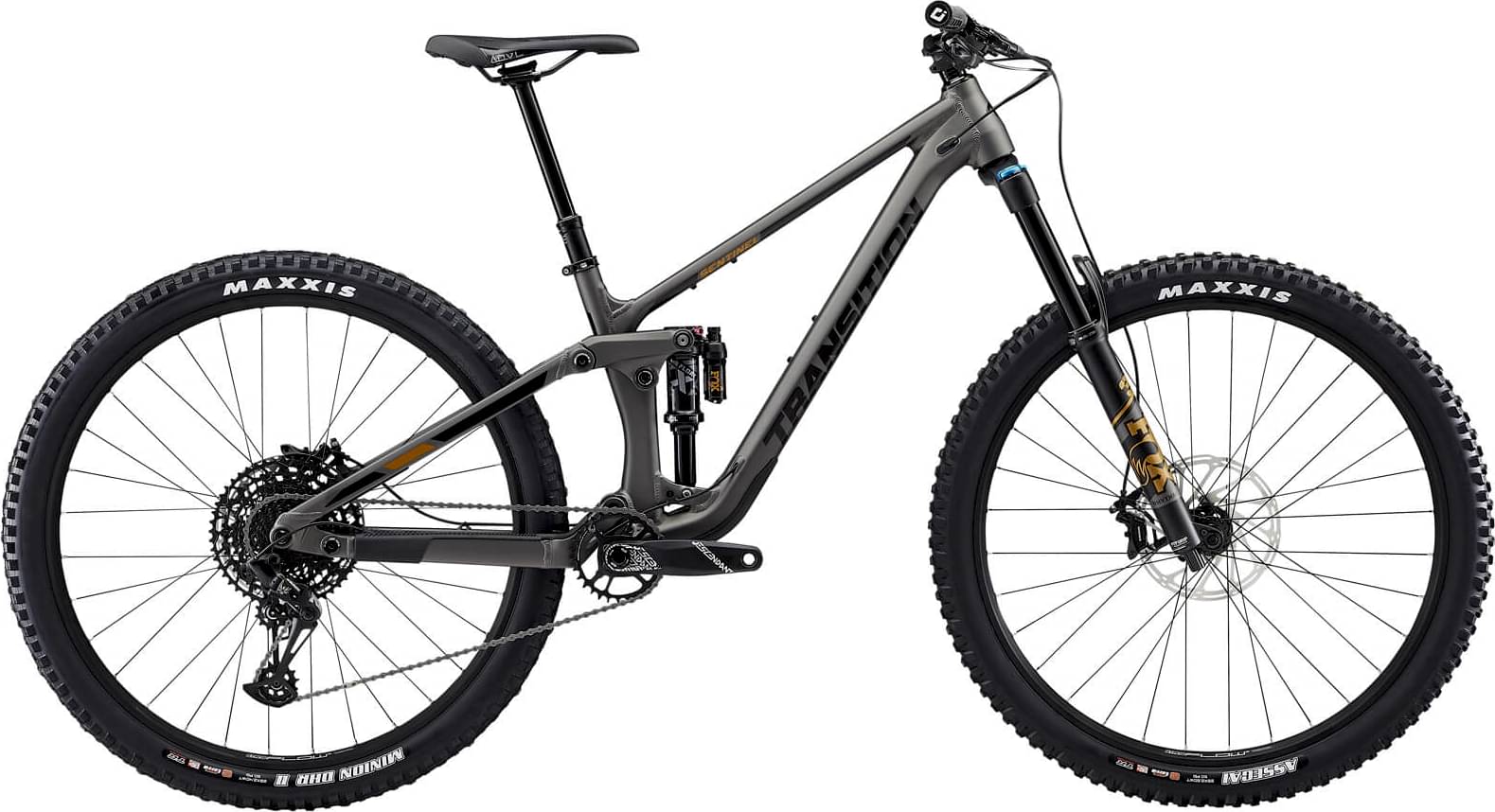

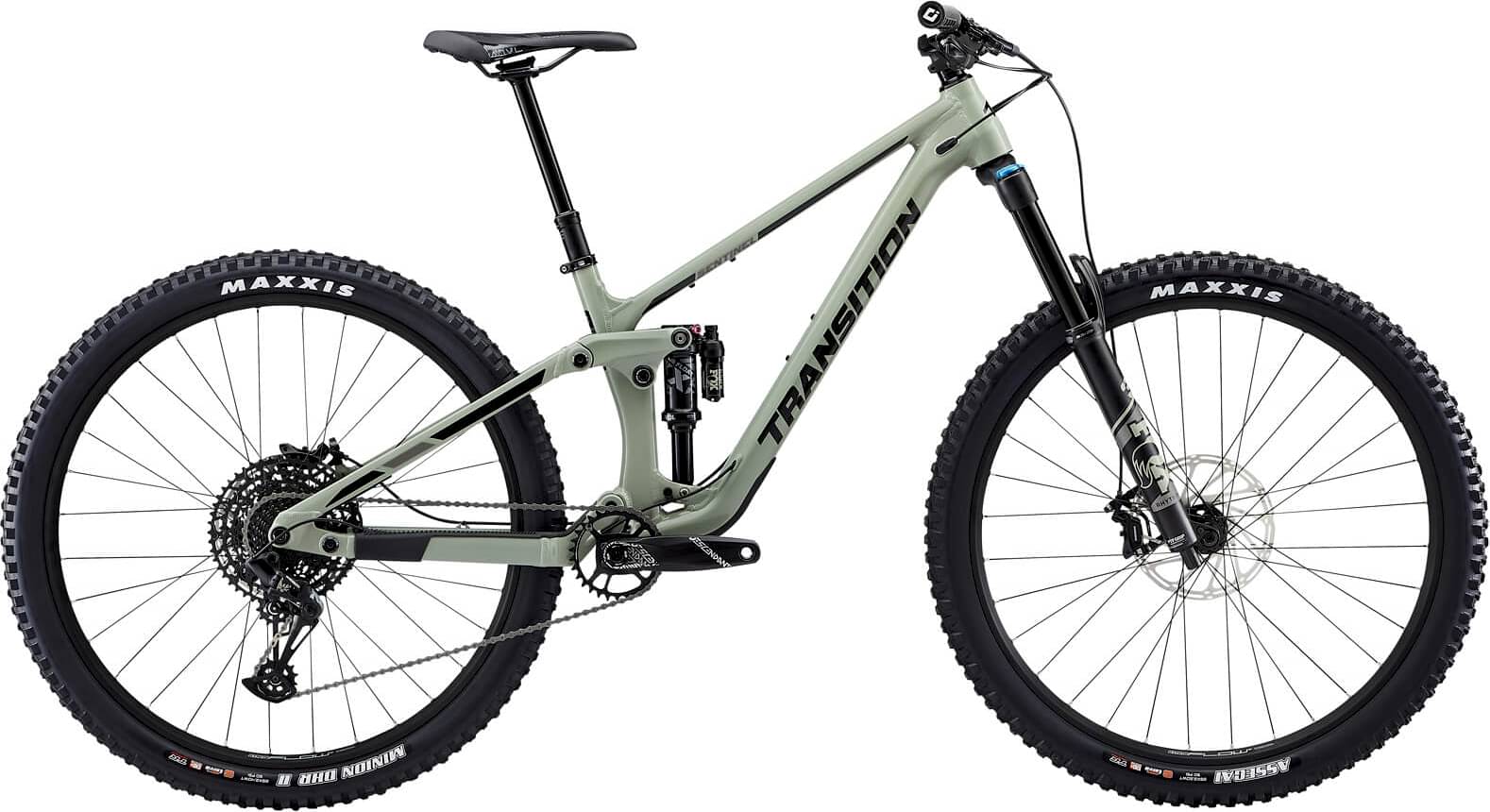

Transition Sentinel Alloy NX 2023
2023 Mountain
Estimate price |
4,099$
Weight | 16.24 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Rhythm Float 36
-
Groupset NX Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
164cm - 182cm
LG
175cm - 190cm
XL
184cm - 200cm
XXL
190cm - 207cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Sentinel Alloy 150mm
Suspension Fork
Fox Float 36 Rhythm, (160mm)
Rear Shock
Fox Float X Performance, (205x62.5mm)
Drivetrain
Rear Derailleur
SRAM NX Eagle
Shift Levers
SRAM NX Eagle MMX
Cassette
SRAM PG 1230 (11-50t)
Crank
SRAM Descendent 6k DUB, (30t/170mm)
Bottom Bracket
73mm BSA Threaded
Chain
SRAM NX Eagle
Wheels
Front Hub
Novatech D791SB/D902SB
Rear Hub
Novatech D791SB/D902SB
Rims
Stans Flow D, or, WTB ST i30
Spokes
Pillar Double Butted
Tires
Front: Maxxis Assegai 3C EXO+ (2.5), Rear: Maxxis Minion DHRII 3C EXO+ (2.4)
Brakes
Brakes
SRAM Guide RE 4-Piston
Cockpit
Stem
RaceFace Aeffect R (40mm)
Handlebar
RaceFace Chester 35, SM/MD(780x20) LG/XL/XXL(780x35)
Grips
ODI Elite Flow
Headset
FSA No.57E
Seat
Saddle
ANVL Forge Cromo, or, SDG Bel Air 3
Seatpost
OneUp Dropper Post, SM(150mm) MD(180mm) LG/XL/XXL(210mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.38 mm | 1.32 mm | 1.28 mm | 1.25 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm | 347 mm | 347 mm |
| Front Center | 761 mm | 794 mm | 824 mm | 853 mm | 877 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 136 mm | 137 mm | 137 mm | 137 mm | 138 mm |
| Stack | 614 mm | 623 mm | 632 mm | 641 mm | 650 |
| Reach | 421 mm | 451 mm | 477 mm | 502 mm | 522 mm |
| Top Tube Length | 553 mm | 586 mm | 614 mm | 642 mm | 666 mm |
| Seat Tube Angle | 78.2 ° | 77.5 ° | 76.9 ° | 76.4 ° | 76 ° |
| Seat Tube Length | 350 mm | 390 mm | 430 mm | 460 mm | 490 mm |
| Head Tube Angle | 63.6 ° | 63.6 ° | 63.6 ° | 63.6 ° | 63.6 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1200 mm | 1234 mm | 1264 mm | 1293 mm | 1317 mm |
| Bottom Bracket Drop | 29 mm | 29 mm | 29 mm | 29 mm | 29 mm |
| Standover Height | 672 mm | 689 mm | 701 mm | 713 mm | 723 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 164 cm | 175 cm | 184 cm | 190 cm |
| Rider Max Height | 170 cm | 182 cm | 190 cm | 200 cm | 207 cm |
Model Overview
Sentinel Alloy NX completes the Transition Sentinel model. Transition launched 43 bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
The most economical model, the Transition Sentinel Alloy NX 2023 has a starting price of 4099$. Transition Sentinel Carbon AXS 2023 on the other hand is the most expensive at 7999$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Enduro bikes average price
If you want an acceptable Enduro bike you should know that the average price is 3599$. However, this doesn’t mean that if you spend less money on an Enduro bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2023 for 4099$. If we compare this with the average Enduro bike cost we notice that the price is 13.89% higher.
Average weight for Enduro bikes
The average weight for Enduro bikes is 14.27 kg (31.46 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 16.24 kg (35.8 lbs), Transition bike is considerably heavier than average. To sum up, it’s 13.81% heavier than the average weight of Enduro bikes.
Overview of components
Fork
The Fox Rhythm Float 36 is included from the factory. It has a travel distance of 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
From the factory, it comes with the Fox Float X Performance rear shock model, which has a travel of 150mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When leaving the production line, the Sentinel Alloy NX model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The Sentinel Alloy NX has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Transition Sentinel Alloy NX bike has 5 sizes, in the range of 154 cm – 207 cm (5.05 ft – 6.79 ft). In short, you can easily find one that suits you.
Dropper post
The Transition model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
