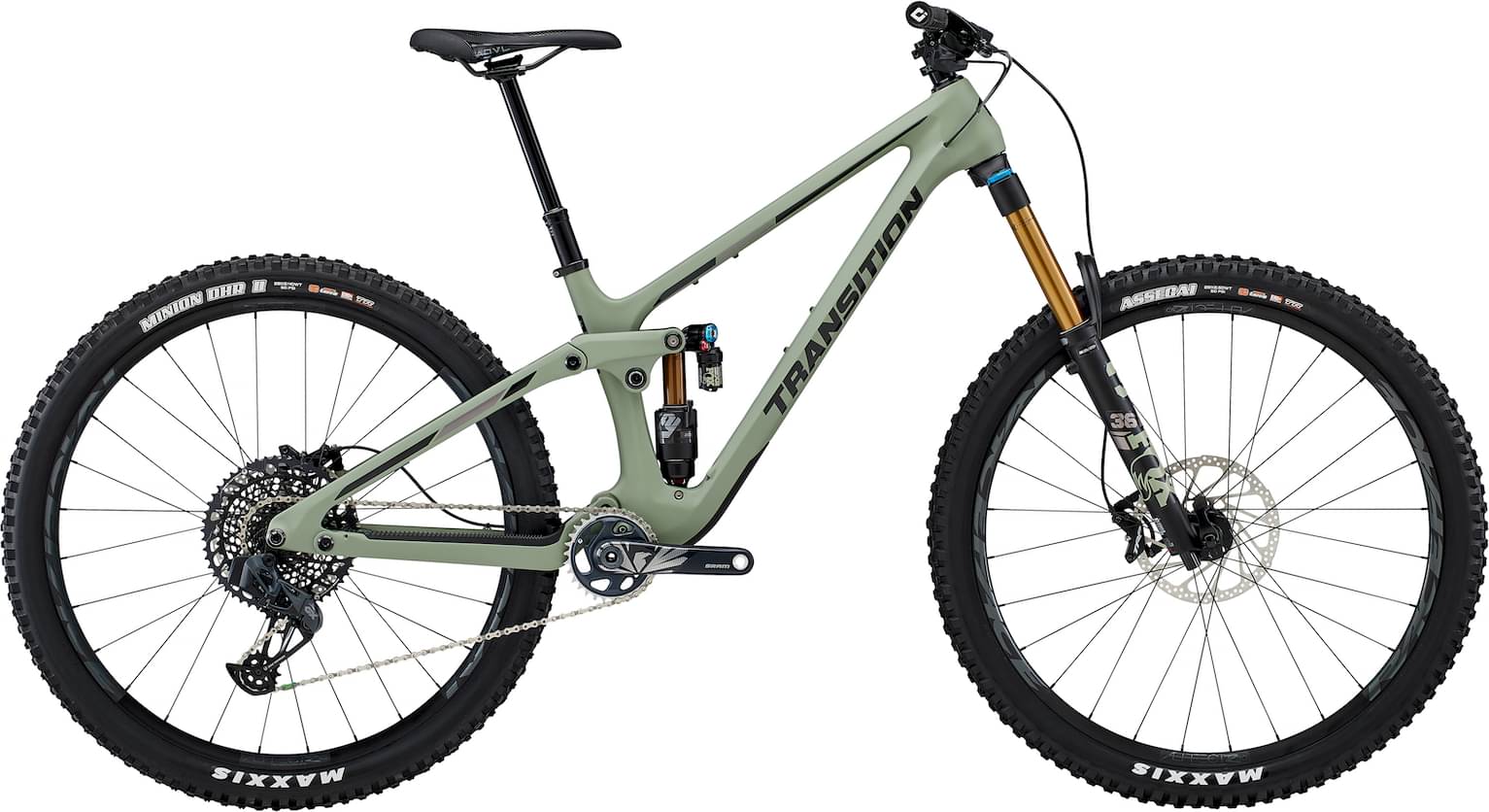

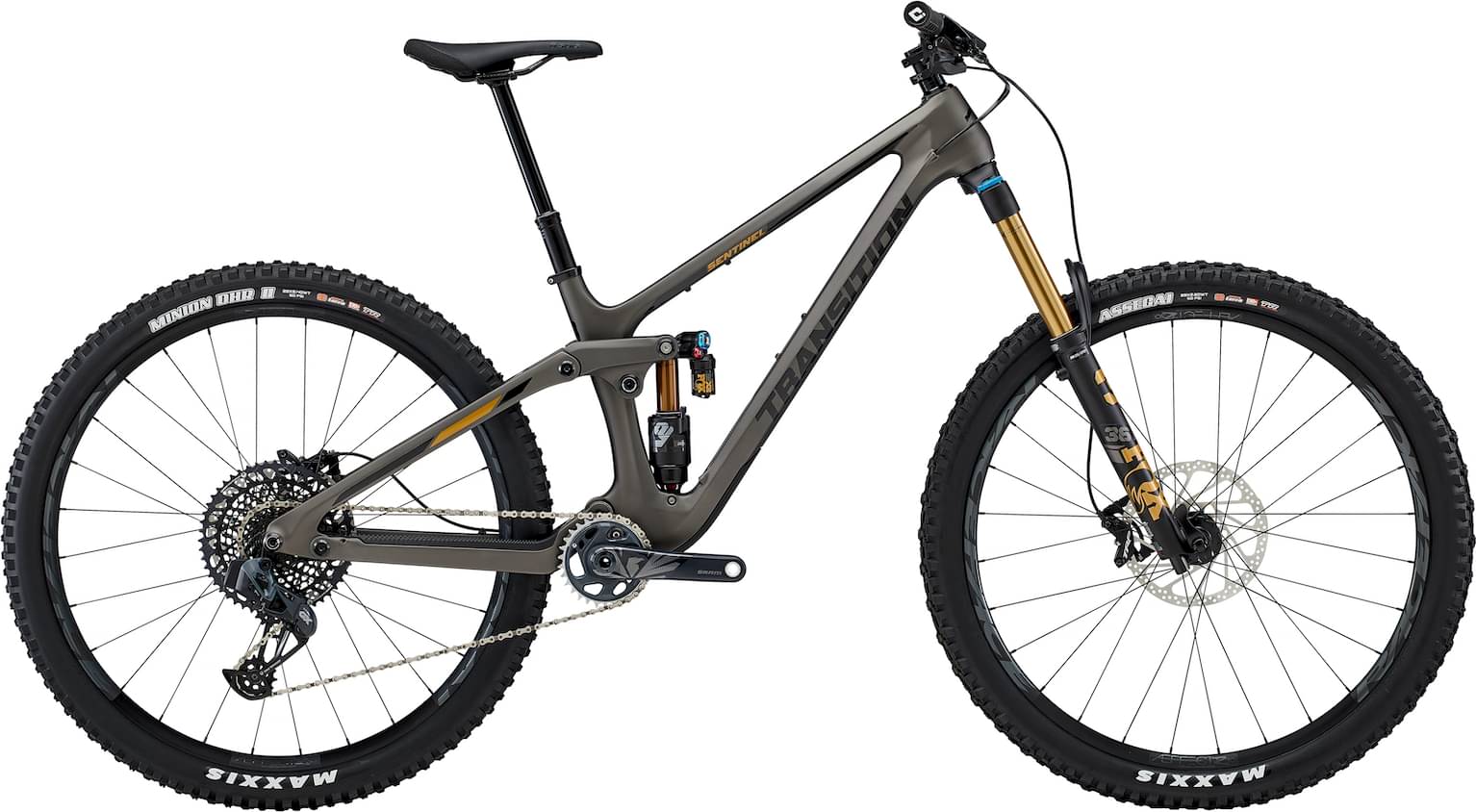

Transition Sentinel Carbon AXS 2023
2023 Mountain
Estimate price |
7,999$
Weight | 14.33 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Factory Float 36
-
Groupset GX Eagle AXS, X1 -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
164cm - 182cm
LG
175cm - 190cm
XL
184cm - 200cm
XXL
190cm - 207cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Sentinel Carbon 150mm
Suspension Fork
Fox Float 36 Grip 2 Factory, (160mm)
Rear Shock
Fox Float X2 Factory, (205x62.5mm)
Drivetrain
Rear Derailleur
SRAM GX AXS
Shift Levers
SRAM GX AXS (Rocker Paddle)
Cassette
SRAM XG 1295 (10-52t)
Crank
SRAM X1 Carbon DUB, (30t/170mm)
Bottom Bracket
73mm BSA Threaded
Chain
SRAM XO1 Eagle
Wheels
Front Hub
RaceFace Trace 28H
Rear Hub
RaceFace Trace 28H
Rims
RaceFace Aeffect R
Spokes
RaceFace 2.0/1.7/2.0
Tires
Front: Maxxis Assegai 3C EXO+ (2.5), Rear: Maxxis Minion DHRII 3C EXO+ (2.4)
Brakes
Brakes
TRP DH-R-Evo
Cockpit
Stem
ANVL Swage (40mm)
Handlebar
OneUp Carbon Bar, SM/MD(800x20) LG/XL/XXL(800x35)
Grips
ODI Elite Flow
Headset
FSA No.57E
Seat
Saddle
ANVL Forge Cromo, or, SDG Bel Air 3
Seatpost
OneUp Dropper Post, SM(150mm) MD(180mm) LG/XL/XXL(210mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.38 mm | 1.32 mm | 1.28 mm | 1.25 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm | 347 mm | 347 mm |
| Front Center | 761 mm | 794 mm | 824 mm | 853 mm | 877 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 136 mm | 137 mm | 137 mm | 137 mm | 138 mm |
| Stack | 614 mm | 623 mm | 632 mm | 641 mm | 650 |
| Reach | 421 mm | 451 mm | 477 mm | 502 mm | 522 mm |
| Top Tube Length | 553 mm | 586 mm | 614 mm | 642 mm | 666 mm |
| Seat Tube Angle | 78.2 ° | 77.5 ° | 76.9 ° | 76.4 ° | 76 ° |
| Seat Tube Length | 350 mm | 390 mm | 430 mm | 460 mm | 490 mm |
| Head Tube Angle | 63.6 ° | 63.6 ° | 63.6 ° | 63.6 ° | 63.6 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1200 mm | 1234 mm | 1264 mm | 1293 mm | 1317 mm |
| Bottom Bracket Drop | 29 mm | 29 mm | 29 mm | 29 mm | 29 mm |
| Standover Height | 672 mm | 689 mm | 701 mm | 713 mm | 723 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 164 cm | 175 cm | 184 cm | 190 cm |
| Rider Max Height | 170 cm | 182 cm | 190 cm | 200 cm | 207 cm |
About this model
Sentinel Carbon AXS is part of the Transition Sentinel model. There are 43 bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
The most economical model, the Transition Sentinel Alloy NX 2023 has a starting price of 4099$. Transition Sentinel Carbon AXS 2023 on the other hand is the most expensive at 7999$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Enduro bikes
Our math shows that the average cost of a dependable Enduro bike is 3599$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 7999$. If we compare this with the average Enduro bike cost we notice that the price is 122.26% more expensive.
Enduro bikes average weight
The average weight for Enduro bikes is 14.27 kg (31.46 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 14.33 kg (31.59 lbs), the Sentinel Carbon AXS model is slightly heavier than average. In conclusion, the average Enduro bike weighs 0.42% less than Sentinel Carbon AXS.
Sentinel Carbon AXS components
Fork
The Fox Factory Float 36 is included from the factory. It has a travel distance of 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
As for the rear shock, this bike has the Fox Float X2 Factory model, with a travel of 150mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When it comes to wheels, the Sentinel Carbon AXS bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Transition Sentinel Carbon AXS is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Transition Sentinel Carbon AXS bike has 5 sizes, in the range of 154 cm – 207 cm (5.05 ft – 6.79 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Every bike should have a dropper post, and this one does. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
