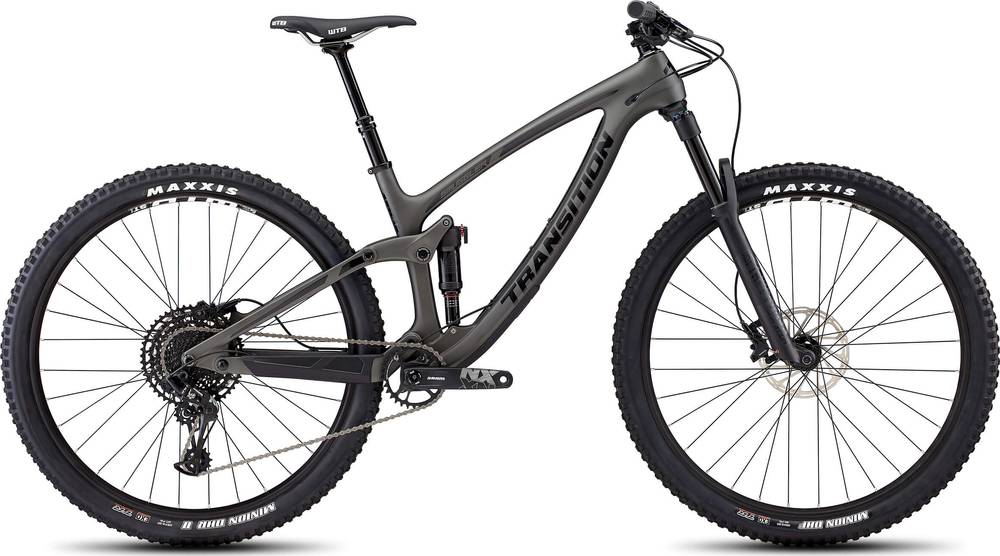

Transition SMUGGLER CARBON COMPLETE NX 2019
2019 Mountain
Estimate price |
3,999$
Weight | 14.02 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 120mm -
Fork RockShox Revelation RC
-
Groupset NX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
164cm - 182cm
LG
175cm - 190cm
XL
184cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Smuggler Carbon 120mm Rear/140mm Front
Suspension Fork
Rockshox Revelation RC 140mm
Rear Shock
RockShox Deluxe RT
Drivetrain
Rear Derailleur
SRAM NX Eagle
Shift Levers
SRAM NX Eagle
Cassette
SRAM PG 1230 (11-50t)
Crank
SRAM NX Eagle DUB (170mm x 30t)
Chain
SRAM NX Eagle
Wheels
Rims
WTB STi25/Novatech D791SB/D462SB
Tires
Front: Maxxis Minion DHF Dual WT (29x2.3), Rear: Maxxis Minion DHRII Dual (29x2.3)
Brakes
Brakes
SRAM Level T
Disk Rotors
SRAM Centerline (180mm)
Cockpit
Stem
RaceFace Aeffect R (40mm)
Handlebar
RaceFace Chester 35, SM/MD (780 x 20mm), LG/XL (780 x 35mm)
Grips
Velo VLG-1812D2
Headset
FSA No.57E
Seat
Saddle
WTB Silverado Comp
Seatpost
RaceFace Aeffect Dropper, SM/MD (125mm), LG/XL (150mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.447 mm | 1.367 mm | 1.314 mm | 1.266 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 731 mm | 756 mm | 785 mm | 814 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 120 mm | 120 mm | 120 mm | 120 mm |
| Stack | 615 mm | 615 mm | 624 mm | 633 mm |
| Reach | 425 mm | 450 mm | 475 mm | 500 mm |
| Seat Tube Angle | 77 ° | 76.3 ° | 75.8 ° | 75.3 ° |
| Seat Tube Length | 400 mm | 410 mm | 450 mm | 495 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1159 mm | 1184 mm | 1213 mm | 1242 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 688 mm | 695 mm | 705 mm | 720 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 164 cm | 175 cm | 184 cm |
| Rider Max Height | 170 cm | 182 cm | 190 cm | 200 cm |
About this model
SMUGGLER CARBON COMPLETE NX is a Transition Smuggler model. 28 bikes variations carry this model name so far. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
Transition SMUGGLER CARBON COMPLETE NX 2019 is the most economical model, with a starting price of 3999$. Transition SMUGGLER CARBON COMPLETE XO1 2019 on the other hand costs 5999$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2019 and its price was 3999$. Comparing this to the average Trail bike price, we see that the price is 44.79% more expensive.
Trail bikes average weight
If we make a quick analysis of the average weight of a Trail bike, we get 12.98 kg (28.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Transition SMUGGLER CARBON COMPLETE NX it’s weighing 14.02 kg (30.91 lbs). At this weight, is a bit heavier than average. In conclusion, the average Trail bike weighs 8.01% less than SMUGGLER CARBON COMPLETE NX.
Overview of components
Fork
The SMUGGLER CARBON COMPLETE NX comes factory-installed with the RockShox Revelation RC fork. This has a travel range of 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
From the factory, it comes with the RockShox Deluxe RT rear shock model, which has a travel of 120mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
As for the wheels, Transition SMUGGLER CARBON COMPLETE NX 2019, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. Transition SMUGGLER CARBON COMPLETE NX has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 154 cm – 200 cm (5.05 ft – 6.56 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
A dropper post is included with the SMUGGLER CARBON COMPLETE NX. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
